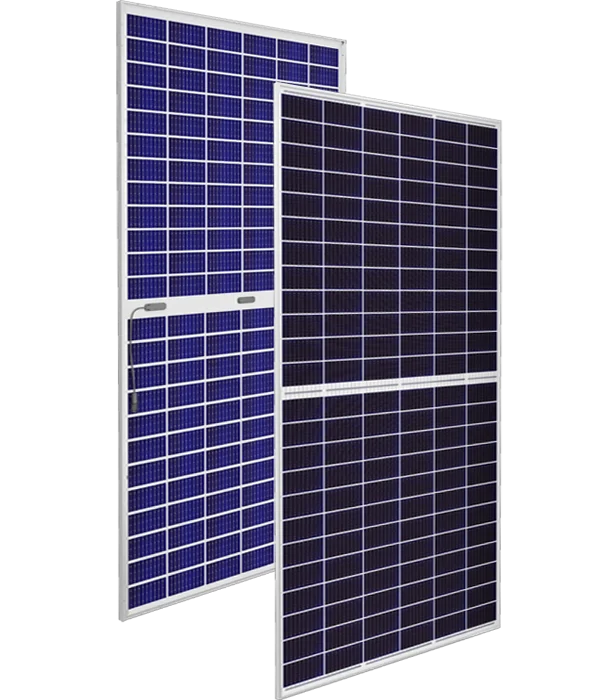

Standard Mono Polycrystalline Half Cell 445w solar panel for solar system power station solar panel home light
- Category: >>>
- Supplier: Shandong Jinhong New Energy Co. Ltd.
Share on (62502948138):
Product Overview
Description
Product Description
Reliable Quality
0~+ 3% positive tolerance output warranty
EL full inspection for twice effectively eliminates defects of products
Optimize module current profile, improve system-side power generation
EL full inspection for twice effectively eliminates defects of products
Optimize module current profile, improve system-side power generation
Our Advantages
5 Busbar Half-cells
Innovative half-cutting cell technology,lower internal current,lower internal resistance loss
High Output Power
Output power is higher than the same type of conventional monocrystal module
Anti-PID Characteristics
Ensure large-scale production monocrystal module pass PID test
Low-light Performance
Advanced glass and surface texturing allow for excellent performance in low-light environments
Load Capacity
Entire module certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal)
Harsh Environment Adaptation
High salt mist and ammonia resistance certifed by TUV NORD

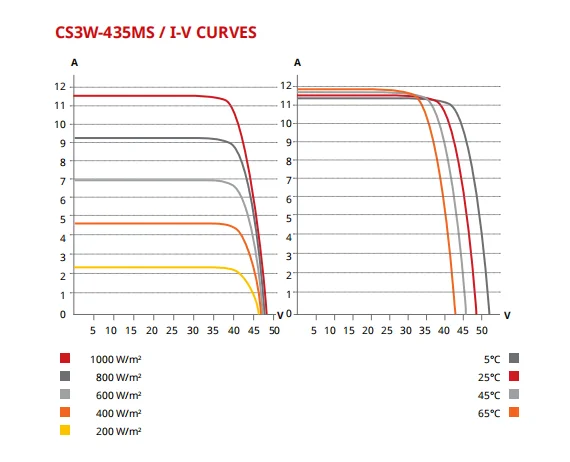

Product Paramenters
CS3W | 425MS | 430MS | 435MS | 440MS | 445MS | 450MS | |||||
Norminal Max.power(Pmax) | 425w | 430w | 435w | 440w | 445w | 450w | |||||
Opt.Operating Voltage (Vmp) | 39.5v | 39.7v | 39.9v | 40.1v | 40.3v | 40.5v | |||||
Opt.Operating Current(Imp) | 10.76A | 10.84A | 10.91A | 10.98A | 11.05A | 11.12A | |||||
Open Circuit Voltage (Voc) | 47.7V | 47.9V | 48.1V | 48.3V | 48.5V | 48.7V | |||||
Short Circuit Current(Isc) | 11.37A | 11.42A | 11.47A | 11.53A | 11.59A | 11.65A | |||||
Module Efficiency | 19.24% | 19.46% | 19.69% | 19.92% | 20.14% | 20.37% | |||||
Operating Temperature | -40℃---+85℃ | ||||||||||
Max.System Voltage | 1500V(IEC/UL) OR 1000V(IEC/UL) | ||||||||||
Module Fire Performance | TYPE 1(UL 1703) or CLASS C (IEC 61730) | ||||||||||
Max.Series Fuse Rating | 20A | ||||||||||
Application Classification | Class A | ||||||||||
Power Tolerance | 0--5W | ||||||||||
Under Standard Test Conditions (STC) of irradiance of 1000W/㎡，spectrum AM 1.5 and cell temperTURE OF 25℃
Certifications
Company Profile
Shandong Jinhong New Energy Co.,Ltd
Established in 2013,Shandong Jinhong New Energy Co.,Ltd is a manufacture and trader,specialized in the research,development and production of Solar modules、Dual axis solar tracking system 、single axis solar tracking system and solar water pump.We are located in Taian Shandong,with convenient transportation access.All of our products comply with international quality standards and are greatly appreciated in a variety of different market throughout the world.
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides,we have received CE、TUV.
As a result of our high quality products and outstanding customer service,we have gained a global sales network reaching US、Canada、Poland、Finland、Australia、Japan、Korea、Hungary、Netherlands、France、Belgium、Lebanon、Chile、Italy、Macedonia、Yemen、Argentina、Panama、Pakistan 、Burma、Norway etc.
As a result of our high quality products and outstanding customer service,we have gained a global sales network reaching US、Canada、Poland、Finland、Australia、Japan、Korea、Hungary、Netherlands、France、Belgium、Lebanon、Chile、Italy、Macedonia、Yemen、Argentina、Panama、Pakistan 、Burma、Norway etc.
Packing & Delivery
1Packing in box with wooden supports at the bottom.
26pcs/box, 594pcs/40feet container
delivery time:14 days
Payment terms:50% advance payment,balance it before shippment.
Port of shippment:Qingdao
FAQ
1. Are you a factory ?
Yes, we are.
2. Where is your factory location ?
Our factory locates at Guhe East Branch Road, Zhong Tianmen Street, High-tech Zone, Taian City, Shandong Province, China
3. Which is your nearest port for delivery ?
Qingdao port
4. What will be the delivery time of your products ?
Normally in 5-10days if we have finished products in stock, production time of new ones is 20-35days.
5.Monthly output?annual output?
10mw/month, 1000mw/year.
Yes, we are.
2. Where is your factory location ?
Our factory locates at Guhe East Branch Road, Zhong Tianmen Street, High-tech Zone, Taian City, Shandong Province, China
3. Which is your nearest port for delivery ?
Qingdao port
4. What will be the delivery time of your products ?
Normally in 5-10days if we have finished products in stock, production time of new ones is 20-35days.
5.Monthly output?annual output?
10mw/month, 1000mw/year.
