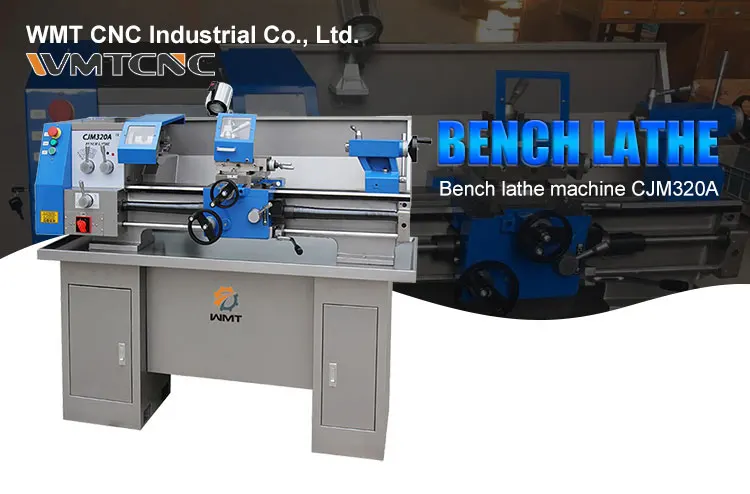

CJM320A manual lathe mini lathe machine bench lathe with CE
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (62502960719):
Product Overview
Description

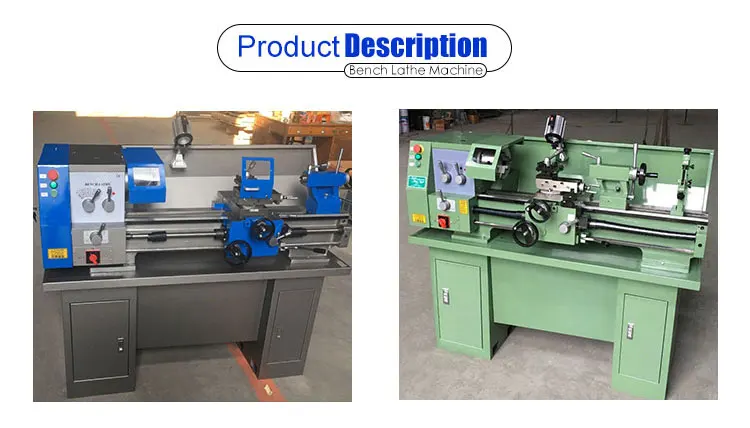

Product Description
Product features:
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
Specifications | CJM320A |
Max. swing over the bed | 330mm |
Max. swing over cross slide | 220mm |
Max. length of work piece | 600mm /750mm |
Width of bed | 160mm |
Spindle taper and bore | MT5/38mm |
Max. lateral stroke over tool post | 160mm |
Metric pitches range | 0.5-4 mm |
Inch pitches range | 9-40 T.P.I |
Longitudinal-feed range | 0.135-1.80mm/r |
Max. travel of tailstock sleeve | 70mm |
Tailstock sleeve taper | MT3 |
Spindle speeds range | 60-1650r/min(50hz) |
Motor power | 1.1kw |
N.W./G.W.(without stand) | 280/300kgs 320/340kgs |
Packing size(without stand) | 1330x760x720/1550x760x720mm |
Packing size | 1330x760x1370/1550x760x1370mm |
Standard accessores:
3-jaw chuck
Dead centers MT3
Change gears set
Splash guard
Oil gun
Toolbox and tools

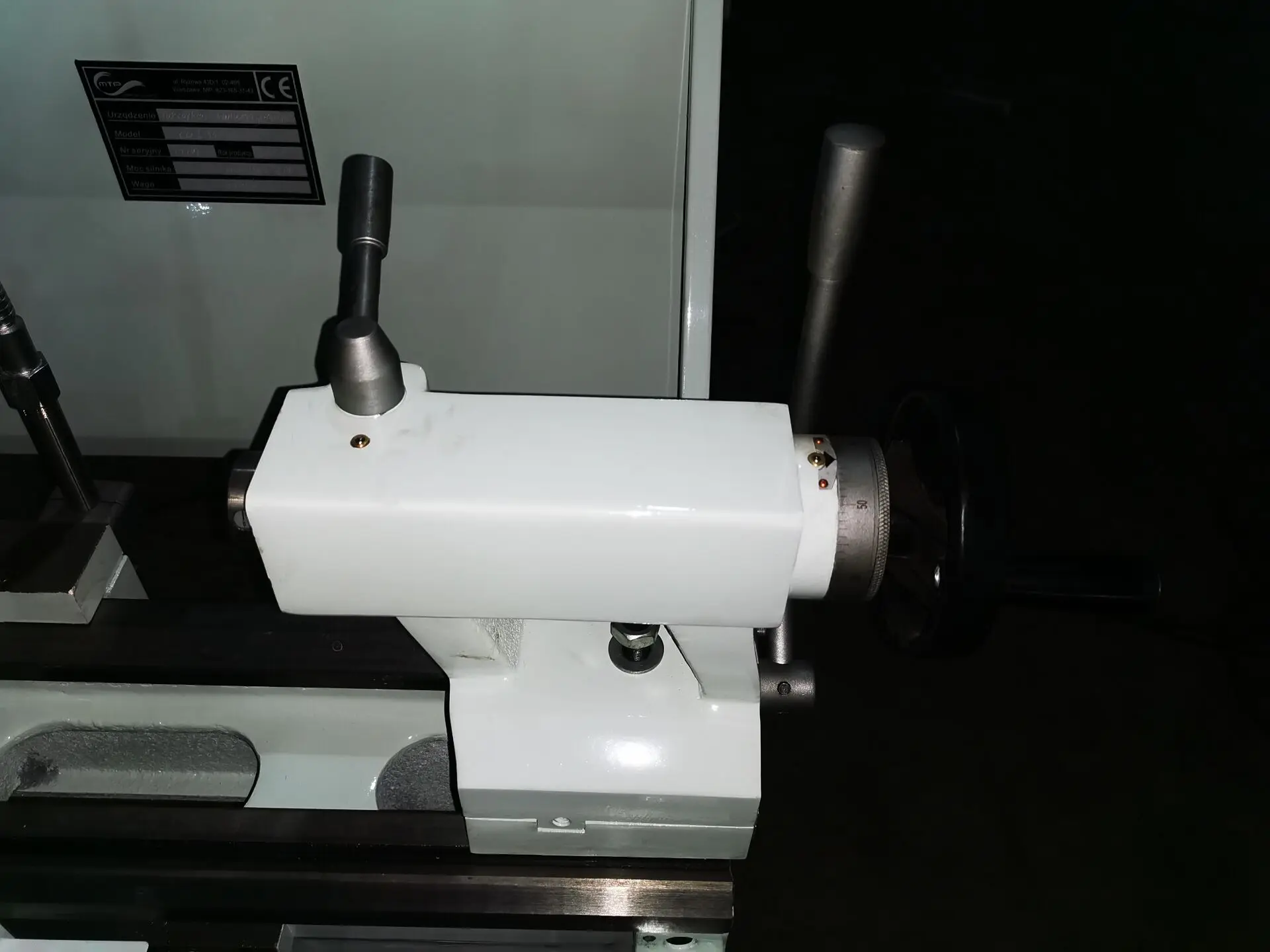

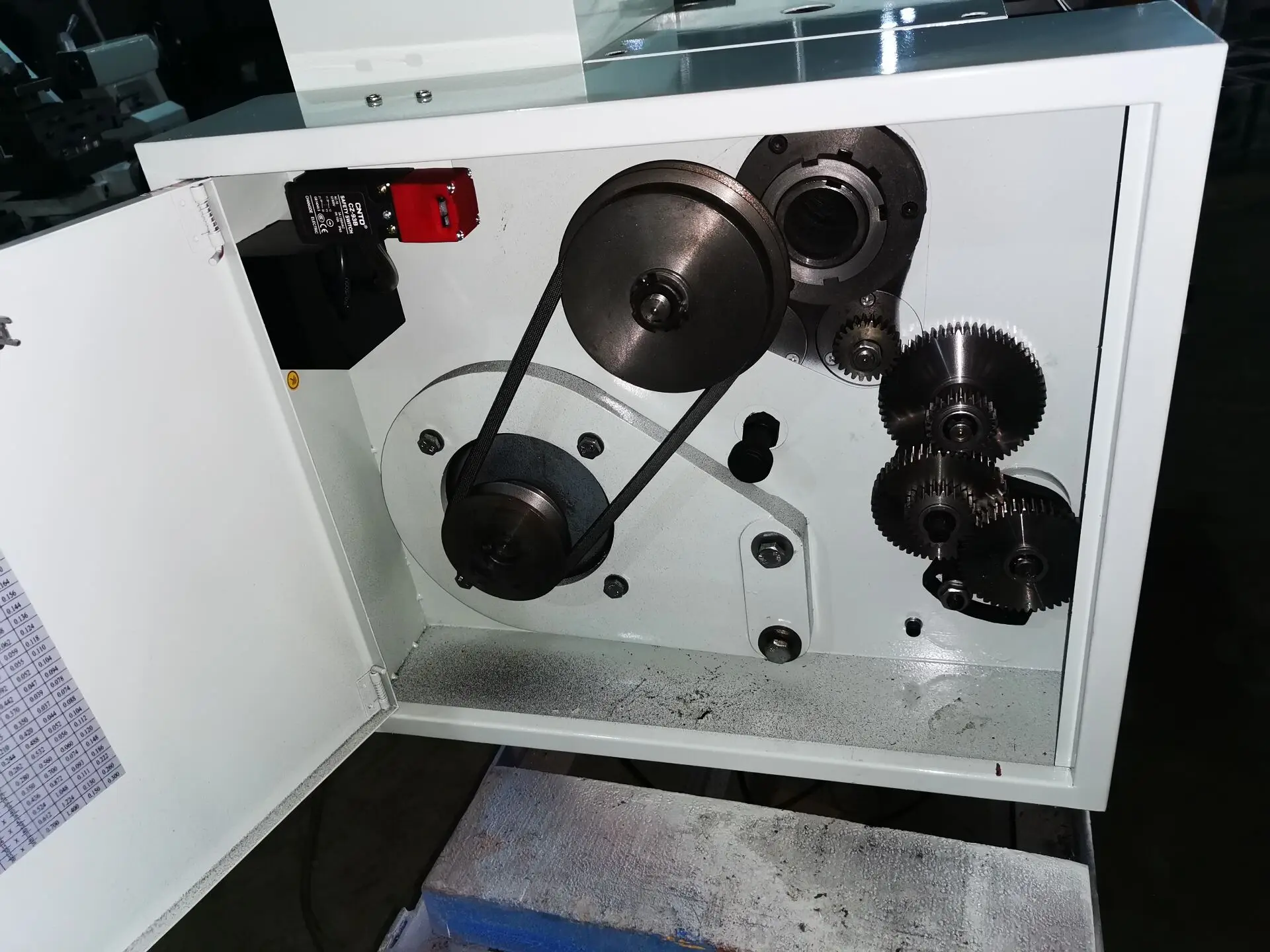

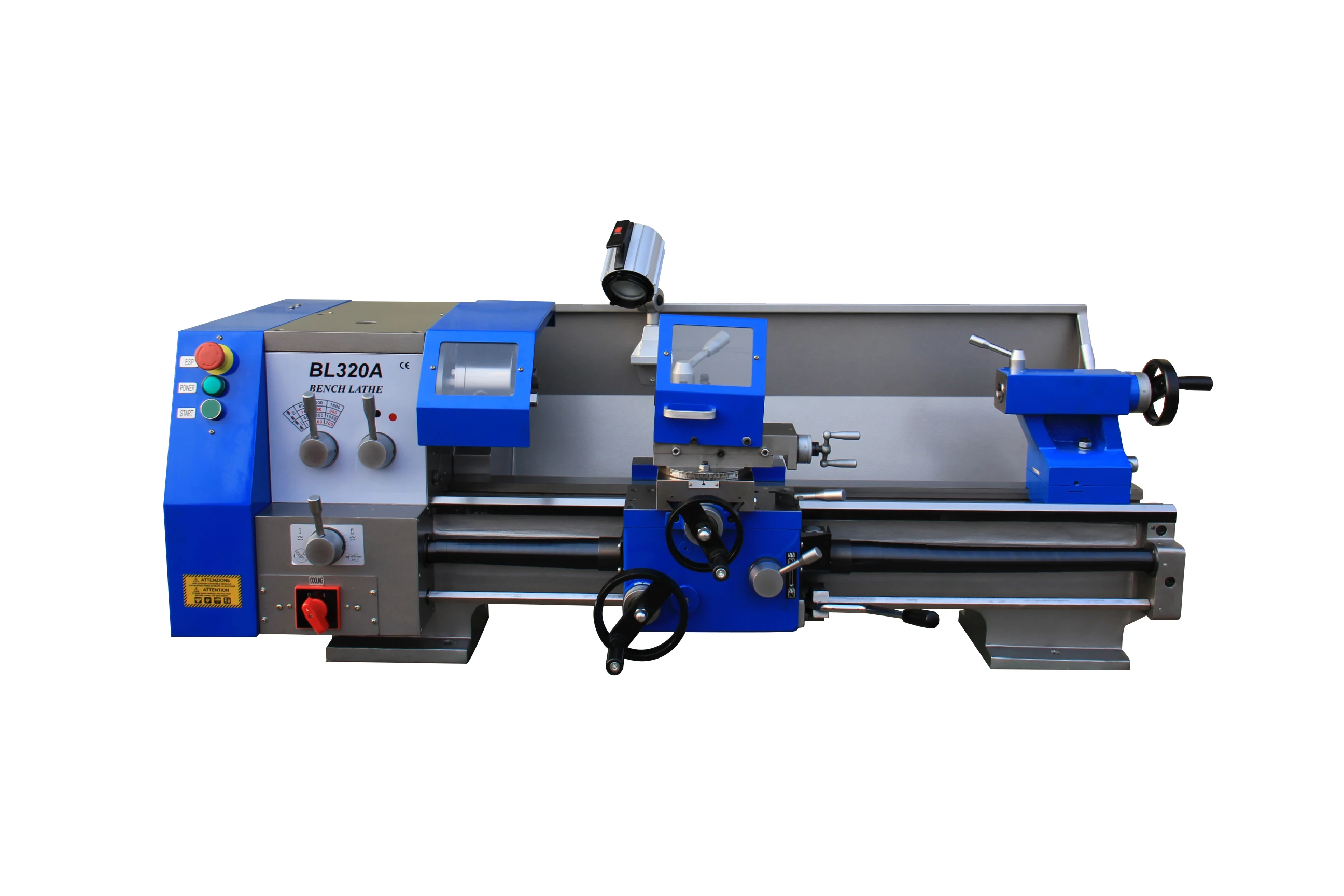

Detailed Images
