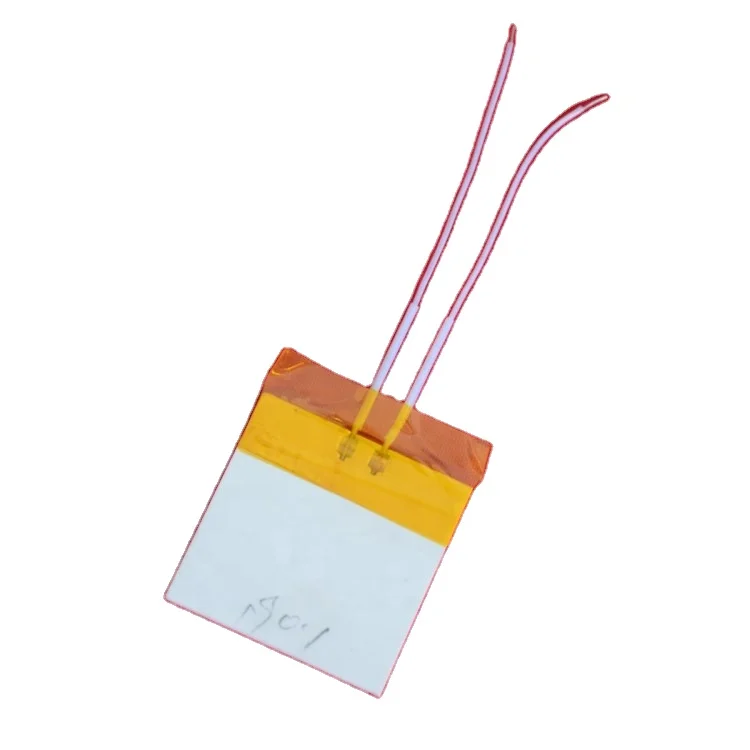

12V Mini MCH Ceramic Heating Element for Car Oxygen Lambada Sensor
- Category: >>>
- Supplier: Yangzhou Tuanrui Electric Co. Ltd.
Share on (62502986956):
Product Overview
Description
Detailed Images
Product Description
1. Introduction
MCH is metal ceramics heater the "make, meaning is metal ceramic heating element. Mch refers to the design of metallic tungsten or molybdenum manganese with high melting point metal heating resistance Slurry required printing to be printed in 92 ~ 96% of alumina casting ceramic tiles, after hot-pressing laminated, then protect the atmosphere at about 1600 ℃, ceramics and metals jointly sintered and made of ceramic tiles, with corrosion resistance, high temperature resistance, long life, efficient energy saving, uniform temperature, good thermal conductivity, the speed of Heat Compensation is fast and so on, and it does not contain lead, cadmium, mercury, chromium, more, more, etc. matter, comply with environmental requirements such as EU rohs and other environmental protection requirements.
Alias: mch fever film, mch ceramic fever film, metal ceramic fever film, alumina Ceramic fever film, htcc ceramic heating element, htcc ceramic heating element heating component.
2. Application Areas
Widely used in daily life, agricultural technology, communication, environmental protection, industrial drying equipment, electric Bonding liquid heater, hairdresser (straight) for acid and Acid-Base liquids) air conditioning, air conditioning, air conditioning and Water Heater quick heating device, multi-functional microwave, oven, oven, dryer, etc, dryer, air conditioner fan, air pump, hot water pot, coffee pot, medical, infrared li liao yi, venous injection heater, etc.
3. Main raw materials
Substrate: White multi-layer alumina ceramics,.-Al2O3 content not less than 95%
Lead: In a ф 0. 5mm of Nickel wire.
Casing, tape: Teflon, high temperature resistance to high temperature
Resistance: high temperature materials such as tungsten, etc.
Product thickness: 0.7 ~ 2.0. Customizable
Use voltage: 3.7 V, 4.5 V, 5 V, 7 V, 6 V, 9 V, 12 V 24 V, 36 V, 110 V, 220 V, 380 V can be customized.
Resistance Selection: 0.3 ~ 1500 ohm, according to voltage, chip size power and customer demand selection.
4. performance and characteristics
1. Simple structure, shape, size and resistance power can be produced according to customer needs;
2. Thermal uniform consistency, high power density: 45 W/cm2;
3, resistance-temperature change linear, can control resistance or voltage easily control temperature;
4. heating up fast, temperature compensation fast;
500 W power started 20 s temperature up to 600 ℃; its component rated power start 10 s temperature can be up to 200 ℃;
5. high heating temperature, up to 700 ℃;
6, high thermal efficiency, uniform heating, energy saving (unit thermal power consumption ratio of 20 ~ 30 );
7, unknown fire, surface safety is not charged.
Good insulation performance: surface safety is not charged, insulation performance is good: can withstand 4500 V/1 s voltage test, no breakdown, leakage current <0. 5mA;
8, long life, long time use without power attenuation;
9.eat-resistant tablets and other corrosive substances;
10. Environmental protection: harmful substances such as lead, cadmium, mercury, chromium, more, more, etc., it is fully compatible with the environmental requirements of the EU.

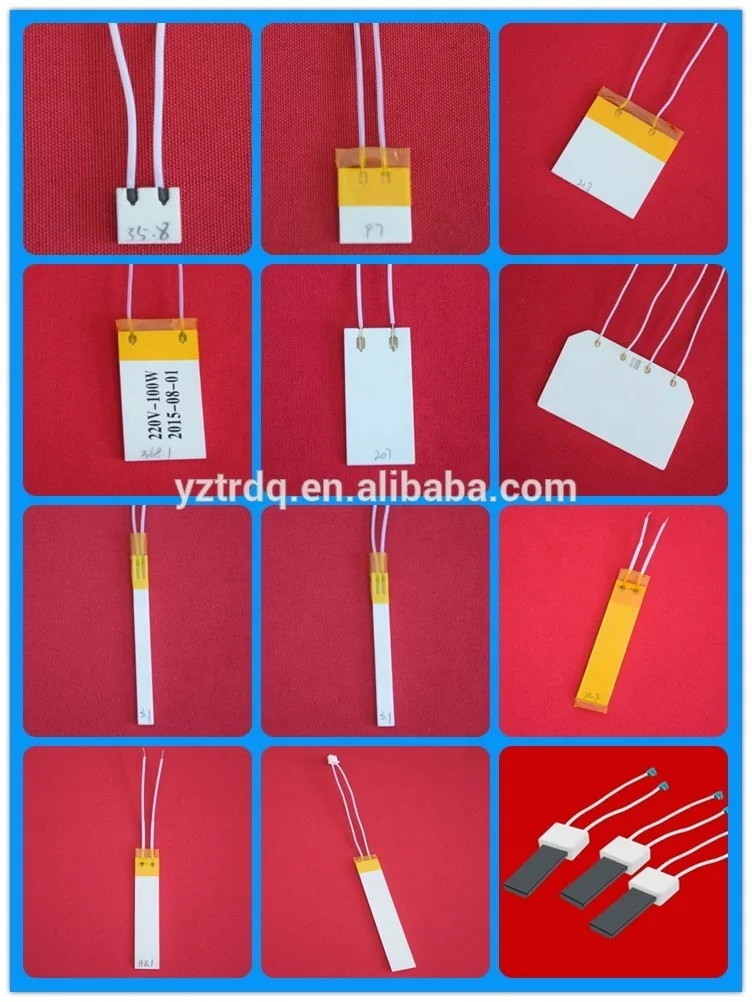

MCH rectangular heating plate | ||||||||||||
serial | specific | voltage （v） | resistance （Ω） | length （mm） | width （mm） | thickness （mm） | ||||||
1 | 10*10*1.3/2.0 | 12/24/48 | 9/10/13/45 | 10 | 10 | 1.3 | ||||||
2 | 15*15*1.3/2.0 | 24/48/72/110 | 90-100 | 15 | 15 | 1.3 | ||||||
3 | 20*10*1.3/2.0 | 12/24 | 5/10/15/20/350 | 20 | 10 | 1.3 | ||||||
4 | 20*15*1.3/2.0 | 12/24/36 | 17-19 | 20 | 15 | 1.3 | ||||||
5 | 25*10*1.3 | 12/24/220v | 40/50/370 | 25 | 10 | 1.3 | ||||||
6 | 30*25*1.3/2.0 | 12/24/120/220 | 20/25/30/35/110/310-350 | 30 | 25 | 1.3 | ||||||
7 | 35*7*1.3/2.0 | 24 | 13 | 35 | 7 | 1.3 | ||||||
8 | 40*40*1.3/2.0 | 110/220 | 200 | 40 | 40 | 2.0 | ||||||
9 | 48*26*2.0 | 220 | 350 | 48 | 26 | 2.0 | ||||||
10 | 50*15*1.5/2 | 12/24/50/110/220 | 5/18/95 | 50 | 15 | 1.5 | ||||||
11 | 50*20*1.3/2.0 | 220 | 240 | 50 | 20 | 2.0 | ||||||
12 | 50*30*1.5 | 110/220 | 55/ | 50 | 30 | 1.5 | ||||||
13 | 50*50*1.3/2.0 | 110 | 50 | 50 | 50 | 2 | ||||||
14 | 70*7*1.3 | 110/220 | 60/80/110/140/150/180 | 70 | 7 | 1.3 | ||||||
15 | 70*10*1.3/2.0 | 3/12/110/220 | 2/6/10/40/60/80/110/120/140/150/180 | 70 | 10 | 1.3 | ||||||
16 | 70*15*1.3/2.0 | 110/220 | 50/100/170/180/200 | 70 | 15 | 1.3 | ||||||
17 | 75*7*1.3/2.0 | 110 | 80 | 75 | 7 | 1.3 | ||||||
18 | 83*50*1.3/2.0 | 220 | 60 | 83 | 50 | 2.0 | ||||||
19 | 100*15*1.3/2.0 | 120/220 | 125-155/550-750 | 100 | 15 | 1.3 | ||||||
20 | 100*16*1.3/2.0 | 12/24 | 16-20 | 100 | 16 | 2.0 | ||||||

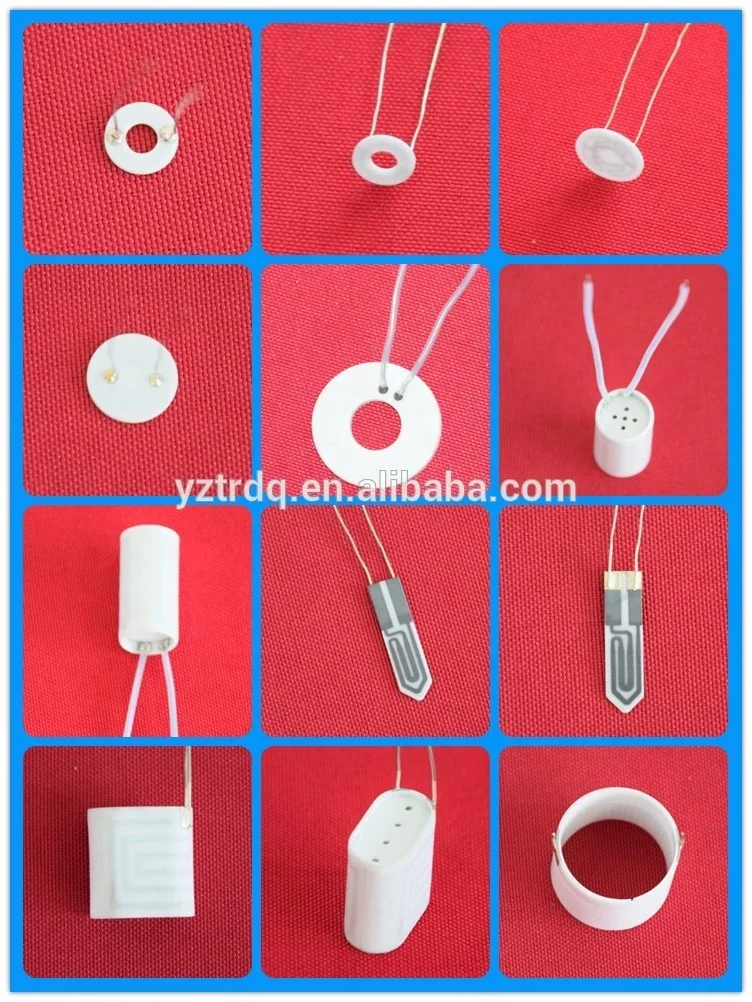

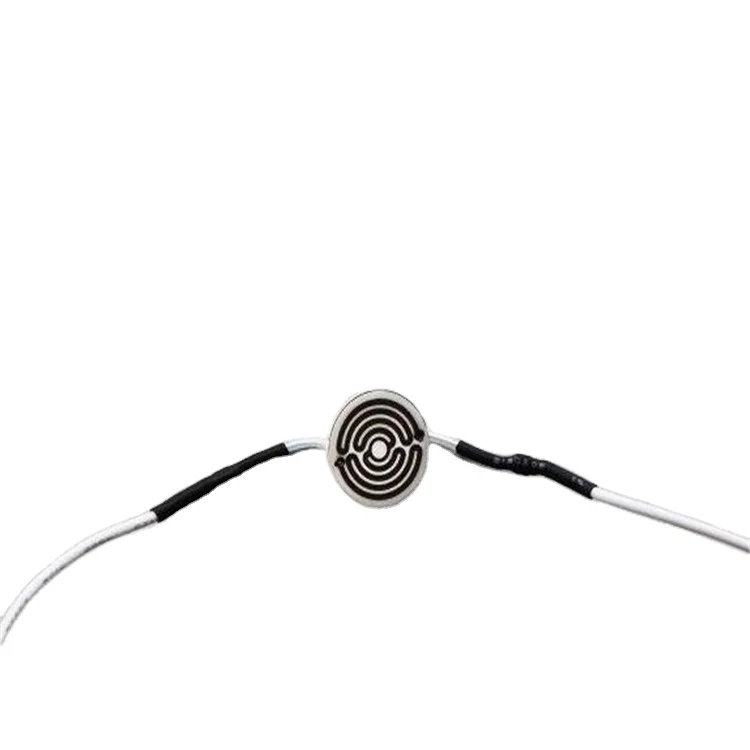

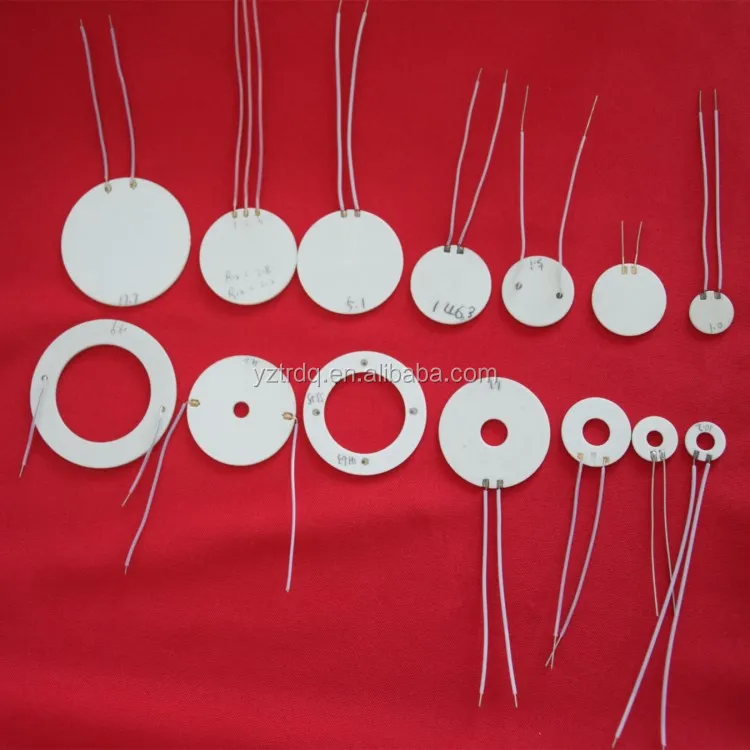

MCH round heater | ||||||||||||
serial | specific | voltage （v） | resistance （Ω） | diameter （mm） | inner diameter（mm） | thickness （mm） | ||||||
1 | 10*0.7/1.3 | 3.7 | 0.5-0.8 | 10 | - | 0.7 | ||||||
2 | 12*0.7/1.3 | 3.7/6 | 2.4-3 | 12 | - | 0.7 | ||||||
3 | 14*1.3/2.0 | 8/12 | 1.3-1.9 | 14 | - | 1.3 | ||||||
4 | 14*4*1.3/2.0 | 12/24/36 | 2-3 | 14 | 4 | 1.3 | ||||||
5 | 14*6.5*1.3/2.0 | 5-7 | 2-3 | 14 | 6.5 | 1.3 | ||||||
6 | 14*7*1.3/2.0 | 3.7/6/12/24 | 2.1-2.7/9-10 | 14 | 7 | 1.3 | ||||||
7 | 15.8*1.3/2.0 | 3.7/7.4/12/24 | 1.8-1.3 | 15.8 | - | 1.3 | ||||||
8 | 20*8*1.3/2.0 | 12/24 | 30-35 | 20 | 8 | 1.3 | ||||||
9 | 23*4*1.3/2.0 | 24/36 | 30-35 | 23 | 4 | 1.3 | ||||||
10 | 24*1.3 | 3.7/6/12/24/ | 1-2/3-6/5-7/8-9/10-12/18-20/28-33 | 24 | - | 1.3 | ||||||
11 | 26*1.3/2.0 | 12/24 | 13-15/16-30 | 26 | - | 1.3 | ||||||
12 | 28*17*1.3/2.0 | 6/12/24 | 2.6-3.1 | 28 | 17 | 1.3 | ||||||
13 | 30*1.3/2.0 | 220 | 155 | 30 | - | 1.3 | ||||||
14 | 30*6*1.3/2.0 | 12/24 | 1.2-1.6 | 30 | 6 | 1.3 | ||||||
15 | 32*12*1.3/2.0 | 110 | 100-120 | 32 | 12 | 1.3 | ||||||
16 | 35*1.3/2.0 | 12/24 | 1.3-1.8 | 35 | - | 1.3 | ||||||
17 | 38*5*1.3/2.0 | 12/24 | 6-7 | 38 | 5 | 1.3 | ||||||
18 | 40*1.3*2.0 | 12/24 | 4-6 | 40 | - | 1.3 | ||||||
19 | 40*10*1.3/2.0 | 3.7/6/12 | 1.2/5-8 | 40 | 10 | 1.3 | ||||||
20 | 45*20*1.3/2.0 | 3.7/7.4/12 | 0.4-0.6 | 45 | 20 | 1.3 | ||||||
21 | 45*30*1.3/2.0 | 110 | 38-43 | 45 | 30 | 2.0 | ||||||
22 | 48*12*1.3/2.0 | 12/24 | 12-16 | 48 | 12 | 2.0 | ||||||
23 | 48*21*1.5/2.0 | 6/12/24 | 2.8-3.1 | 48 | 21 | 1.5 | ||||||
24 | 48*26*1.3/2.0 | 110/220 | 240-300 | 48 | 26 | 2 | ||||||
25 | 48*1.3/2 | 12/24/36/50 | 5/12-13 | 48 | - | 1.3/2 | ||||||
26 | 52*1.3 | 12/24 | 2-6 | 52 | - | 2 | ||||||
27 | 55*37*1.3/2.0 | 12/24 | 20-23 | 55 | 37 | 2 | ||||||

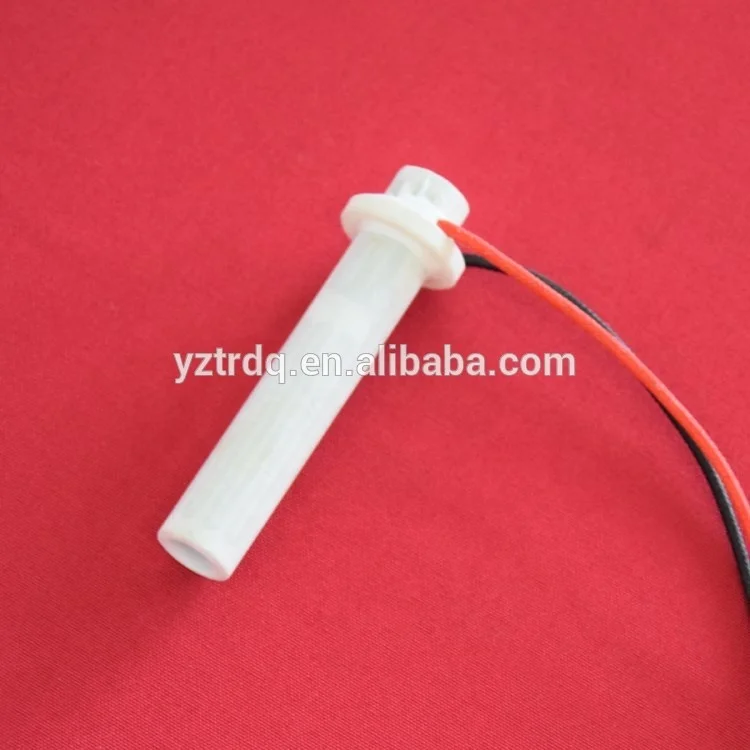

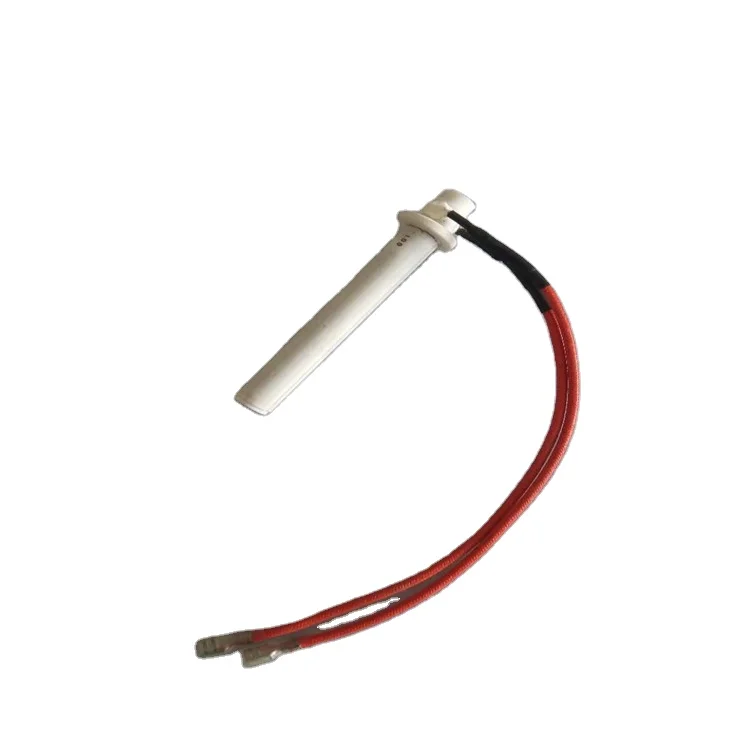

MCH heating tube/heating rod | ||||||||||||
serial | specific | voltage （v） | resistance （Ω） | diameter （mm） | inner diameter （mm） | length （mm） | ||||||
1 | 3*19 | 8/12 | 2-2.5 | 3 | - | 19 | ||||||
2 | 3.7*52 | 8/12 | 1.8-2.5 | 3.7 | - | 52 | ||||||
3 | 3.7*57 | 12/24 | 3.8-4.5 | 3.7 | - | 57 | ||||||
4 | 3.8*25 | 24 | 3.4-4.2 | 3.8 | - | 25 | ||||||
5 | 3.8*60 | 220 | 150-170 | 3.8 | - | 60 | ||||||
6 | 4.1*70 | 220 | 370-430 | 4.1 | - | 70 | ||||||
7 | 4.5*74 | 220/230/240 | 340-380 | 4.5 | - | 74 | ||||||
8 | 4.8*40 | 220 | 110-130 | 4.8 | - | 40 | ||||||
9 | 5.5*64 | 220 | 60-70 | 5.5 | - | 64 | ||||||
10 | 5.5*70 | 110 | 50-70 | 5.5 | - | 70 | ||||||
11 | 5.5*79 | 220 | 70-90 | 5.5 | - | 7.9 | ||||||
12 | 8*90 | 220 | 85-105 | 8 | - | 90 | ||||||
13 | 5.6*2.3*9 | 12 | 3.5-4.6 | 5.6 | 2.3 | 9 | ||||||
14 | 5.6*2.3*44 | 220 | 16.-180 | 5.6 | 2.3 | 44 | ||||||
15 | 6.5*2.5*70 | 220 | 100-120 | 6.5 | 2.5 | 70 | ||||||
16 | 8*2.5*80 | 220 | 45-60 | 8 | 2.5 | 80 | ||||||
17 | 9.5*6.5*38 | 220 | 150-170 | 9.5 | 6.5 | 38 | ||||||
18 | 11.5*6.5*107 | 220 | 28-36 | 11.5 | 6.5 | 107 | ||||||
19 | 11.5*6.5*115 | 220 | 19 | 11.5 | 6.5 | 115 | ||||||
20 | 12*8*59 | 220 | 120-140 | 12 | 8 | 59 | ||||||
21 | 13*9*61 | 220 | 105-125 | 13 | 9 | 61 | ||||||
22 | 20*17*15 | 12/15 | 7-8 | 20 | 17 | 15 | ||||||
23 | 21*17*35 | 220 | 230-250 | 21 | 17 | 35 | ||||||
MCH heater can be manufactured as required.Voltage, power, size customization. | ||||||||||||
Packaging and delivery
• Packaging Details Carton box or wooden box for Electric Heating Heater
• Delivery Time 10 days for Electric Heater .
• Delivery Time 10 days for Electric Heater .
Manufacturing Technique
Ceramic element
Heating wire
Silver electrode
Ptfe tube
press
Screen printing machine
Electric furnace.
High temperature furnace
Why Choose Us
Our Company
Yangzhou Tuanrui Electric Co., Ltd. Located in the beautiful historical and cultural city of Yangzhou. The company is a factory that integrates R&D, design, production, and sales services. Our factory specializes in PTC heaters,MCH Ceramic Heater, mica heaters, ceramic heaters, cast aluminum heaters, cast copper heaters, cast iron heaters, electric heaters, Quartz Heater, Explosion-Proof Heater, Foil Heater, Teflon Heater, Track Heater, Hot Runner Heater, Armored Heater, Ceramic Fiber Heater, Far Infrared Ceramic Heater, Hot Melt Machine heater, electric heating film, silicon carbide heater, silicon molybdenum heater, metal heating tube, heating coil, heating plate, heating rod, silicone rubber heater, radiant heater, heating cable, temperature sensor, thermal resistance , thermocouples, high temperature wire and cable, instrumentation, slip line bridge, bus switchgear, insulation materials, test instruments, ceramic ignition pin and other electrical complete sets of equipment. Products are mainly used in military, chemical, power, electronics, steel, metallurgy, medicine, machinery, automobiles, air conditioning, industrial furnaces, home appliances and other heating industry equipment. All products can be customized according to the requirements of customers, many products have now filled the domestic blank, instead of imports. At present, our heaters, temperature sensors, etc. have been sold to countries in the world and are well received by customers. Welcome new and old customers at home and abroad to visit us.
Exhibition and certification
FAQ
Q1. Can I have a sample order forCeramic Heater?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks
Q3. Do you have any MOQ limit for Ceramic Heater?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly provide the heater size , voltage, wattage, quantity
Secondly We quote according to your size
Thirdly customer confirms the order
Fourthly We arrange the production.
Q6. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee?
A: Yes, we offer 8000 hours warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new heater with new order for small quantity.
