High quality mini blast furnace for Lead melting

Product Overview

Description

1. Product process description



1.1  Input and output

Feeding material, Lead paste

Lead paste is a slurry of active substances on the plate after charge-discharge, it is composed of around 50% PbSO4, 28% H2SO4, 13 % PbO, PbO2 and Pb, and a small amount of other metal substances. The main components of lead paste after crushing and separating are PbO, Pb OS2 and PbSO4. Usually, lead paste contains about 11.5% water, it contains 5.5% of S and 73.5% of Pb under drying condition.



Auxiliary materials

The auxiliary material mainly includes quartz sand, limestone, iron oxide powder, among which quartz sand can be replaced with river sand, iron oxide powder can be replaced with pyrite slag, and limestone for local purchase.



Products of the blast furnace

Lead bullion 98% Lead content (go to refining process), Lead matte (sale out or further recovery of Lead and copper), and Slag (sale out after water quenching)



2.2 Process flow diagram

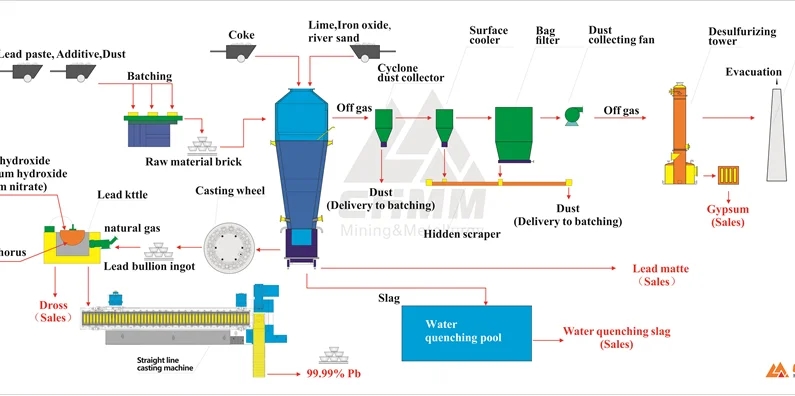

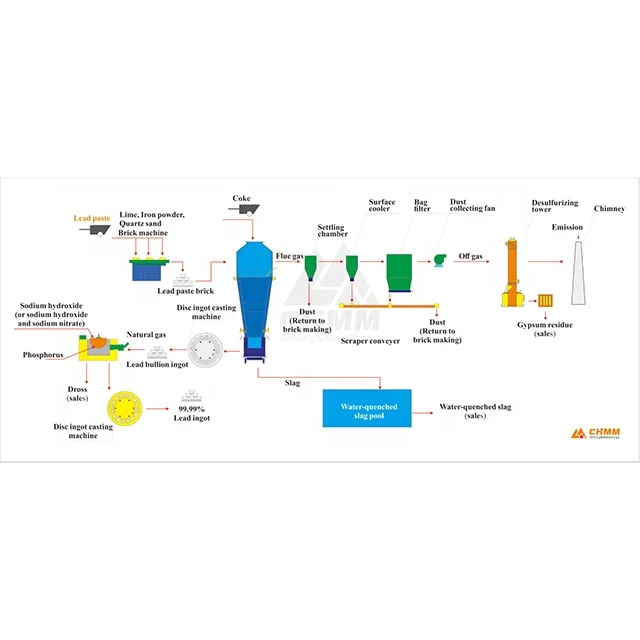

Equipment connection diagram



1.3  Blast furnace structure

Blast furnace are consisted of furnace burden preheating area, reduction area, smelting area and furnace hearth area, During the operation process, the height and temperature differences may cause the different physical and chemical reactions.







Blast furnace layout



2. Main technical and economic indexes of blast furnace smelting ( or treating 15000 ton Lead paste annually)
