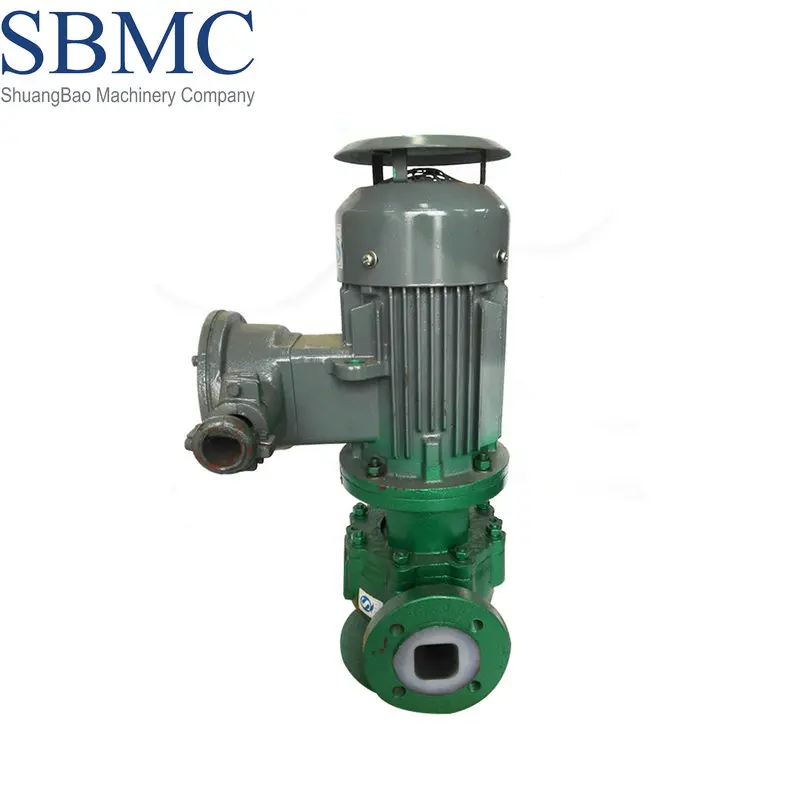

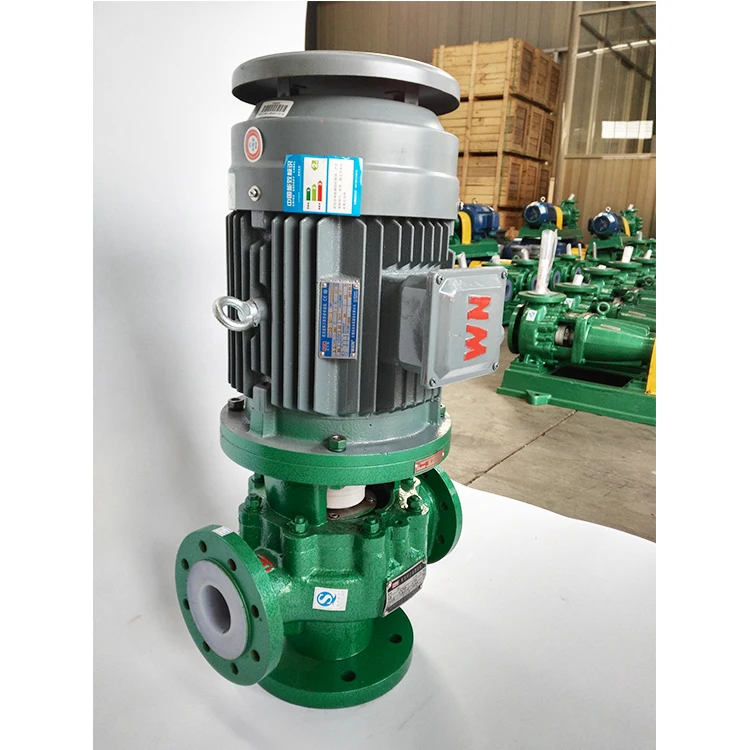

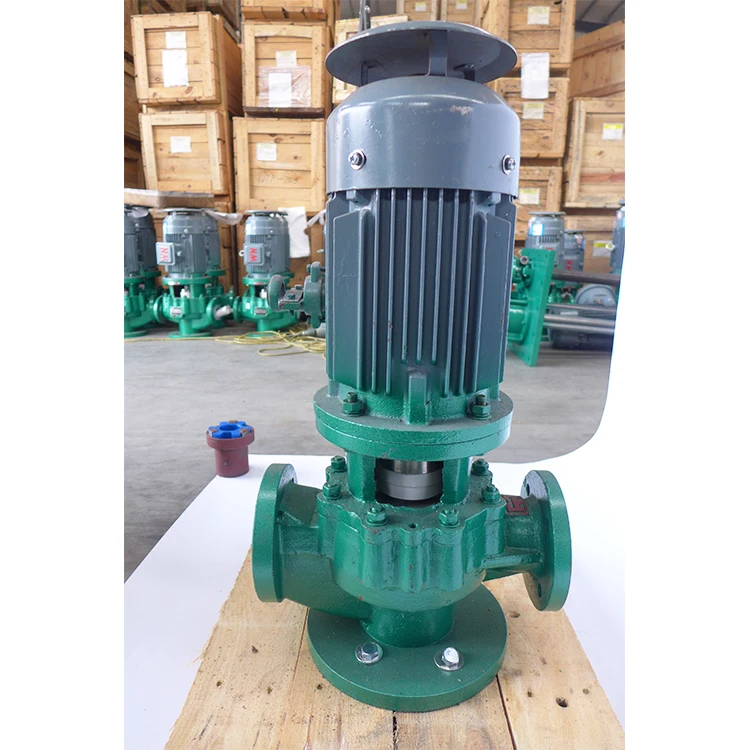

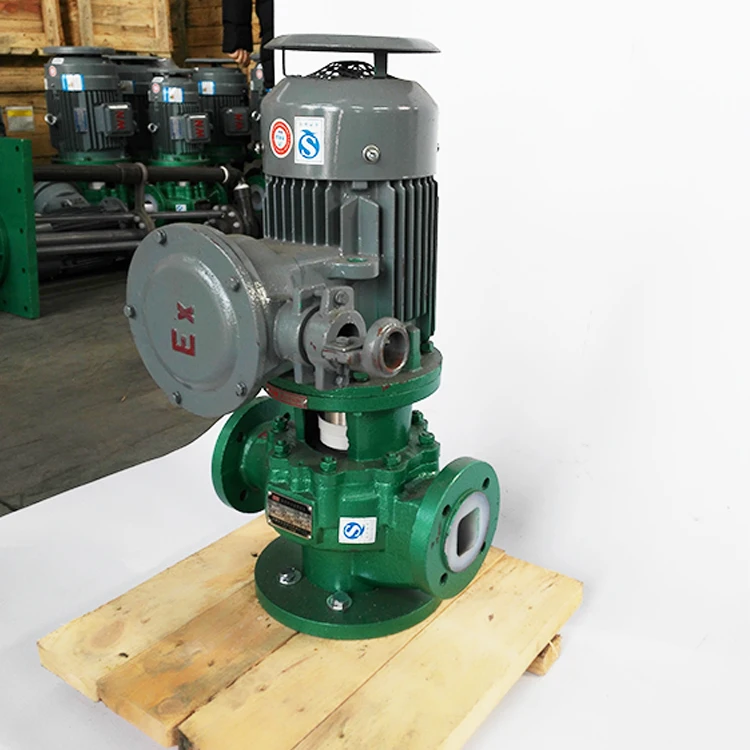

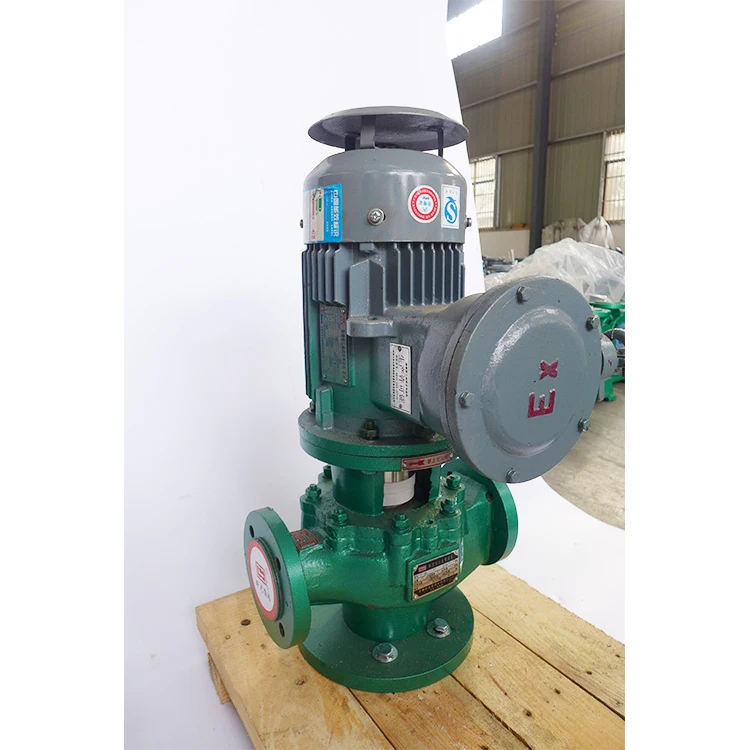

Sodium sulfate transfer vertical single stage pipeline pump Vertical Inline Mud Slurry Sewage Pump
- Category: >>>
- Supplier: Shanghai Shuangbao Machinery Co. Ltd.
Share on (62503075516):
Product Overview
Description
Product Overview
Fluoroplastic lining Corrosion resistance explosion-proof pvdf Vertical Chemical Pump | ||||||||

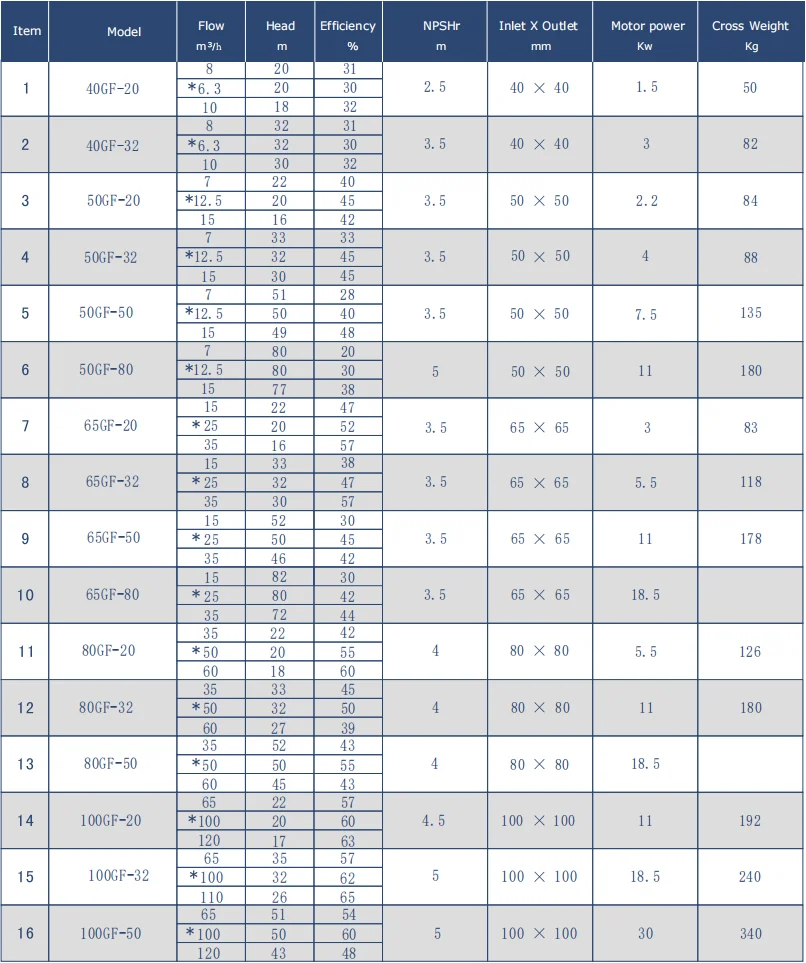

Max. Flow | 100m³/h | |||||||
Max. Head | 80m | |||||||
Temperature range | -20 °C to +150 °C | |||||||
Pumping liquid | Acid and caustic liquid / Oxidizer corrosive liquids/ Salt solution | |||||||
Application | -Corrosive, pure and contaminated media in chemical industries, -Pharmaceutic and petrochemical industries, -In metal processing, waste water treatment etc. -When Stainless steel is not sufficiently resistant -An alternative for expensive haste alloy, titanium alloy pumps -When anti-adhesive surfaces are important. | |||||||
Product Details
FEATURES AT A GLANCE
Outstanding Features

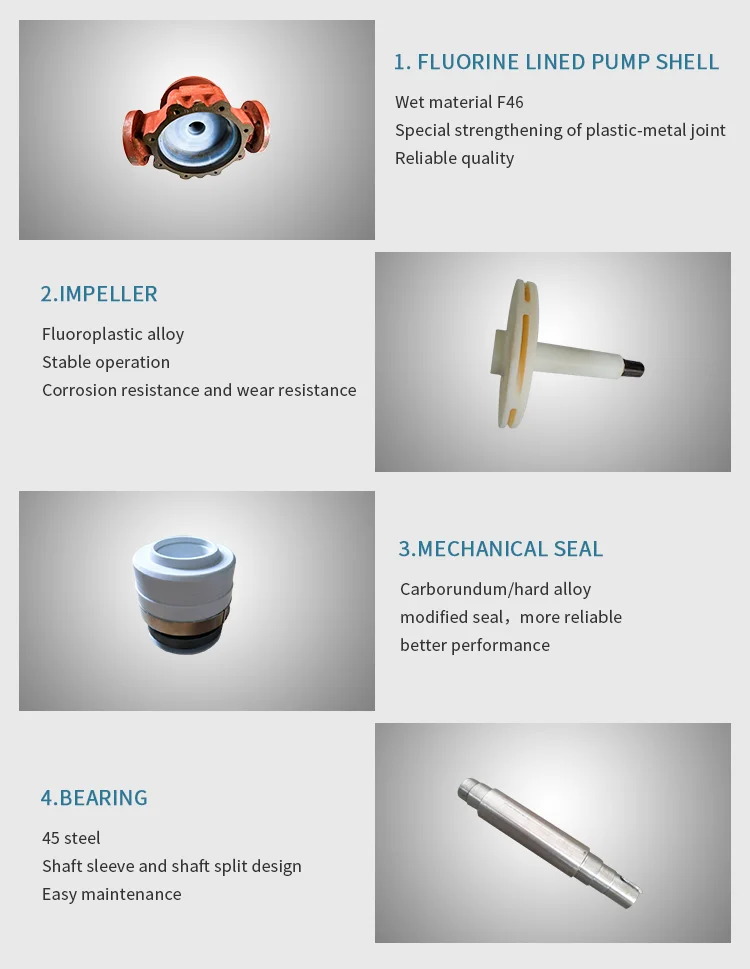

* Long life mechanical seal.
Shaft seal is outside mechanical seal, which stationary ring material is alumina ceramics, rotating ring made of PTFE, mechanical seal able to bear high corrosive liquid.
* Convenient maintenance, simple structure, easy for repair.
When change impeller, mechanical seal spare parts, no need disassembly the piping.
* The material is virgin, unfilled lining FEP/PTFE
Considerably easier and more reliable quality control;No reduction in the permeation resistance; Pure pharmaceutical and fine chemical media: no contamination
* Robust pump casing.
Shaft seal is outside mechanical seal, which stationary ring material is alumina ceramics, rotating ring made of PTFE, mechanical seal able to bear high corrosive liquid.
* Convenient maintenance, simple structure, easy for repair.
When change impeller, mechanical seal spare parts, no need disassembly the piping.
* The material is virgin, unfilled lining FEP/PTFE
Considerably easier and more reliable quality control;No reduction in the permeation resistance; Pure pharmaceutical and fine chemical media: no contamination
* Robust pump casing.
In contrast to partially or non-armored plastic pumps, no expansion joints are required.
* Closed impeller with flow-optimized vane channels for high efficiency and low NPSH values.
The metal core is protected by a thick-walled seamless plastic lining, the large metal core and increase the mechanical strength considerably even at elevated temperature and high flow rates.
* Closed impeller with flow-optimized vane channels for high efficiency and low NPSH values.
The metal core is protected by a thick-walled seamless plastic lining, the large metal core and increase the mechanical strength considerably even at elevated temperature and high flow rates.

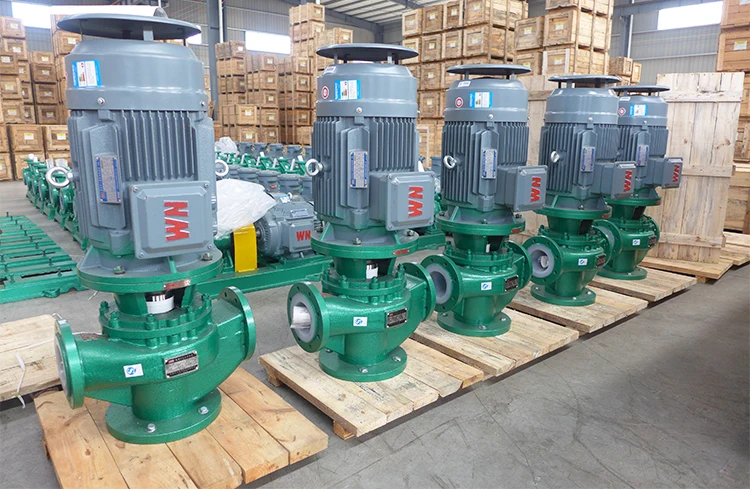

Successful Project
Why Choose Us
FAQ
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. L/C at sight
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 25 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:Shuangbao has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours
