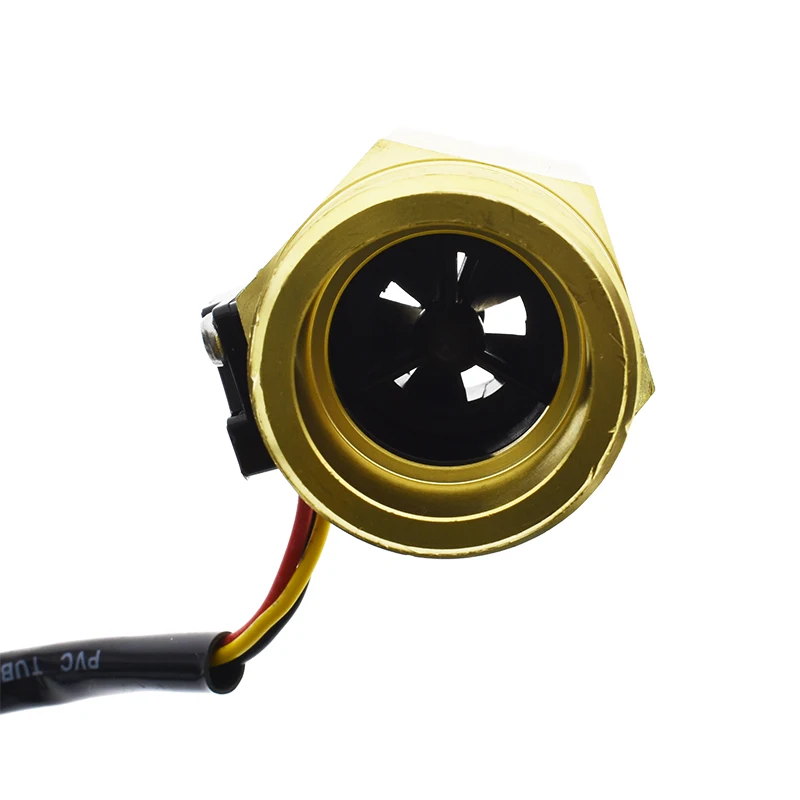

Water Flow sensor Hall Sensor Switch Flow Meter DN25 brass water meter Industrial turbine flowmeter 1 Inch water flow meter
- Category: >>>
- Supplier: Shenzhen Hanheng Technology Trade Co. Ltd.
Share on (62503104170):
Product Overview
Description
Product Model B10 Product Name
Model YF-B10 Product Name
Rated voltage DC=5V inspection standard
1 Appearance Product identification is clear, accurate and correct
2 Water pressure resistance >1.75MPa
3 working voltage range DC5 ~ 15V
4 insulation resistance >100MΩ
5 Accuracy [in 1~25L\\MIN]±5%
6 Flow pulse characteristics (6*Q-8) Q=L/Min±5%
7 Output pulse high level > DC 4.7V (input voltage DC 5V)
9 output pulse duty cycle 50% ± 10%
Note:
Due to different producing batches,product details might be a little different.
If you minding the difference,please buy it carefully.
Please allow 1-2CM differs due to manual measurement.
Due to the different display and different light,
the picture may not reflect the actual color of the item.
Thanks for your understanding.
