Automatic Intelligence double wall paper cup bowl making forming machine cup bowl making

Product Overview

Description

Description

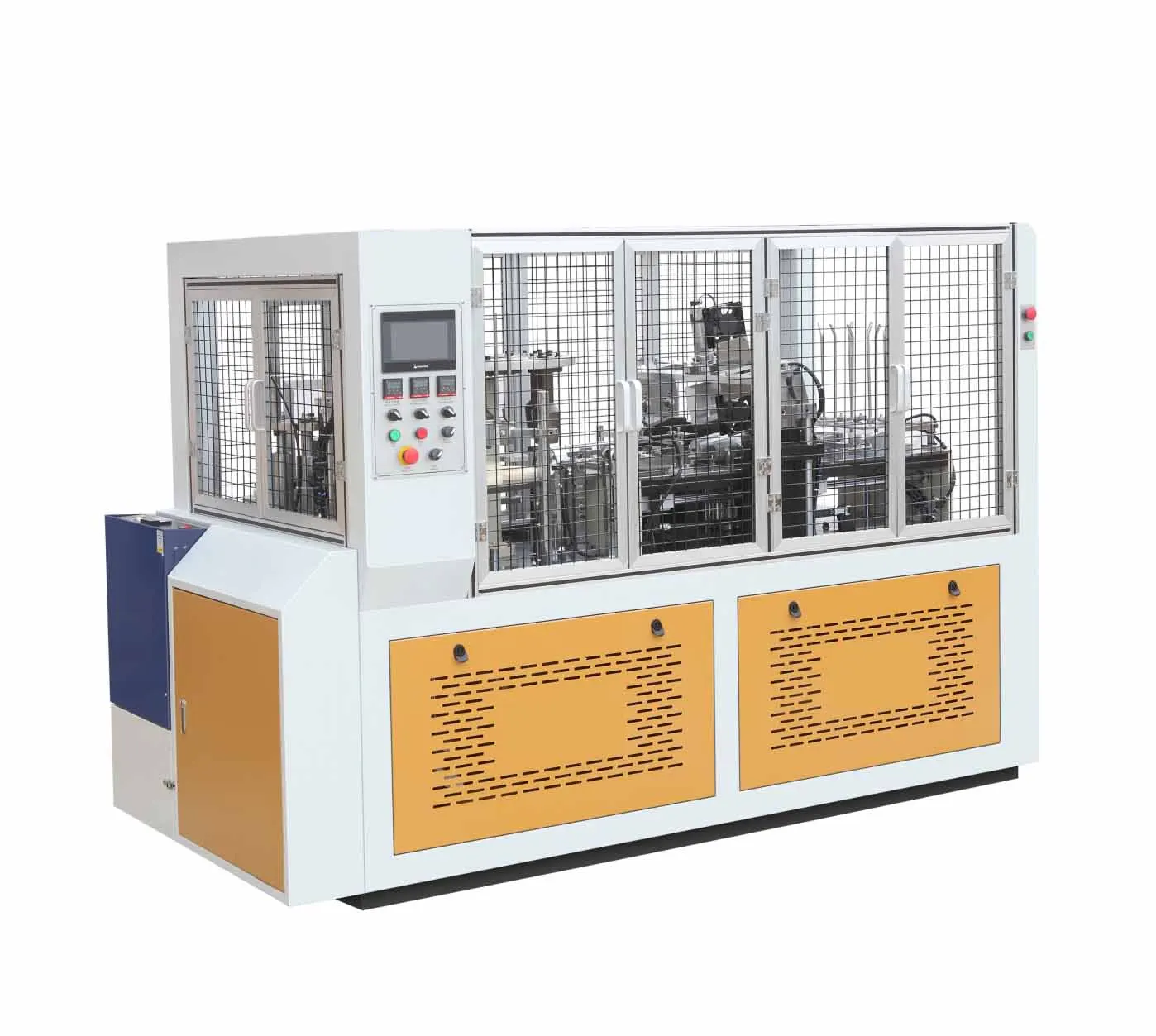

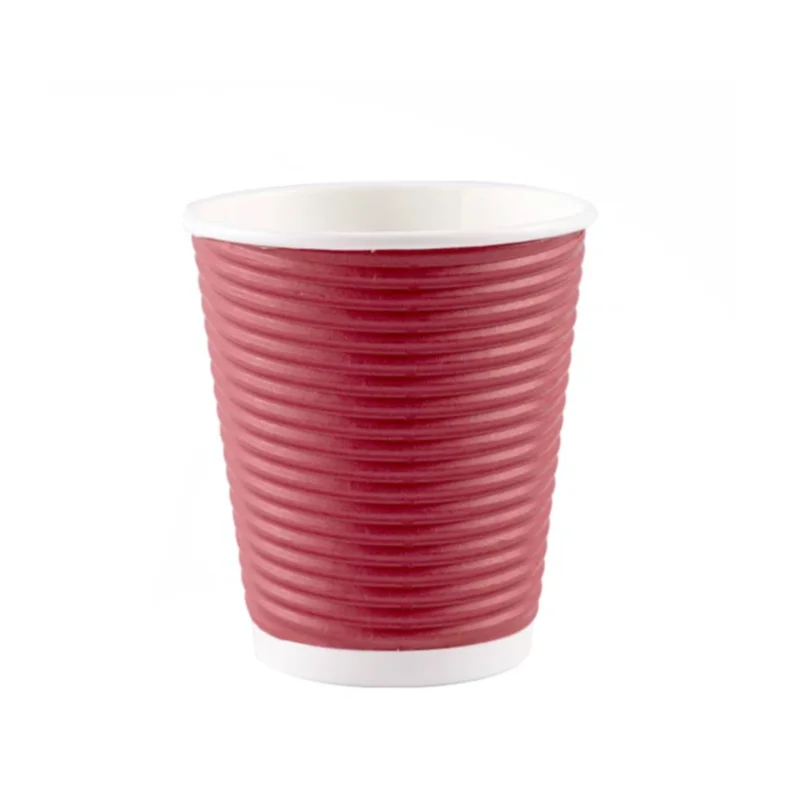

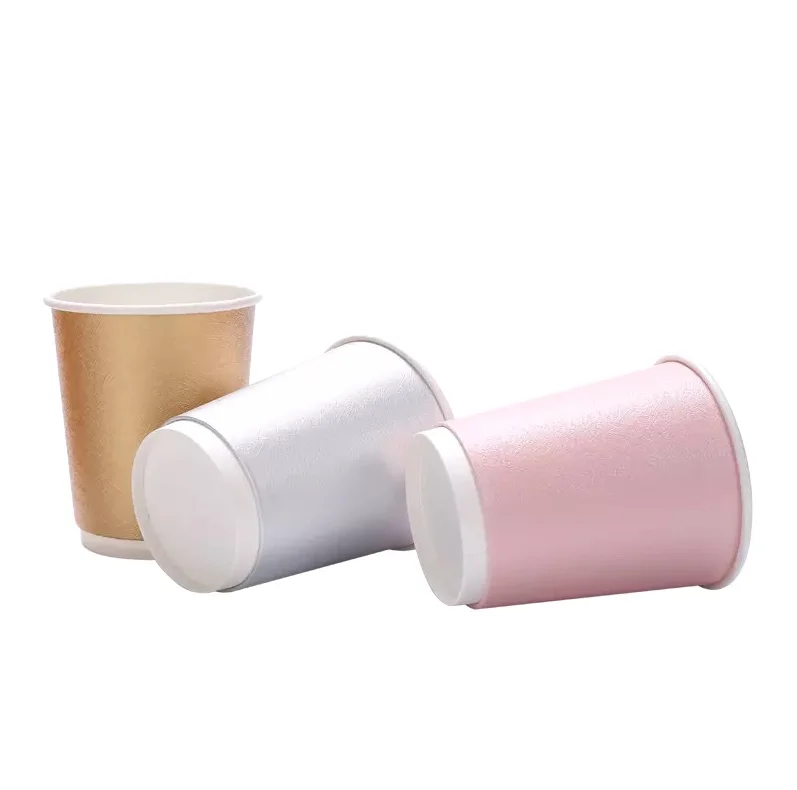

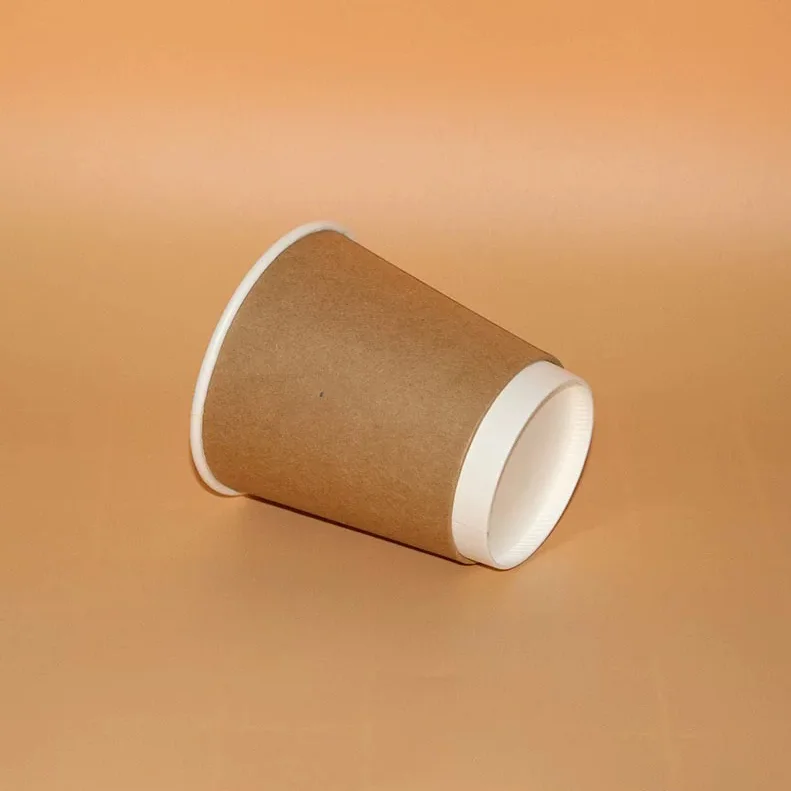

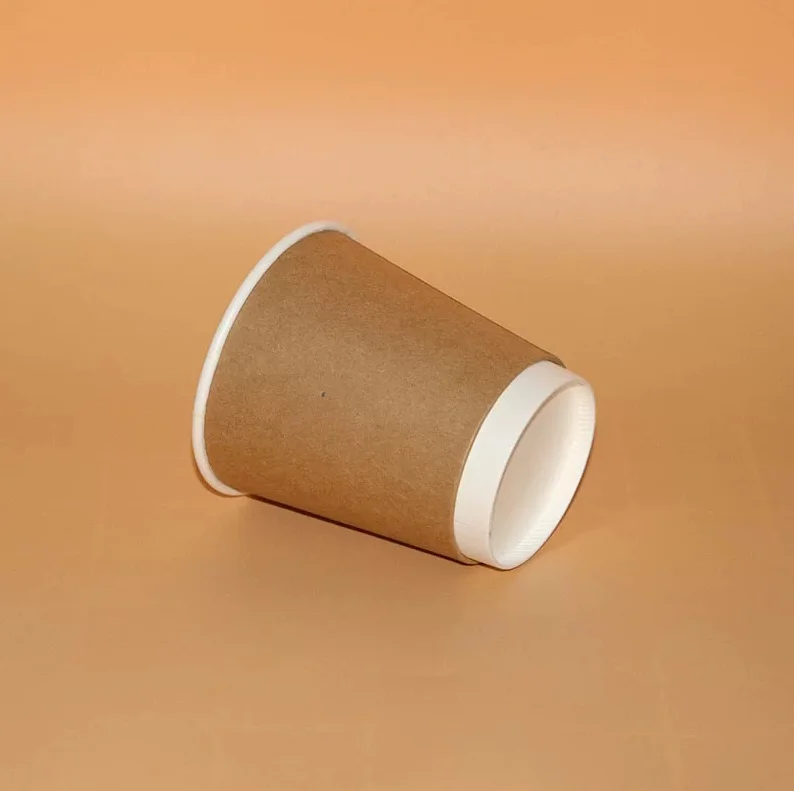

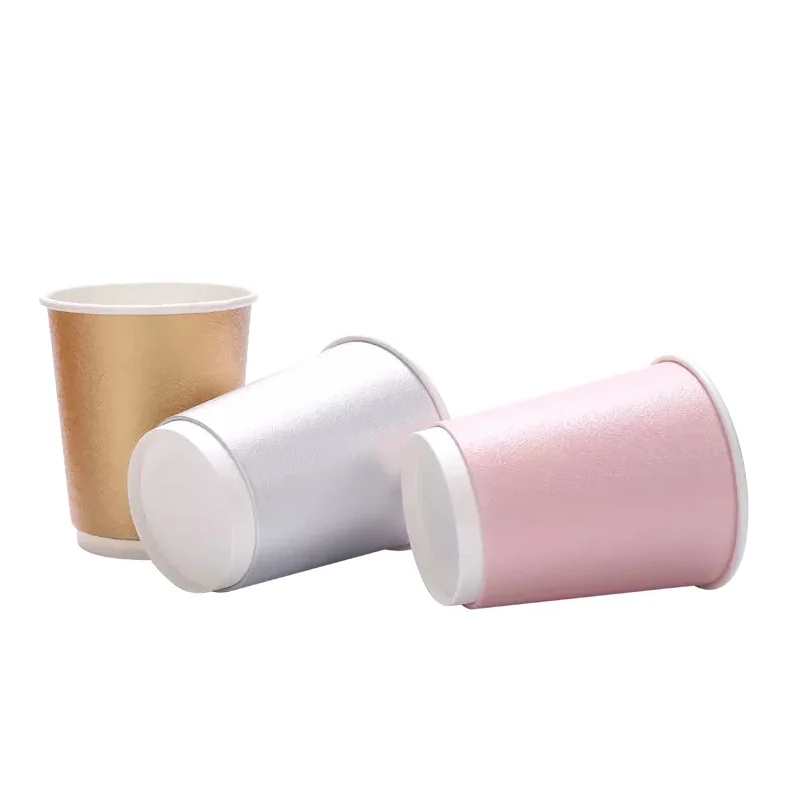

DD-80 New model High speed double wall bowl forming machine is a kind of automatic double layer bowl forming machine (double wall bowl and ripple bowl can be forming on same machine ), it comes with open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. It has functions of automatic paper feeding row by row , ultrasonic sealing ,paper cylinder transferred by machanical arm,oiling,bottom folding,stepping glueing system,air cylinder system and double wall paper bowl stacking.

It has invertor for auto speed adjusting,stops automatically if any problem controlled by sensors we installed, so that the machine is well protected and becomes more durable.

We adopt separate cam drivers on the left and right of bowl side sealing device,so the working status is quiet and stable,which is the top technology owned by Us in china.

Technical Data

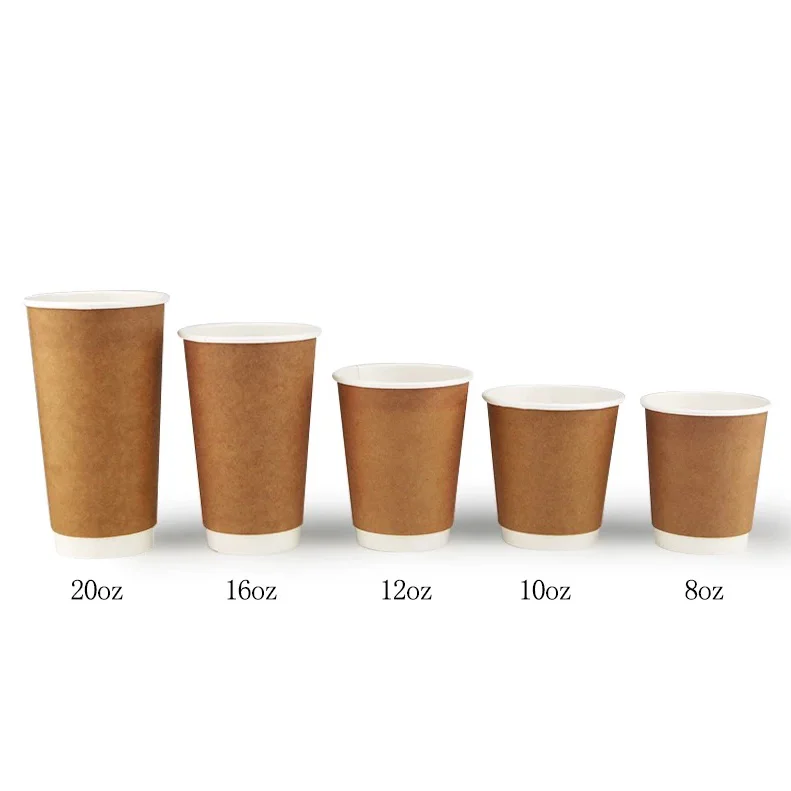

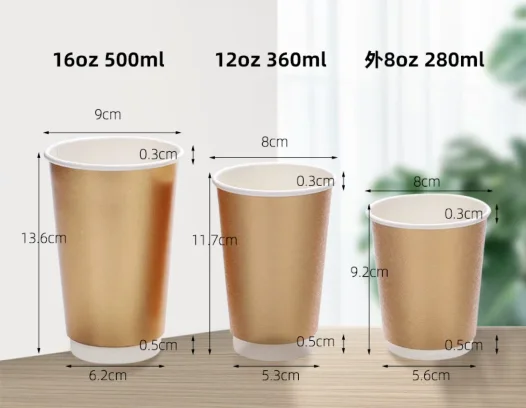

Bowls Specifications:	8-35oz
Speed:	70-90pcs/min
power supply:	380v 50Hz/220 50HZ
General Power:	5KW
Gas source :	0.3-0.5m³/min
Weight :	2200kg
Packing Dimensions :	2650*1300*1800
