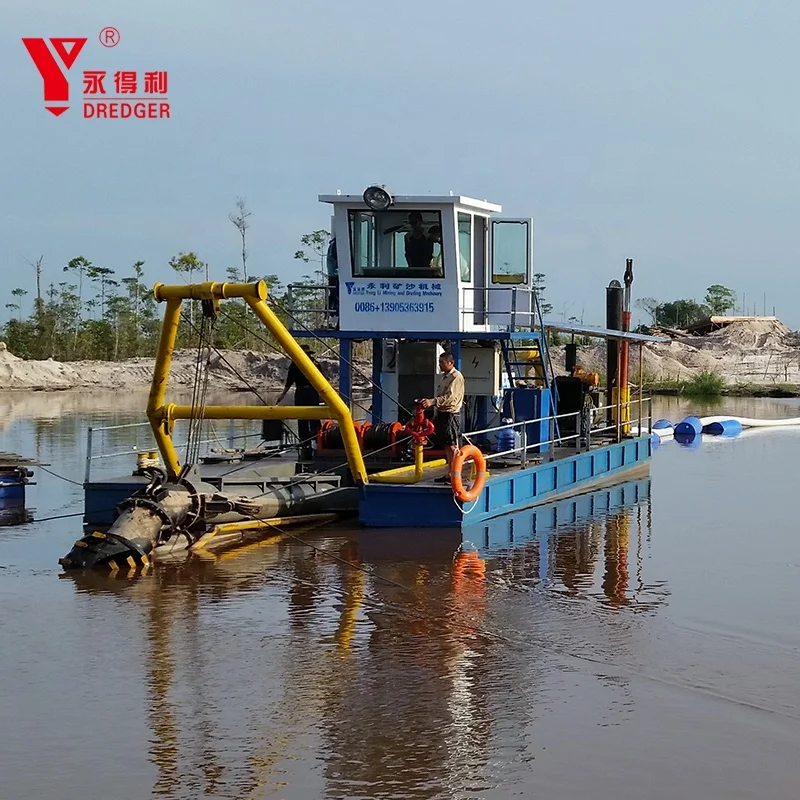

2024 hot sale hydraulic system dredger machine /sand dredging cutter suction dredger
- Category: >>>
- Supplier: Qingzhou Yongli Mining And Dredging Machinery Co. Ltd.
Share on (62503207451):
Product Overview
Description
Our Company
About company
Main productions: cutter suction dredger, gold dredger, diamond dredger, gold washing plant, sand dredger and other mining equipment. We are located in Qingzhou city with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including gas cutting machine, automatic welding machine, electric welder and other equipments.
Model List
Model | Slurry capacity | Dredging depth | Discharge distance | Total power |
CSD-200 | 500m³/h | 10m | 500m | 224kw |
CSD-250 | 800m³/h | 12m | 800m | 351kw |
CSD-300 | 1200m³/h | 12m | 1000m | 648kw |
CSD-400 | 2200m³/h | 15m | 1000m | 806kw |
CSD-450 | 3000m³/h | 15m | 1000m | 1007kw |
CSD-500 | 3500m³/h | 15m | 1500m | 1193kw |
CSD-550 | 5000m³/h | 15m | 1500m | 1640kw |
CSD-650 | 6000m³/h | 15m | 1500m | 2446kw |
Products Description
YLCSD-500
Parameter：
*Slurry capacity:3500m³/h
*Concentraction:15-20%
*Length: 37m
*Breadth:7.5m
*Height:2.2m
*Dredging depth:12-15m
*Discharge distance:0-1500m
*Total power:1193kw(optional)
*Cutter shaft power:115kw
*Slurry capacity:3500m³/h
*Concentraction:15-20%
*Length: 37m
*Breadth:7.5m
*Height:2.2m
*Dredging depth:12-15m
*Discharge distance:0-1500m
*Total power:1193kw(optional)
*Cutter shaft power:115kw
Remark：Can be customized according to customer requirements
Details Images

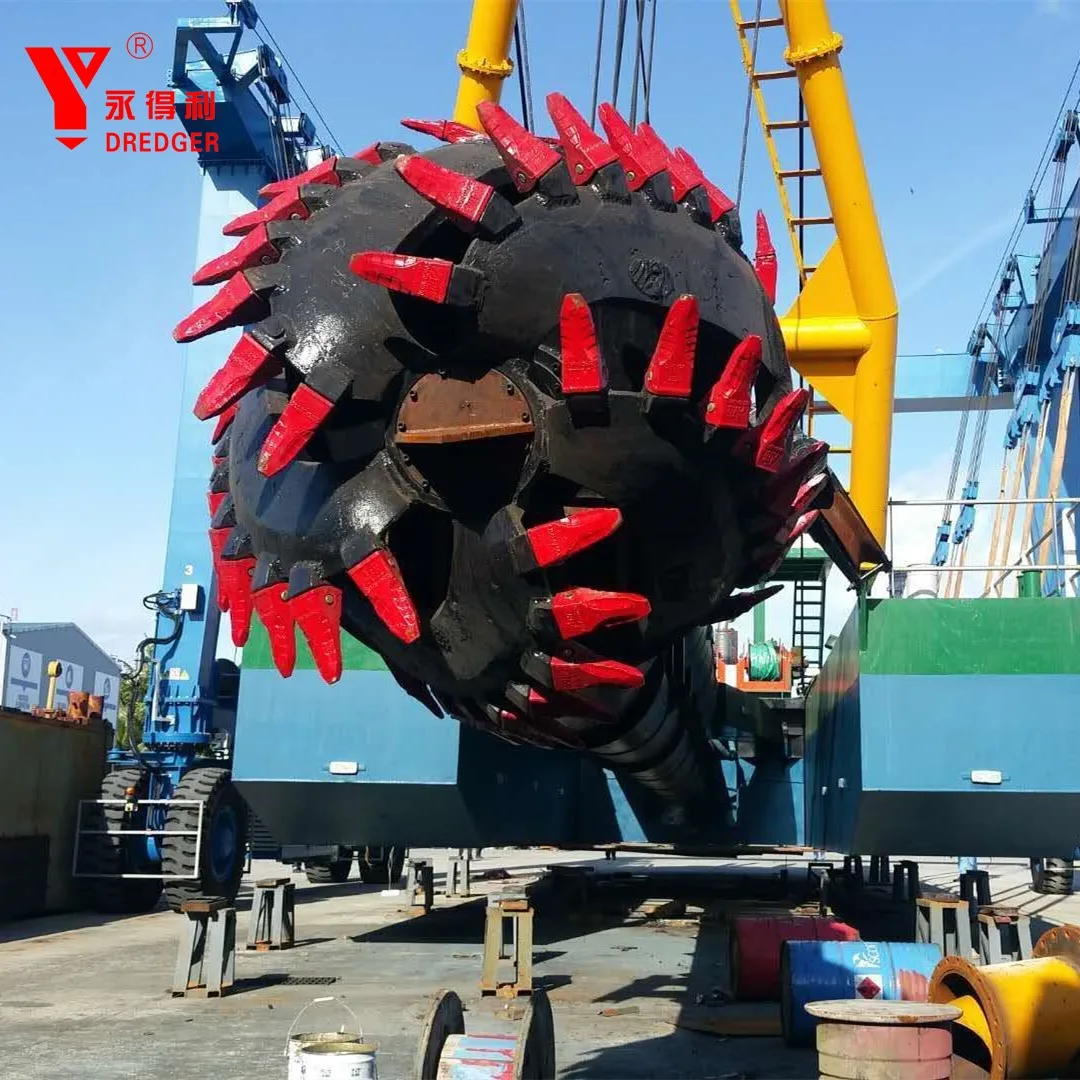

Cutter head
Diameter:1500mm
shaft power:115kw
RPM:0-30 r/min
Material:ZG30CrMn
Amont: 5 Pcs
Remark:cutter teeth can be replaced

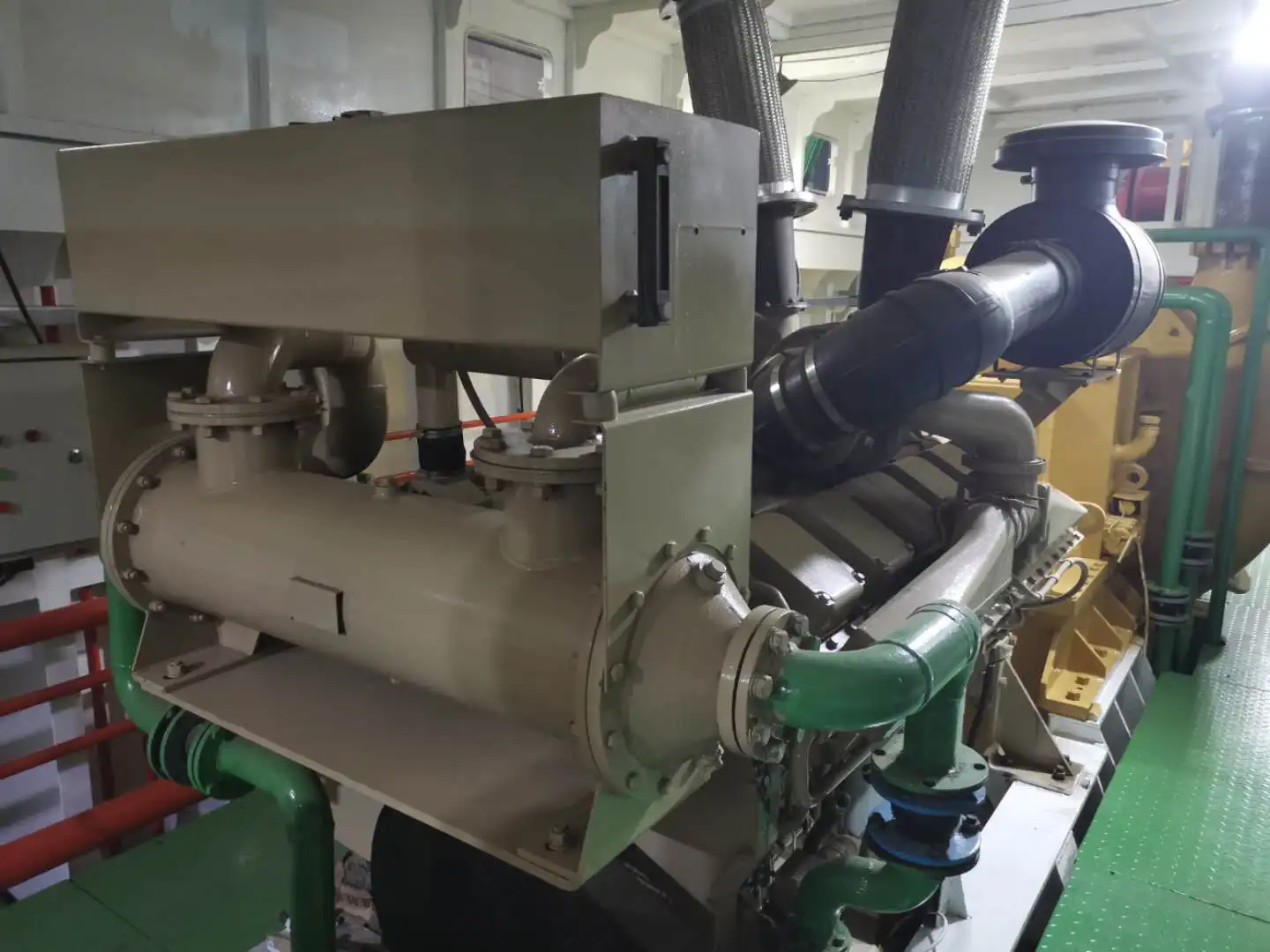

Main engine
Maker: Cummins China
Model :NT38-M
Power:895KW
RPM :1800r/min
Model :NT38-M
Power:895KW
RPM :1800r/min
No. of cylinders: 16
Fuel consumption:156l/h
Remark: can be selected by customer's requirement
Dredging pump
Maker：Shijiazhuang
Model :Wn450
Water flow :3500m³/h
Solid capacity ：525-700m³/h
Diameter of suction：500mm
Diameter of Discharge：450mm
Solid capacity ：525-700m³/h
Diameter of suction：500mm
Diameter of Discharge：450mm
Remark: can be selected by customer's requirement
Winch
Diameter of drum ：550mm
Hydraulic motor maker ：xinhong
Model ：S3C4
Wire rope speed ：0-20m/min
Dia. Of wire rope ：26mm
Wire rope length ：200m
Hydraulic motor maker ：xinhong
Model ：S3C4
Wire rope speed ：0-20m/min
Dia. Of wire rope ：26mm
Wire rope length ：200m
Remark: can be selected by customer's requirement

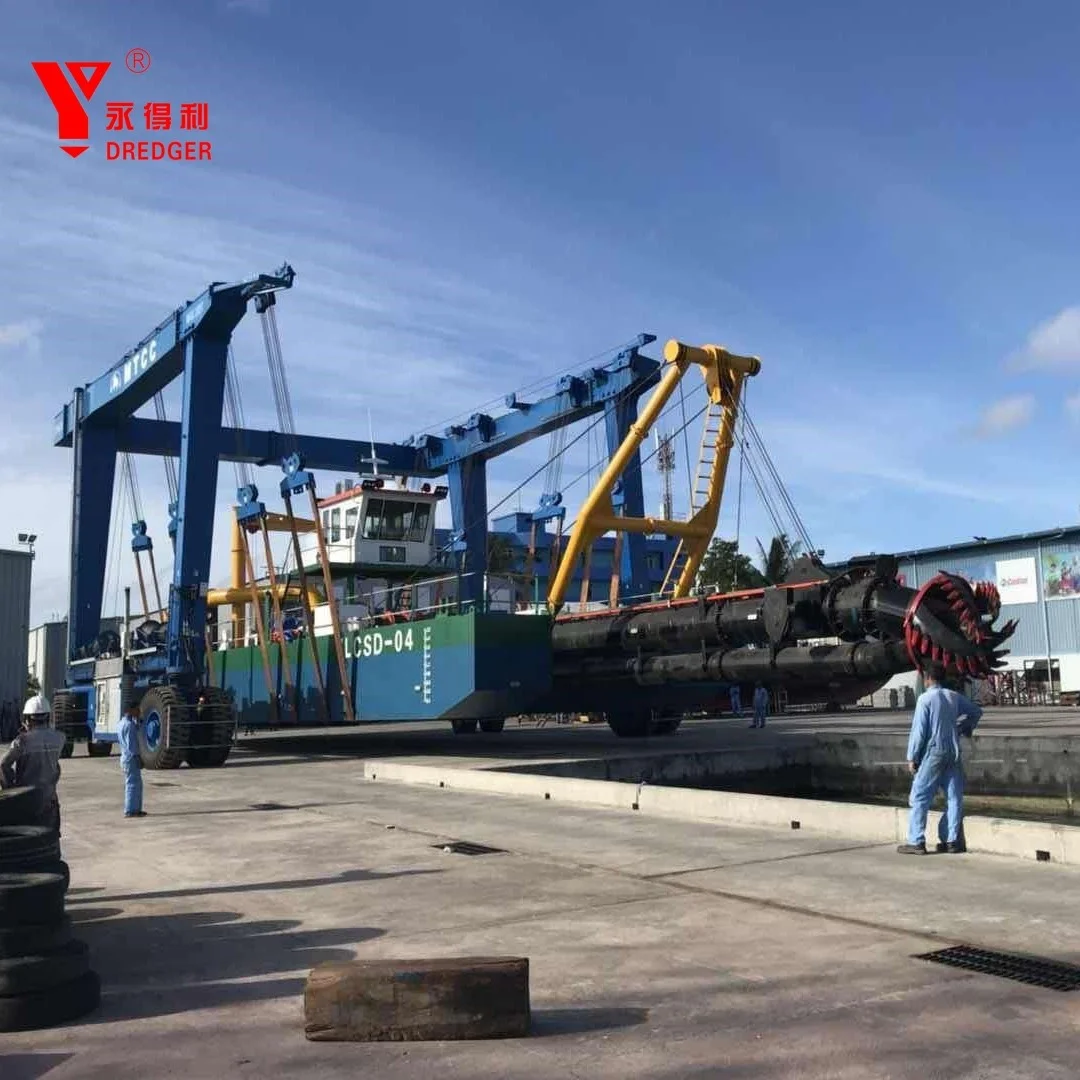

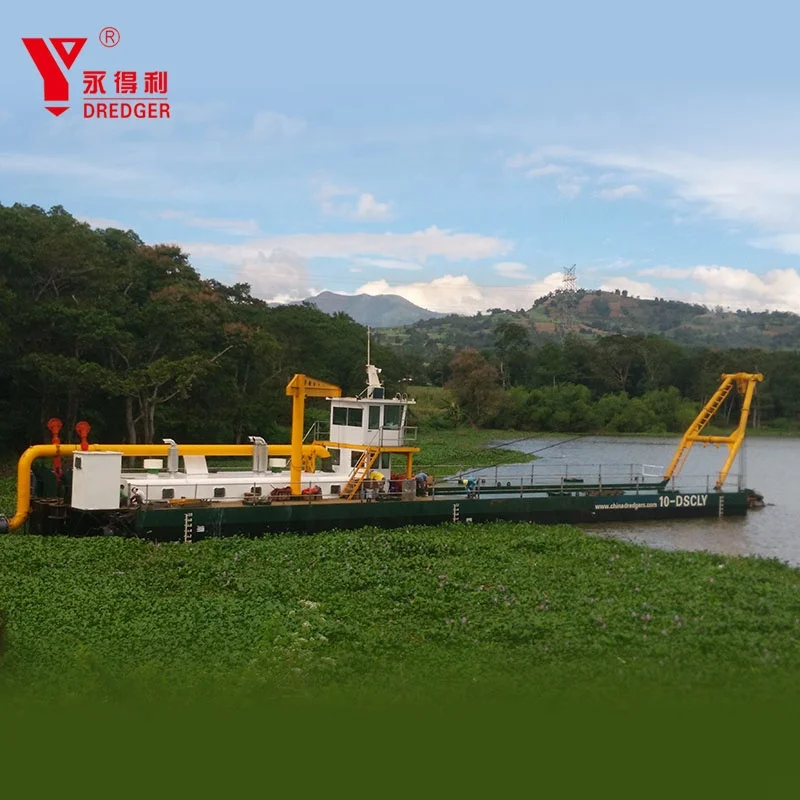

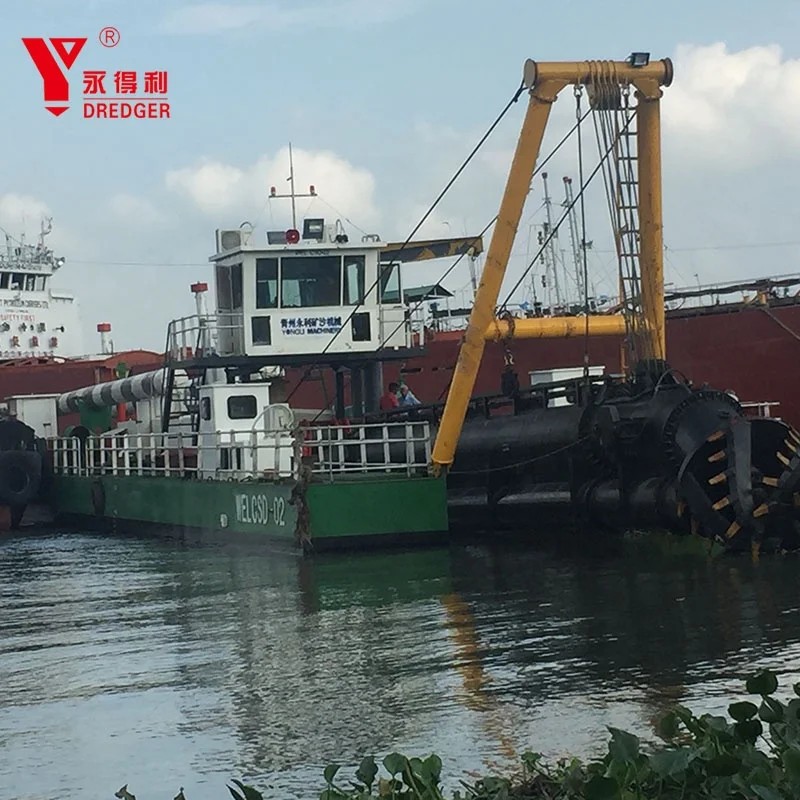

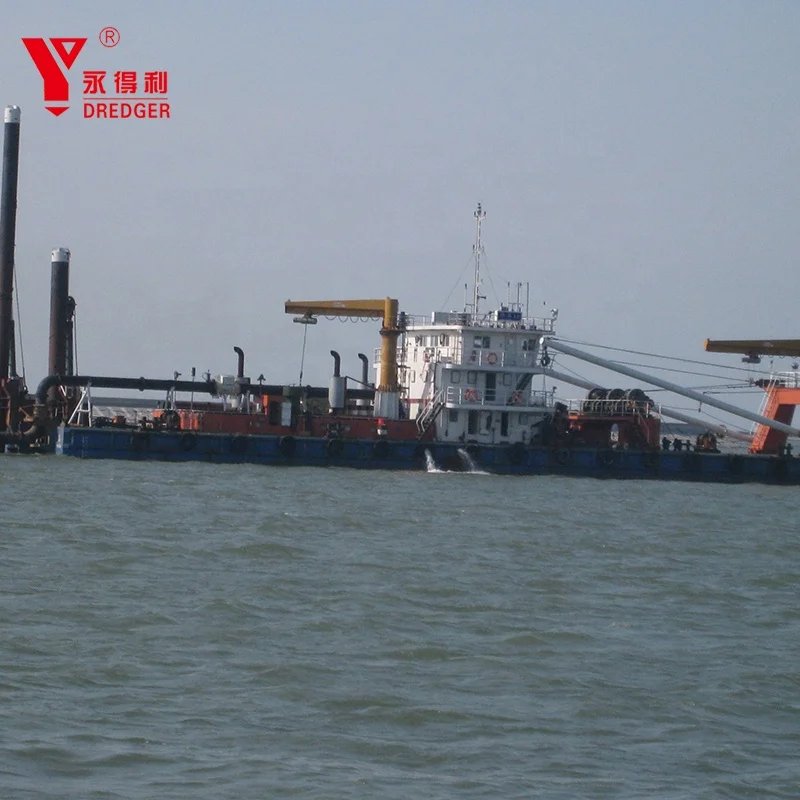

Customer Photos

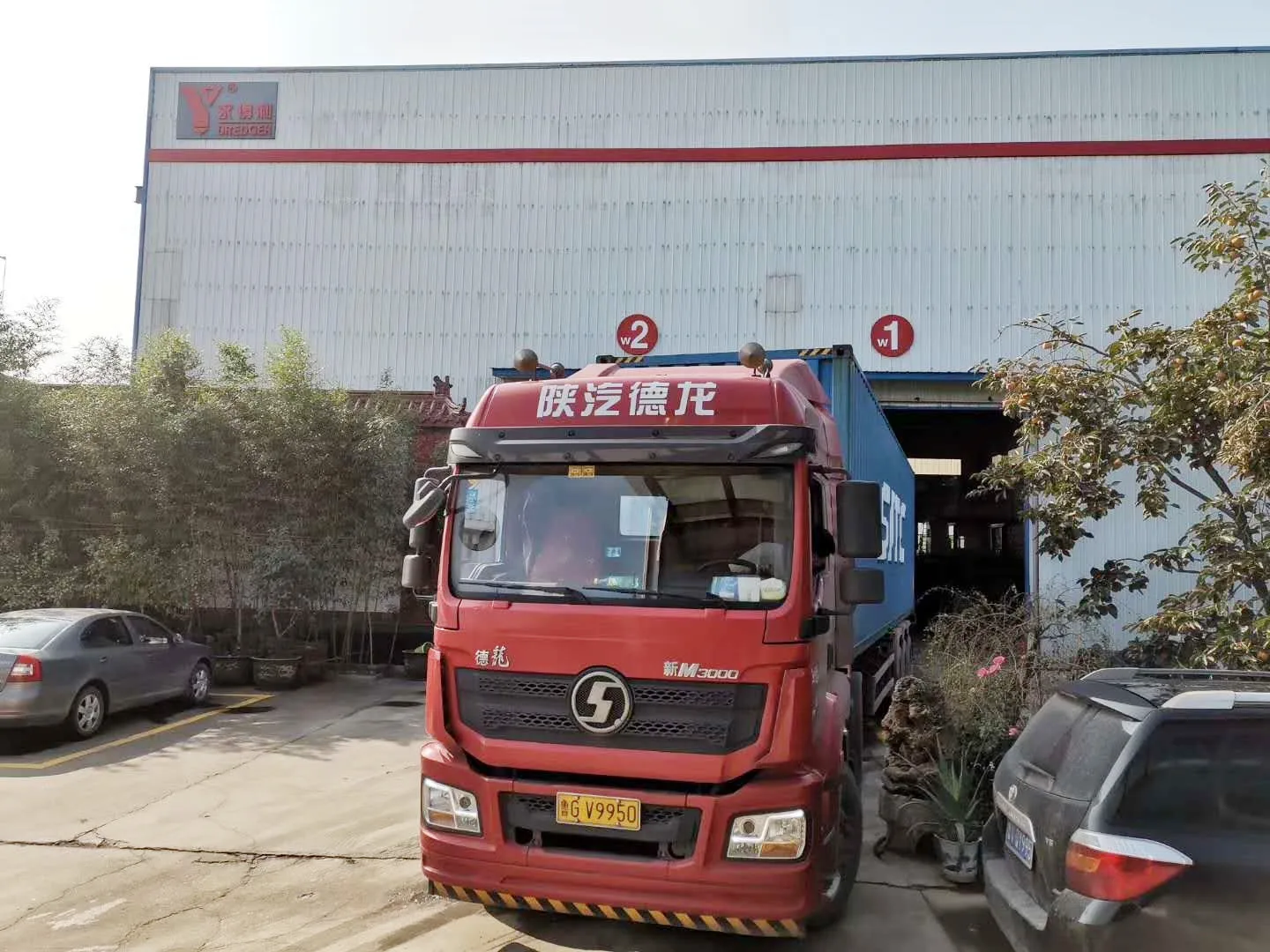

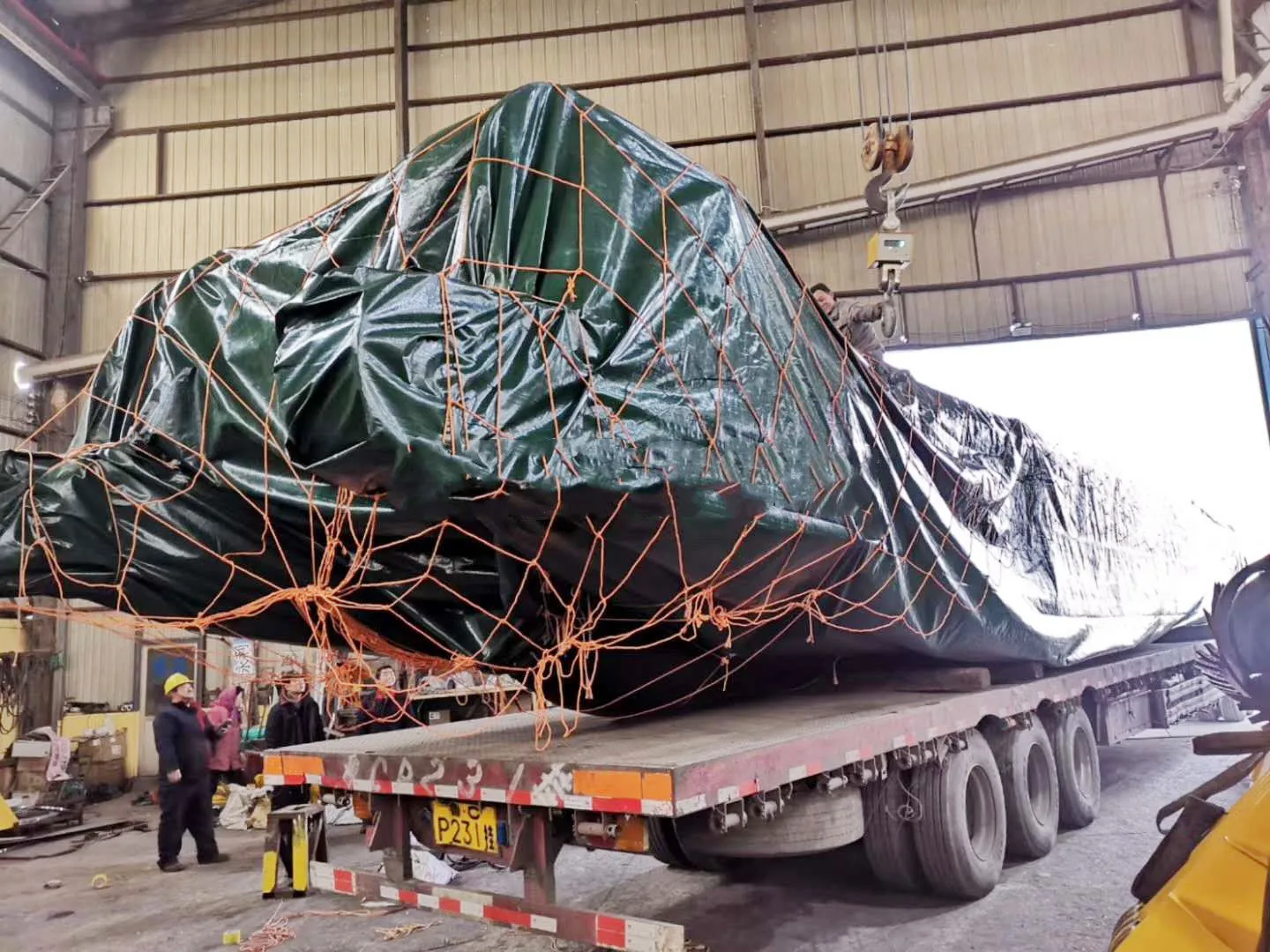

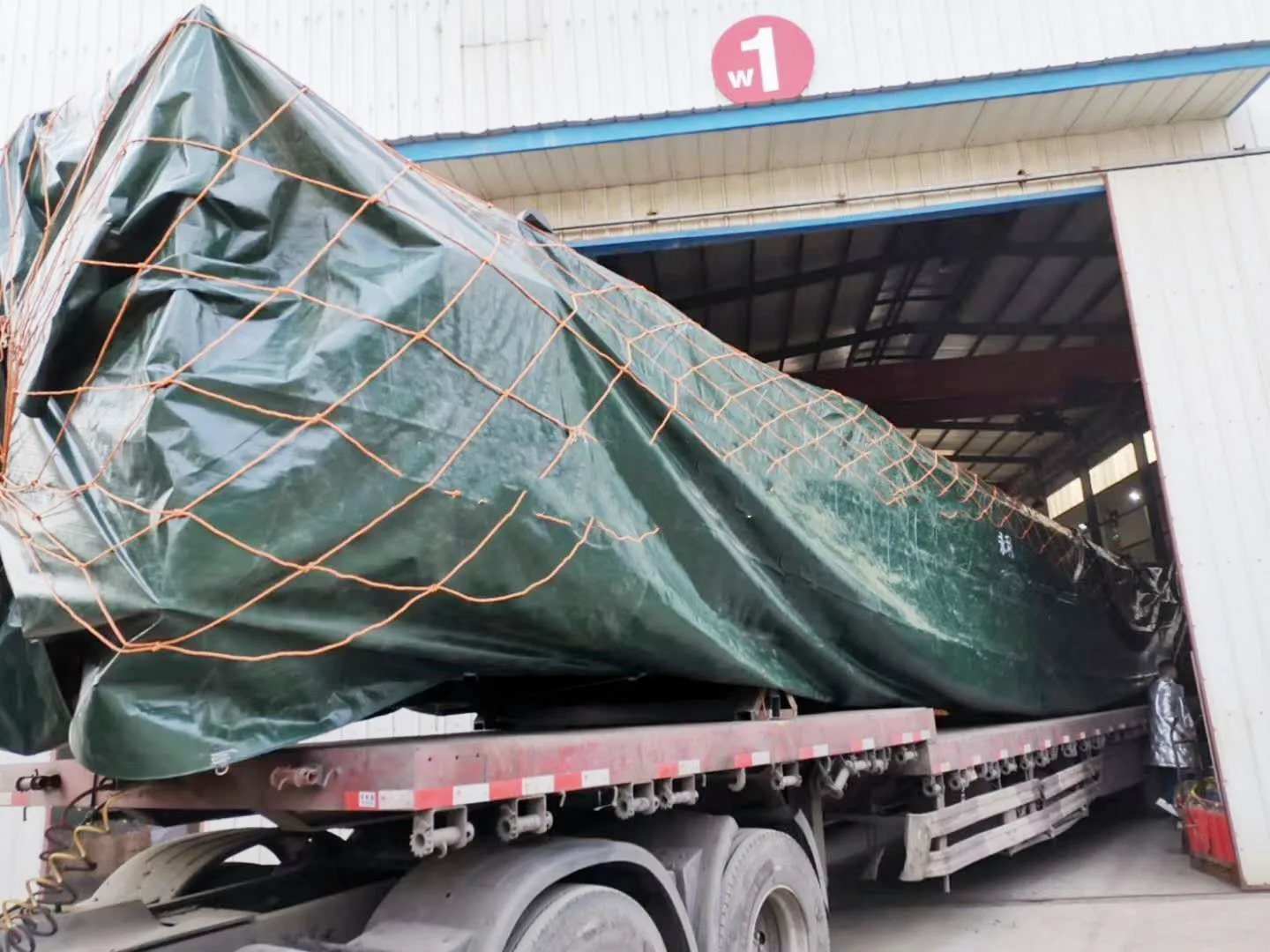

Packing and Transport
Remark: cutter suction dredger is dismantled, box-like structure, which can be transported easily by trucks on road or by ship on the sea.
Certifications
Why Choose Us
Yongli will do the best in the field and one of the most important things is providing after-sales service and support. We promise to provide every customer with the highest level of service and 24/7 support to make sure that every machinery will run properly and every customer will be fully satisfied.
The following service can be provided by our high-quality team:
------ Signing a long-term after-service agreement with customers;
------ rational and practical design according to clients' project needs and requirements;
------ Engineers will be sent for installation, testing and commissioning of new machine;
------ Operation service & maintenance guidance (Training of new operators);
------ Troubleshooting & diagnosis;
------ Replacement suggestions & spare parts with competitive price;
------ Life time after sales service for all customers.
The following service can be provided by our high-quality team:
------ Signing a long-term after-service agreement with customers;
------ rational and practical design according to clients' project needs and requirements;
------ Engineers will be sent for installation, testing and commissioning of new machine;
------ Operation service & maintenance guidance (Training of new operators);
------ Troubleshooting & diagnosis;
------ Replacement suggestions & spare parts with competitive price;
------ Life time after sales service for all customers.
