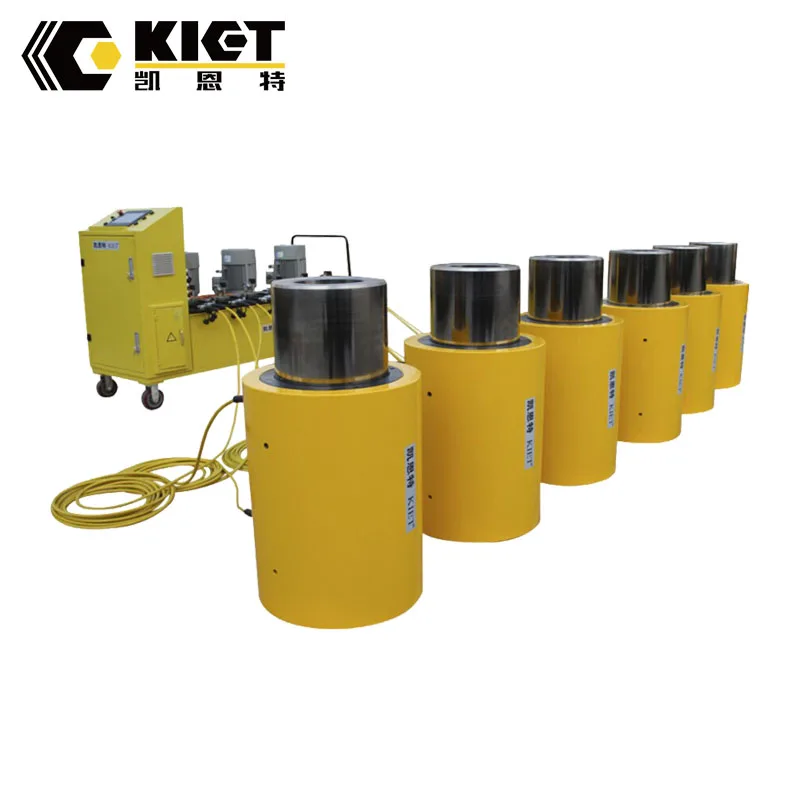

700 bar Heavy Duty Double Acting 1000 ton Hydraulic Jack for Pile Load Test




Features:
1.Double acting, controlled retracting.
2.Collar threads, plunger threads and base mounting holes enable easy fixturing
3.Baked enamel finish for increased corrosion resistance
4.Removable strap handles for unobstructed fixturing
5.Built-in safety valve prevent accidenral over-pressurization.
6.3/8"-18NPT coupler and dust cap included on all models
Product Parameter
Model Number | Cylinder Capacity Ton | Stroke mm | Maximum Cylinder Capacity (kN) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Coll. Height (A) | Ext. Height (B) | Outside Dia. (D) | Weight | |||
|
|
| Push | Pull | Push | Pull | Push | Pull | mm | mm | mm | kg |
KET-CLRG-502 | 50 | 50 | 539 | 269 | 77,0 | 38,5 | 385 | 192 | 162 | 212 | 130 | 17 |
KET-CLRG-504 |
| 100 | 539 | 269 | 77,0 | 38,5 | 770 | 385 | 212 | 312 | 130 | 20 |
KET-CLRG-506 |
| 150 | 539 | 269 | 77,0 | 38,5 | 1155 | 577 | 262 | 412 | 130 | 23 |
KET-CLRG-508 |
| 200 | 539 | 269 | 77,0 | 38,5 | 1540 | 770 | 312 | 512 | 130 | 27 |
KET-CLRG-5010 |
| 250 | 539 | 269 | 77,0 | 38,5 | 1924 | 962 | 362 | 612 | 130 | 31 |
KET-CLRG-5012 |
| 300 | 539 | 269 | 77,0 | 38,5 | 2309 | 1155 | 412 | 712 | 130 | 34 |
KET-CLRG-1002 | 100 | 50 | 929 | 433 | 132,7 | 61,9 | 664 | 309 | 179 | 229 | 165 | 29 |
KET-CLRG-1004 |
| 100 | 929 | 433 | 132,7 | 61,9 | 1327 | 619 | 229 | 329 | 165 | 34 |
KET-CLRG-1006 |
| 150 | 929 | 433 | 132,7 | 61,9 | 1991 | 928 | 279 | 429 | 165 | 40 |
KET-CLRG-1008 |
| 200 | 929 | 433 | 132,7 | 61,9 | 2655 | 1237 | 329 | 529 | 165 | 46 |
KET-CLRG-10010 |
| 250 | 929 | 433 | 132,7 | 61,9 | 3318 | 1546 | 379 | 629 | 165 | 52 |
KET-CLRG-10012 |
| 300 | 929 | 433 | 132.7 | 61,9 | 3982 | 1856 | 429 | 729 | 165 | 58 |
KET-CLRG-1502 | 150 | 50 | 1390 | 675 | 198,6 | 96,5 | 993 | 482 | 196 | 246 | 205 | 39 |
KET-CLRG-1504 |
| 100 | 1390 | 675 | 198,6 | 96,5 | 1986 | 965 | 246 | 346 | 205 | 52 |
KET-CLRG-1506 |
| 150 | 1390 | 675 | 198,6 | 96,5 | 2978 | 1447 | 296 | 446 | 205 | 65 |
KET-CLRG-1508 |
| 200 | 1390 | 675 | 198,6 | 96,5 | 3971 | 1930 | 346 | 546 | 205 | 78 |
KET-CLRG-15010 |
| 250 | 1390 | 675 | 198,6 | 96,5 | 4964 | 2412 | 396 | 646 | 205 | 92 |
KET-CLRG-15012 |
| 300 | 1390 | 675 | 198,6 | 96,5 | 5957 | 2895 | 446 | 746 | 205 | 105 |
KET-CLRG-2002 | 200 | 50 | 1861 | 889 | 265,9 | 127,0 | 1330 | 635 | 212 | 262 | 235 | 55 |
KET-CLRG-2006 |
| 150 | 1861 | 889 | 265,9 | 127,0 | 3989 | 1905 | 312 | 462 | 235 | 91 |
KET-CLRG-20012 |
| 300 | 1861 | 889 | 265,9 | 127,0 | 7977 | 3809 | 462 | 762 | 235 | 146 |
KET-CLRG-2502 | 250 | 50 | 2565 | 1068 | 366,4 | 152,6 | 1832 | 763 | 235 | 285 | 275 | 89 |
KET-CLRG-2506 |
| 150 | 2565 | 1068 | 366,4 | 152,6 | 5497 | 2289 | 335 | 485 | 275 | 136 |
KET-CLRG-25012 |
| 300 | 2565 | 1068 | 366,4 | 152,6 | 10993 | 4578 | 485 | 785 | 275 | 207 |
KET-CLRG-3002 | 300 | 50 | 3193 | 1060 | 456,2 | 151,4 | 2281 | 757 | 322 | 372 | 310 | 184 |
KET-CLRG-3006 |
| 150 | 3193 | 1060 | 456,2 | 151,4 | 6843 | 2270 | 422 | 572 | 310 | 232 |
KET-CLRG-30012 |
| 300 | 3193 | 1060 | 456,2 | 151,4 | 13685 | 4541 | 572 | 872 | 310 | 303 |
KET-CLRG-4002 | 400 | 50 | 3919 | 1354 | 559,9 | 193,5 | 2800 | 967 | 374 | 424 | 350 | 270 |
KET-CLRG-4006 |
| 150 | 3919 | 1354 | 559,9 | 193,5 | 8399 | 2902 | 474 | 624 | 350 | 330 |
KET-CLRG-40012 |
| 300 | 3919 | 1354 | 559,9 | 193,5 | 16797 | 5804 | 624 | 924 | 350 | 421 |
KET-CLRG-5002 | 500 | 50 | 5114 | 1733 | 730,6 | 247,6 | 3653 | 1238 | 419 | 469 | 400 | 401 |
KET-CLRG-5006 |
| 150 | 5114 | 1733 | 730,6 | 247,6 | 10959 | 3713 | 519 | 669 | 400 | 480 |
KET-CLRG-50012 |
| 300 | 5114 | 1733 | 730,6 | 247,6 | 21918 | 7427 | 669 | 969 | 400 | 599 |
KET-CLRG-6002 | 600 | 50 | 5987 | 2068 | 855,3 | 295,4 | 4276 | 1477 | 429 | 479 | 430 | 474 |
KET-CLRG-6006 |
| 150 | 5987 | 2068 | 855,3 | 295,4 | 12829 | 4431 | 529 | 679 | 430 | 565 |
KET-CLRG-60012 |
| 300 | 5987 | 2068 | 855,3 | 295,4 | 25659 | 8862 | 679 | 979 | 430 | 701 |
KET-CLRG-8002 | 800 | 50 | 8234 | 2709 | 1176,3 | 387,0 | 5881 | 1935 | 484 | 534 | 505 | 741 |
KET-CLRG-8006 |
| 150 | 8234 | 2709 | 1176,3 | 387,0 | 17644 | 5806 | 584 | 734 | 505 | 868 |
KET-CLRG-80012 |
| 300 | 8234 | 2709 | 1176,3 | 387,0 | 35288 | 11611 | 734 | 1034 | 505 | 1058 |
KET-CLRG-10002 | 1000 | 50 | 10260 | 3792 | 1465,7 | 541,7 | 7329 | 2709 | 564 | 614 | 560 | 1062 |
KET-CLRG-10006 |
| 150 | 10260 | 3792 | 1465,7 | 541,7 | 21986 | 8126 | 664 | 814 | 560 | 1213 |
KET-CLRG-100012 |
| 300 | 10260 | 3792 | 1465,7 | 541,7 | 43972 | 16252 | 814 | 1114 | 560 | 1439 |
Wooden Package:



Jiangsu Canete Machinery Manufacturing Co.,Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders (capacity covers from 10-1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includes many big Chinese industrial companies:China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our prodcut ranges are as follows:
• Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton);
• Hydraulic pumps, manual and electric type (max up to 3000bar);

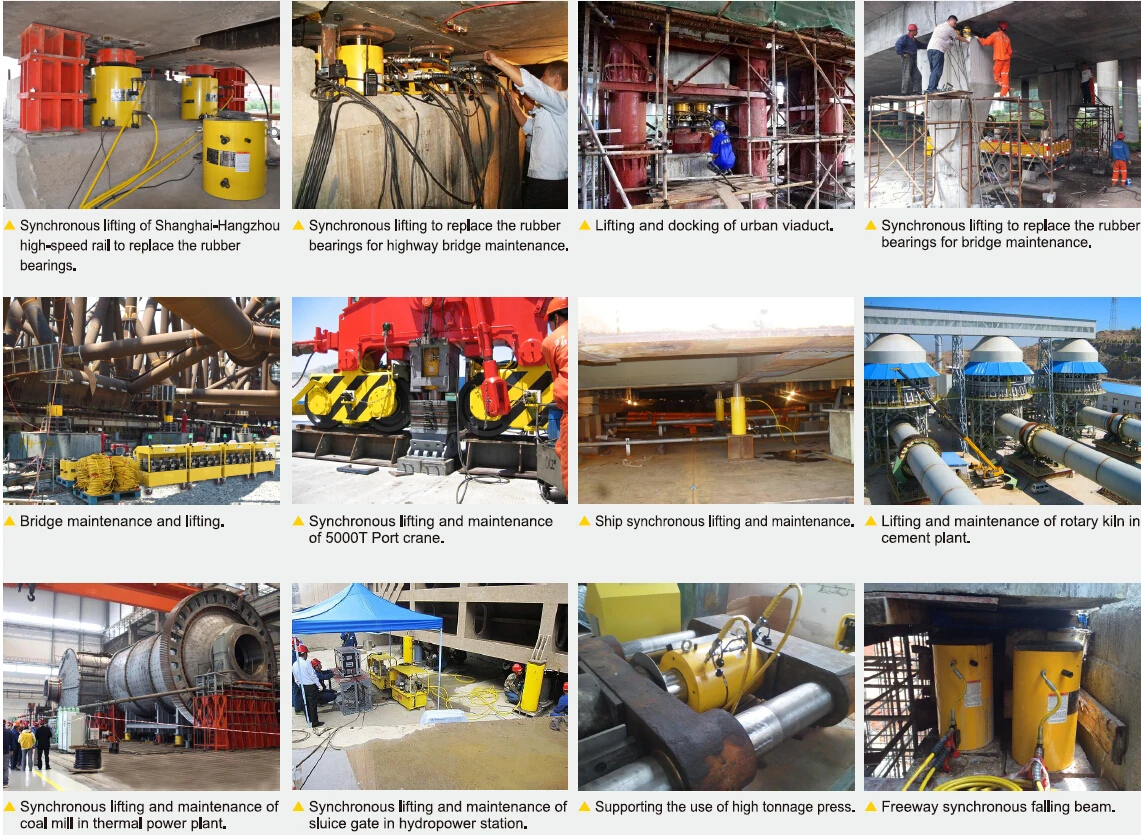

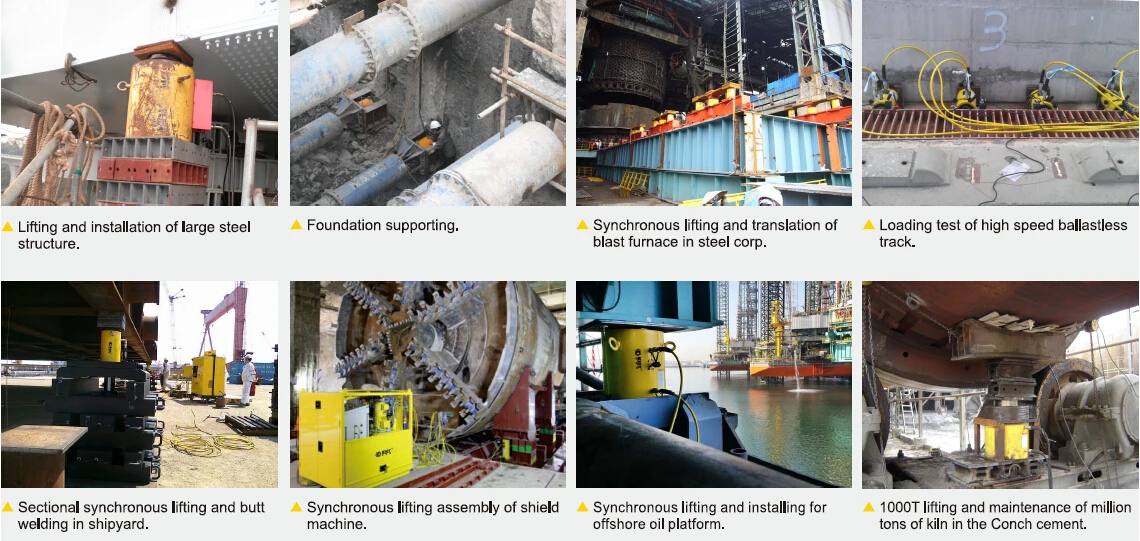

• Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting);
• Hydraulic nut and couplings. (M50-Tr1000)
