OTR Tires Mining Tires Recycling Pyrolysis To Oil Machine Installed In Peru

Share on (62503291673):


Price:

Quantity:


Product Overview

Description

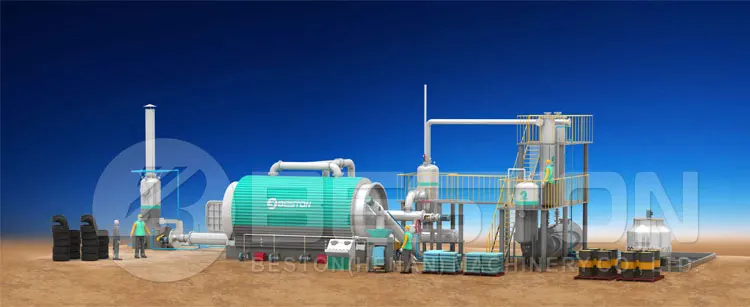

Waste Tyre Pyrolysis Machine

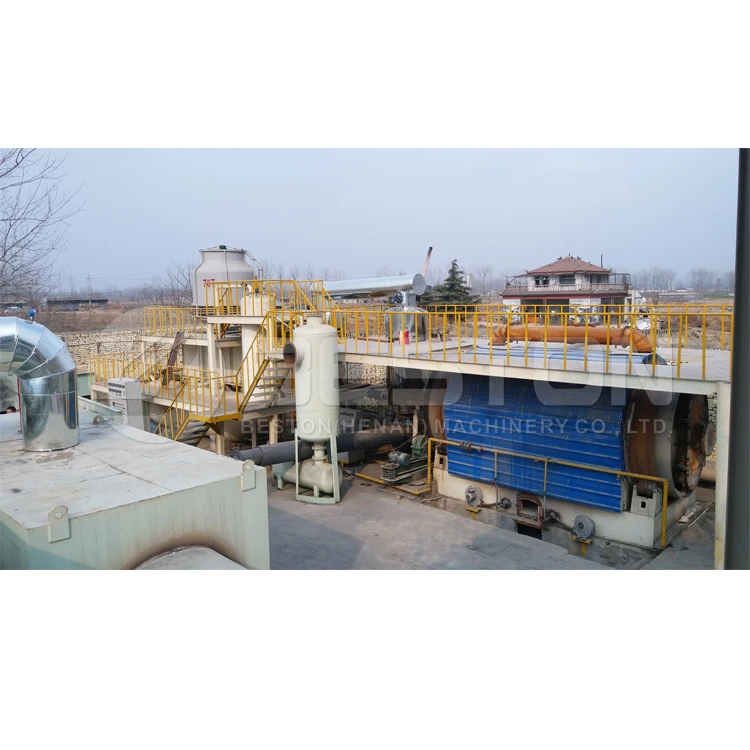

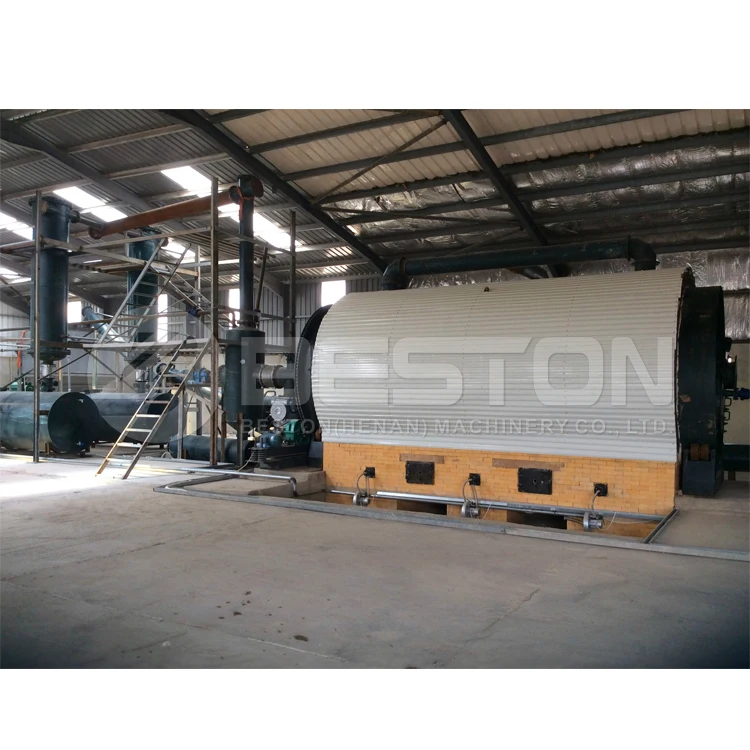

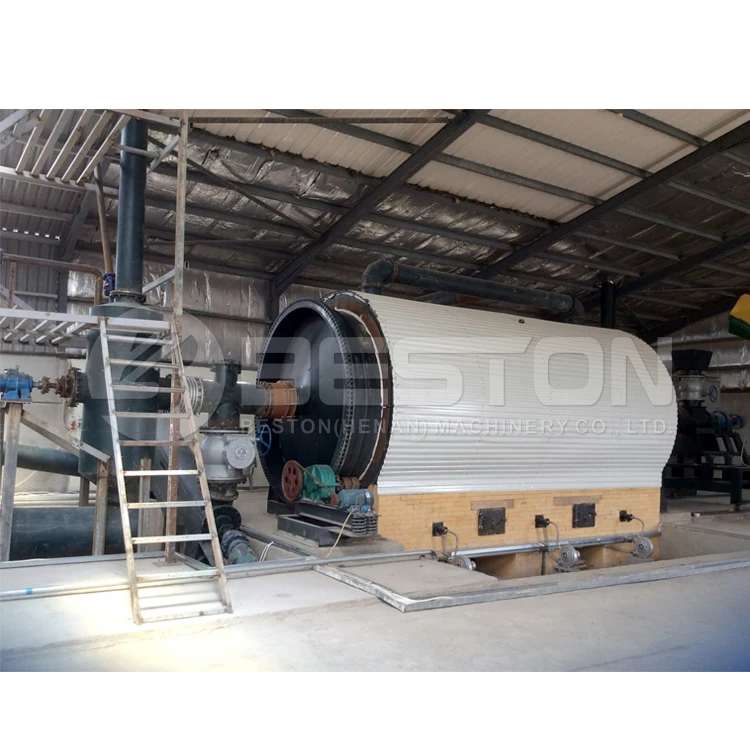

OTR Tires Mining Tires Recycling Pyrolysis To Oil Machine Installed In Peru

Product Description

The waste tire rubber pyrolysis method can pyrolysis the raw materials of the waste tire rubber, so that the waste tire rubber can exert its own value, and then the waste is not waste. After the pyrolysis reaction, fuel oil, carbon black, steel wire, non-condensable but flammable gas can be obtained. The pyrolysis equipment is divided into batch type, continuous type, two-to-one type, multi-group type, etc. If you want to know what kind of product is best for you, please click here.




DataBLJ-6BLJ-10BLJ-16BLL-20
Daily Capacity6MT10MT15-20MT20-25MT
Working MethodBatchSemi-ContinuousFully Continuous
Operating PressureConstant pressure
Reactor rotate speed0.4turn/minuteNot rotary type
Total Power24kw/h30kw/h54kw/h77.5kw/h
Reactor sizeD2.2*L6.0mD2.6*L6.6mD2.8*L7.1mL12.5*W2.2*H2.5m
Space for machine(L*W*H)30*10*10m30*10*10m40*10*10m45*25*10m

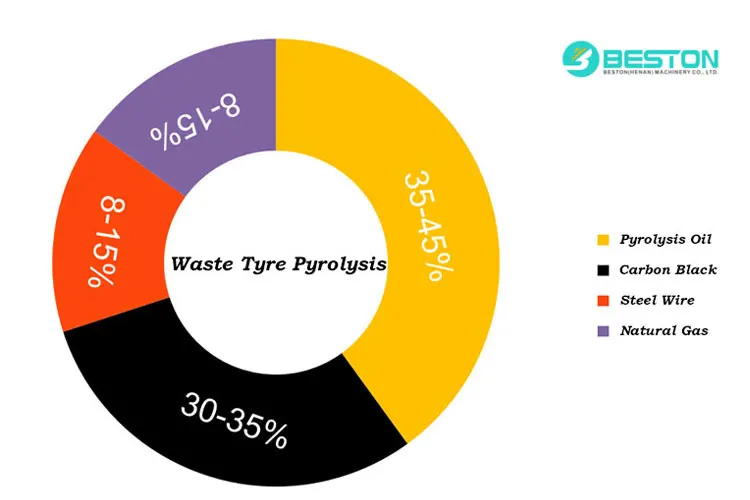

Substances brought to you by our pyrolysis equipment


NO.NameUsage
1oil• can be sold directly.
• Reprocessed into diesel and gasoline by use oil distillation machine.
• can be used as fuel.
2Carbon black• can be sold directly.
• Reprocessed into high quality carbon by the carbon black grinding equipment.
• make carbon brick by briquetting equipment.
3Steel wire • can be sold directly.
• make steel bloom by hydraulic press-packing
4Combustible  gas•  can be as fuel heating the reactor

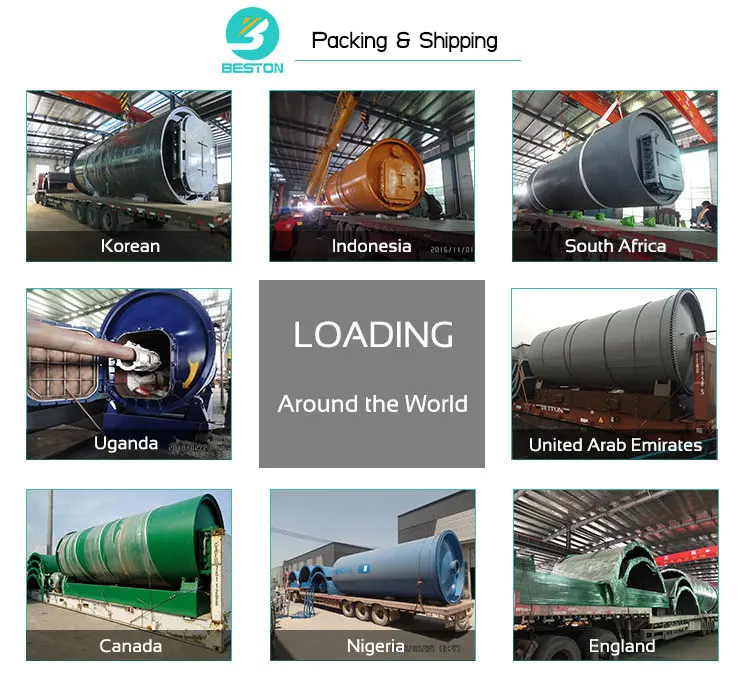

Packaging & Shipping




Company Information


Beston (Henan) machinery Co., Ltd. is an enterprise specializing in biomass carbonization equipment, waste pyrolysis plant, oil distillation plant and garbage sorting plant. Having been in this field since 1998, abundant ecperience enable us to solve your any problems, we promise you high-end products and first-class service. Hope to have the chance to cooperate with you in the near future.



Our Services




FAQ

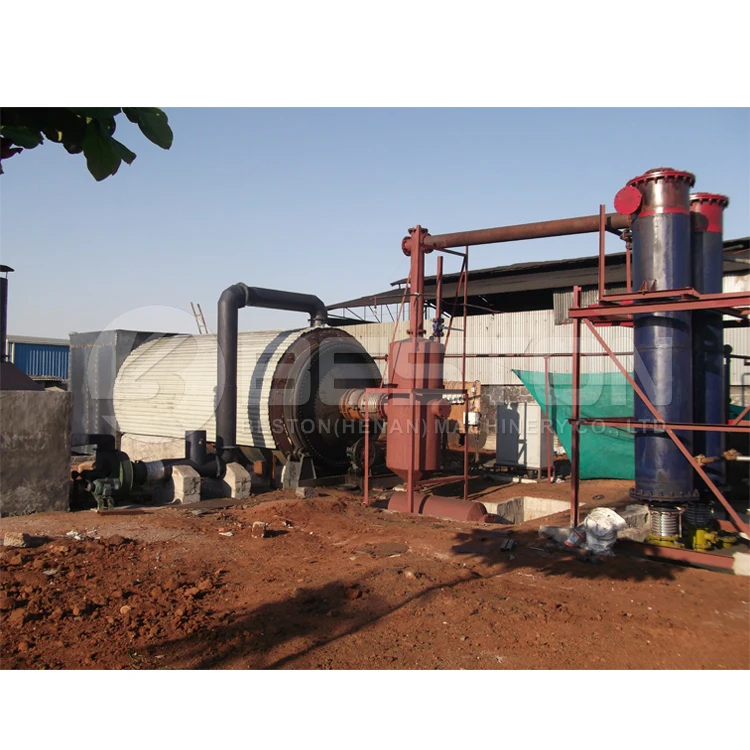

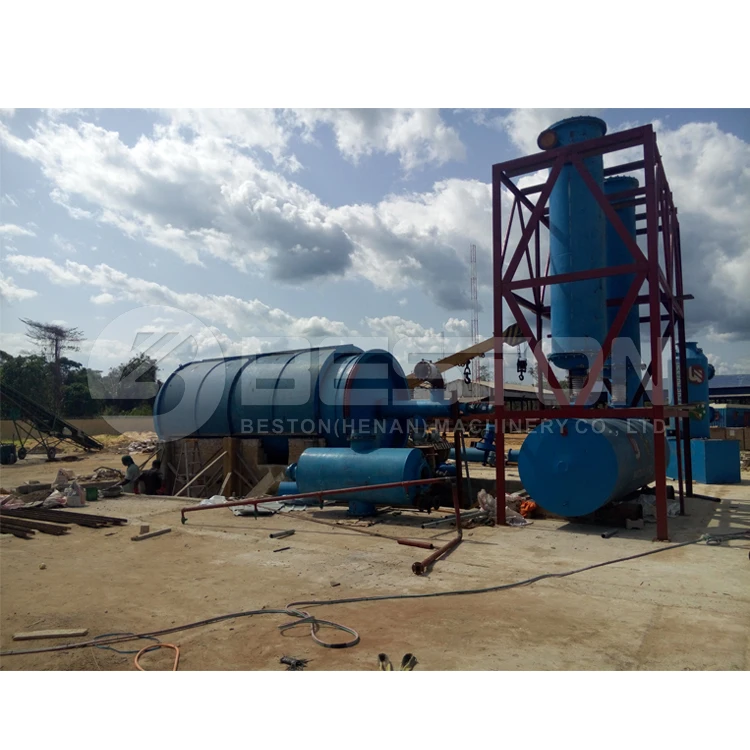

 1. Where have you installed working plants?

Place installed working plants:Vietnam, India, Malaysia, Turkey, nearby our factory , etc.



2. How many MSW carbonized we can get/day?

15:1 is an estimate, not the absolute value. The composition of garbage is different each time, the ratios will be different, exactly, there is no standard value.



3. So what will be the output yield%?

Usually it's 3:1



4. Can you replace your rotator reactor by the viberator reactor?

After discussion with our engineers, the conclusion is our rotator could not replace by viberator reactor. But our engineer will design another plan to achieve the same effect.



5. what is the dedusting system?

In order to meet the emission standards, our dust removal system mainly includes activated carbon adsorption, water spray, ocean ball adsorption and so on.
