Product Overview
Description
25g KF94 N95 VFE PFE BFE 95 95% 99 99% BFE95 BFE99 Melt Blown Filter PP Non Woven Melt-blown Non-woven Meltblown Nonwoven Fabric
Product Overviews
Product Description
DESCRIPTION OF MELTBLOWN NONWOVEN FABRIC - SUNREE | ||||||||

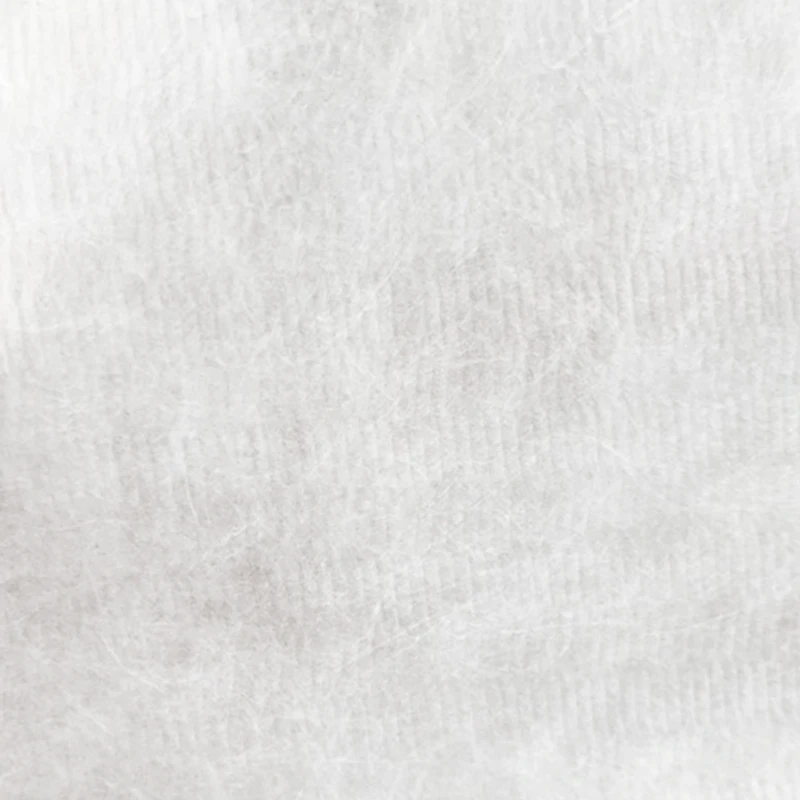

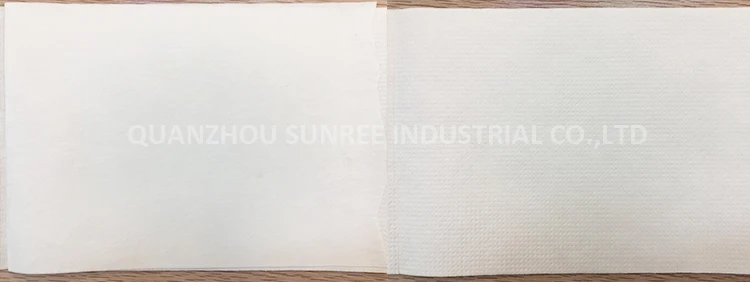

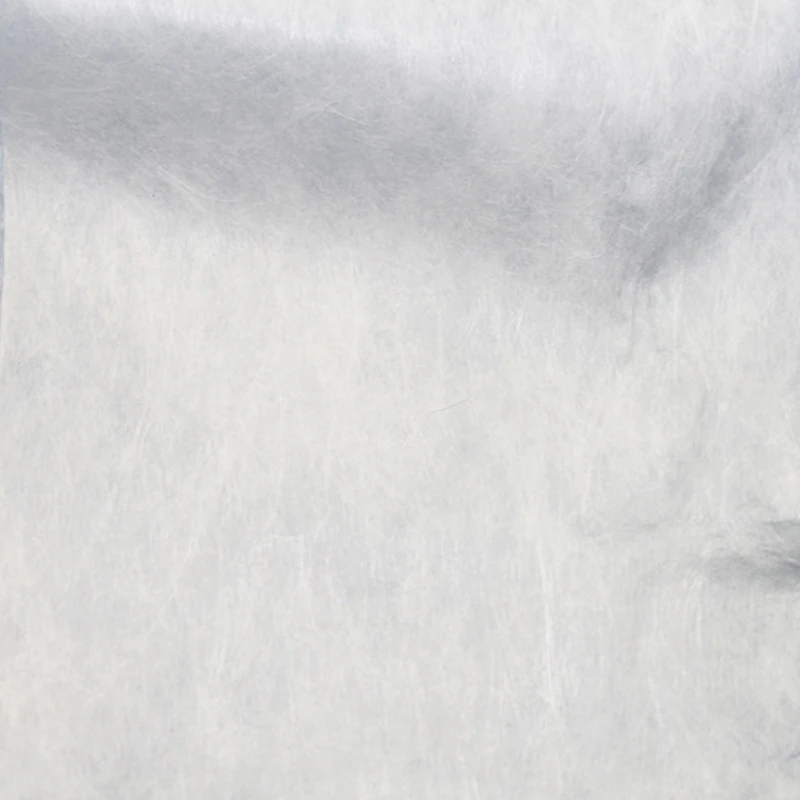

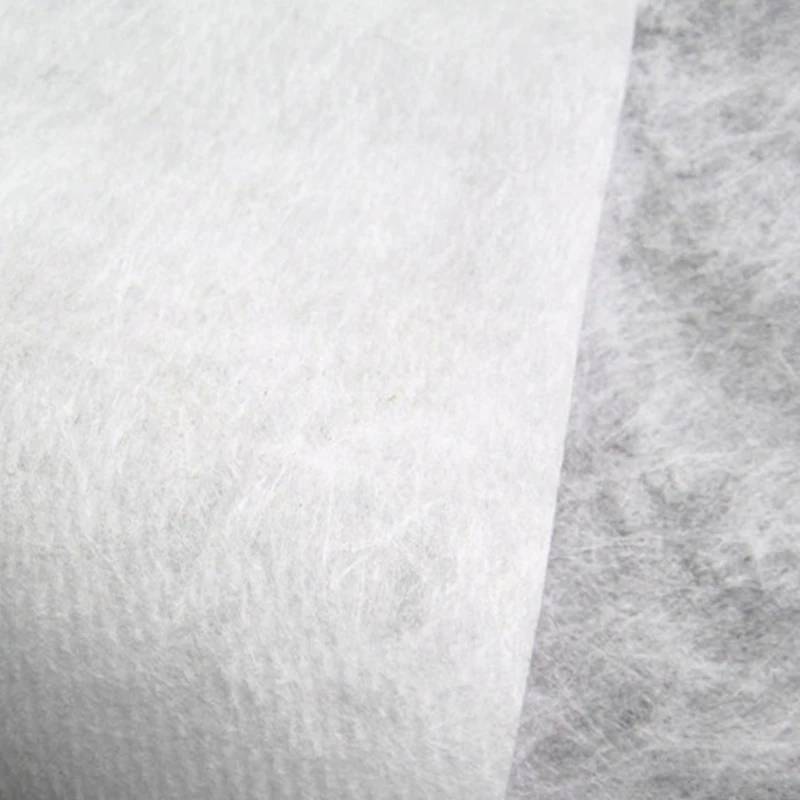

Meltblown Nonwoven | Meltblown nonwovens, the fineness fiber up to 1μm, generally 1~3μm. Meltblown nonwovens has special fiber structure and unique production process, it has a wide range of applications, such as filter materials, medical materials, sanitary suppliers, sound-absorbing materials, oil-absorbing materials, thermal materials, wiping cloth and other fields. | |||||||
Raw Material | Polypropylene | |||||||
Color | White, Black | |||||||
Width | 10-240cm | |||||||
Weight | 10-200gsm | |||||||
Grade | BFE90/95/99, PFE90/95/99, VFE99, etc. | |||||||
MOQ | 2,000 KGS per item | |||||||
Leading Time | 15~30 days upon receipt of deposit and confirmation of samples | |||||||
Payment Terms | T/T, L/C, etc. | |||||||
Characteristics | Customized as the application and requirements, some characteristics as follow: 1. High filtration, low pressure drop; 2. High haze, pollen filtration efficiency, prevent external pollution; | |||||||
Our website hereby lists some of the products we have successfully supplied. please note that this constitutes just a tip of the iceberg of our products and services. If you fail to find the products you want, please feel free to contact us! | ||||||||

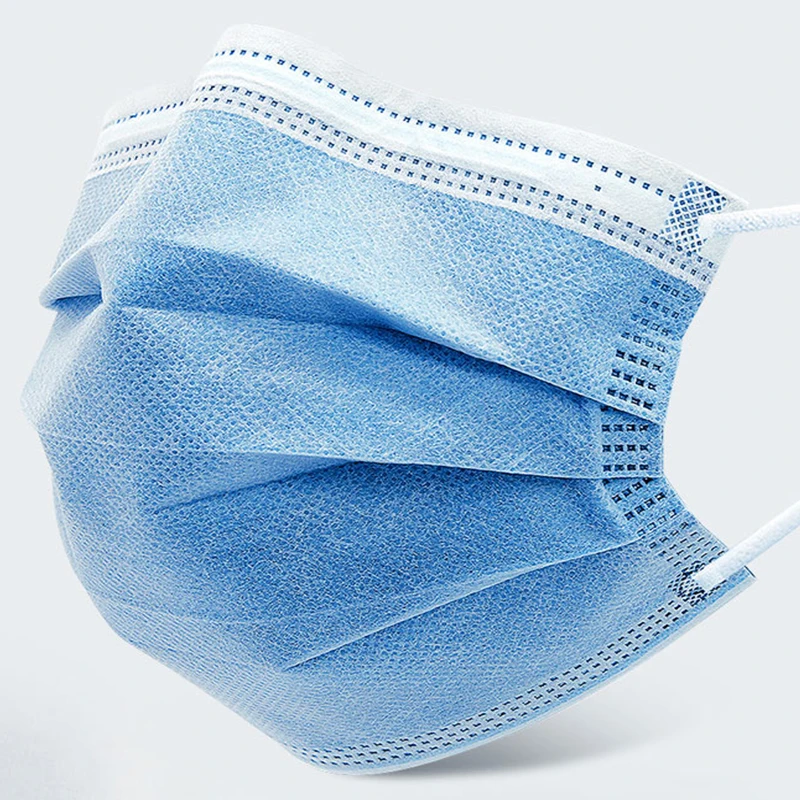

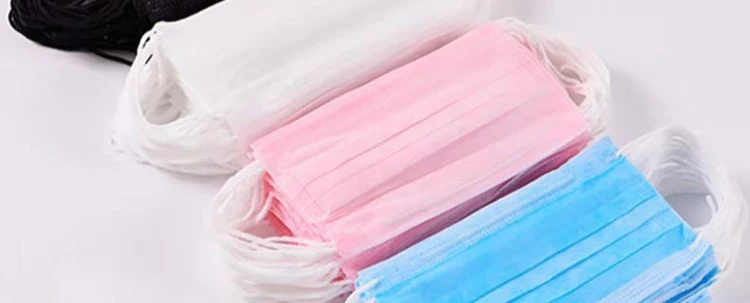

1.1 Product Specification - Ear Loop Face Mask (3Ply) Filtration Media | ||||||||||||||
Weight(gsm) | Flow Rate (L/min) | Resistance (mmH2O) | PFE@0.1μm (%) | BFE (%) | VFE (%) | Application | Standard | |||||||
15±5% | 32 | 1 | / | / | / | Electronics, food, health care and pharmaceutical industry | Enterprise standard | |||||||
18±5% | 32 | 1.5 | / | 95 | / | Electronics, hospital and pharmaceutical industry | EN 14683:2014 | |||||||
20±5% | 32 | 1.8 | / | 99 | / | Electronics, pharmaceutical industry and surgical medical in hospital | ||||||||
22±5% | 32 | 2 | / | 99 | / | |||||||||
25±5% | 32 | 2.5 | 99 | 99 | 99 | |||||||||
The Reference Standard | ||||||||||||||
Item | Standard No. | Particle Diameter (μm) | Flow Rate (L/min) | Filtration Efficiency (%) | Filtration Resistance (Pa) | Synthtic Blood Penetration (mmHg) | Flame Retaedation Properties | |||||||
Disposable Medical Face Mask | YY/T0969-2013 | 3μm Bascterial Aerosol | 28.3 | BFE≥95% | ≤49 | none | none | |||||||
Surgical Mask | YY 0469-2011 | 3μm Bascterial Aerosol | 28.3 | BFE≥95% PEF≥30% | ≤49 | 120 | ≤5s | |||||||
Protective Face Mask For Medical Use | GB 19083-2010 | 0.3μm NaCL Aerosol | 85 | ≥95% ≥99% ≥99.97% | ≤343.2 | 80 | ≤5s | |||||||
2.1 Product Specification - Dustproof Respirator Filtration Media GB KN95 Protective Mask/PM2.5 Protective Mask | ||||||||||||
Model | Weight (gsm) | Flow Rate (L/min) | Max Resistance (mmH2O) | Max Penetration (%) | Aerosol | Standard | ||||||
CN95(A) | 38 | 60 | 7 | 1 | NaCl | GB2626-2006 NIOSH42 CFR-84 JIS 8151-2005 | ||||||
CN95 | 60 | 60 | 7 | 1 | NaCl | |||||||
Note: The industrial labor protective respriator filter material can be used to manufacture different ranks of dustproof facial mask and apparatus as well as Japan standard DS1 and DS2. | ||||||||||||

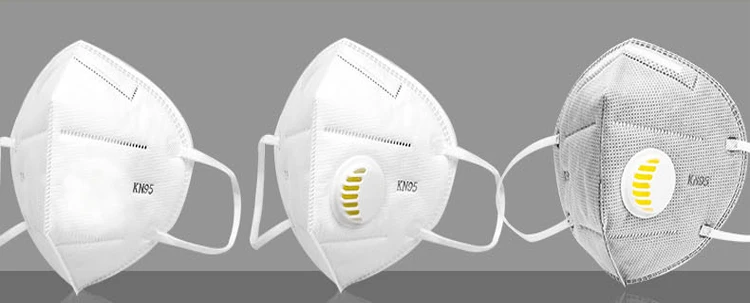

2.2 Product Specification - Dustproof Respirator Filtration Media USA N95 Protective Mask (NIOSH) | ||||||||||||
Model | Weight (gsm) | Flow Rate (L/min) | Max Resistance (mmH2O) | Max Penetration (%) | Aerosol | Standard | ||||||
KN95 | 50 | 60 | 10 | 1 | NaCl | GB2626-2006 | ||||||
N95 | 55 | 10 | 1 | |||||||||
N95(A) | 50 | 8 | 1 | NIOSH42 CFR-84 | ||||||||
CN95(A) | 38 | 7 | 1 | |||||||||
CN95 | 60 | 7 | 1 | |||||||||
N99 | 90 | 20 | 0.1 | |||||||||
N99(A) | 80 | 17 | 0.1 | |||||||||
2.3 Product Specification - Dustproof Respirator Filtration Media EU P2 Protective Mask | ||||||||||||
Model | Weight (gsm) | Flow Rate (L/min) | Max Resistance (mmH2O) | Max Penetration (%) | Aerosol | Standard | ||||||
FFP1 | 44 | 60 | 12 | 8 | Paraffin Oil | EN149-2009 | ||||||
FFP1(A) | 35 | 10 | 7 | |||||||||
FFP2 | 60 | 17 | 2.5 | |||||||||
FFP2(A) | 50 | 14 | 1.5 | |||||||||
FFP3 | 100 | 23 | 0.1 | |||||||||
FFP3(A) | 90 | 20 | 0.1 | |||||||||
The Reference Standard | ||||||||||||
Standard | Filtering Category | Filtering Efficiency | Max Penetration | Protection | Test Flow Rate | |||||||
USA | NIOSH 42 CFR Part 84 | N95/R95/P95 | ≥95% | 5% | 1. Non-oil 2. Oil Resistance (R-no more than 8hrs) 3. Oil Protective | 85L/min | ||||||
N99/R99/P99 | ≥99% | 1% | ||||||||||
N100/R100/P100 | ≥99.97% | 0.03% | ||||||||||
GB | GB2626-2006 | KN90/KP90 | ≥90% | 10% | 1. KN-Non-oil 2. KP-Oil Protective | |||||||
KN95/KP95 | ≥95% | 5% | ||||||||||
KN100/KP100 | ≥99.97% | 0.03% | ||||||||||
JP | JIS8151-2005 | DS1/DL1 | ≥80% | 20% | 1. D-Oil Protective 2. S-Non-Oil 3. L-Oil Protective | |||||||
DS2/DL2 | ≥95% | 5% | ||||||||||
DS3/DL3 | ≥99.99% | 0.1% | ||||||||||
EU | EN149-2009 | FFP1 | ≥80% | 20% | Oil Protective | 95L/min | ||||||
FFP2 | ≥94% | 6% | ||||||||||
FFP3 | ≥99% | 1% | ||||||||||
KR | KF80 | ≥80% | 20% | Oil Protective, 0.6μm | ||||||||
KF94 | ≥94% | 6% | Oil Protective, 0.4μm | |||||||||
KF99 | ≥99% | 1% | ||||||||||
AU | AS/NZS 1716:2012 | P1 | ≥80% | 20% | Oil Protective | |||||||
P2 | ≥94% | 6% | ||||||||||
P3 | ≥99% | 1% | ||||||||||
Our Advantages

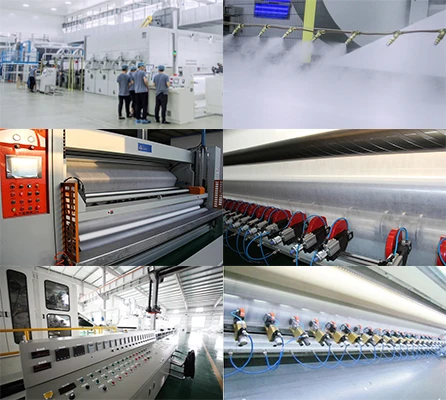

ADVANCED EQUIPMENT
Sunree has stable, high capacity and high performance equipment and advanced technology which is the guarantee of Sunree products with good quality and nice prices.
Advanced online finishing equipment to produce single fiber with higher degree of fineness and higher degree of softness.
Excellent uniformity of web forming, precise pressure and temperature control, constant tension control, precise cutting, to ensure the stability of Sunree products.

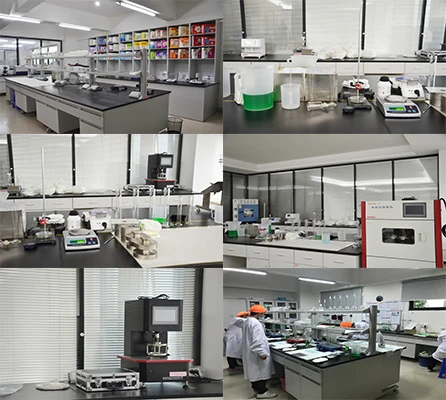

TECHNOLOGY CENTER
Sunree has a scientfic research center, the establishment of a quality assurance system and with the Austrian company LENZING electronic moisture penetration and rewet meter instrument, softness tester, abrasion tester, the most advanced precision testing and measuring equipment, high precision, accurate.
The state-of-the-art workshop and professional team to ensure that Sunree products meet international standards.
QUALITY CONTROL
The laboratory enables Sunree to quality ASTM, ISO and GB standards tests, which further effectively control and reflect product.
Advanced online inspection equipment with high precision, accurateness and professional, strict inspection means and quality management system ensures products with excellent quality.
Application
Customized Solution
Company Profile
Why Choose Us
Favourable Comment
