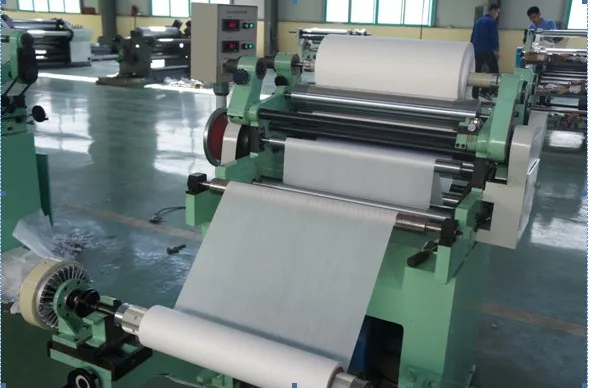

The high precision slitting machine for foil material is used to cut paper, tape, film, gold foil, silver foil, copper foil, aluminum foil, titanium alloy foil and so forth. What's more, it is always widely uesd in the fiels of capacitor, battery, packing industry and ect.The main characteristics include high cutting accuracy, high hardness of cutting tool, minimum cutting resistance, maximum abrasive resistance, sharp and durable edge. In addition, it boasted with such advantages as simple operation, stability, high efficiency and long service life.

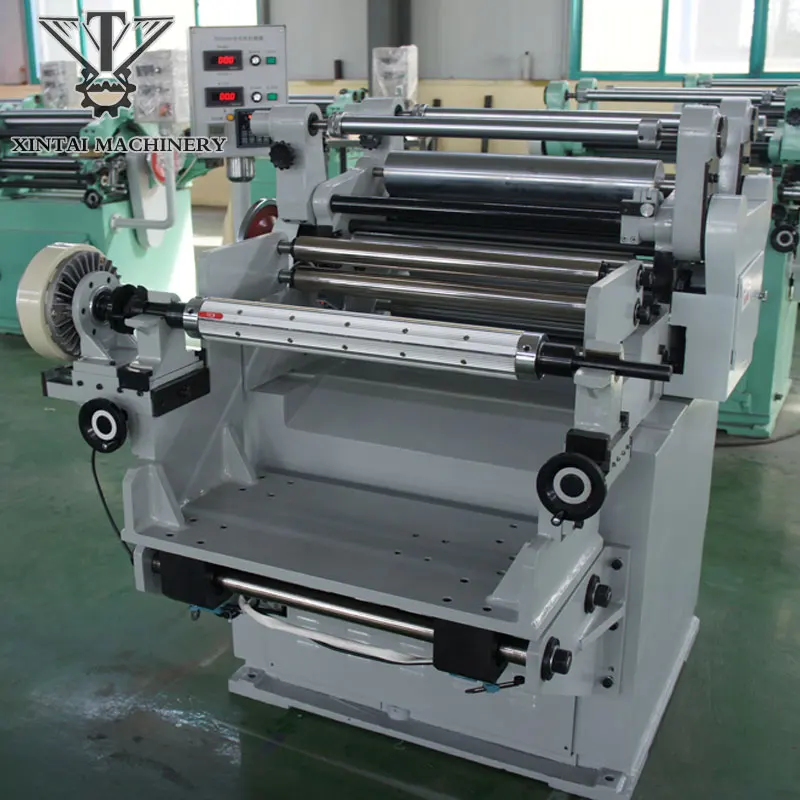

Foil Precision Slitting Equipment XTF-500
Type
XTF-500
Raw Material Thickness
0.008mm-0.1mm
Maximum Feeding Width
500mm
Outer Diameter of Raw Material
<500mm
Inner Diameter of Raw Material
75mm(customized)
Raw Material Weight
100Kg
Finished Product Width
3mm-500mm
Outer Diameter of Finished Product
≤300mm
Inner Diameter of Finished Product
40mm/76mm (customizable)
The Number of Sliced Bars
50 bars (Depend on Thickness )
Width Tolerance of Finished Product
±0.02mm
Equipment Speed
1-140m/min
Power
4KW
The Size of Equipment
L*W*H: 1.2m*1m*1m
Equipment Weight
1T
Main Features:
1.This kind of slitting machine adops variable frequency motor and automatic constant tension device.
2 This machine is equipped with automatic meter meter counting device and emergency stop switch.
3. It pessessed cast iron frame panel and cast iron chassis as well as the shear head arch made of nodular cast iron in order to ensure stable operation of the machine.
4.simple operation, high efficiency and long service life.
Why Choose Us
Baoji Xin Tai Precision Equipment Manufacturing CO., LTD, built in 1995, mainly working on research, development and production of dedicated equipment in the fields of electron, metallurgy, new energy and other material industry. Mostly important, we have a professional work term and we have been devoted to manufacturing metal, non-metallic strip, foil precision slitting machine, cutting tools and grinding equipment.
Our star products include high precision foil slitting machine, (PV ribbon slitting machine, slitting machine) and vertical/horizonal shear machine, straightening machine, rolling machine, plane grinding machine, all of which are boasted with simple opration, high precision ,high efficiency and so on.
We have always adhered to such principles as integrity, modesty, standardiaztion, practicability, and innovation and we honestly look forward to cooperating with all kinds of friends all over the world and providing all of you with customized service in this respect.

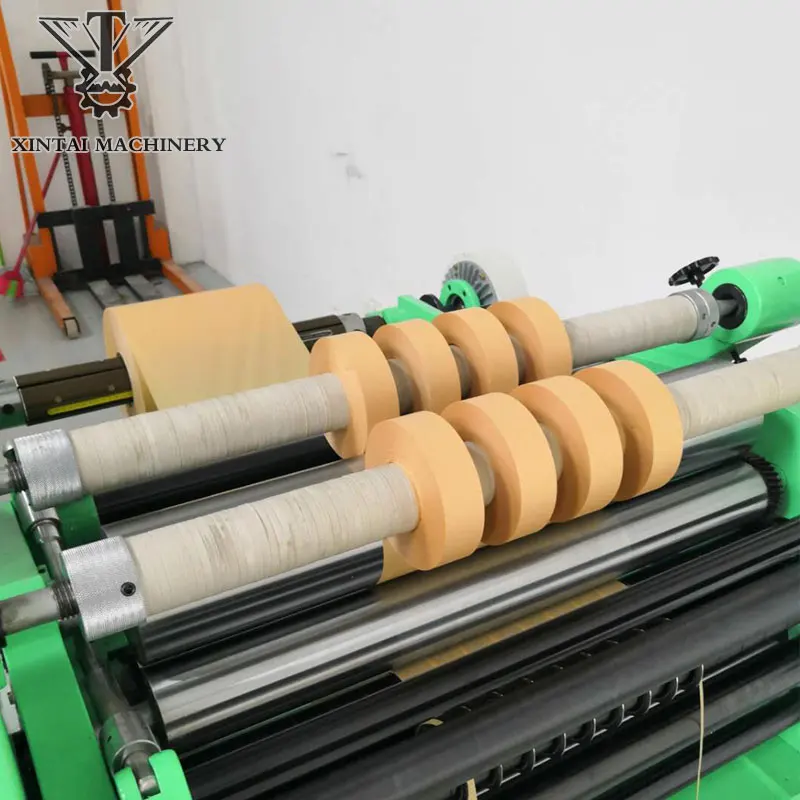

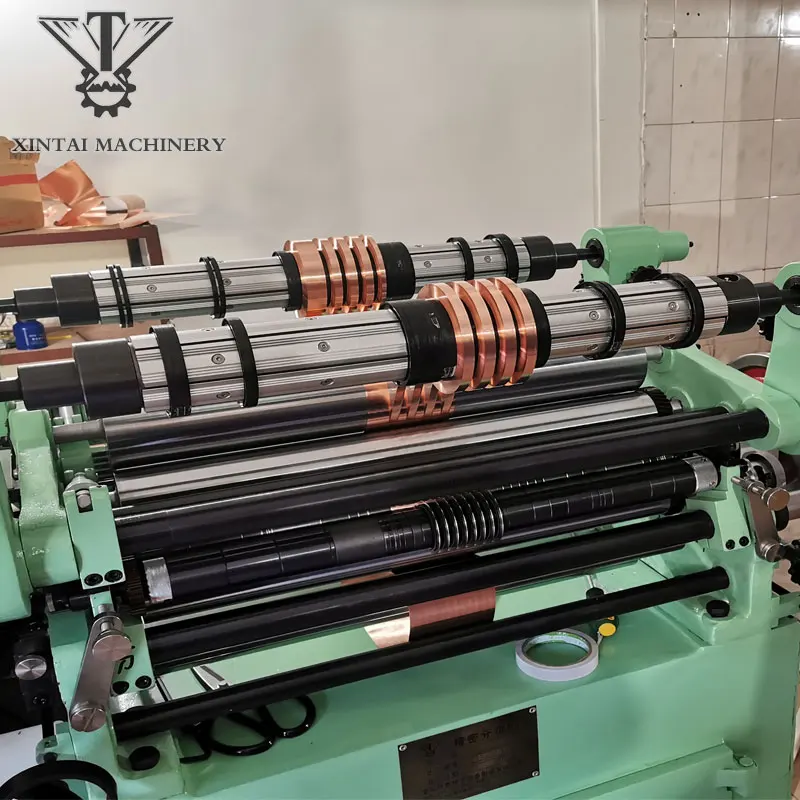

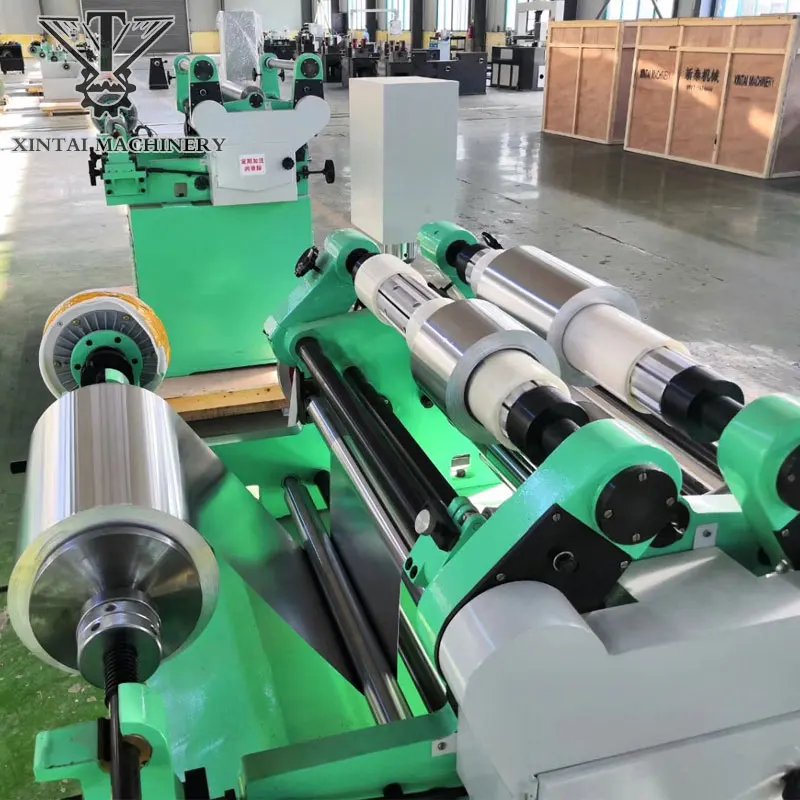

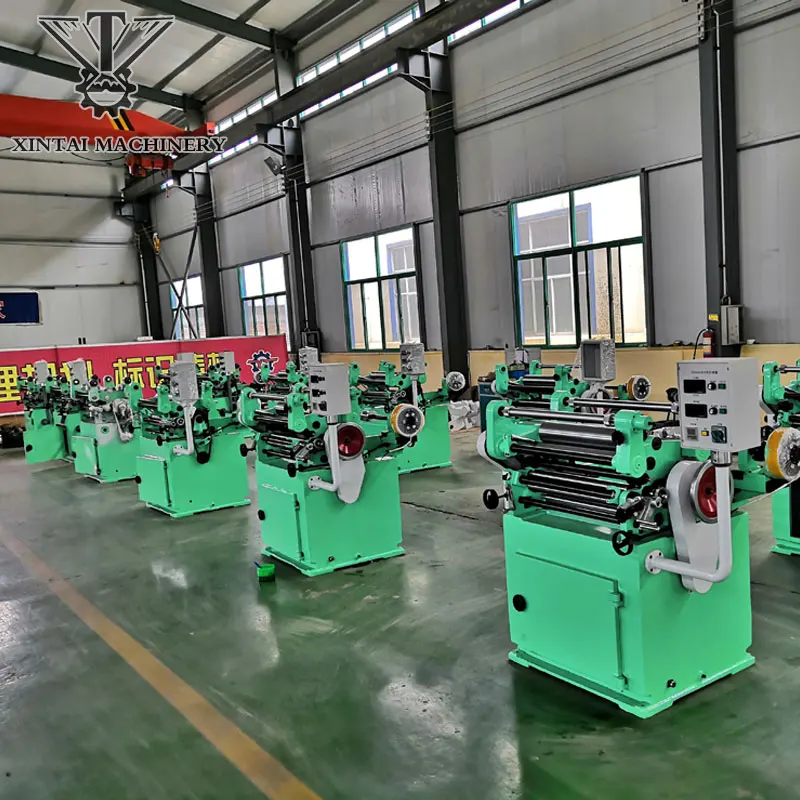

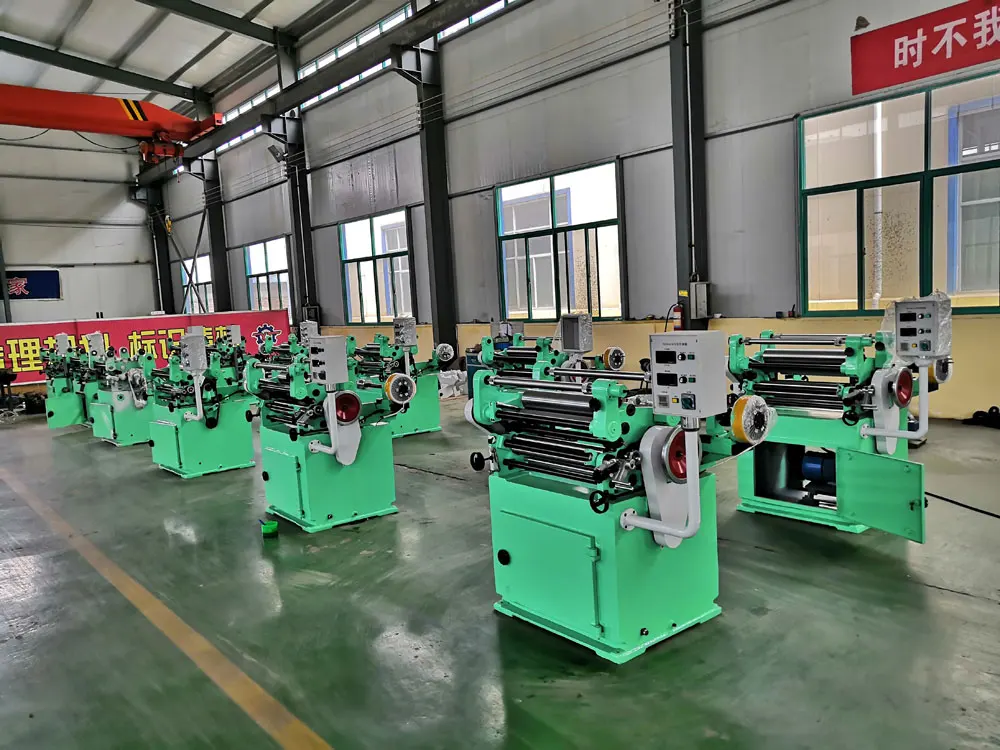

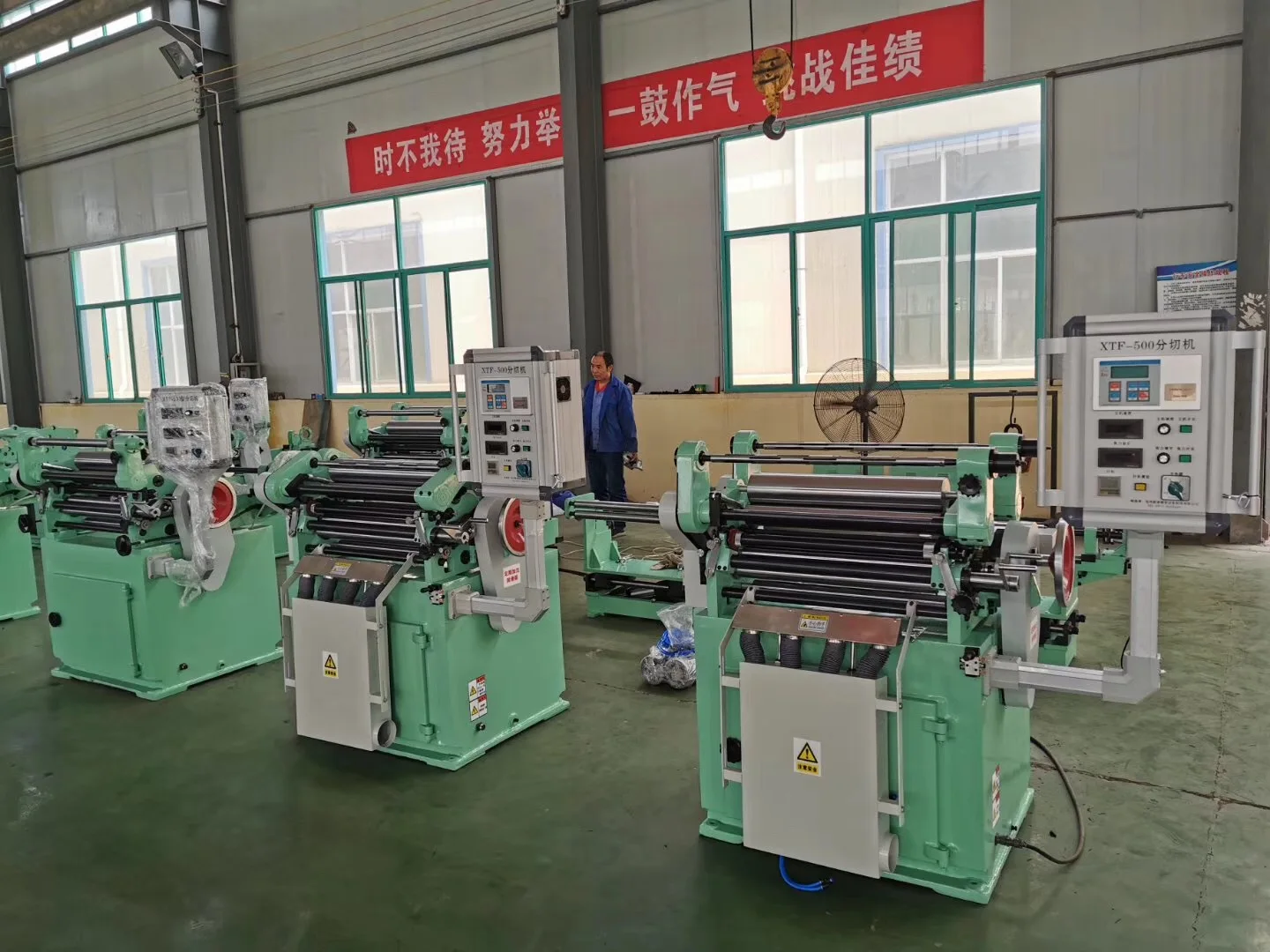

Details Images
Raw Material Parameters
1. Raw materials: paper, film, tape, gold foil, silver foil, copper foil, aluminum foil, titanium alloy foil and so forth. 2. Slitting zone thickness: 0.008mm-0.1mm 3. Maximum feeding width: 500mm 4. Maximum Outer Diameter of Raw Materials: <300mm 5. Raw material inner diameter: 40mm/70mm(customizable) 6. Raw material weight: 100Kg

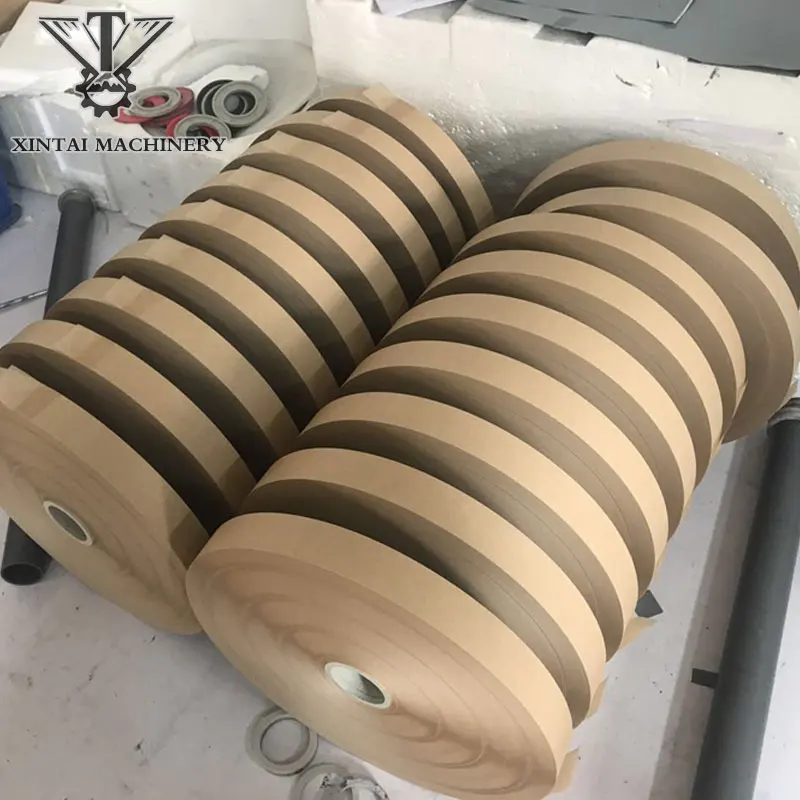

Finished Product Parameters
1. Finished product width:3mm-500mm 2. Outer diameter of finished product: ≤300mm 3. Finished coil inner diameter: 40mm/76mm (customizable) 4. Number of sliced bars: 50 bars (depend on raw material thickness) 5. Width tolerance of finished product: ±0.02mm
Device Parameters
1. Operation direction of equipment: from right to left 2. Equipment speed: 1-140m/min 3. Equipment capacity: 4KW 4. Equipment coverage L*W*H: 1.2m*1m*1m 5. Equipment weight: 1.T
Electrical Parameters
1. Inverter: Audi (China) 2. Intelligent Voltmeter: French School (China) 3. Intermediate relay: Omron (Japan) 4. Electrical Switching Components: Zhengtai (China) 5. Equipment Power Supply: Sanhuo 101, AC380V, 50Hz 6. Motor: Wuxi, China 7. Reducer: Wuxi, China
Our service
Pre-Sales Service
* Inquiry and consulting support.
* video support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas.

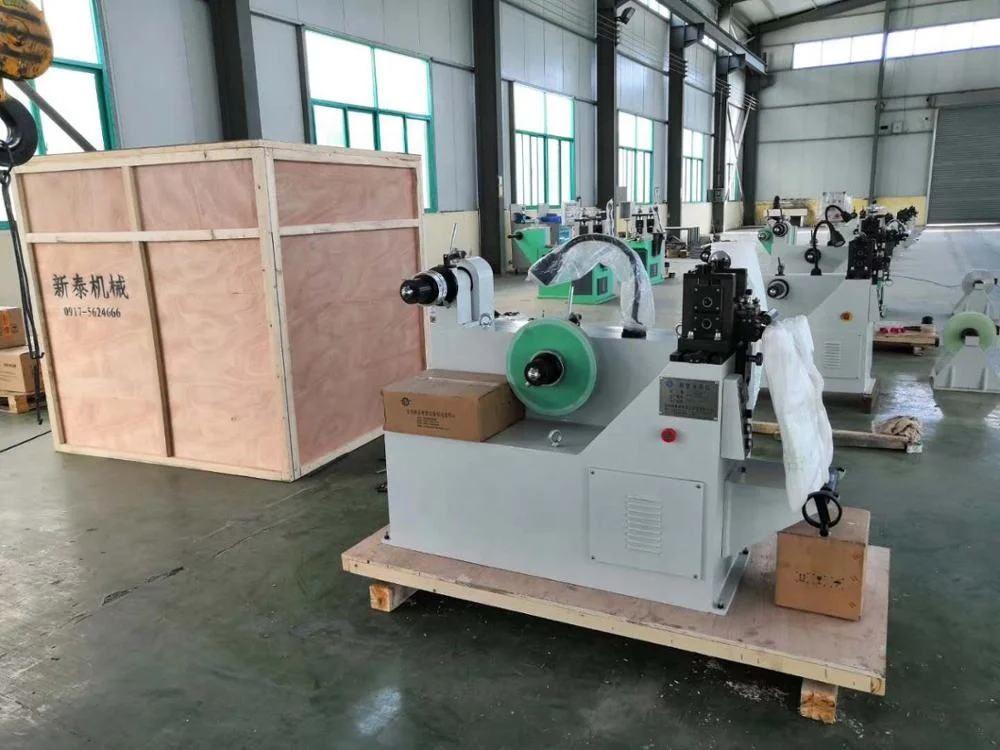

Packing&Delivery
Packaging
Size
L*W*H: 1.2m*1m*1m
Weight
1T
Packaging Details
1.The normal package is wooden box(Size: L*W*H).
2. If we export to European countries, the wooden box will be fumigated. Certainly, machine spares and accessories are packaged into fumigation-free wooden box for anti-rust.
3. if there is special requirement, all body can be packaged into fumigation-free wooden box or make wooden pallet.
Our Company
Our Advantages:
1. Direct factory supply.
2. Full cast iron fuselage, parts are produced by ourselves.
3. Products are guaranteed, and we have professional quality test report.
4. High speed, stable operating as well as high effectiveness are our core competitiveness, so we are suitable for mass manufacturing.
5. Having been focused on metel, non-metal, foil strips industry for more than 25 years.
6.High utilization rate of materials, stepless cutting speed regulation.

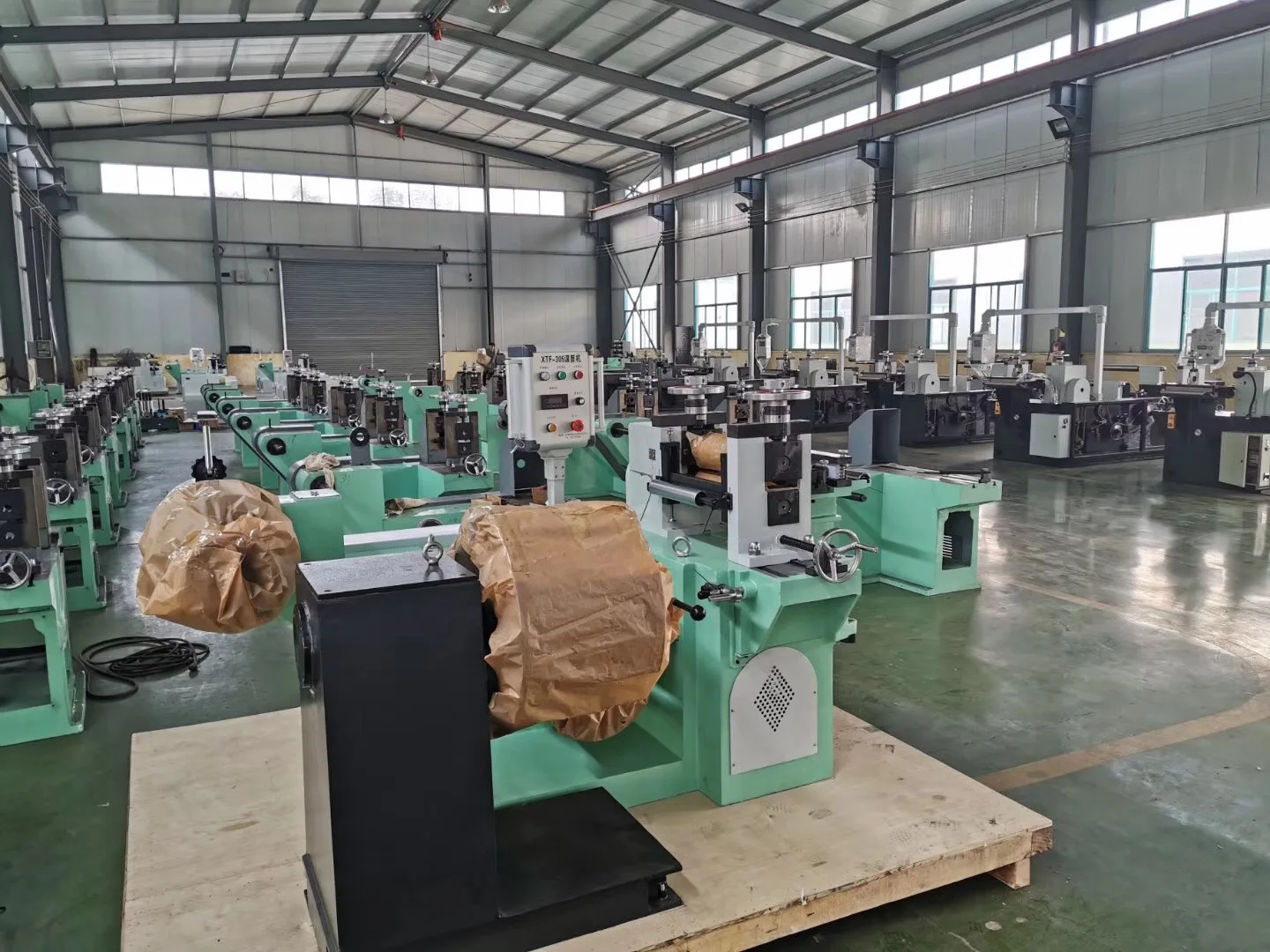

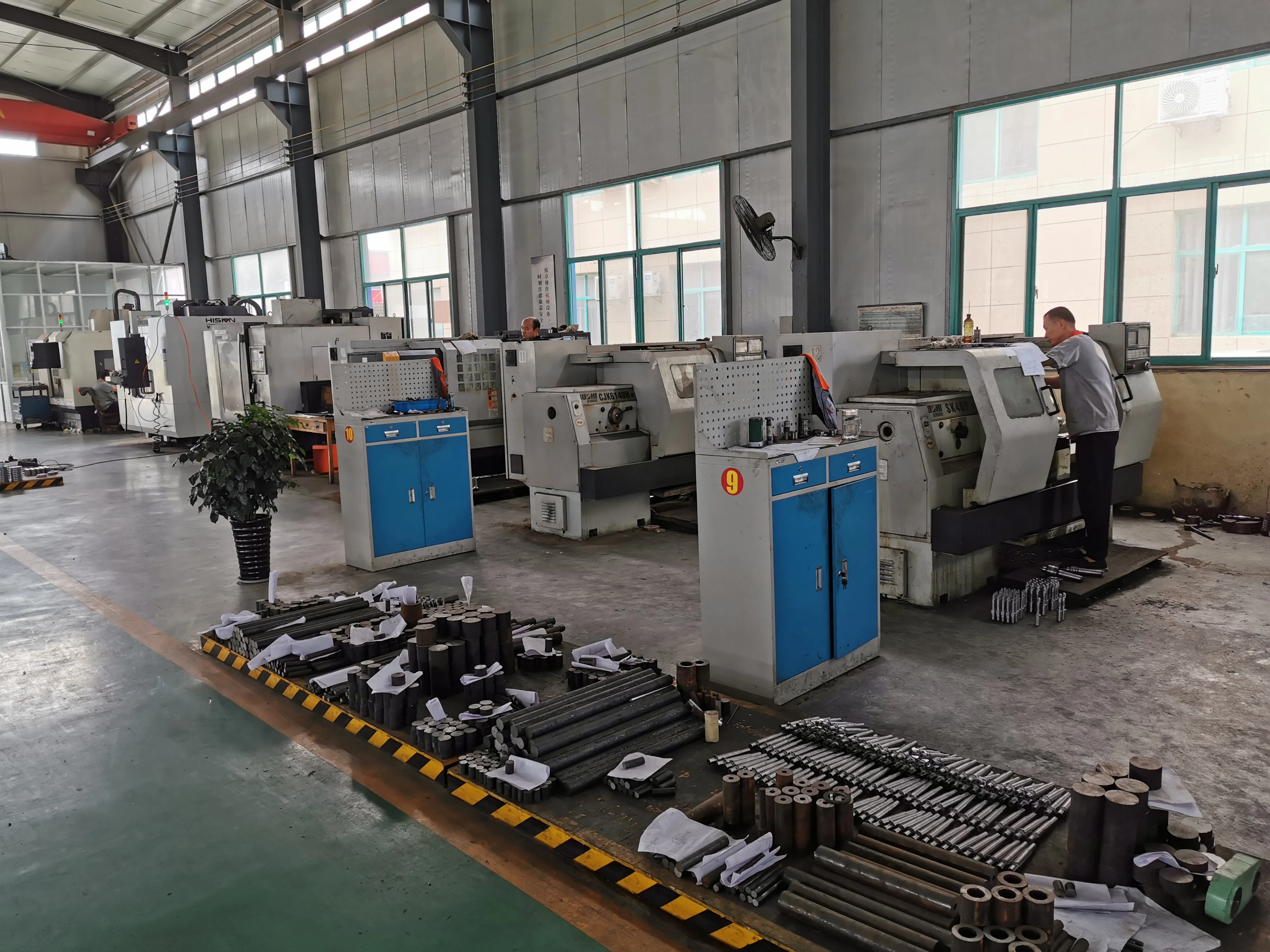

Production Workshop
Our company has a large number of technicians, strong technicial force, all kinds of production technological means, improved and complete product quality assurance system as well as testing system. In view of customers' different requirements, we are ready to provide customized equipment. Equipped with abundant tecnological means and holding fast to advanced management ideas, we have created strict quaility guarantee system amd sophisticated research and development ability.
The customers' satisfaction is the permanent pursuit of Baoji XinTai Precision Equipment Manufacturing CO.LTD. What's more, high quality warm,thoughtful and customized sercive is our eternal commitment. We have stuck to the principle of "Service and Quality First".
Service commitment is to ensure that the maintenance service and fault fixing will be carried out immediately and effectively. What's more, we re equipped with full-time staff and special reserve for spare parts. Above all, our engineers will provide you satisfying maintenance service.
