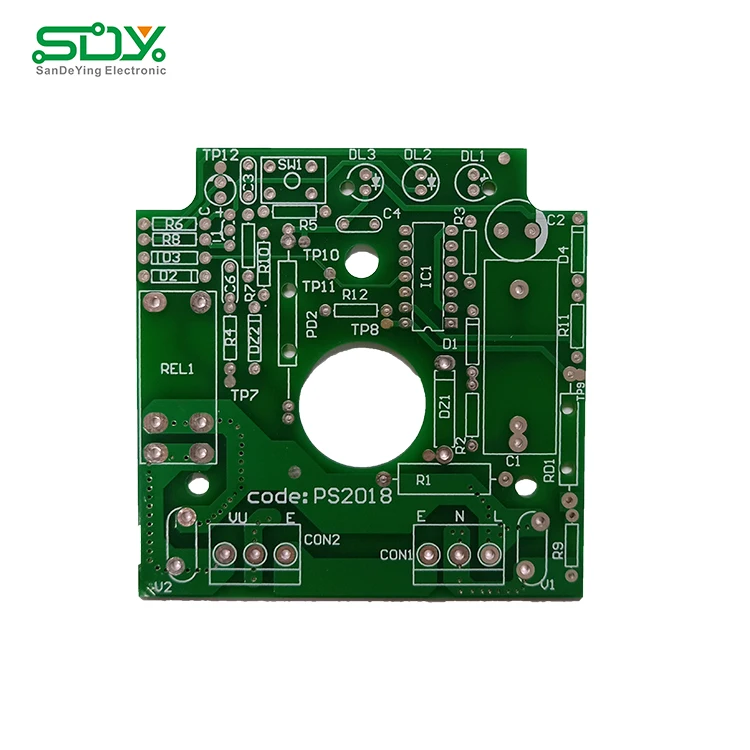

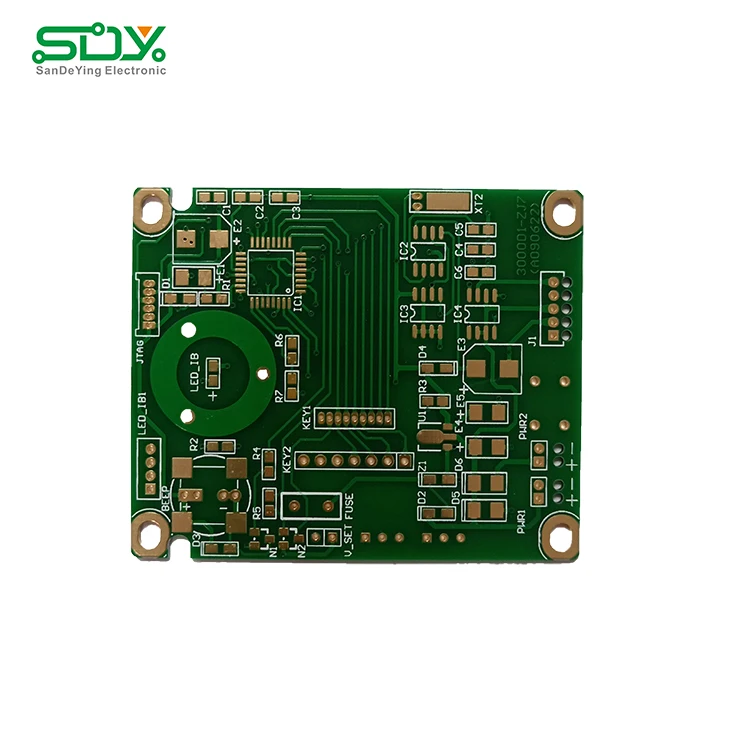

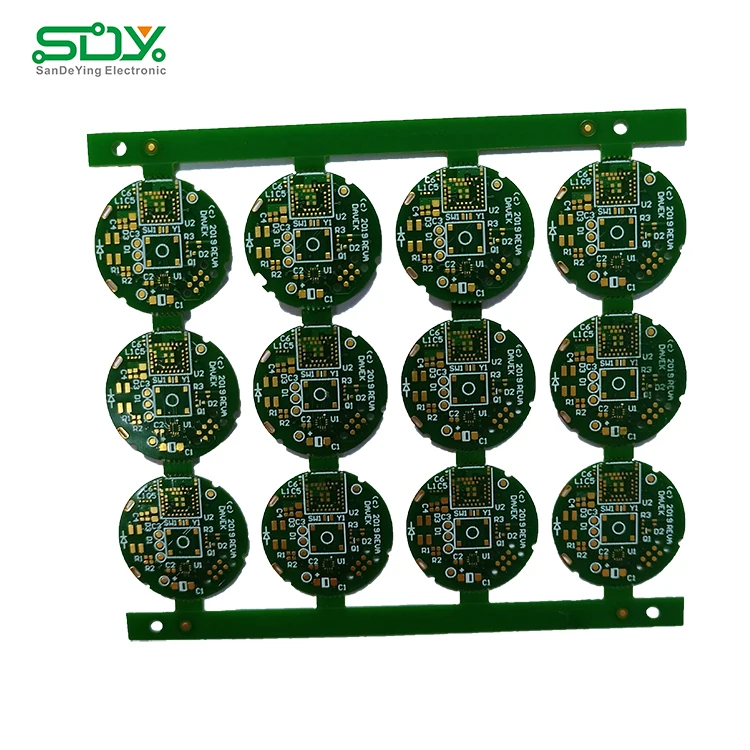

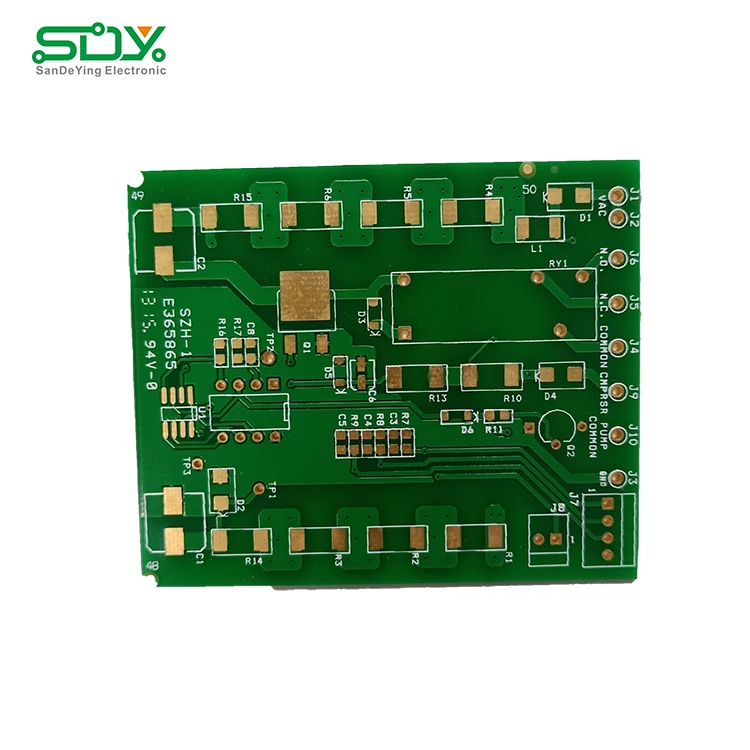

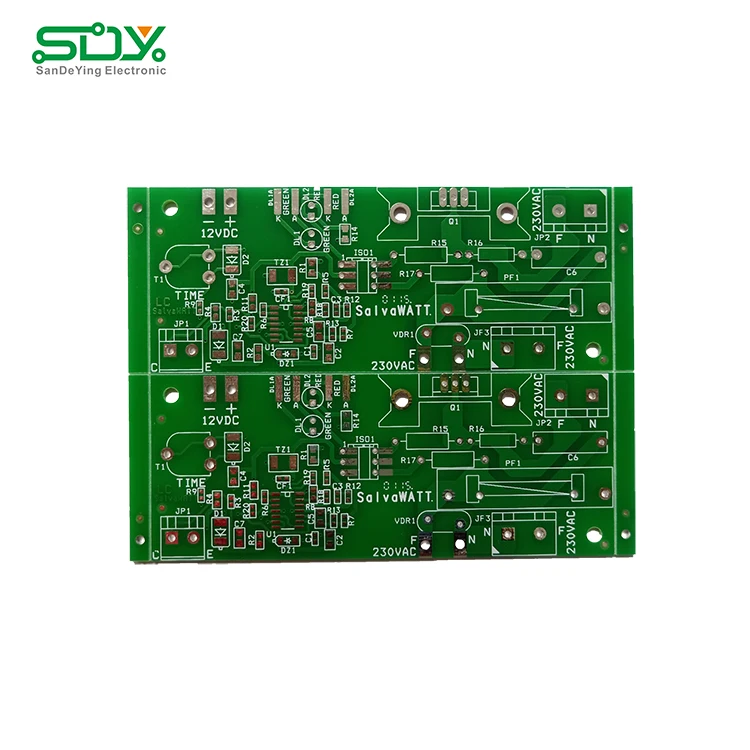

The Manufacturer Directly Produces FR4 94V0 Rigid Printed Circuit Board

SDY manufactures various kinds of PCBs, including single layer PCBs, double layer PCBs, multilayer PCBs, high TG FR-4 PCBs, heavy copper PCBs, impedance controlled PCBs, gold finger PCBs, plating gold PCBs, and some other PCBs according to customers’ requirements.

Customers can work with SDY to meet different requirements instead of working with several suppliers, which will simplify the purchasing process, get quality PCBs, get on time delivery and saves cost in all.



Sustainable long term development

SanDeYing Electronic strives for the sustainable long term development, so that it can protect the benefit of employees, suppliers and customers.

SanDeYing Electronic provides quality products to customers, to reduce the waste caused by defect products and protect the benefit of customers.





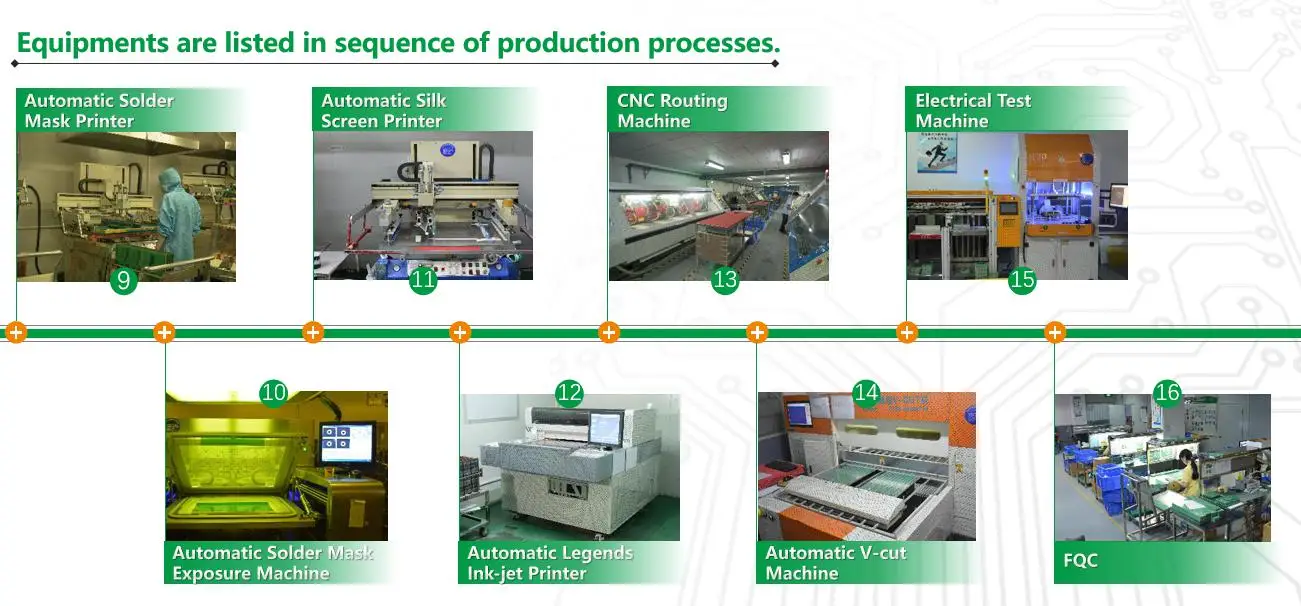

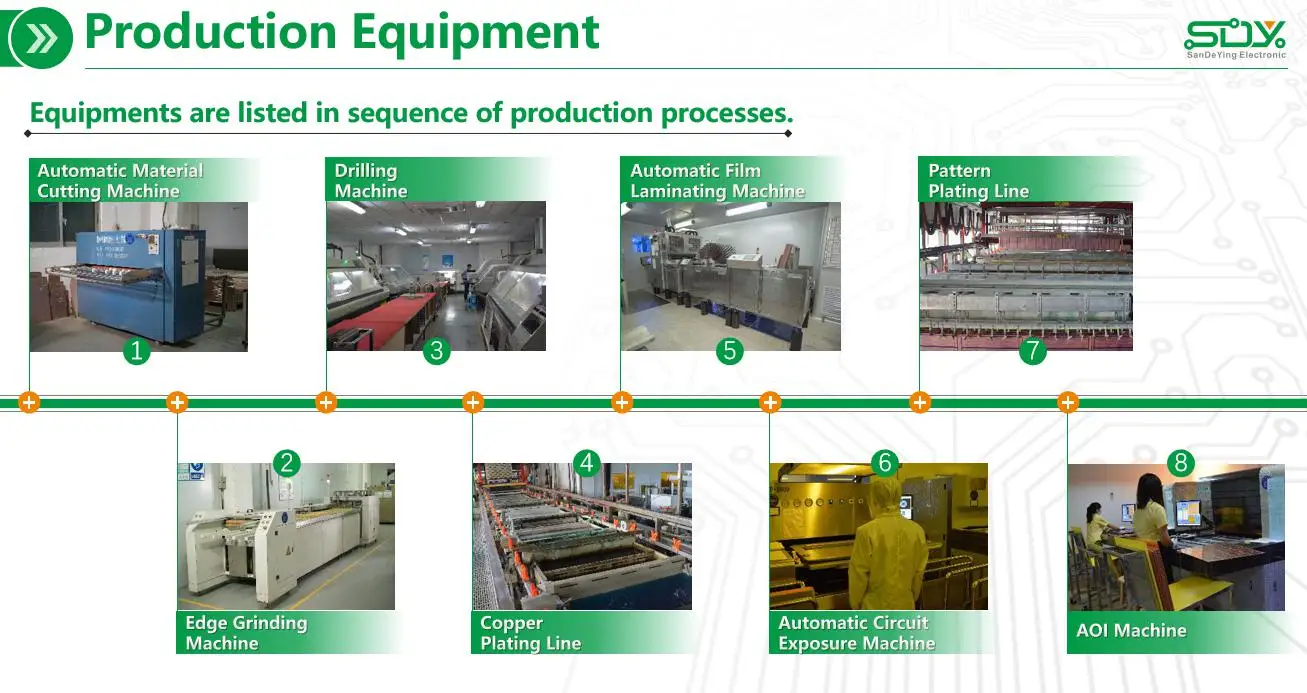

CAPABILITIES

PCB Capabilities
Item	Capabilities
Layer	1-14 Layers
Board material	FR-4 Tg130 / FR-4 tg140 / FR-4 Tg150 / FR-4 Tg170 / FR-4 Tg180 / FR-4 CTI175 / FR-4 CTI300
Tolerance	Board thickness tolerance / Board thickness≤1.0mm: +/-0.1mm / Board thickness 1.0-2.0mm: +/-10% / Board thickness >2.0mm: +/-8%
	PTH diameter tolerance: +/-0.075mm / NPTH diameter tolerance: +/-0.05mm / Hole location tolerance: +/-0.075mm
	Outline tolerance / Length≤100mm: +/-0.1mm / Length 100-300mm: +/-0.15mm / Length >300mm: +/-0.2mm
	V-cut dept tolerance: +/-0.1mm
Technical Specification	Min line width/space: 0.075/0.075mm
	Min PTH copper thickness: 20um
	Min hole diameter: 0.2mm
	Min pad ring: 0.1mm
	UL certified max copper thickness: 6oz(including Multilayer, double layers and single layer boards)
	Max board size: 560*410mm
	Board thickness / Double-sided board: 0.2-7.0mm / Multilayer board: 0.4-7.0mm
	Solder mask bridge: ≥0.08mm
	Aspect ratio: 8:1
	Via plugging capacity: 0.2-0.6mm
	Board bow and twist: ≤0.75%
	Au, Ni, HASL thickness: 1, Immersion gold: Au 1-4u” / 2, Gold fingers: Au 1-50u” / 3, Plating gold: Au 1-5u” / 4, Ni thickness: 100-200u” / 5, HASL thickness: 1-50um / 6, OSP thickness: 0.3-0.5um
