Eco friendly mortar dryer machine mortar drying equipment
- Category: Dry Cabinet >>>
- Supplier: Guangzhou Yike Heat Pump Drying Equipment Technology Co. ltd.
Share on (62503845965):
Product Overview
Description
Product Description
Purpose of drying mortar
The purpose of drying is to remove water or solvent from some raw material and semi-finished products so as to facilitate the packing,transportation,storage,processing and use of material.Product Name: | mortar drying equirpment | |||
Material: | Steel / Stainless Steel | |||
Power (KW): | 5.3 | |||
Features: | Drying, Dehumidify, Fourth waste heat recovery technology, touch screen control, Programmable |
What is it ?
YKP Air Energy Heat pump Dryer uses the reverse Carnot principle to absorb the free heat from the air and transfer it to the drying room(input of 1 degrees of electric energy can produce 4 degrees of electric energy).
The temperture of the drying room is increase, and the corresponding dehumidification and moisture removal equipment is used to achieve drying of the material.
Secador de alimentos de arándanos y fresas
Products application:
Heat pump drying equipment is suitable for drying fruit, wood, seafood,agriculture product,tea and sludge in many field. The working principle of Heat pump drying machine

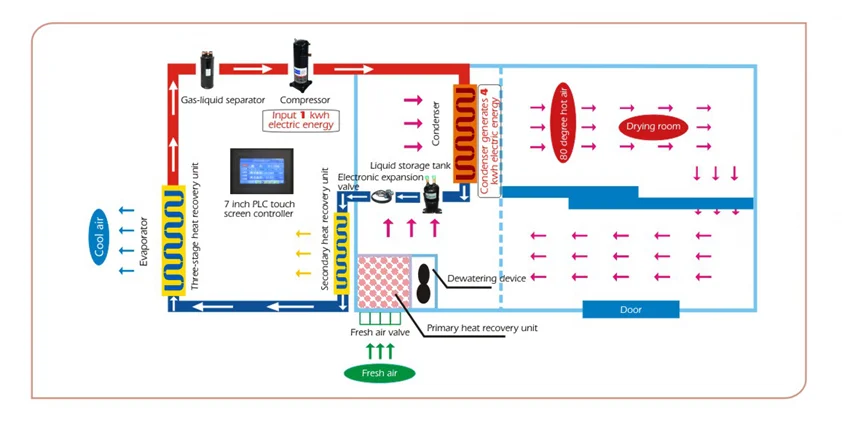

* YKP heat pump dryer operates according to a basic reverse Carnot cycle. The working fluid (refrigerant) at low pressure is vaporized in the evaporator by heat drawn from the dryer exhaust air. The compressor raises the enthalpy of the working fluid of the heat pump and discharges it as superheated vapor at high-pressure. Heat is removed from the working fluid is then throttled to the low-process line (using an expansion valve) and enters the evaporator to complete the cycle.
Frutos, mirtilos, morangos, ananases, kiwis, secadores de alimentos* In the dryer system,hot and dry air at the exit of condenser is allowed to pass through the drying chamber where it gains latent heat from the material. The humid air at dryer exit then passes through the evaporator where condensation of moisture occurs as the air goes below dew point temperature. Then drain the condenser water.
Product features
1.Safety & Environment protection：The low-temperture drying process below 80°c is fully suitable for drying.It adopts low temperture （40-80°c）fully enclosed drying mode ,no odor overlow ,no need to install complex deodorizing device.
2.Energy saving & Efficient: Using heat pump recoery technology, the closed drying mode dose not have any waste heat discharge. Buah blueberi, strawberry, nanas, kiwi makanan pengering
3.Intelligent & Operating easily: Fully automatic operation, PLC+touch screen intelligent control,which temperature and humidity can be controlled in different time.
4.The drying effect is good and the drying is even: the finished product after drying is very good in color, fragrance, taste and individual shape; high effective ingredients

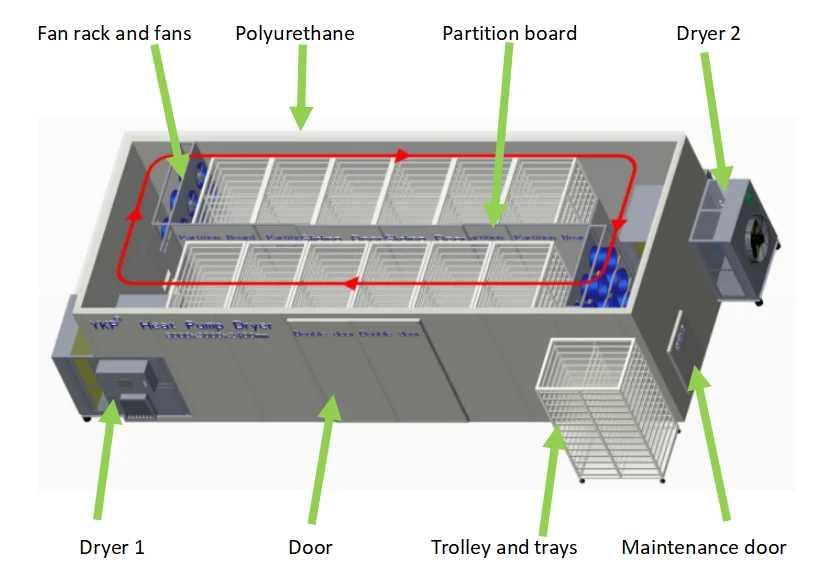

Details Images
Fan rack and fans

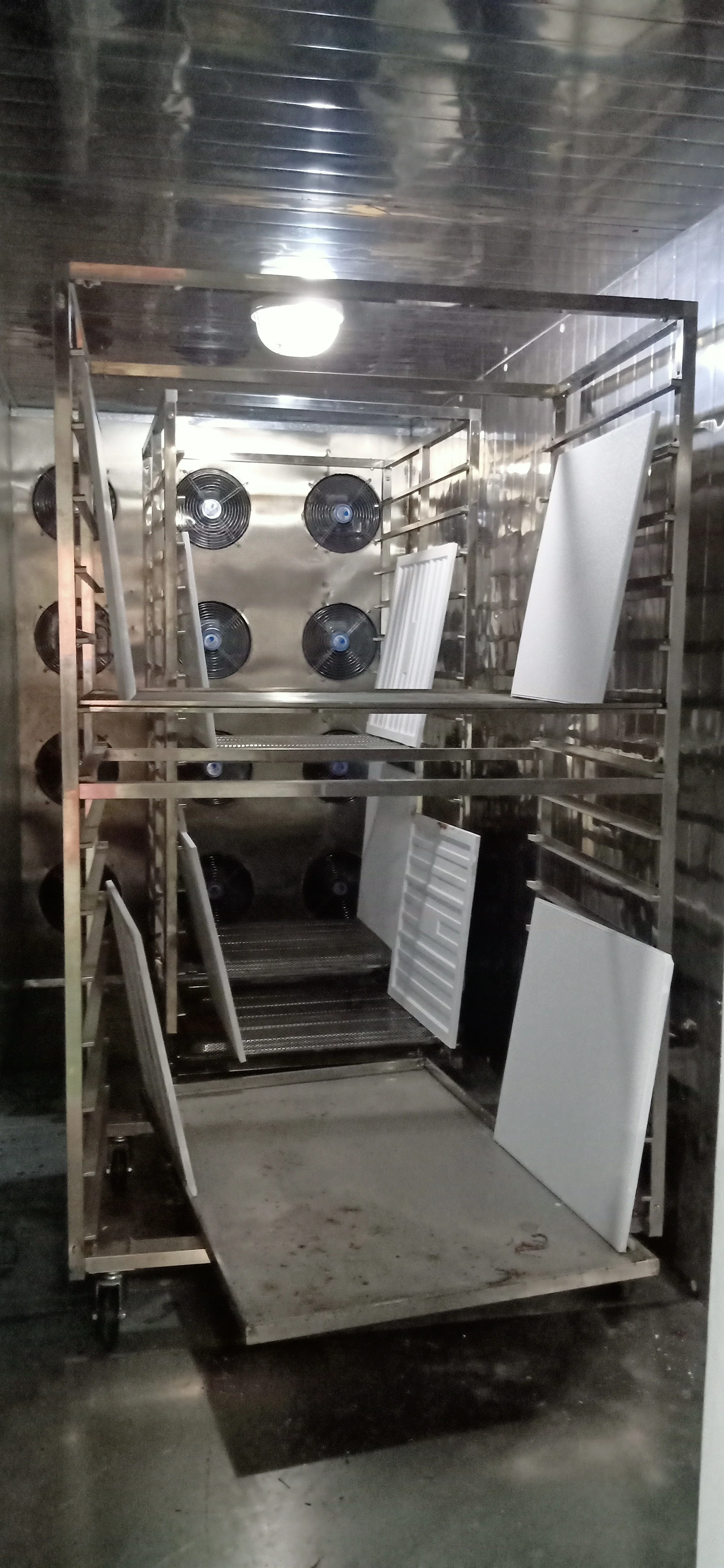

Trolley

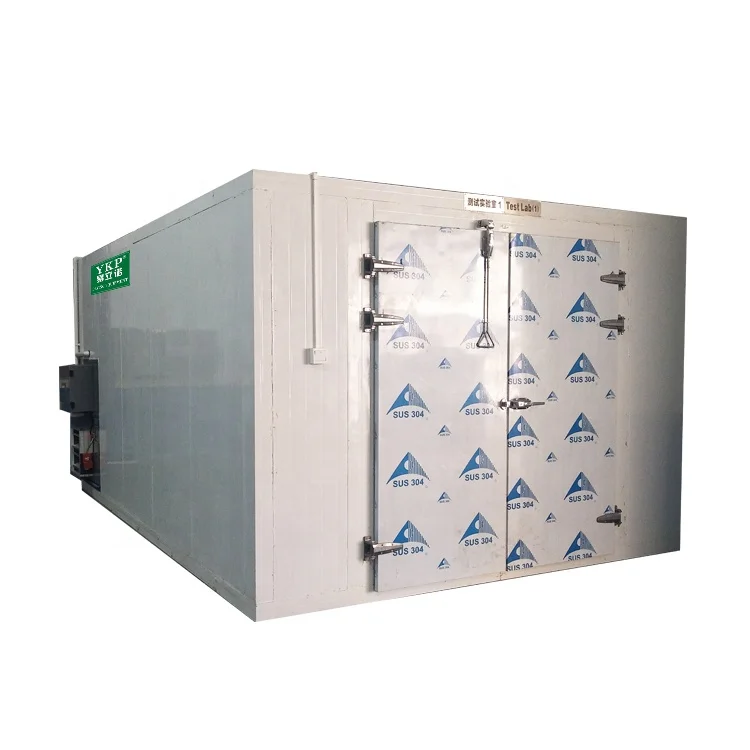

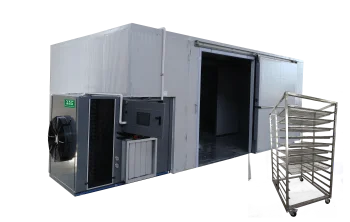

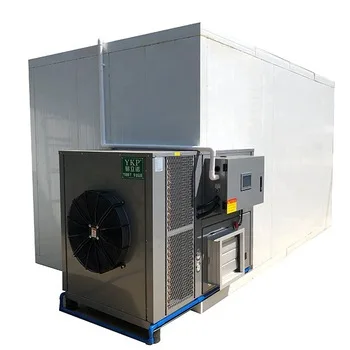

Heat Pump Dryer
Polyurethane board
Temperature and humidity probe
Dehumidification fan

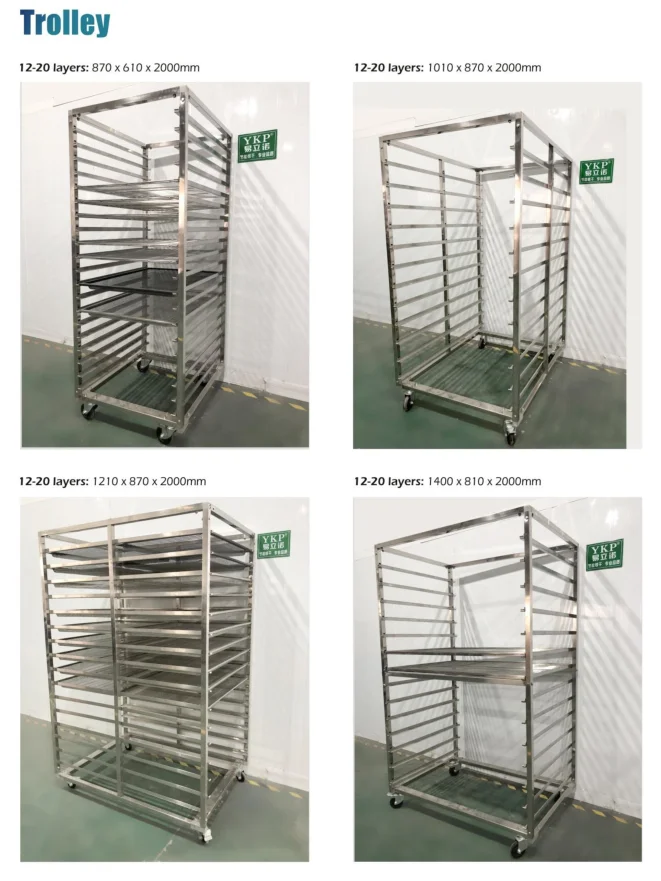

Trolley | ||
Material | 304 stainless steel | |
Size | 1210*870*2000mm | |
1010*870*2000mm | ||
870*610*2000mm | ||
1400*870*2000mm | ||

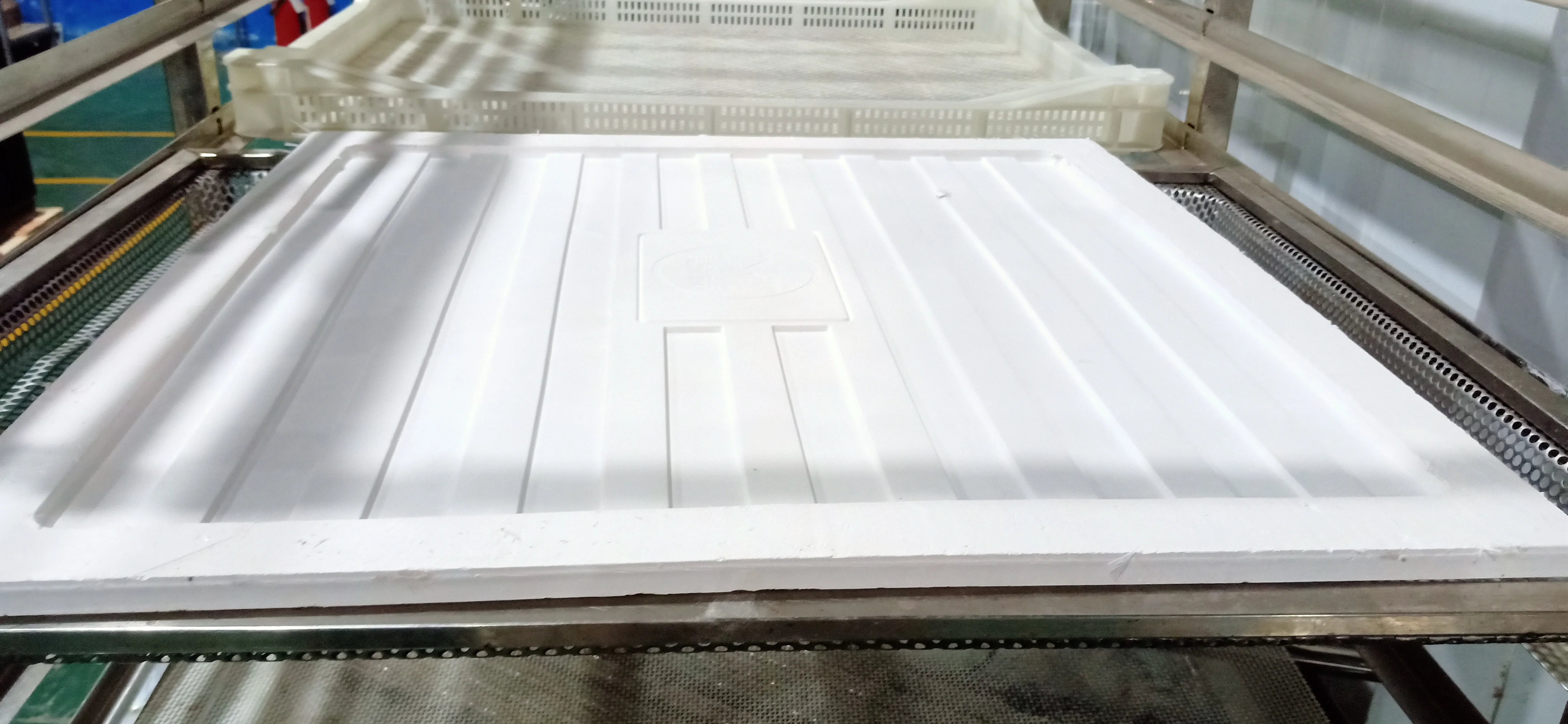

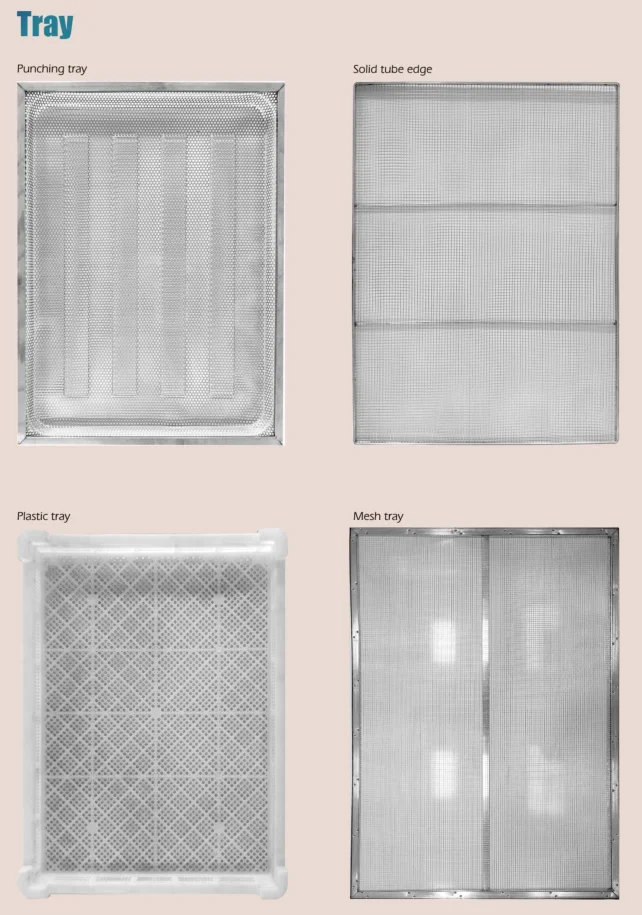

Tray | ||
Sort | size | |
Punching tray | 800*600*50mm | |
Solid tube edge tray | 800*600*50mm | |
Plastic tray | 800*600*50mm | |
Mesh tray | 800*600*50mm | |
Size Information
Recommend Configuration
Model | Capacity | Drying room size | Trolley qty | Drying room size can be customized under your requirements. |
YK-72RD-15-L | 60KG/batch | 2500X1240X2200mm | / | |
YK-75RD-30-L | 120KG/batch | 3300x1240x2200mm | / | |
YK-72RD-60-L | 240KG/batch | 3810x1880x2200mm | / | |
One unit YK-72RD | 300KG/batch | 4000x2400x2400mm | 4 | |
Two units YK-72RD | 700KG/batch | 8000x2400x2400mm | 8 | |
One unit YK-145RD | 800KG/batch | 5000x3000x2400mm | 8 | |
Two units YK-145RD | 1500KG/batch | 8000x3000x2400mm | 12 | |
One unit YK-290RD | 1200KG/batch | 8000x3000x2400mm | 12 | |
Two units YK-290RD | 2000KG/batch | 12000x3000x2400mm | 20 | |
One unit YK-360RD | 1500KG/batch | 10000x3000x2400mm | 12 | |
Two units YK-360RD | 2400KG/batch | 12000x3000x2400mm | 20 | |
Two units YK-720RD | 4500KG/batch | 13000x4200x2400mm | 28 |
Related Products
Model:YK-290RD
Click on me!
Model:YK-72RD-CH
Click on me!
Model:YK-240RD
Click on me!
Model:YK-145RD
Click on me!
Model:Yk-480RD
Click on me!
Model:YK-24E
Click on me!

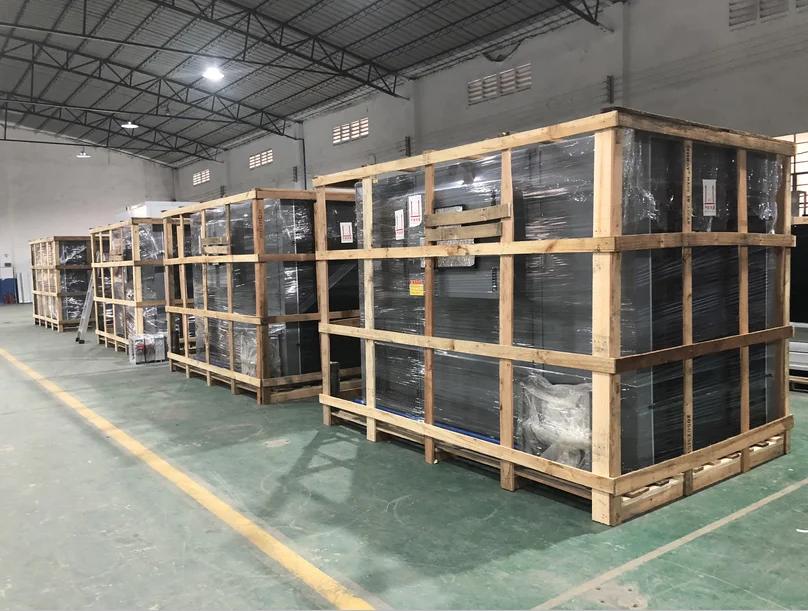

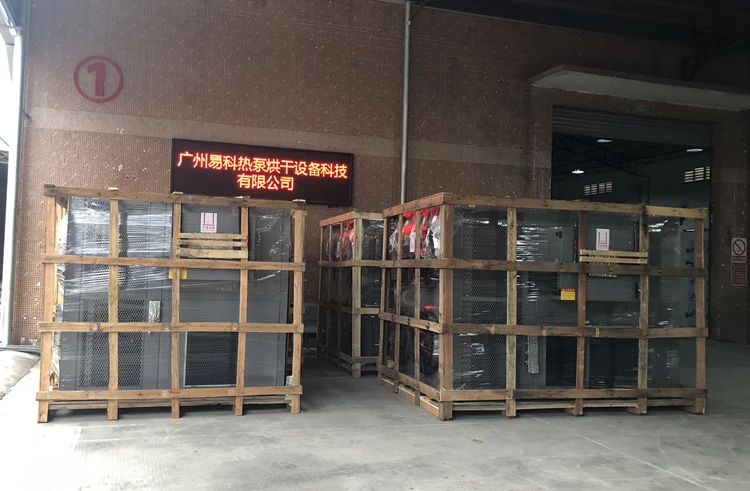

Product packaging
The goods are ready for Tanzania
The goods are ready for India
The goods are ready for Thailand

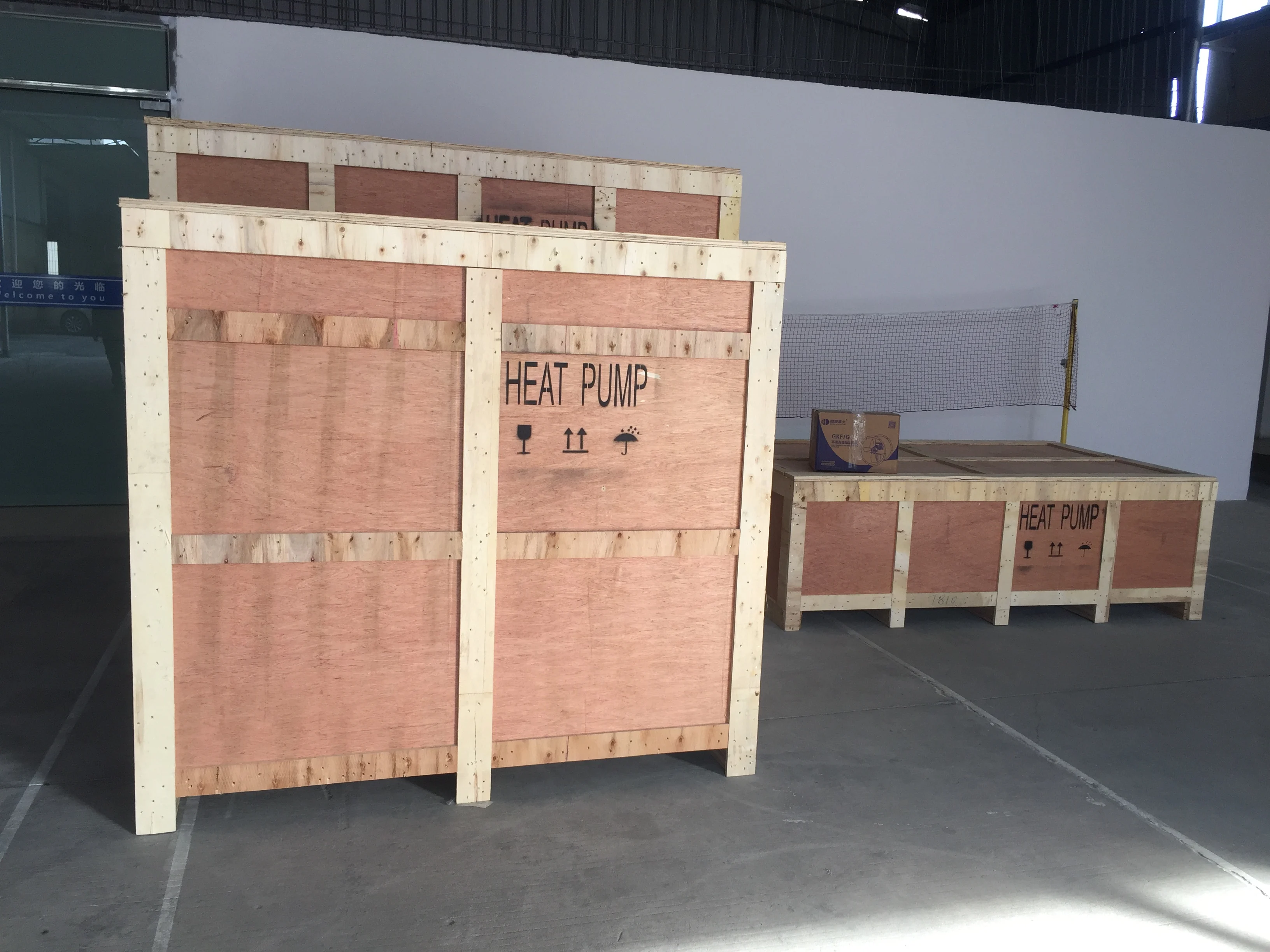

Packaging | ||
Size | 5.89m (L) * 2.33m (W) * 2.38m (D) | |
Weight | 3T | |
Packaging Details | The normal package is plywood box(Size: L*W*H). | |
If export to european countries,the plywood box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | ||
Packaging | ||
Size | 12.045m (L) * 2.340m (W) * 2.379m (D) | |
Weight | 5 T | |
Packaging Details | The normal package is plywood box(Size: L*W*H). | |
If export to european countries,the plywood box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | ||
After Sales Service
Before arrival of machines: Trái cây blueberry dâu dứa kiwi thực phẩm máy sấy
* Inquiry and consulting support WITHIN 24 HOURS
* Sample testing support. 果物ブルーベリーイチゴパインキウイ食品乾燥機
* View our Factory. 과일 블루베리 딸기 파인애플 키위 건조기
* Sample testing support. 果物ブルーベリーイチゴパインキウイ食品乾燥機
* View our Factory. 과일 블루베리 딸기 파인애플 키위 건조기
After deliver the machines:
* Technical support to instal,operate and maintain the machine
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Certifications
Company Introduction
Guangzhou Yike Heat Pump Drying Equipment Technology Co., Ltd. is committed to the research and development and application of heat pump dryer. We are specializing in R&D, manufacturing, sales and installation of “YKP” brand air energy energy-saving dryer(heat pump dryer). YKP company introduces advanced technology from Europe and the United States, combines traditional drying technology with modern drying technology, and adheres to the development strategy of independent research and development. At present, it has formed a all-in-one high-temperature heat pump dryer, split type high-temperature heat pump dryer, and high-efficiency industrial dehumidifier, sludge dehumidification and drying machine, automatic drying line and other products. The company insists on pioneering and innovating, is diligent and enterprising, continuously perfects and improves the quality of products, strives for perfection of products, and serves customers carefully, taking "integrity, focus, innovation, service, win-win and contribution" as the concept.
