Main application: The linkage line consists of vertical ultrasonic washing machine, hot air circulation sterilization tunnel, filling and sealing machine. It can be used in combination or in single machine.The linkage line can complete water spray filling, ultrasonic cleaning and flushing(internal and external), CA flushing(internal and external), preheating, drying and sterilization to remove heat source, cooling, before and after netrogen, filling, sealing after preheating, sealing and other processes.This line can meet the size range from 1-20ml ampoule of wahing,drying and sterilizing to remove heat source,filling and sealing requirements of the production process.
Technical Parameter
Product Model
HABL-6
HABL-8
HABL-10
HABL-12
HABL-16
Suitable size(ml)
1-20ML
1-20ML
1-20ML
1-20ML
1-10ML
Output (pcs/h)
6000-16000
8000-21000
10000-24000
12000-30000
16000-36000
Filling heads
6
8
10
12
16
Power supply
380V 50Hz
380V 50Hz
380V 50Hz
380V 50Hz
380V 50Hz
Power
capacity
(kw)
78
78
80
90
90
Total weight
(kg)
8900
8900
9400
9700
10100
Overall
dimensions(mm)
9100x2200x2450
9100x2200x2450
9260x2200x2450
9910x2200x
2450
10042x2200x2450

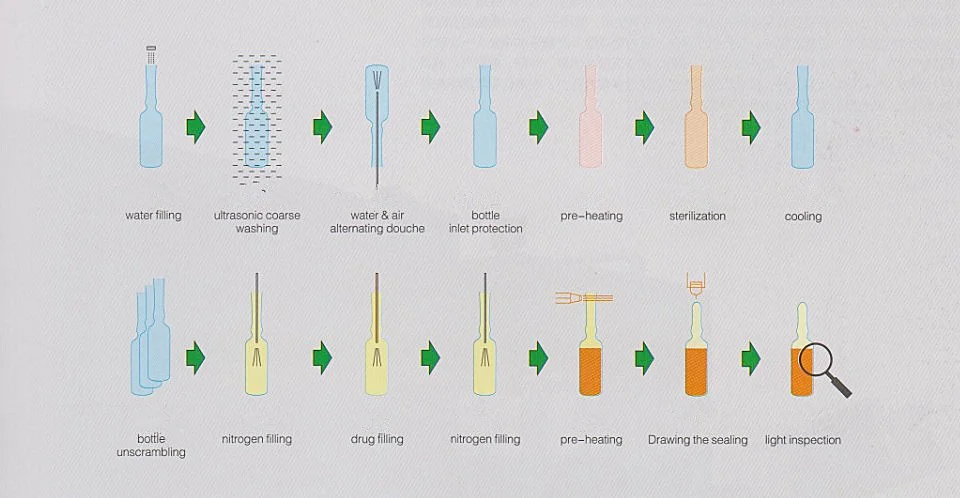

Process flow

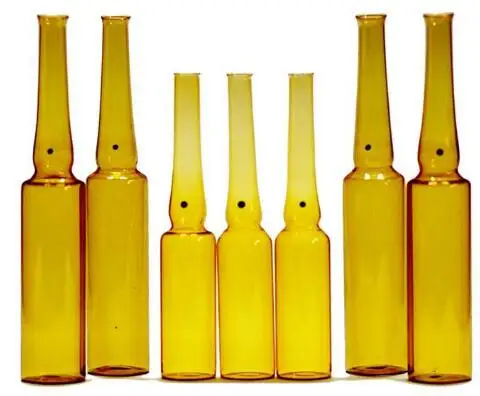

Ampoule Size
1ml to 20ml
Output
6000-38000 pcs/h
Filling
Heads
6-16
Machine
Dimension
9100x2200x2450mm

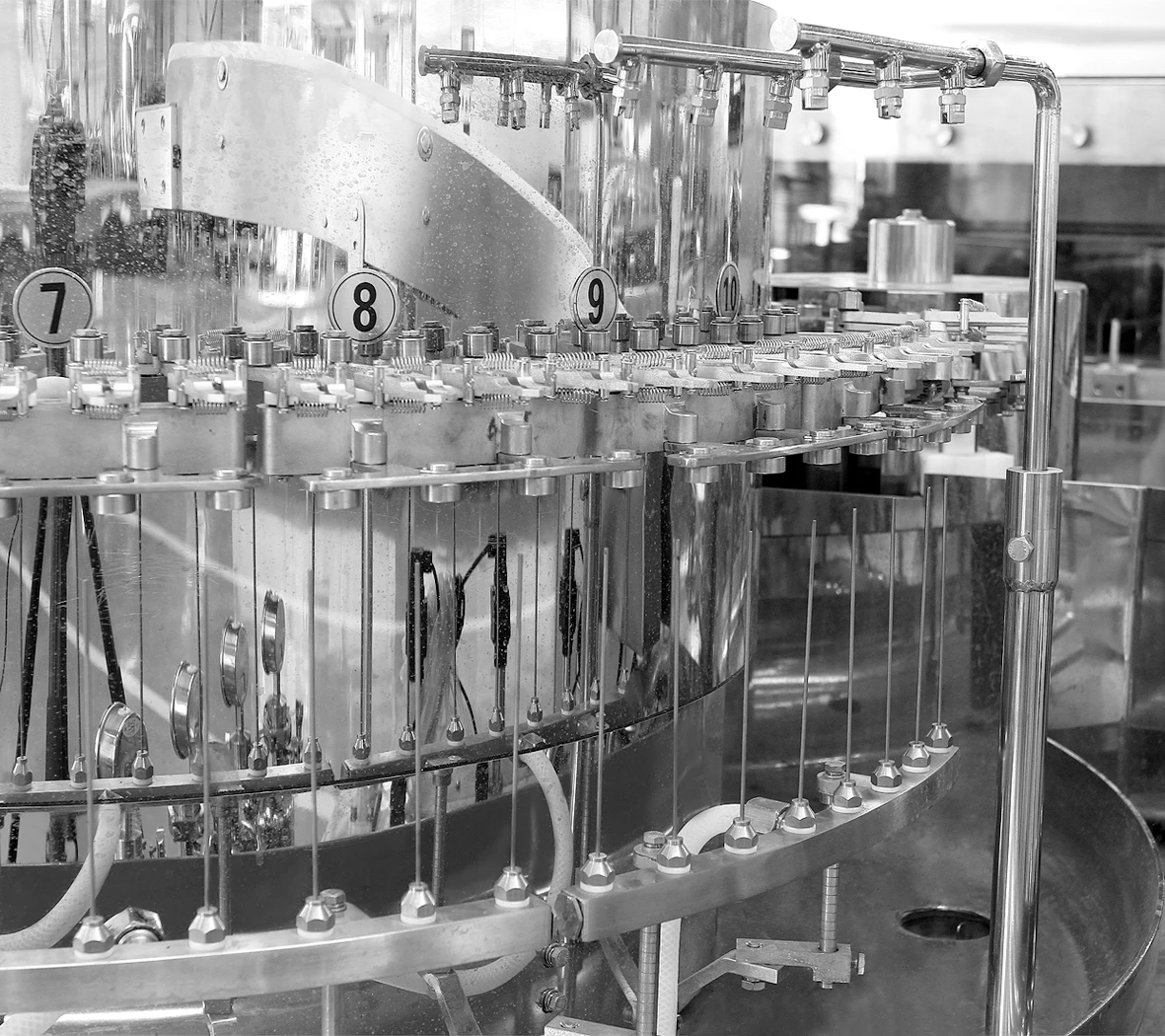

Vertical Ultrasonic Washer
In the whole cleaning process,each spray needle is fixed corresponding to a cleaning medium,without cross contamination,and meets the requirements of aseptic
production.Cleaning,clarity and visible substances can be tested with good results;It is the most popular cleaning machine in the world today.

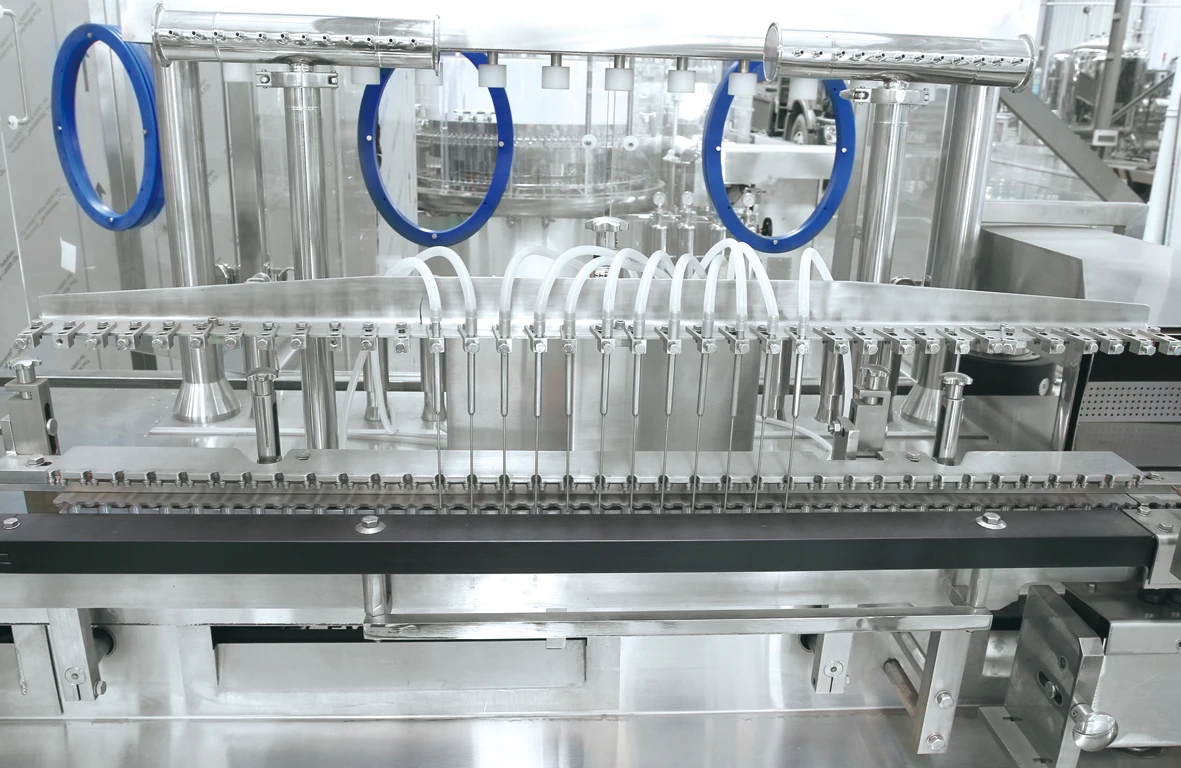

Filling and Sealing
This machine adopts multi station step-by-step bottle conveying,positioning filling,wire drawing and sealing,with high sealing rate.It is the most popular filling and sealing machine in the world today.

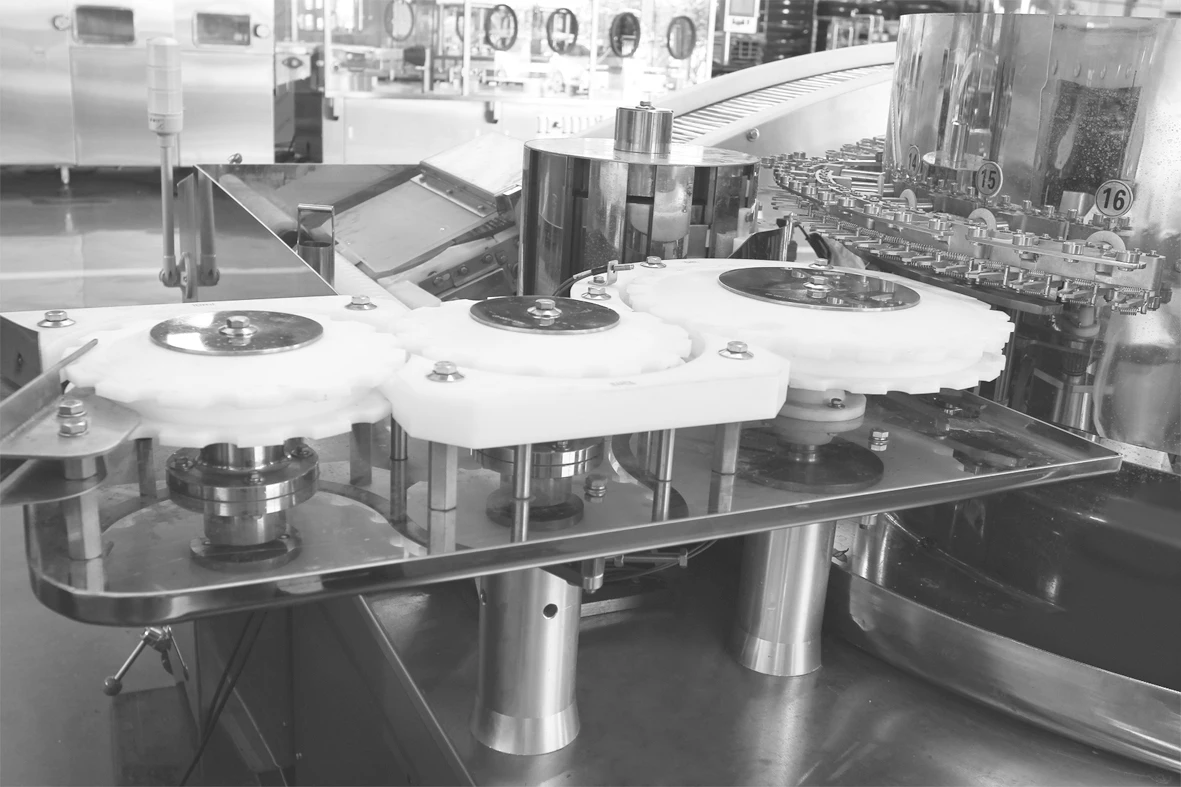

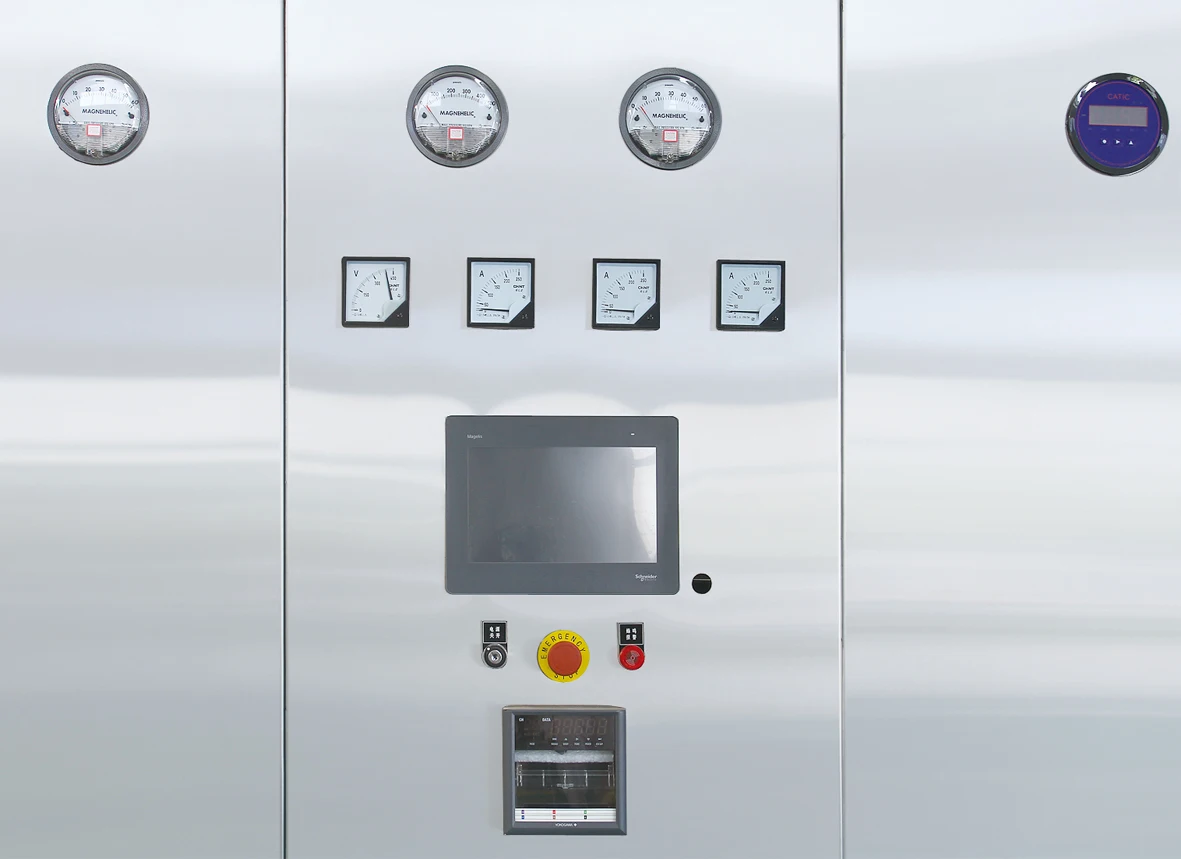

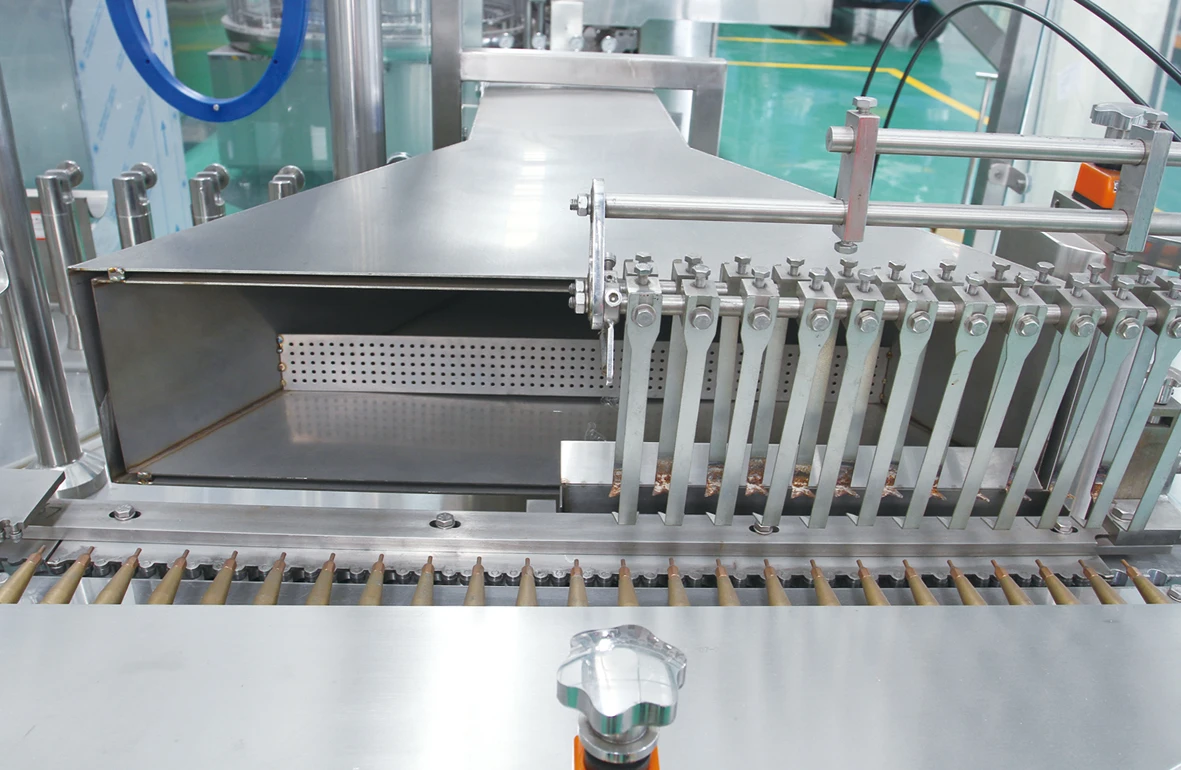

Detailed Images
