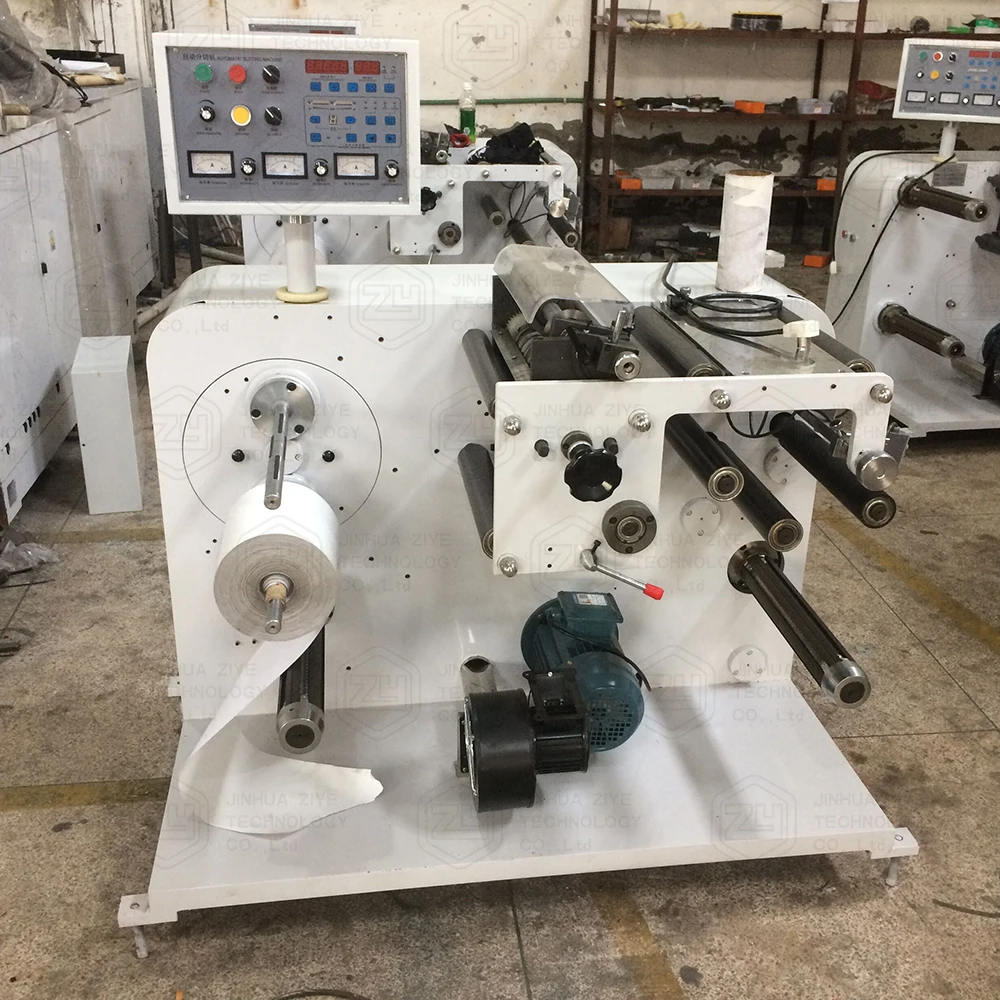

FQ-320 Paper Roll Self-Adhesive Label Slitting Slitting Rewindier Machine
Slitting machine FPL320L type is a complete set of equipment for full automatic roll slitting machine. It is applicable to slit the narrow scope paper, automatic counting the length(meter), quantity of paper(piece) and setting the length, automatic stopping, giving an alarm and unreeling, magic eye automatic correcting the error, inflatable shaft receiving material, tension controlling. Recording Paper number import electric eye, so it is of tight construction and is characterized by quickness, accurate slitting ease of operation and stable firm running.

1.Unit slitting station with 8 pcs rotary slitting knife.
2.With 1pc 3’’ unwinding shaft, 2 pcs 3’’ rewinding shafts
3.Splice and Connect Table With Meter Counter & Number Quantity Counter.
4.With two photoelectric eyes--- web guide
5.1pc magnetic brake, 2pcs magnetic clutch. 1 set Tension Control. Machine is drive by synchronous belt.






Samples




Product Paramenters


Machine Model
FPL320L
FPL420L
Slitting speed
120m/min
120m/min
Max. Web Width
320mm
420mm
Max. Unwinding Diameter
500mm
500mm
Max Rewinding Diameter
500mm
500mm
Max width of slitting
310mm
410mm
Size
1100*800*1300mm
1100*900*1320mm
Main motor
2 KW
2 KW
Voltage
220V/380V
220V/380V
Min. Slitting width
16mm
16mm
Machine weight
500kg
600kg

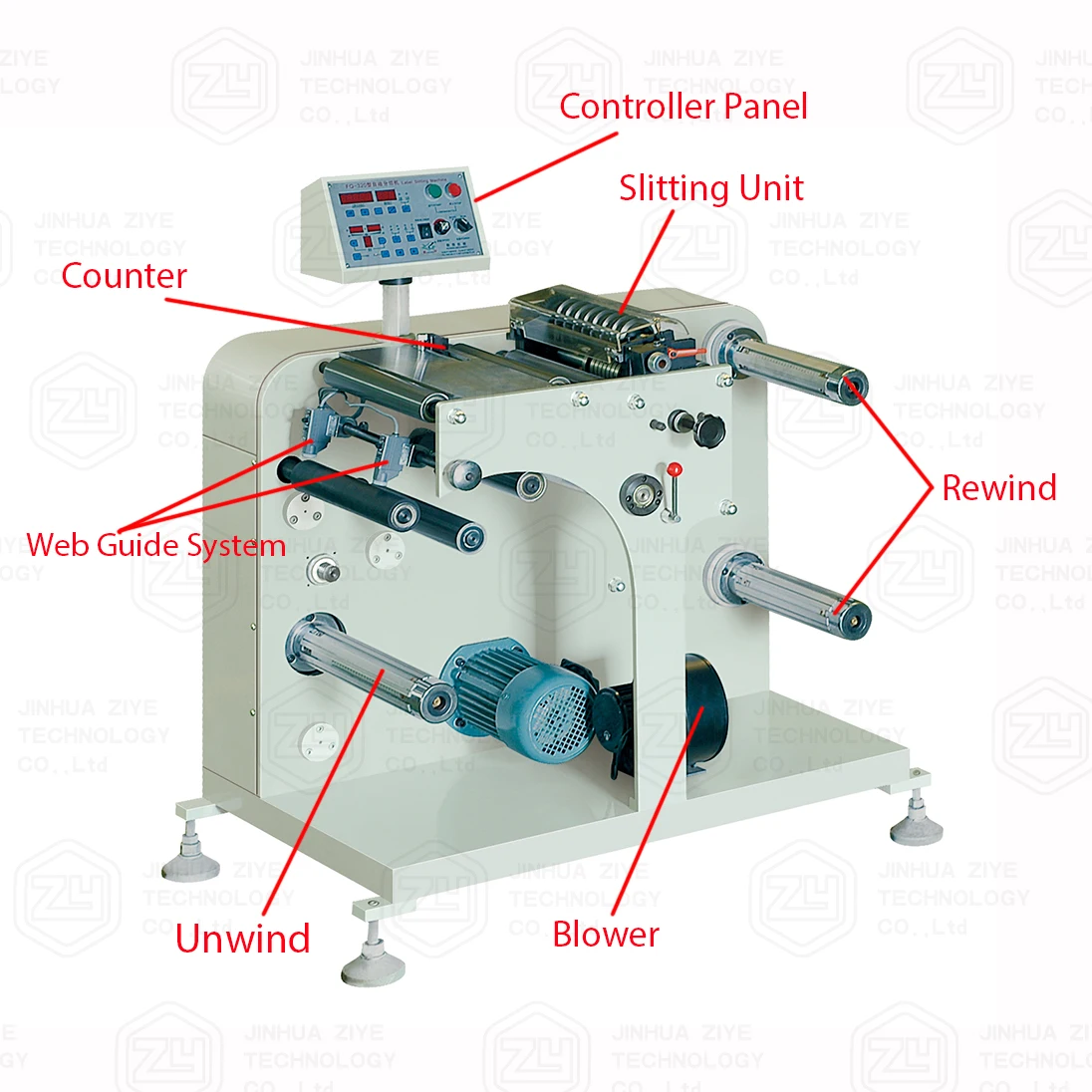

Details Images

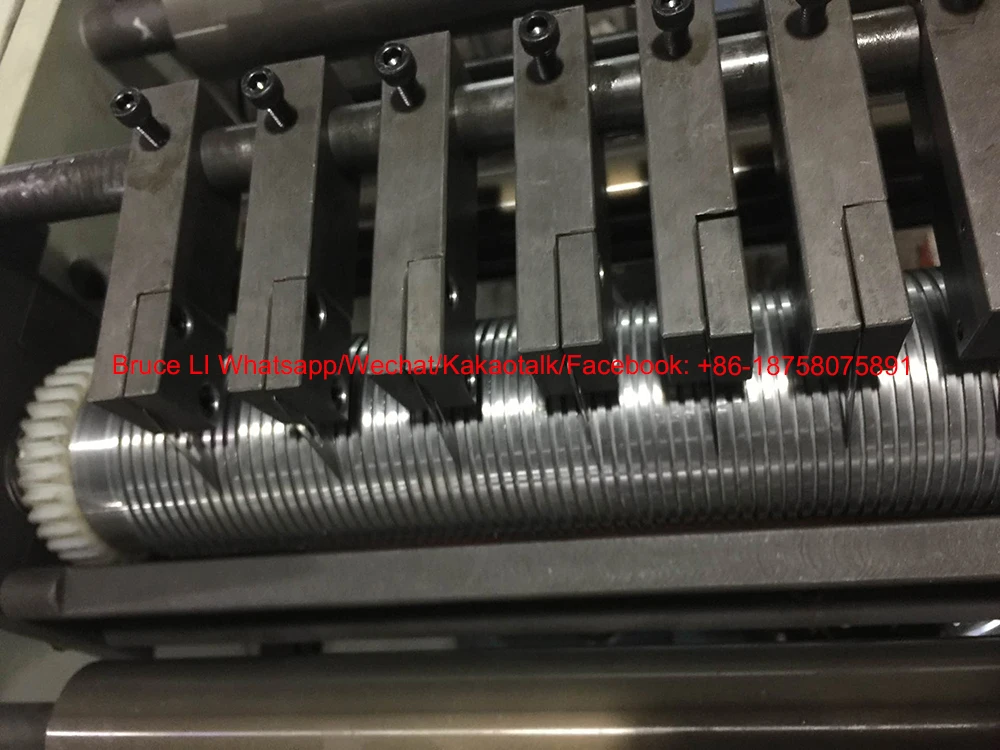

Slitting Unit
1-Set Slitting Unit comes with 8 Sets Rotary Knives in standard configuration.

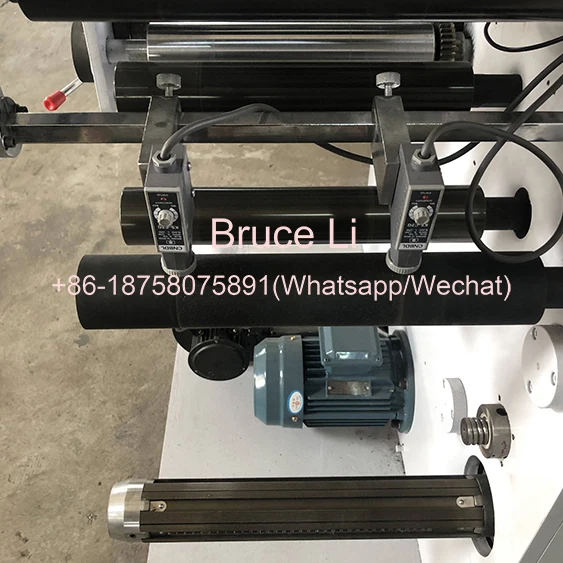

Web Guide System
With Two Photoelectric Eyes to control paper move straightly.


Unwind Unit
-With 1 pc 3" Air Expanding Shaft.
-Can accept max diameter 600mm material jumbo roll. (can be customized)

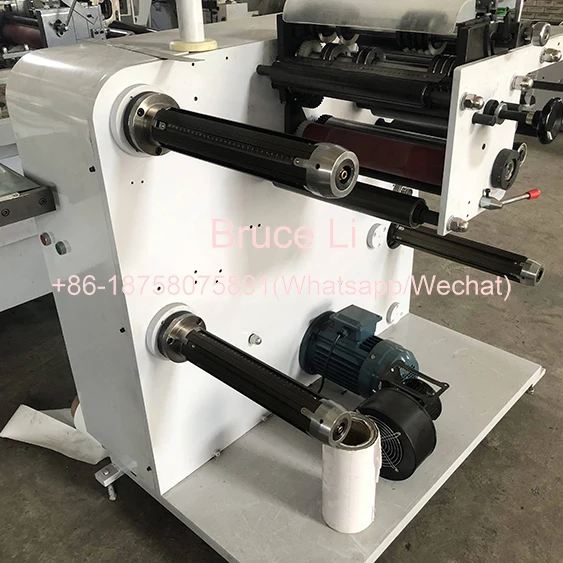

Rewind Unit
-With 2pcs 1.5” Air shaft, (Turret Rewind), can accept 200mm diameter roll.
-With 1 pc 3" Air Expanding Shaft., can accept 500mm diameter roll.



Magnetic Brake and Clutch (Optional)
-With One 25 N.M Magnetic Brake, One 50 N.M Magnetic Clutch
-Machine Drive By Synchronous Belt. Low Noise and Stable Operation



Blower Fan
Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.
Controller Panel
-Speed Controller
-Tension Controller
