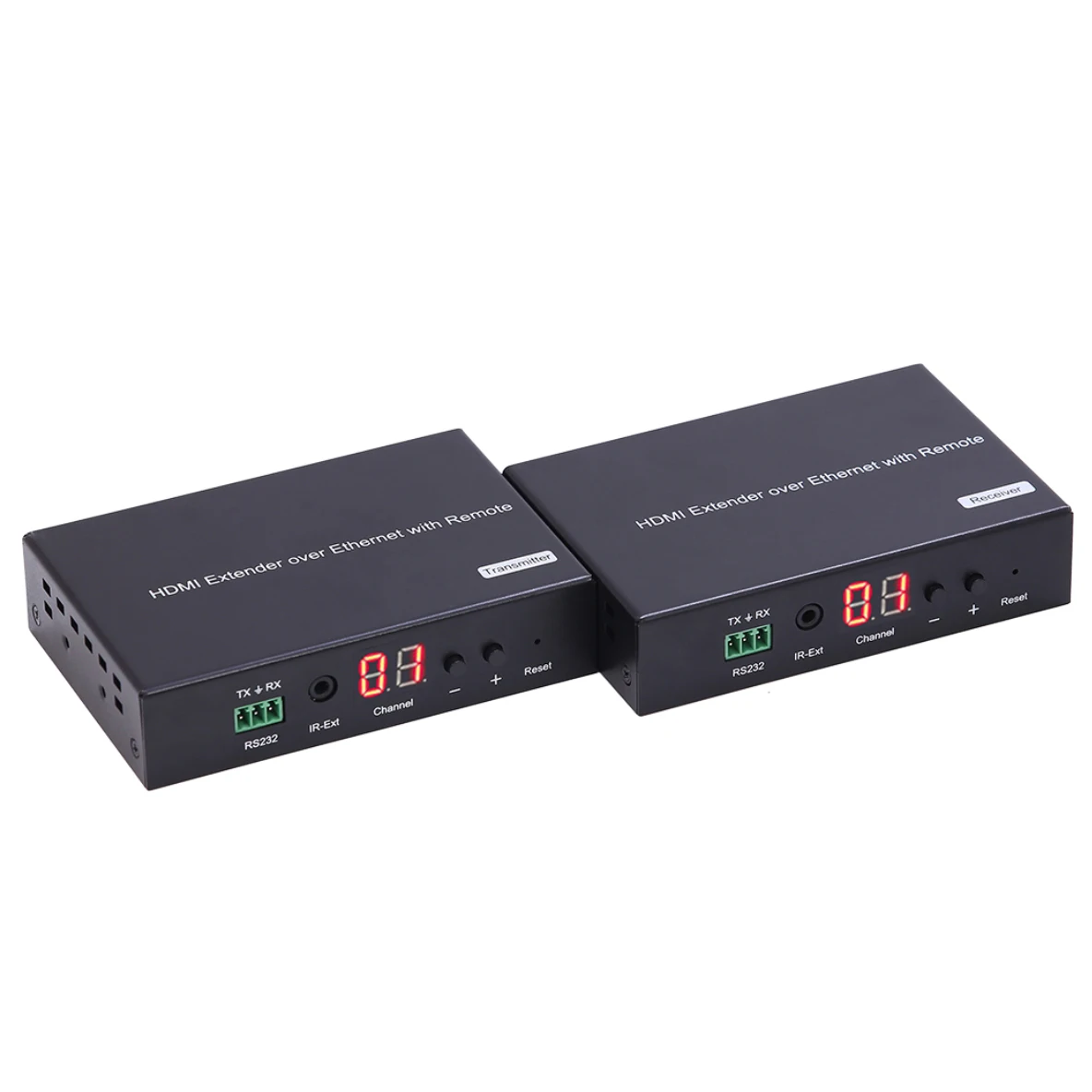

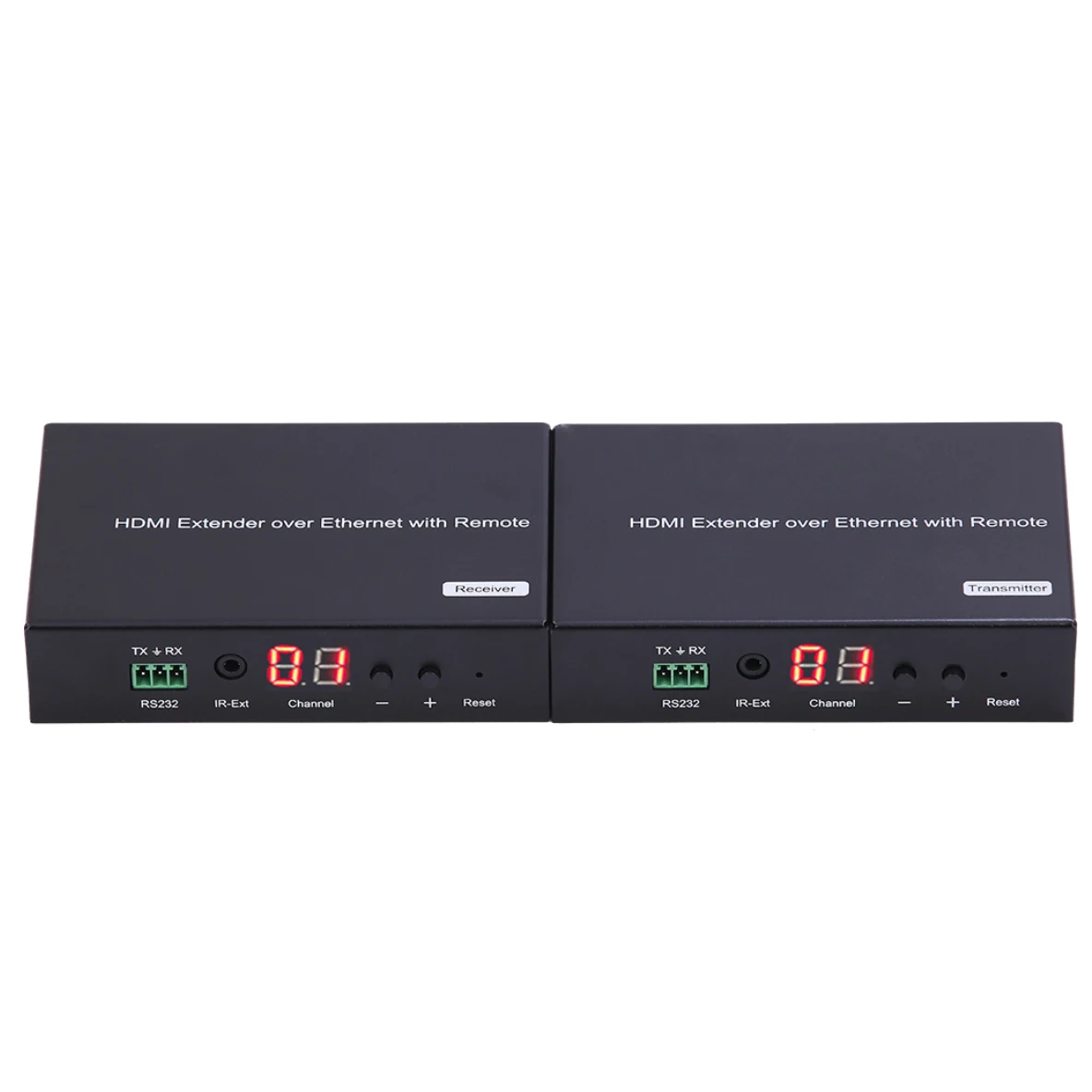

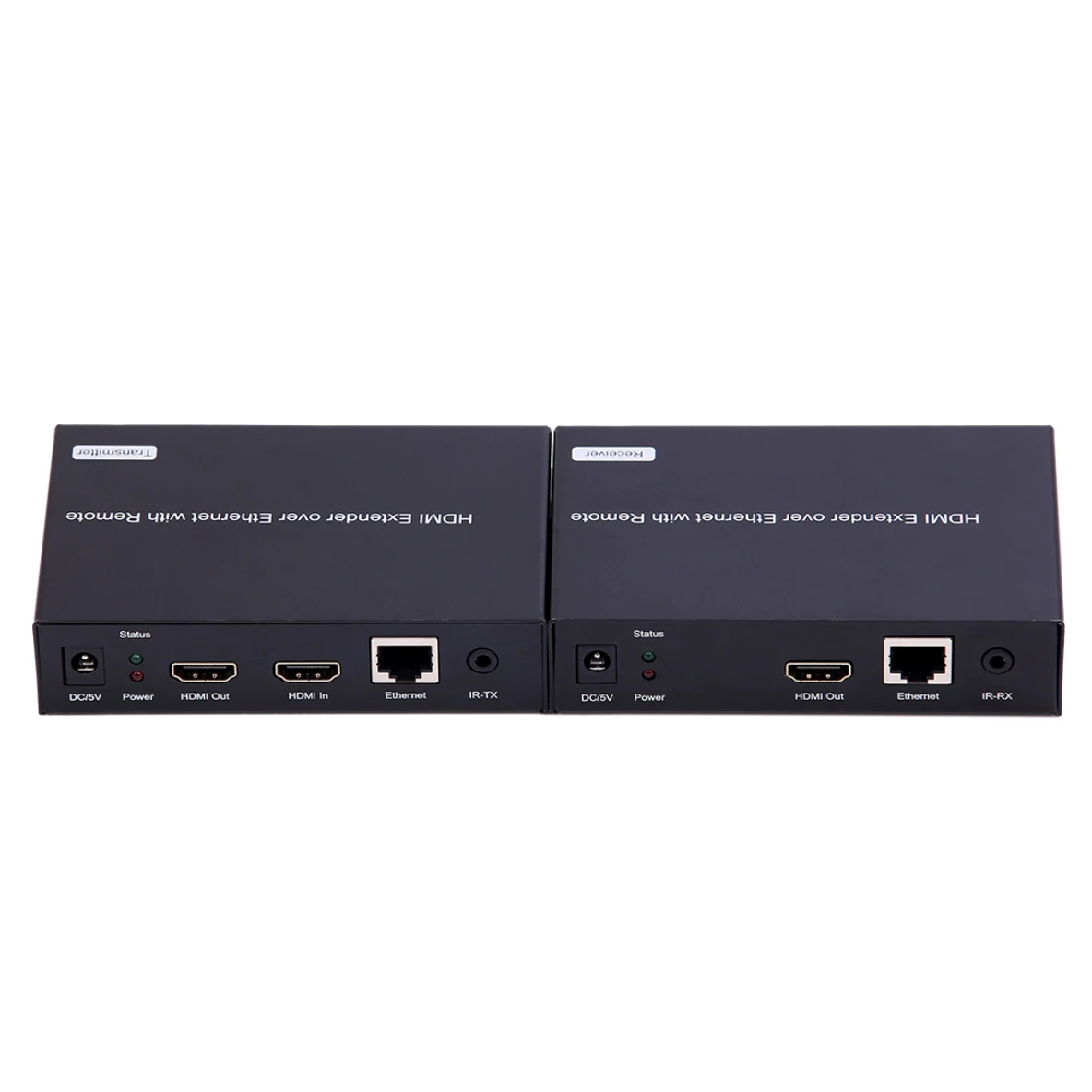

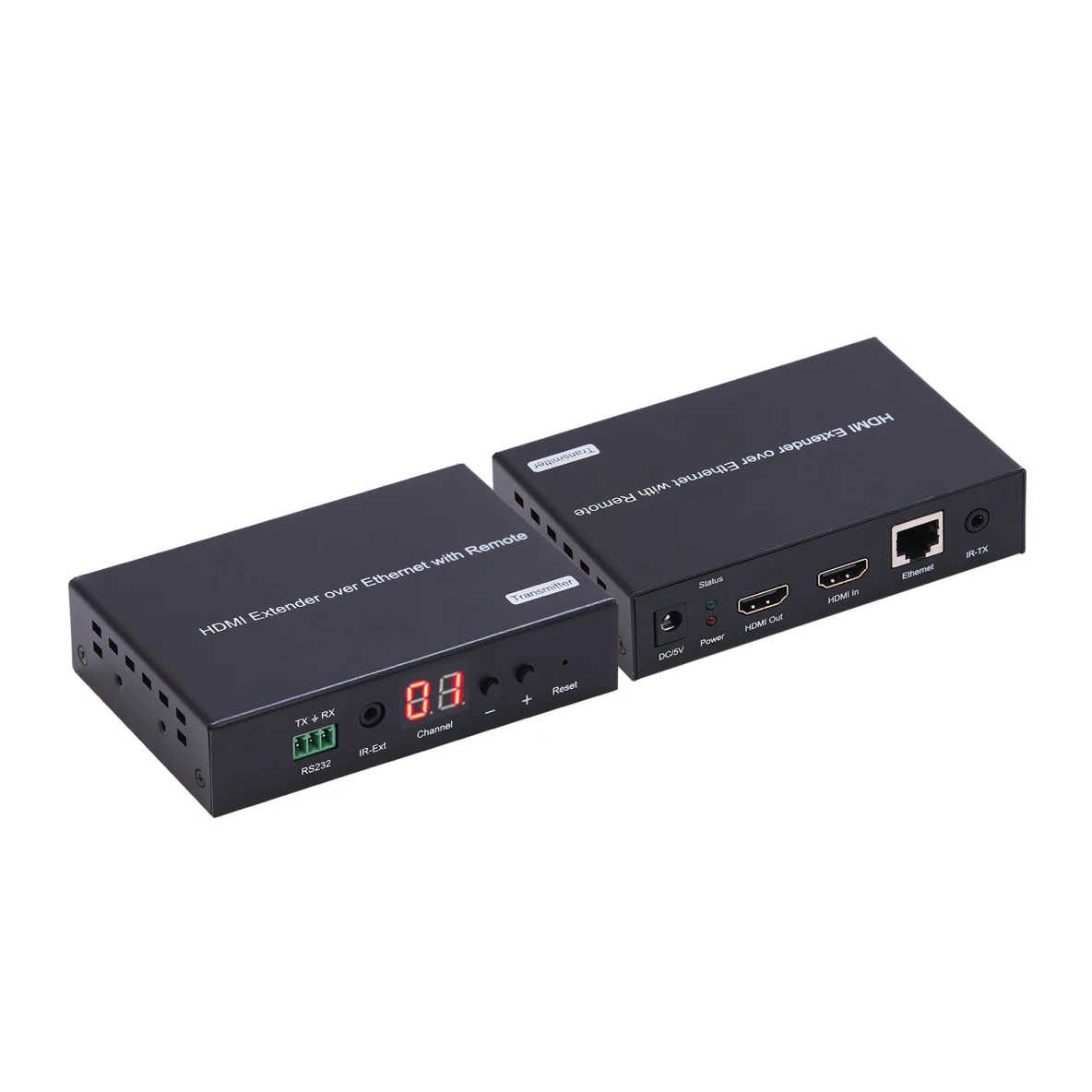

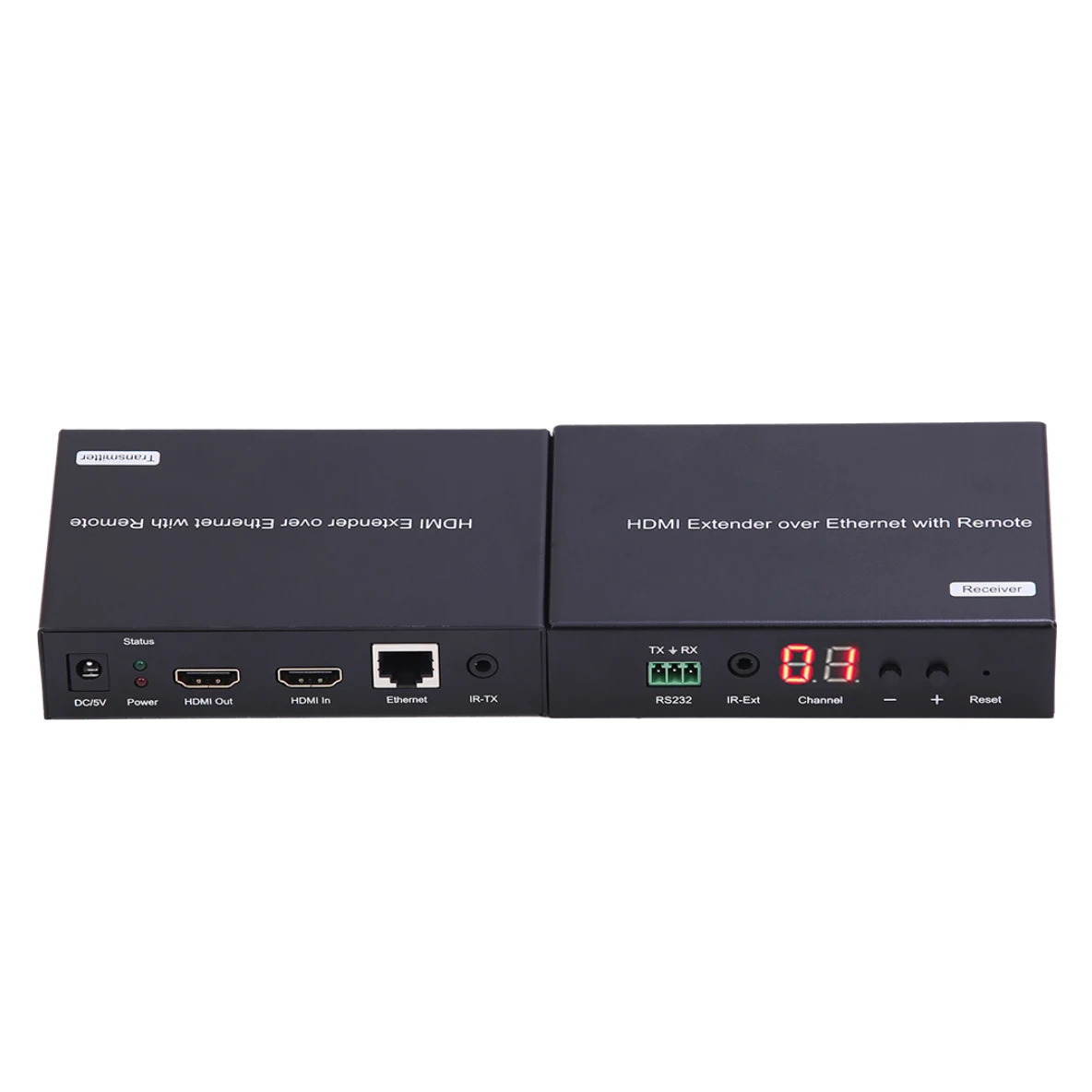

Hot Sale 120m HDMI POE Extender Over IP, Support LPCM Audio Format, Wide band IR Control
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (62504049948):
Product Overview
Description
H.264 HDMI Extender over IP Extender
With LED, Remote, POE, RS232
Features
* Using H.264 compression encoding, support resolution up to 1080p@60hz
* Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
* With IR Remote to choose the source, with LED to show the Group ID
* Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
* With IR Remote to choose the source, with LED to show the Group ID
* Comply with TCP/IP protocol, streaming bit rate is up to 15Mbps
* Support LPCM audio format
* Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
* Support LPCM audio format
* Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
* Wide-band IR pass through to control the source (38khz to56khz)
* By pass 2 way UART/RS232 (Up to 115200), use remote controller to select 8 group Baud rate
* Support one to one, one to many, many to one, many to many modes, with large cascade
* Dual power input: 802.3af compliant POE & DC 5V (No need power supply when connecting with POESwitch)
* HDCP Compliant
* Support PC tool control
* By pass 2 way UART/RS232 (Up to 115200), use remote controller to select 8 group Baud rate
* Support one to one, one to many, many to one, many to many modes, with large cascade
* Dual power input: 802.3af compliant POE & DC 5V (No need power supply when connecting with POESwitch)
* HDCP Compliant
* Support PC tool control
* DC 5V 1A powersupply
Specification
Performance | ||
Protocol | H.264 encoder over TCP/IP | |
Support Video format | 480i/480p/576i/576p/720p/1080i/1080p@60HZ | |
Support Audio format | LPCM, Audio sampling rate 48KHZ | |
Streaming Bit Rate | 15Mbps | |
HDCP | Compliant | |
IR Frequency | 38 -56 KHZ | |
RS232 Baud rate | Default 2400bps, total 8 kinds optional | |
IP setting &Group ID setting | ||
Default IP | TX: 192.168.1.11 ; RX: 192.168.1.12 | |
Group ID | Group00-Group 99 (use remote controller) | |
Request for Switch/Router | Support IGMP, support DHCP | |

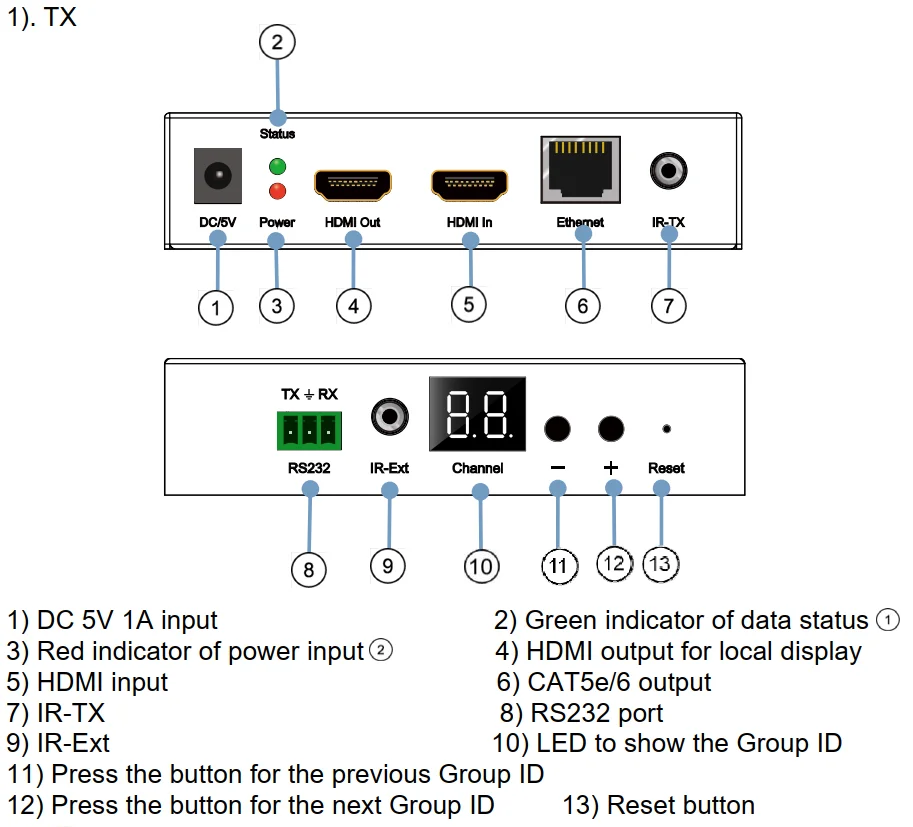

Connectors on Transmitter | ||
Input | 1xHDMI Female port | |
Output | 1x RJ45 output , 1x HDMI looping output | |
RS232 | Phoenix RS232 port | |
IR | IR TX port (Support 38K-56KHz) IR Ext port (Support 38KHz) | |

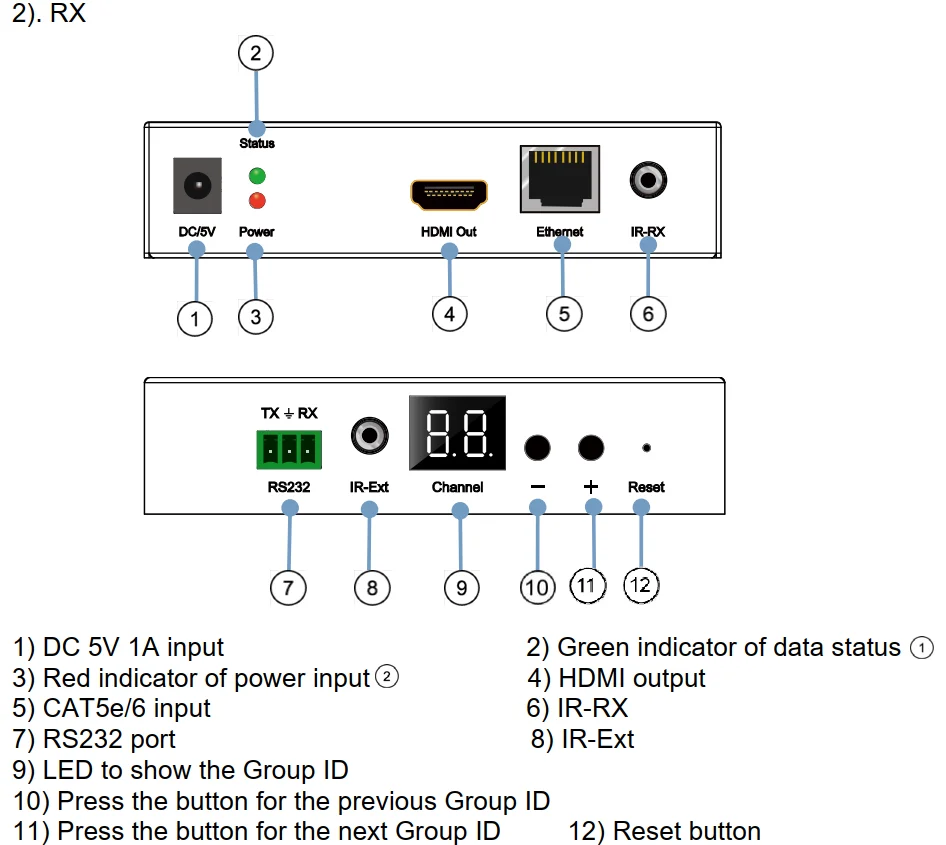

Connectors on Receiver | ||
Input | 1xRJ45 input | |
Output | 1x HDMI Female port looping output | |
RS232 | Phoenix RS232 port | |
IR | IR RX port (Support 38K-56KHz) IR Ext port (Support 38KHz) | |
Environmental & Power Requirements | ||
Operating temperature | -5 to +35 ℃ （+23 to +95℉） | |
Operating Humidity Range | 5 to 90%RH (No Condensation) | |
Power supply | DC 5V 1A | |
Power consumption | Max 3 watt | |
Physical | ||
Dimension | TX: 119x79.5x28mm ; RX: 119x79.5x28mm | |
Net Weight | TX: 0.28KG ; RX:0.28KG | |
Frequency | Resolution | |
50Hz | 576i | |
576P | ||
720P | ||
1080P | ||
1080i | ||
60Hz/59.94Hz | 480i | |
480P | ||
720P | ||
1080P | ||
30Hz/29.97Hz | 1080P | |
24Hz | 1080P | |
25Hz | 1080P | |
Frequency | VESA Resolution | |
60Hz | 640×480 | |
800×600 | ||
1024×768 | ||
1280×768 | ||
1280×960 | ||
1280×1024 | ||
1680×1050 | ||
1920×1080 | ||
1280×720 | ||
1360×768 | ||
1400×1050 | ||

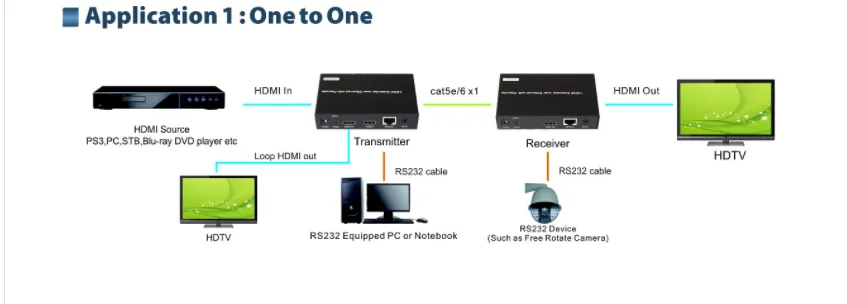

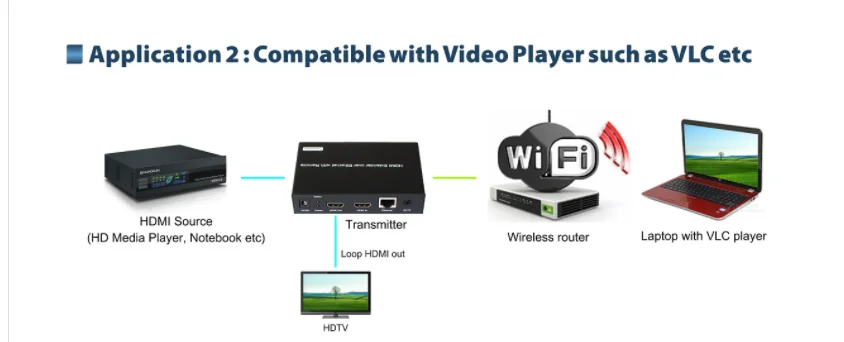

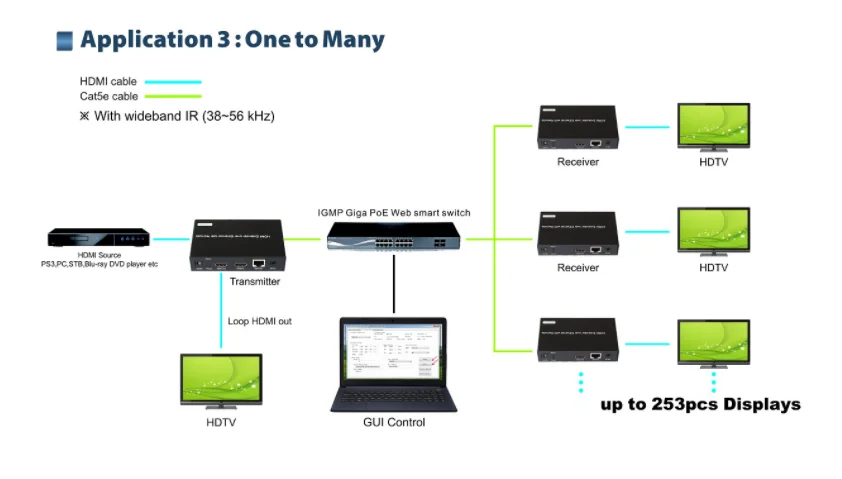

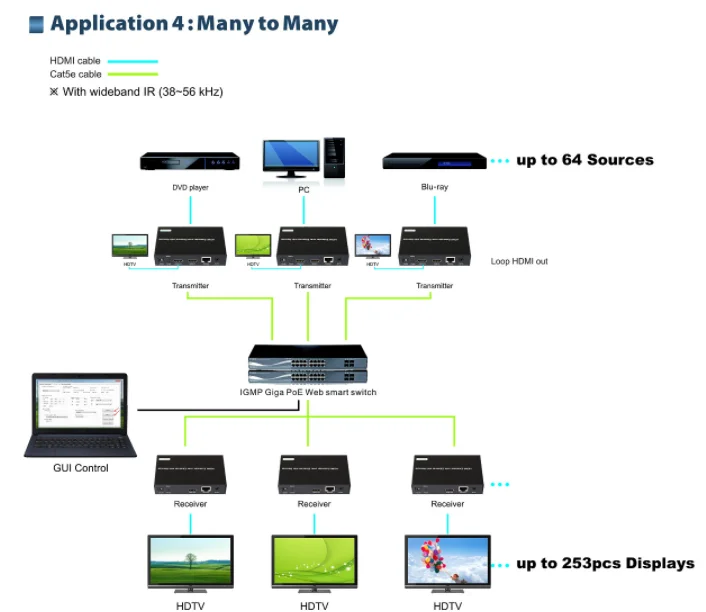

Wiring Diagram
Certifications
Packing & Delivery
PACKAGE CONTENTS
1). 1x Transmitter
1). 1x Transmitter
2). 1xReceiver
3). 1x IR-TX cable
3). 1x IR-TX cable
4). 1x IR-RX cable
5). 2X IR Ext Cable
6). 1x Manual
7). 8xscrews
8). 4x detachable mountingears
9). 2x Phoenix plugs for RS232 cable termination
7). 8xscrews
8). 4x detachable mountingears
9). 2x Phoenix plugs for RS232 cable termination
10). 2x Remotecontroller
11). 2x Power adapter 5V 1A
11). 2x Power adapter 5V 1A
