Wall VESA Mount 15 inch Open Frame PCAP Multi Touchscreen Touch Screen Monitor TFT LCD 4:3 HD Display with VGA DVI Port

Part Number(s)

PCAP (Worldwide) -TOT150UCA016

Enclosure Color

Black

Touch Technology & Capacity

PCAP (Projected Capacitive) - 10 Touch

Touch Interface

PCAP - USB 2.0

Diagonal Size

15'' diagonal, Active matrix TFT LCD (LED)

On Screen Display

Accessible through switches on the unit's keypad (OSD Control).

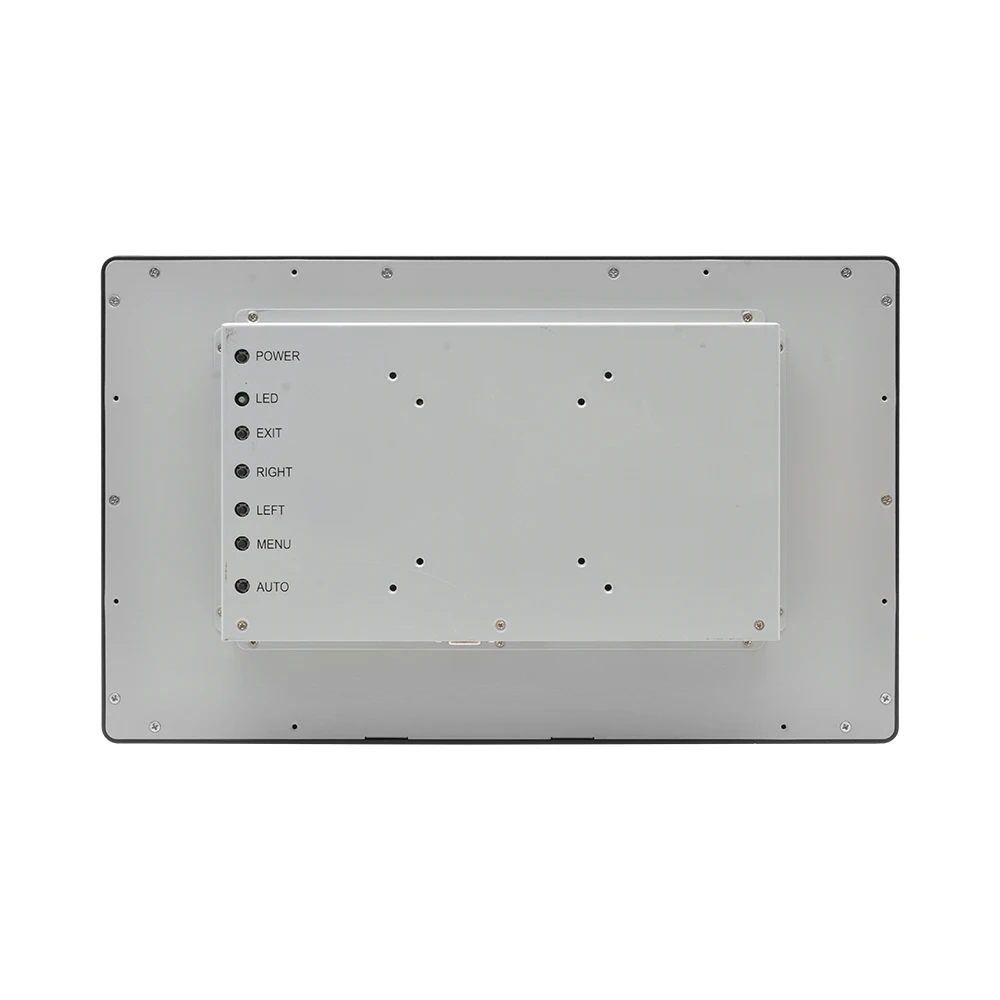

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

Aspect Ratio

4:3

Active Area (mm)

12.01" × 9.02"/ 305.1mm × 229.1mm

Resolution

1024 × 768

Viewing Angle

Horizontal: ±80° or 160° total

Vertical: ±80° or 160° total

Number of Colors

16.7 million

Brightness (typical)

LCD panel: 300 nits

PCAP: 270 nits

Response Time-total (typical)

8 msec

Contrast Ratio

700:1

Input Video Format

HDM V1.3 Type A receptacle for HDM input

Analog VGA on Female DB-15 connector

Input Video Frequency

Horizontal: 30 - 80 KHz

Vertical: 60 - 75 Hz

Video Interface

HDM, VGA ,or DVI,or Display Port

Power Supply

Power cord and power brick (sold together)

Input Voltage

12VDC +/- 5%

Power Consumption (Typical)

Monitor + Adapter at 100-240V/50-60Hz

ON: 17.8 W

SLEEP: 1.5 W

OFF: 0.5W

Dimensions

13.76" × 10.76" ×  2" / 349.45mm ×  273.45mm × 51mm

Shipping Box Dimensions

16.93" × 14.17" × 7.48" / 430mm × 360mm × 190mm

Weight (Unpackaged)

30.86 lbs / 14 Kg (2 Pieces)

Weight (Packaged)

35.27 lbs / 16 Kg (2 Pieces)

Operating Temperature

-20°C to 70°C / -4°F to 158°F

Storage Temperature

-30°C to 80°C / -22°F to 176°F

Humidity

Operating: 20% to 100%

Storage: 5% to 100%

Sealability

Touchscreen sealed to bezel

Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated

Warranty

1-year

Extended Warranty Options

2 year warranty coverage -(Optional)

3 year warranty coverage - (Optional)

Regulatory approvals and declarations

Europe CE TUV,EuropeRoHS,Europe ERP; United StatesFCC;

Mounting Options

75 mm and 100 mm VESA mount (Total Modeles)

2-hole mounting interface on all 4 sides

Rear mount (PCAP Models see Part Numbers for details)

Front mount (IntelliTouch Models see Part Numbers for details)

Rack mount with optional kit (IntelliTouch Models see Part Numbers for details)

Flush mount with included brackets (PCAP Models see Part Numbers for details)

What's in the Box

HDM cable

VGA Cable

Touch USB Cable

Power brick(1A,3A,4A optional)

Power Cord (European,North America,UK,Australia,China optional)

For Bezeled: "L" (Side Mount) Brackets and w/Screws(SAW touch monitor)

LED lights remote control (Open frame monitor with LED lights around for Casino device)

Quick Install Guide
