FCST080612 S2 5.8 Inch 1310/1550nm Dynamic Range 38/36dB Fiber Optic Optical Domain Time Reflectometer OTDR IOLM
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (62504146291):
Product Overview
Description
Product Views
Product Overview
FCST080612 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by FCST communication technology for testing optical fiber communication system .Adopt 5.8 inch color touch screen,button/touch dual operation,integration of eight major functional modules,multi-functional integration to help customers effectively solve the field test and maintenance.The highest 45dB dynamic range,can penetrate optical splitter,effective PON network testing;Intelligent power saving management,20 hours long standby,efficient protection of test dimension continuous.The design concept of multi-functional integration,precision testing and convenient operation makes the field test operation simple.
Product Advantages
- Automatic & manual test function;
- Touch screen and keyboard operation;
- Built-in visible fault locator (VFL) function;
- Support Bellcore GR196 and SR-4731 file format;
- Advanced antireflection LCD, clear display interface in field;
- Automatic detection of the communication light signal;
- 1.6m ultra-short event dead zone, easy to test optical fiber jumper;
- WinCE window operation system, Chinese/ English operation interface;
- Intelligent indication of battery capacity, alarm when the battery is running out;
- The most advanced technology of double color & material integrative mould, strong and firm;

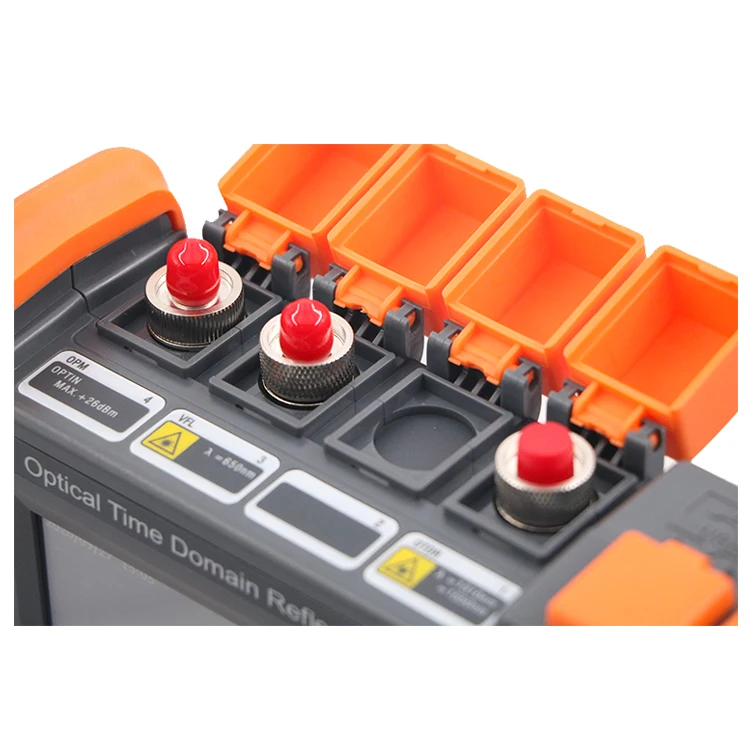

- The OTDR optical output connectors are exchangeable, so it is more convenient to clean the end surface;
- Large capacity lithium battery to support over 10 hours of operation, suitable for long-time filed work;
- Two USB interfaces: can connect to the external U disk, or communicate with PC through SyncActive software;
- Touch screen and keyboard operation;
- Built-in visible fault locator (VFL) function;
- Support Bellcore GR196 and SR-4731 file format;
- Advanced antireflection LCD, clear display interface in field;
- Automatic detection of the communication light signal;
- 1.6m ultra-short event dead zone, easy to test optical fiber jumper;
- WinCE window operation system, Chinese/ English operation interface;
- Intelligent indication of battery capacity, alarm when the battery is running out;
- The most advanced technology of double color & material integrative mould, strong and firm;
- The OTDR optical output connectors are exchangeable, so it is more convenient to clean the end surface;
- Large capacity lithium battery to support over 10 hours of operation, suitable for long-time filed work;
- Two USB interfaces: can connect to the external U disk, or communicate with PC through SyncActive software;
Product Model | OTDR | ||||||||
S1 | S2 | S3 | T1 | T2 | |||||
Type | Single-Mode | ||||||||
Display | 5.8 inch color LCD with touch screen | ||||||||
Wave-length | 1310/1550nm | 1310/1490/1550nm | 1310/1550/1625nm | ||||||
Max.Dynamic Range | 35/33dB | 38/36dB | 42/40dB | 37/35/35dB | |||||
Event dead zone | 1m | 0.8m | |||||||
Attenuation Dead Zone | 6m | ||||||||
Distance range | 500m/1Km/2Km/4Km/8Km/16Km/32Km/64Km/128Km/256Km | ||||||||
Measuring Pulse Width | 5ns/10ns/50ns/160ns/320ns/500ns/1000ns/5000ns/10000ns/20000ns | ||||||||
Sampling point | 256k | ||||||||
Ranging Accuracy | ±(0.75m+Sampling interval+0.005%×Test distance) | ||||||||
Loss Precision | ±0.05dB/dB | ||||||||
Reflection Accuracy | ±3dB | ||||||||
Data Storage | ≥2000 times | ||||||||
Interface Type | FC/PC(Replaceable SC、ST) | ||||||||
Communication Interface | USB mini-USB 10M/100M Ethernet | ||||||||
VFL Output | ≥5mW | ||||||||
LS Output | ≥5dBm | ||||||||
OPM | +26dBm~-50dBm（Replaceable：+6dBm~-70dBm） | ||||||||
Power Supply mode | AC/DC Adapter：AC：100v~240V 50/60Hz 0.6A；Lithium battery：7.4V 6700mAh | ||||||||
Operating Temperature | -5℃~50℃ | ||||||||
Storage Temperature | -20℃~70℃ | ||||||||
Relative Humidity | 0~95℃ Non condensation | ||||||||
Weight | 1.1kg | ||||||||
Volume | 227mm×160mm×70mm | ||||||||

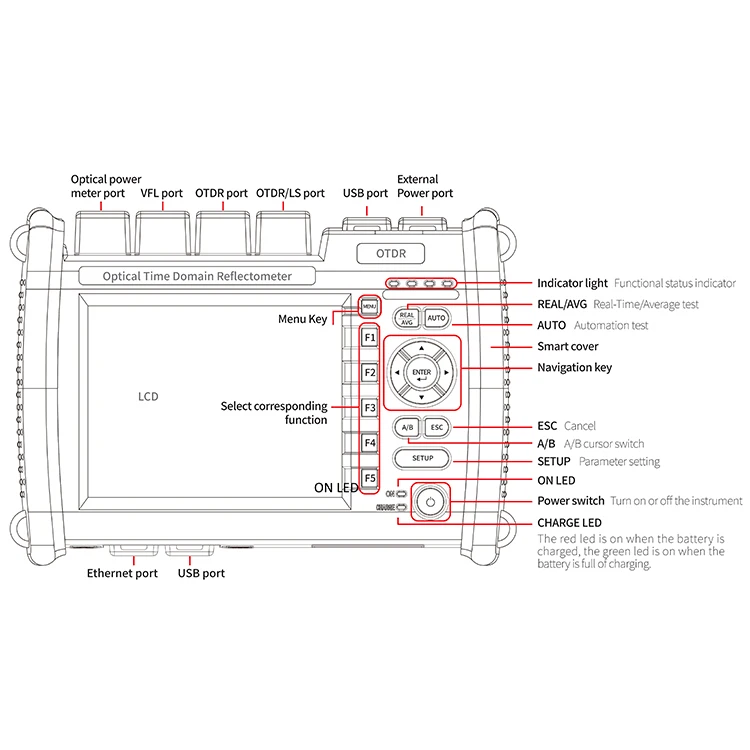

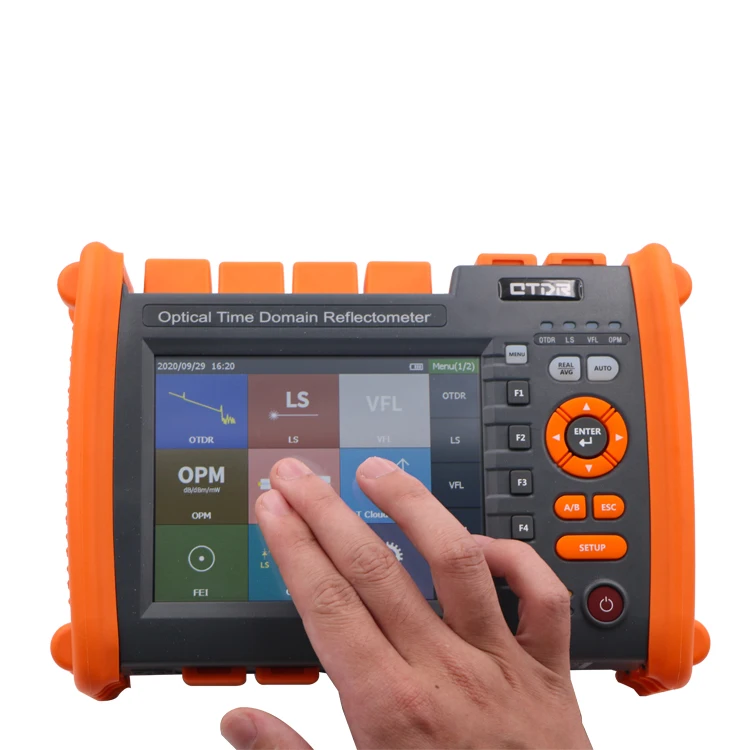

Button Function and Display Screen
5.7-inch color touch screen. The touch key + key double operation mode, borrowed from the tablet design, is fast and convenient.

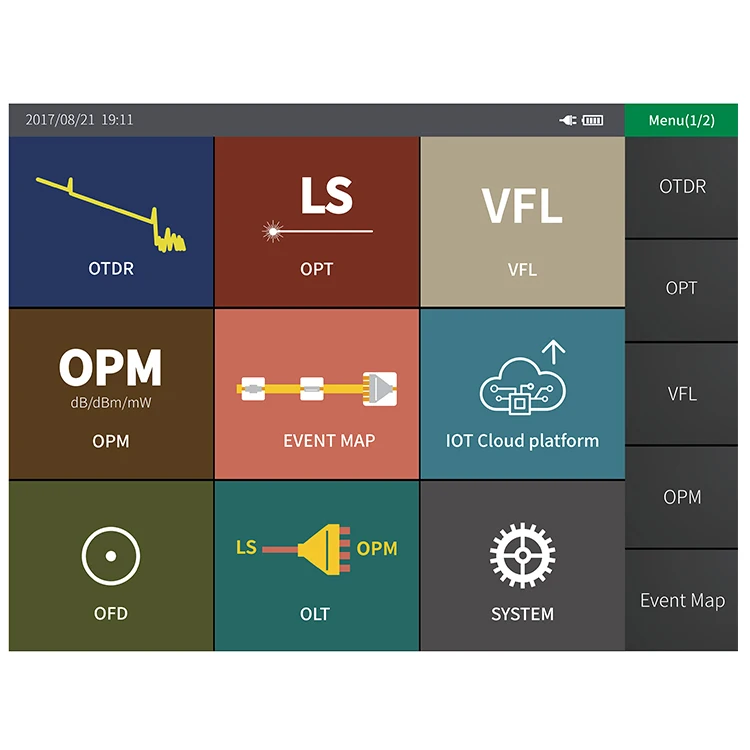

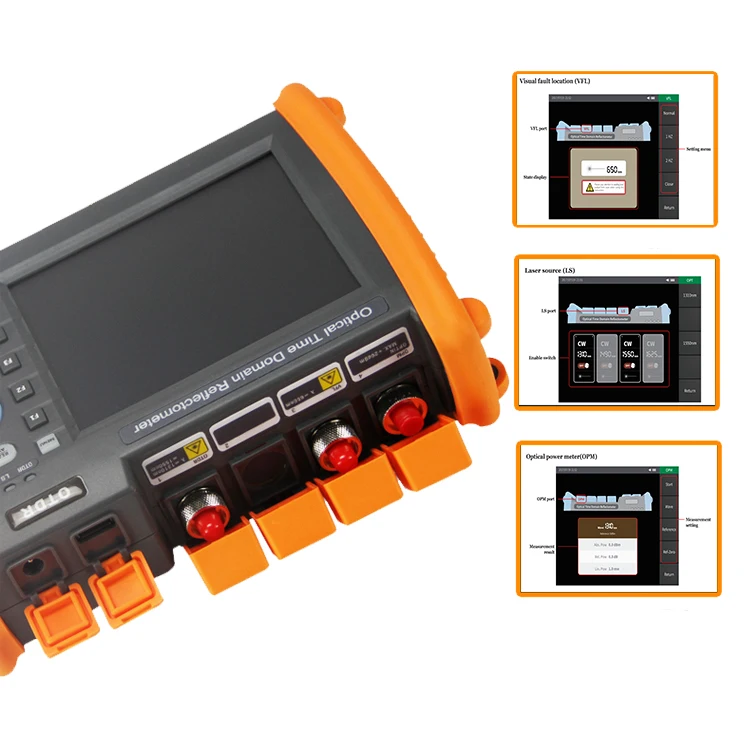

Designed to provide efficiency. Integrate OTDR/light source/optical power meter, VFL multi-function in one, stable light source function 1310/1550nm, optical power meter test function, VFL.

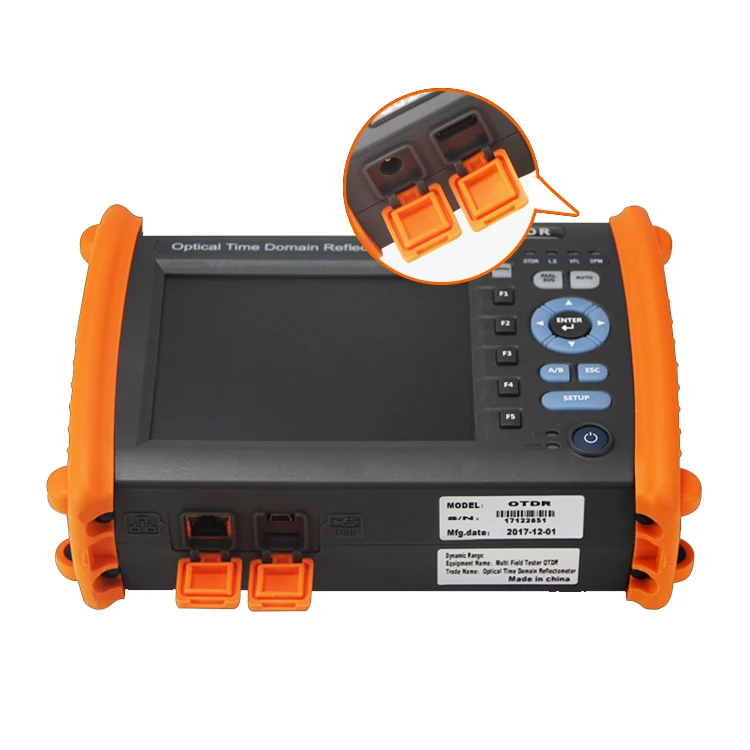

With abundant external interfaces. Remote control can be realized through the Ethernet connector, and data communication between external U disk, printer and PC can also be realized through two unused USD interfaces. It supports batch processing of files, can print four documents at a time, and supports PDF format printing.
