Lumaix 8A 12V panel charger MPPT solar led street light dc controller
- Category: >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (62504237198):
Product Overview
Description

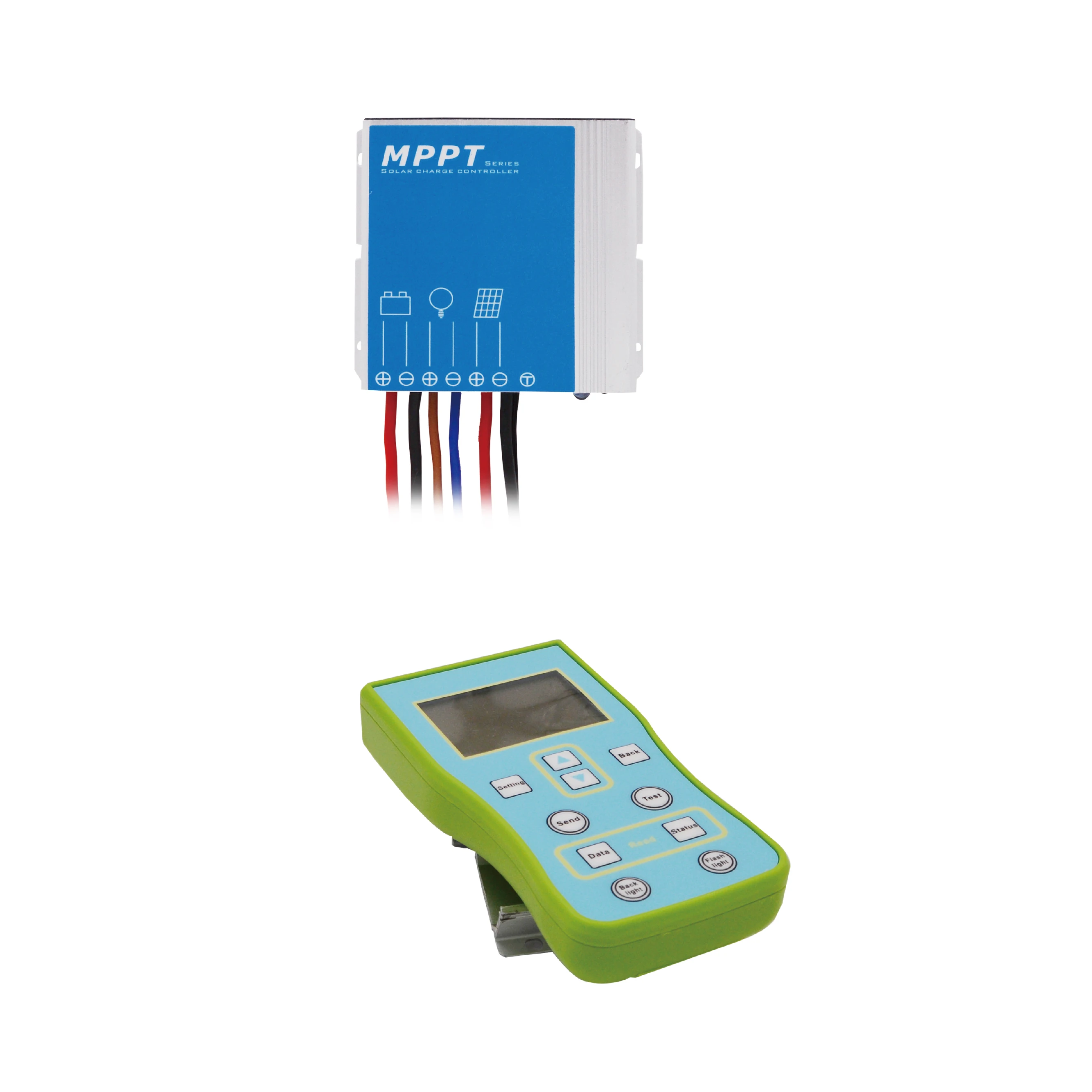

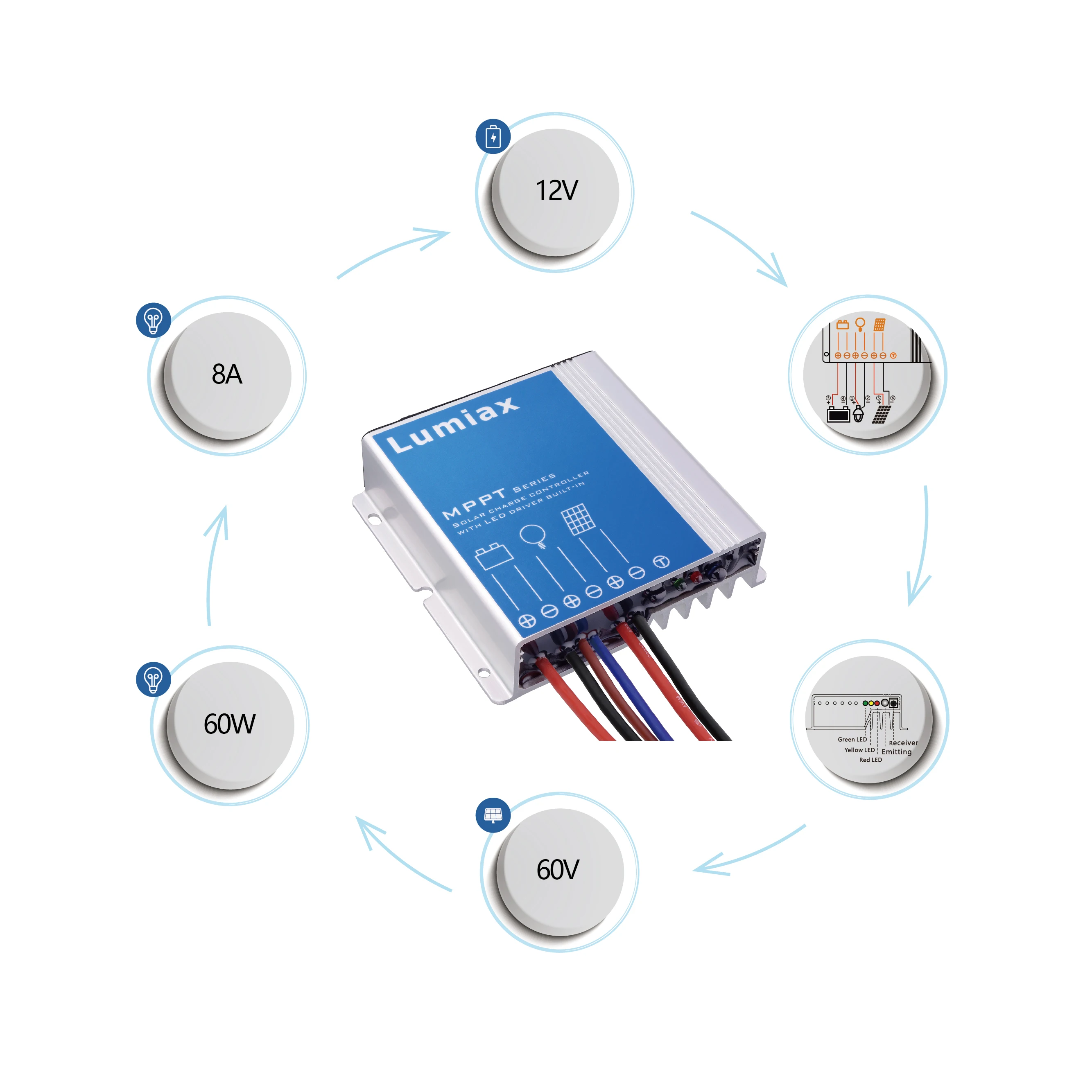

12V 8A waterproof solar street light mppt charge controller
MPPT-DCLi series MPPT solar controller is programmable and especially for boost
mode LED solar street light system. lifepo4 battery can be choose.
Out power:1-50W,1- 60W intelligent light controller.
Out power:1-50W,1- 60W intelligent light controller.
Product Paramenters
Type | MPPT0850-DCLi | MPPT0875-DCLi | |
Max charging current | 8A | 8A | |
Charging voltage target | 10.0~17.0V(Programmable) | - | |
Charging voltage recovery | 9.2~16.8V(Programmable) | - | |
Low voltage disconnect | 9.0~15.0V(Programmable) | ||
Low voltage reconnect | 9.6~16.0V (Programmable) | ||
Battery type | Lithium | ||
0℃ Charging protection | Yes, Slow, No(Programmable) | ||
Max input power | 100~120W | ||
Day/Night threshold | 3.0~8.0V (Programmable) | ||
Day/Night delay time | 0~30min(Programmable) | ||
Max solar voltage | 35V | 60V | |
Output power | 1~50W | 1~60W | |
Output voltage | 20~35V | 20~58V | |
Output Current | 0.15~3.0A(Programmable) | ||
Min Current | 50mA(Dimming) | ||
Voltage of start dimming | 10.0 ~ Charging voltage target(Programmable) | ||
Dimming percentage | 1~20%(Programmable) | ||
Auto dimming | Yes,No,365(Programmable) | ||
Max Tracking Efficiency | >99.9% | ||
Max Charge Conversion | 96.5% | ||
Max LED driver efficiency | 96% | ||
Self Consumption | 6mA | ||

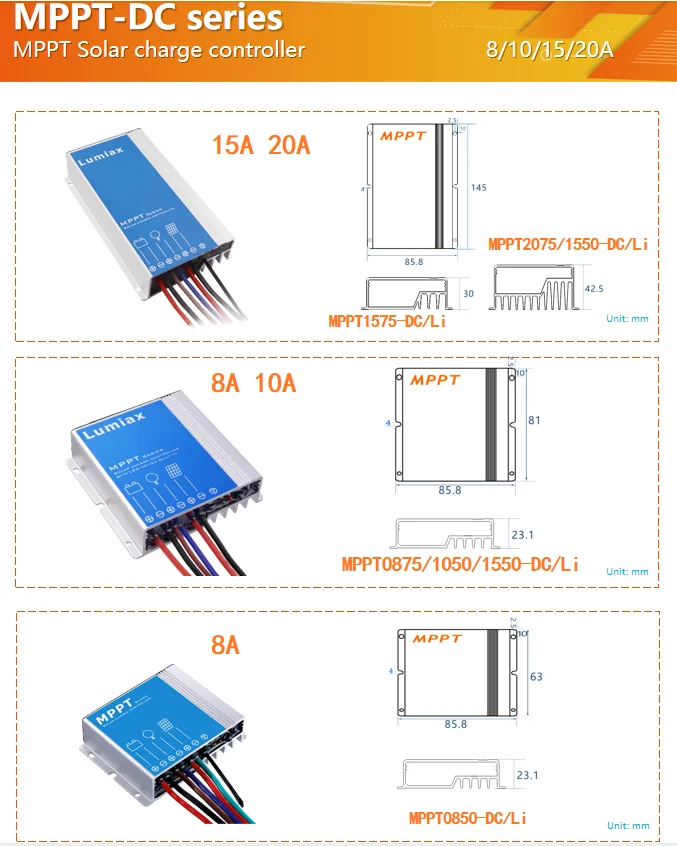

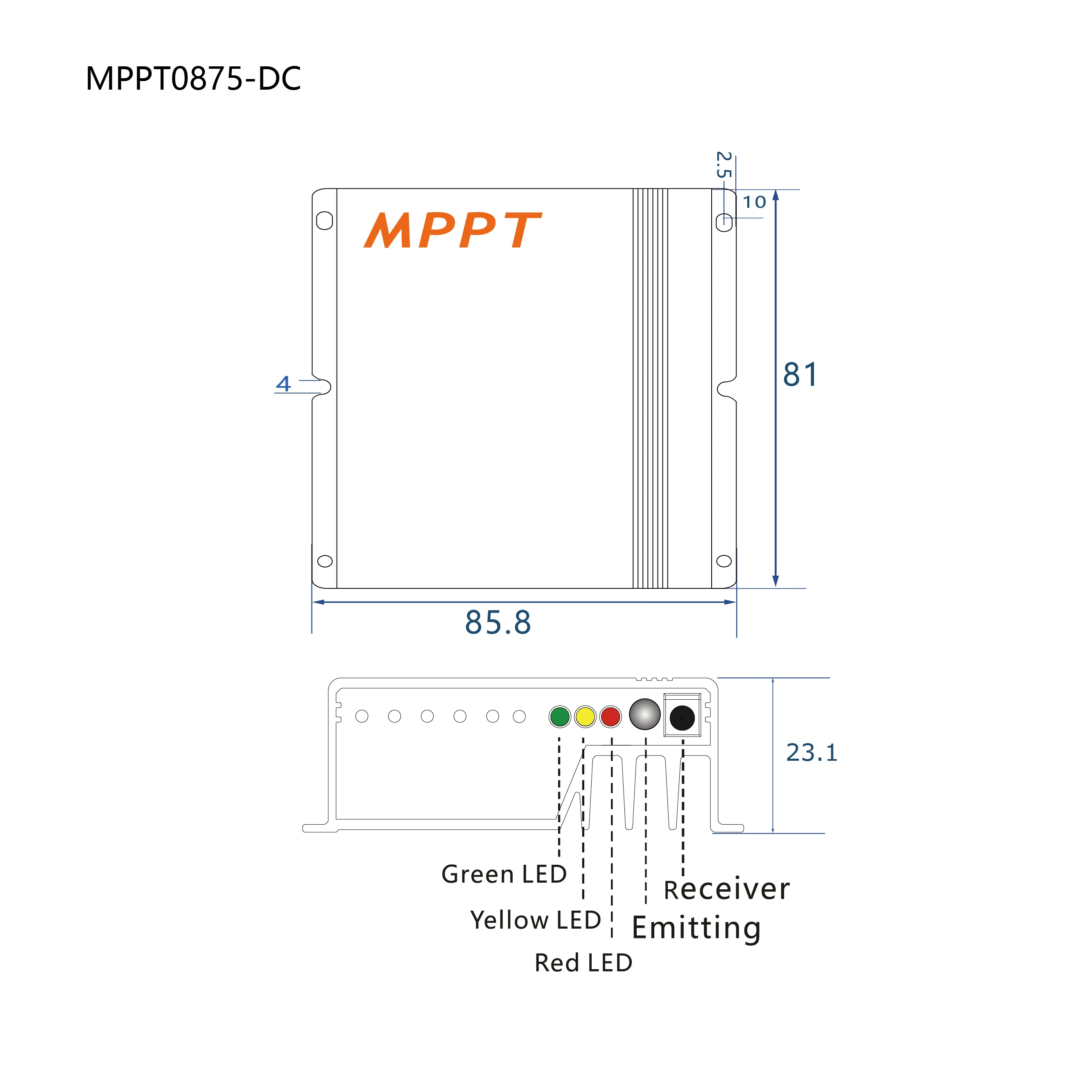

Dimensions | 85.8 * 63 * 23.1mm | 85.8 * 81 * 23.1mm | |
Weight | 230g | 260g | |
Protection degree | IP67 | ||

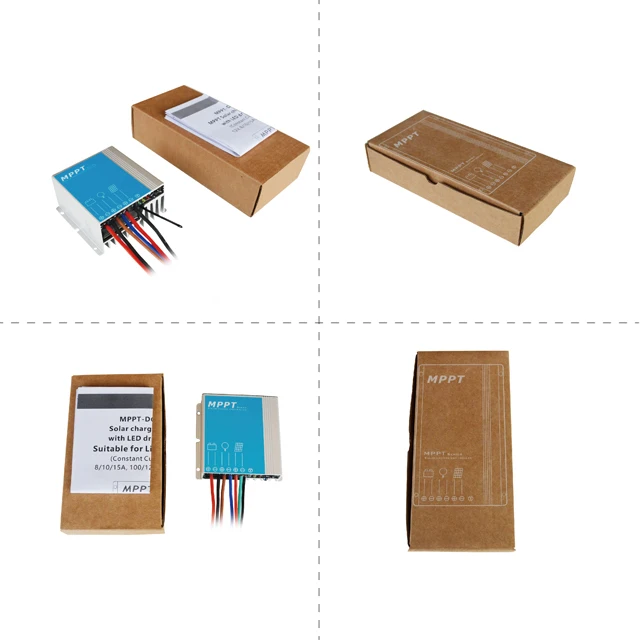

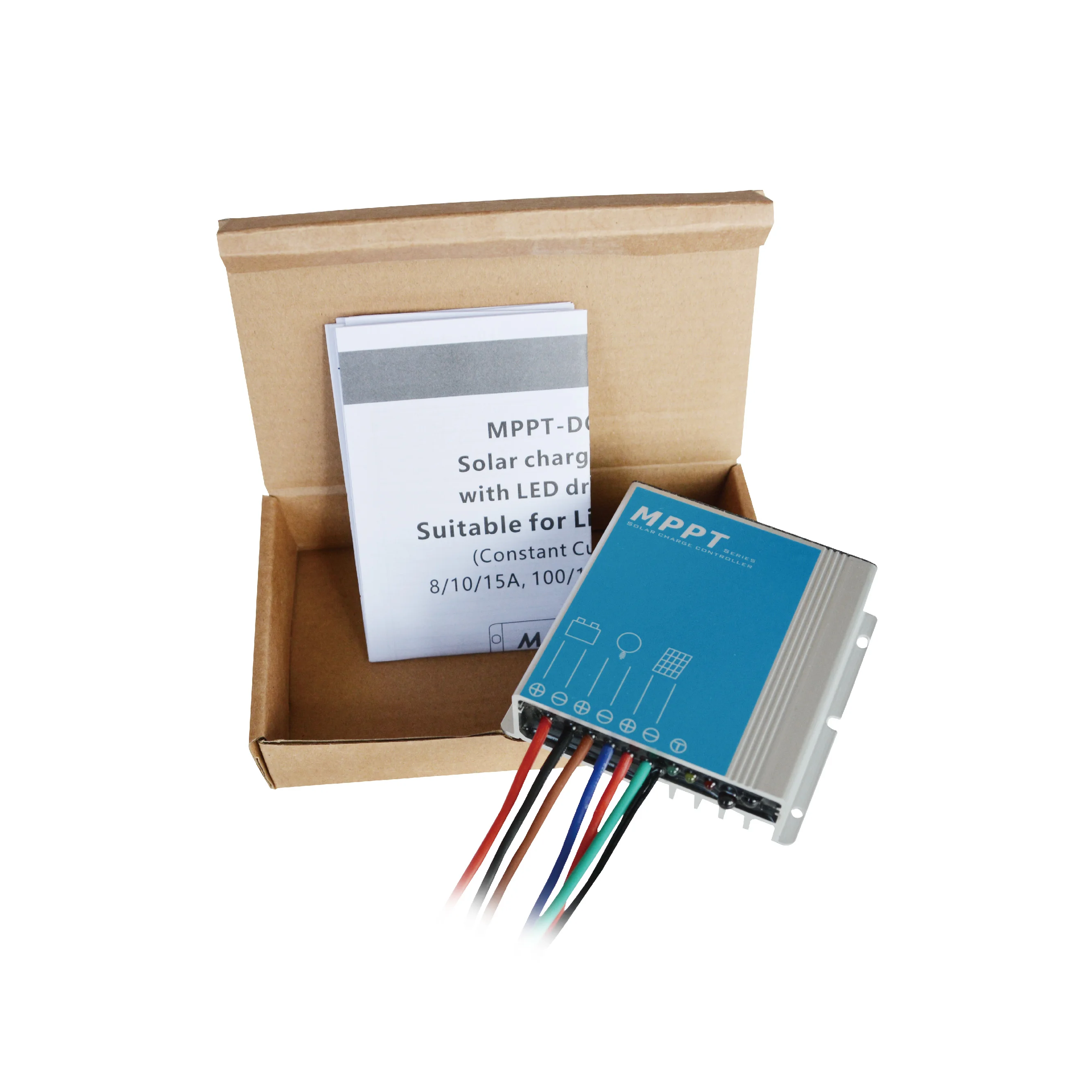

Packing&Shipping
Package:
cartonContain: 30pcs/carton
Weight: 8.7kg/carton
Dimmension: 44*31*18 cm
Weight: 8.7kg/carton
Dimmension: 44*31*18 cm

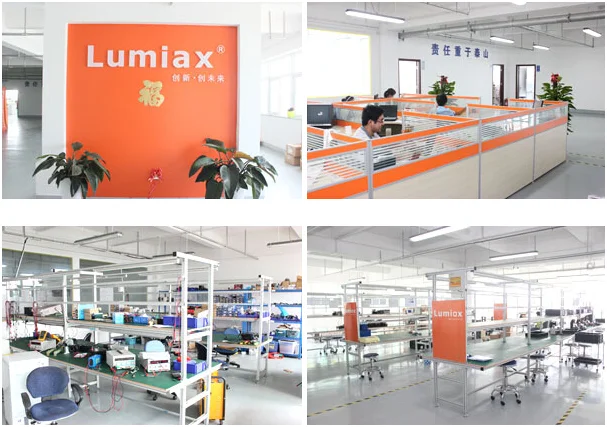

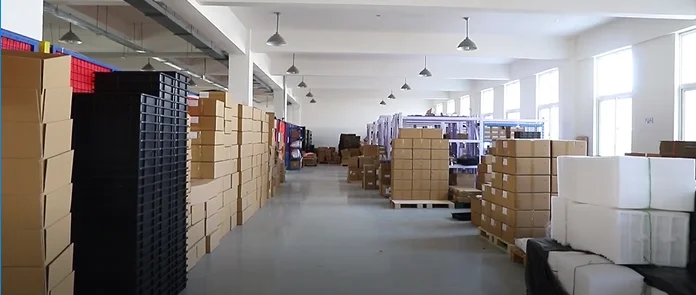

Our Factory
Registered as “Lumiax”, Qingdao Skywise Technology Co., Ltd. was established in 2007, and located in Qingdao. Due to many years devoted to researching and developing, now we have been the world-leading solar charge controller manufacturer with over 1.5 million controllers exported to 100 countries.
Certificates that we have possessed of ISO9001 Quality Management System, ISO14001 Environmental Management System, CQC Golden Sun Certificate, CE and Rohs. Also with IEC61000, IEC62509,FCC,SASO,CISPR certificates for some models.
Products major including PWM and MPPT solar controllers,for solar 24 hours universal system controller and solar street light controller.
Certificates that we have possessed of ISO9001 Quality Management System, ISO14001 Environmental Management System, CQC Golden Sun Certificate, CE and Rohs. Also with IEC61000, IEC62509,FCC,SASO,CISPR certificates for some models.
Products major including PWM and MPPT solar controllers,for solar 24 hours universal system controller and solar street light controller.
1.All Lumiax products PCB are designed very well, no need for labor soldering, all are welded by machine automatically, which decrease the damage risk, like cold welding/welding slag/high temperature harm to components around.
2.Most of Lumiax MOSFET are from IR, ST MOSFETs, very famous brand in the world.
3.Most of Lumiax controllers MCU are from Atmel/ST/Microchip, very famous brands in the world.
4.Lumiax uses TVS from Littelfus, No.1 brand in the world, 1200W; while others use 600W unfamous brand TVS, even some use varistors, which sensitivity are not good sometimes.
5.We have another sister company, selling the electrical components, so we have the advantages to get components with good quality and low price.
6. CE certificate approved by TUV.
2.Most of Lumiax MOSFET are from IR, ST MOSFETs, very famous brand in the world.
3.Most of Lumiax controllers MCU are from Atmel/ST/Microchip, very famous brands in the world.
4.Lumiax uses TVS from Littelfus, No.1 brand in the world, 1200W; while others use 600W unfamous brand TVS, even some use varistors, which sensitivity are not good sometimes.
5.We have another sister company, selling the electrical components, so we have the advantages to get components with good quality and low price.
6. CE certificate approved by TUV.
Certifications
Exhibition
Contact me
Q1:How long of the warranty or guaranty?
A1:Waterproof controllers 36 months,other controllers 24 months and whole life technical support.
Q2:Can you accept OEM or ODM?
A2: Yes,for batch order, it's absolutely no problem to do OEM and ODM
Q3:What is your delivery time?
A3:It depends on your quantity.Usually 2days for sample and 5-10 days within 500pcs.
Q4:Do you have your own factory?
A4:Yes,we are in controller field for more than 13 years.We have three factories located in Qingdao,China,welcome to visit.
Q5:After-sales service
A5:Professional installation video guidance and technical support.
Q6：What kind of certificate you have?
A6:We have gained CE,ROHS,ISO9001,ISO14001.
A1:Waterproof controllers 36 months,other controllers 24 months and whole life technical support.
Q2:Can you accept OEM or ODM?
A2: Yes,for batch order, it's absolutely no problem to do OEM and ODM
Q3:What is your delivery time?
A3:It depends on your quantity.Usually 2days for sample and 5-10 days within 500pcs.
Q4:Do you have your own factory?
A4:Yes,we are in controller field for more than 13 years.We have three factories located in Qingdao,China,welcome to visit.
Q5:After-sales service
A5:Professional installation video guidance and technical support.
Q6：What kind of certificate you have?
A6:We have gained CE,ROHS,ISO9001,ISO14001.
