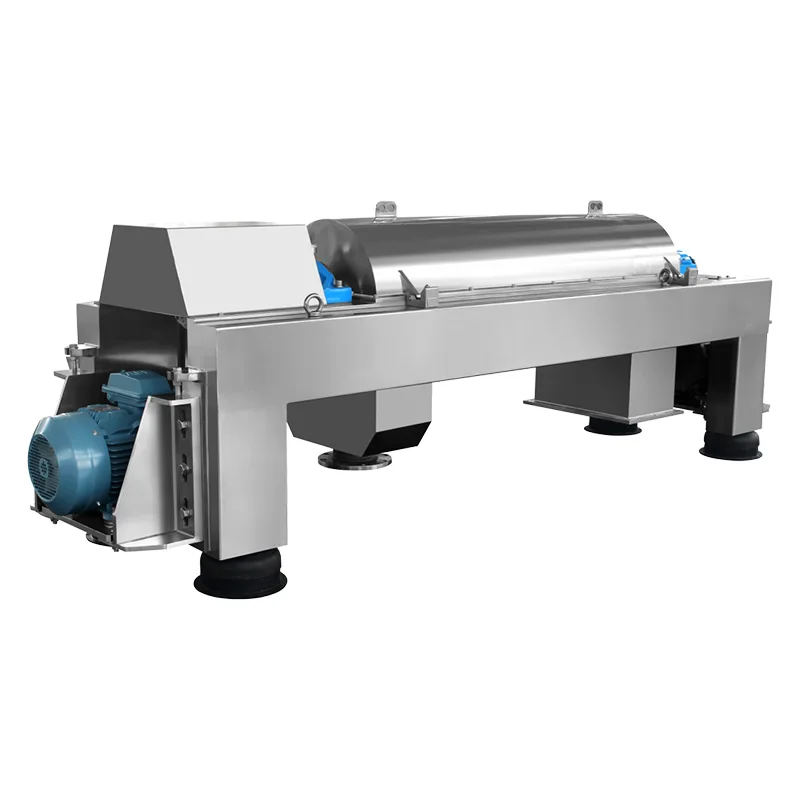

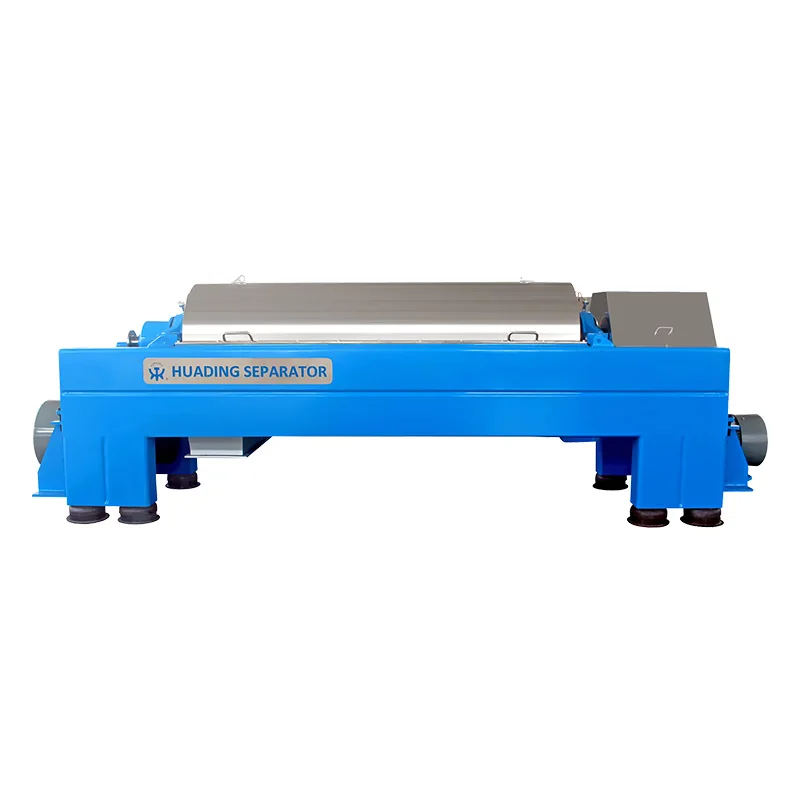

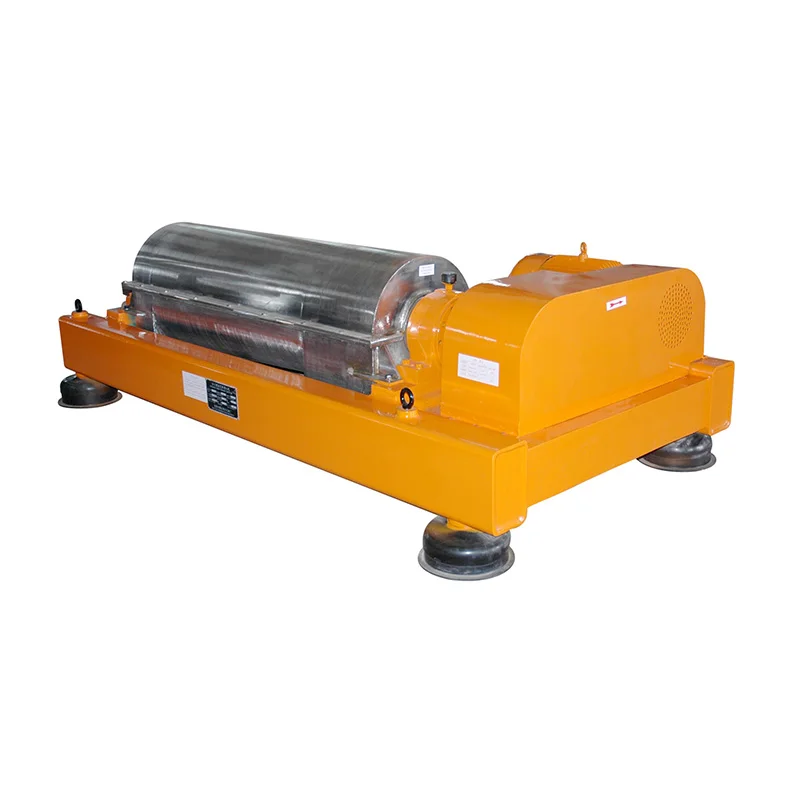

Decanter centrifuge for maize starch process
- Category: >>>
- Supplier: Yixing Huading Machinery Co. Ltd.
Share on (62504292637):
Product Overview
Description
Product Description
Decanter centrifuge for maize starch process
Decanter centrifuge from Chinese leading manufacturer, since 1954
Product Detail
| Bowl diameter | 186 - 720 mm |
| L/D | 3.0 - 5.5 |
| Bowl speed | 2000 - 6000 rpm |
| G-forcee | 1600 - 4000 g |

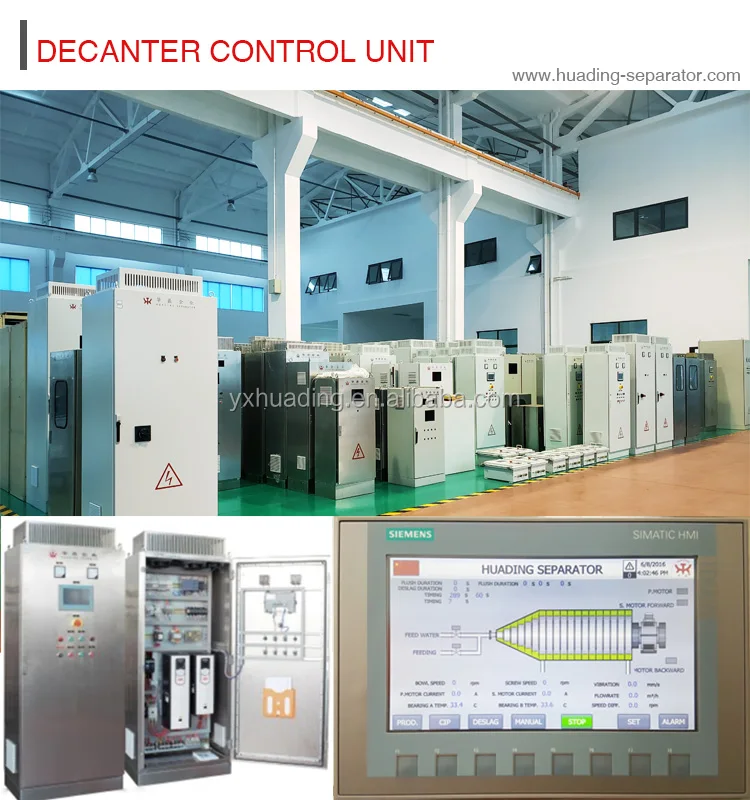

| PLC | SIEMENS |
| HMI | SIEMENS |
| Primary motor | 5.5 - 132 Kw |
| Secondary motor | 2.2 - 45 Kw |
| Material | EN 1.4462 / 1.4362 / 1.4410 / 1.4501 / AISI 304 / 316 / 316L |
| Noise | < 88 dB |
| Product Keywords | decanter centrifuge for maize starch process |
As the leading manufacturer in the field of centrifugal separation technology in China, Huading Separator can look back on more than 60 years of experience in centrifugal separation process technology. During this time, the number of areas of application has expanded significantly, and there are now more than 200 areas of application which have been tested in separation technology or which already have a good track record in the field.
disc separators and decanter centrifuges of Huading Separator are nowadays used throughout the world in key industries, such as the chemical and pharmaceutical industry, biotechnology, starch technology, oils and fats recovery, in environmental technology and mineral oil recovery. This foundation is built on to constantly develop specific processes for new areas of application and improving existing processes. Experience and knowledge, which is being applied more and more intensively for starch and protein recovery.

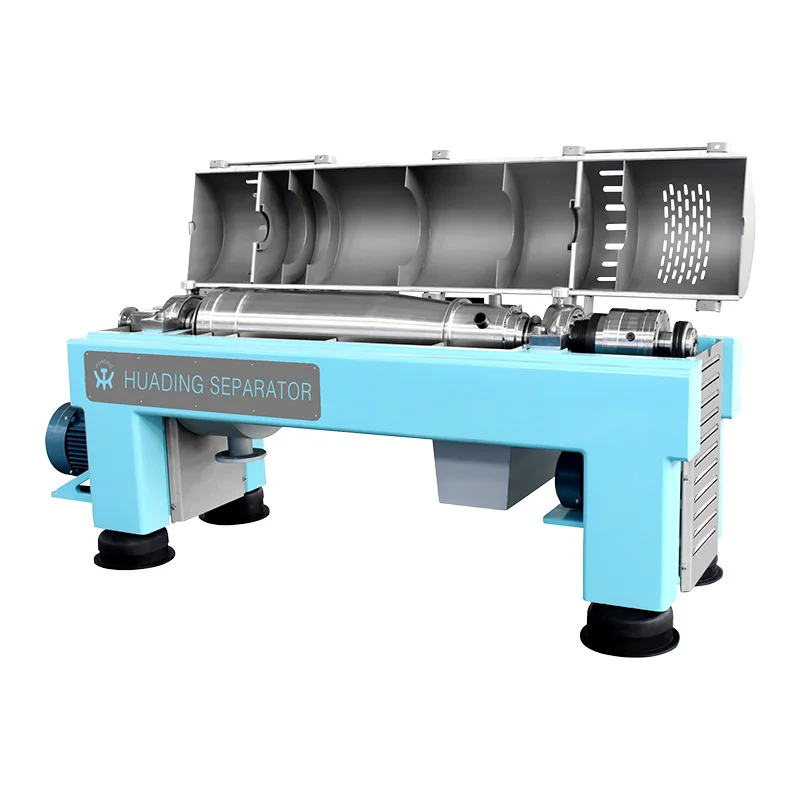

The rotating part of these decanter tricanter centrifuges is mounted on a compact, in-line frame, with main bearings at both ends. Vibration dampers are placed under the frame. The rotating part is enclosed in a casing with a cover and a bottom section with integrated outlets for both solids and the liquid being removed.
Quality assurance:
- JB/T502-2015 Chinese national standard of decanter centrifuge
- 2006/42/EC Machinery Directive
- 2014/35/EU Low voltage Directive
- 2014/30/EU Electromagnetic compatibility Directive
- Quality management system of ISO9001-2000
Working principle
Decanter Centrifuge working principle
2 - phase separation
- 1. Feed
- 2. Liquid phase
- 3. Solids phase
- 4. Pond
- 5. Dry beach
The feed suspension is introduced through an inlet pipe into the feed zone of the conveyor where it is accelerated and directed into the interior of the bowl. The settled solids are conveyed axially towards the small end of the bowl by means of the screw conveyor, which rotates at a slightly different speed than the bowl. On the way to the discharge ports the solids are lifted out of the pond up along the dry beach. The solids are finally discharged from the bowl through the discharge ports into the collecting chamber of the casing that surrounds the bowl. From there the solids are removed by gravity through the outlet funnel. The liquid phase forming a hollow cylinder due to the centrifugal force, and flows towards the large end of the bowl. There the liquid overflows adjustable plate dams into the centrate chamber of the casing and is discharged by gravity.

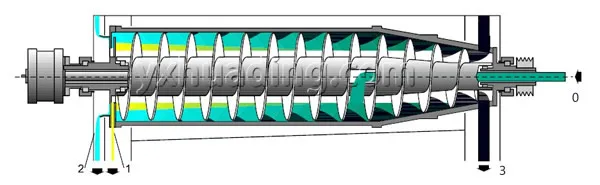

3 - phase separation
- 0. Food
- 1. Light liquid phase
- 2. Heavy liquid phase
- 3. Solids phase
The light liquid phase is discharged into the casing through radial holes in the large end hub. The heavy liquid phase is discharged through axial holes in the large end hub. The liquid radius for the light liquid phase is smaller than the radius for the heavy liquid phase. The liquid level is controlled by plate dams. In order to prevent the light liquid phase from leaving the bowl through the heavy liquid phase outlet, a separating plate is placed on the inside of the large end hub. The heavy liquid phase has to pass under the separating plate before being discharged into the casing. The liquid radius for the heavy liquid phase is controlled by plate dams. The solids are discharged in the normal way.
Material
The bowl, conveyor, inlet tube, outlets, cover and other parts in direct contact with the process media are all made of stainless steel. The discharge ports, conveyor flights and feed zone are protected with materials that are highly resistant to erosion. The frame is made of mild steel with an epoxy enamel finish.
Wear protection
Huading Separator supply a wide range of wear protection for decanter centrifuge to meet the requirements of the many different applications, including:
- Welded hard facing or spray coating
- Ceramic
- Tungsten carbide tiles
- Chilled hard metal portcastings
- Plastic liners

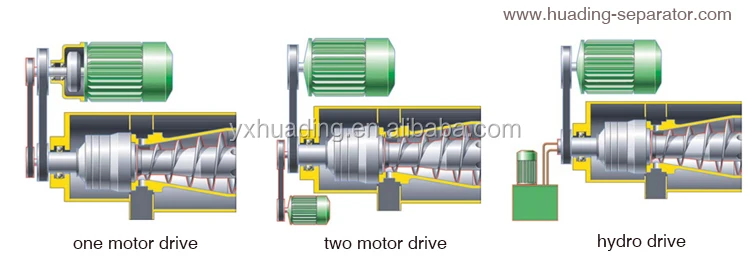

Drive system
Drive system of decanter centrifuge
One motor drive, this is a very simple design and are therefore cheap to purchase and operate. One motor drive are used when the solids volume is constant, the solids are easy to convey and the requirements regarding the residual water content of the solids are not very stringent, in other words, bowl and differential speed regulating facilities are not necessary. The input shaft of the drive is set in motion by the main motor via a second belt drive. This generates the differential speed as a function of bowl speed and gear transmission. This can be easily changed by replacing the belt pulleys.
Two motor drive, it enable the differential speed to be regulated cost-effectively under good operating conditions; wide regulating ranges are possible. The secondary motor sets the input shaft of the gear in motion and generates the differential speed as a function of bowl speed and gear transmission. The differential speed can easily be regulated by changing the motor speed. Two motor drive are used whenever solid volumes fluctuate significantly, when solids are conveyed under difficult conditions and when particularly stringent requirements are applicable with regard to residual water content.
Hydro drive, it works in a way which is similar to that of the two motor drive. The difference is to be seen in the design.Instead of the mechanical gear, a rotating hydromotor is installed; this is supplied with hydraulic regulation by a pump unit. Because the differential speed is proportionate to the conveyed quantity of oil, automatic regulation can be provided without any problem.
Technical specification
Huading Separator has been developing and manufacturing decanters for decades and is one of the Chinese
leading decanter manufacturers.Huading Separator has more experience and expertise than any other decanter manufacturer when it comes to applying and using decanters for various applications.
| bowl ID (mm) | bowl speed (rpm) | L / D | g - force | capacity (m3/h) | solids removal (m3/h) | primary motor (Kw) | Weight (Kg) | Dimension (mm) |
| 250 | 4800~5400 | 3.0~5.0 | 2000~3500 | 3~5 | 0.4 | 11 | 760 | 1600×1100×850 |
| 300 | 4200~4600 | 3.0~5.0 | 2000~3500 | 3~15 | 0.8 | 11~15 | 1500 | 2470×1230×850 |
| 350 | 3700~4200 | 3.0~5.0 | 2000~3500 | 5~20 | 1.2 | 5~22 | 2000 | 2790×1300×880 |
| 400 | 3200~3900 | 3.0~4.8 | 2000~3500 | 5~30 | 2 | 18.5~30 | 2600 | 2950×1400×850 |
| 450 | 3000~3700 | 3.0~5.0 | 2000~3500 | 5~45 | 2.5 | 22~37 | 3200 | 3300×1500×920 |
| 530 | 2700~3450 | 3.0~5.0 | 2000~3500 | 10~80 | 5 | 30~55 | 5200 | 3730×1600×1100 |
| 580 | 2600~3300 | 3.0~5.0 | 2000~3500 | 10~90 | 6 | 45~75 | 6900 | 4000×1400×1600 |
| 650 | 2400~3100 | 3.0~5.0 | 2000~3500 | 20~105 | 8 | 37~90 | 8200 | 4300×1900×1350 |
| 760 | 2200~2900 | 3.0~5.0 | 2000~3500 | 30~120 | 12 | 55~135 | 12000 | 5000×2500×1500 |
| 900 | 1800~2600 | 3.0~5.0 | 2000~3500 | 40~180 | 16 | 75~160 | 18000 | 6500×2700×1500 |
After service
Technical service of decanter centrifuge:
- technical direction when installation, debugging
- training for operation and maintain worker
Training:
- separator working principle and structure
- operation regulation and attention
- machine maintains
Experience
Huading Separator has been developing and manufacturing centrifuges for nearly 60 years, and is one of the Chinese leading manufacturer. Huading Separator has more experience and expertise than any other separator manufacturer when it comes to applying and using decanter centrifuge for the purpose of continuous separation.
For more information, please refer to:huading-separator.com

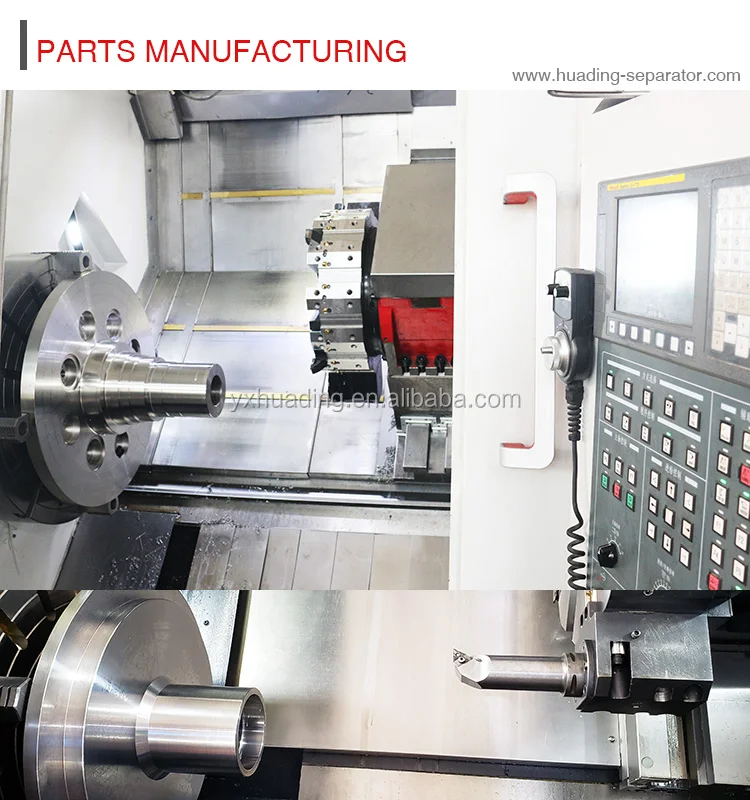

Manufacturing
