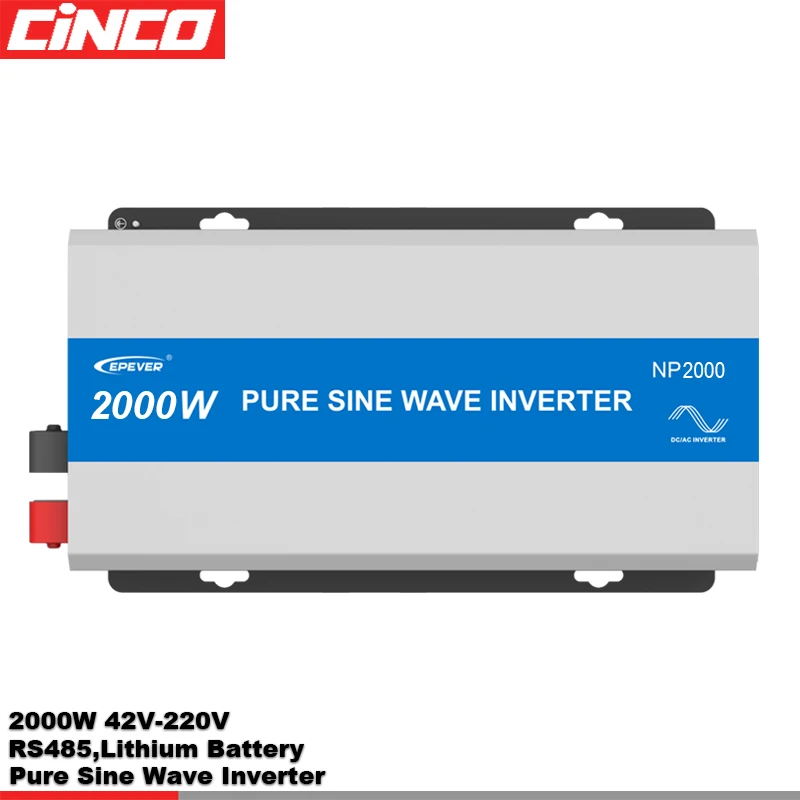

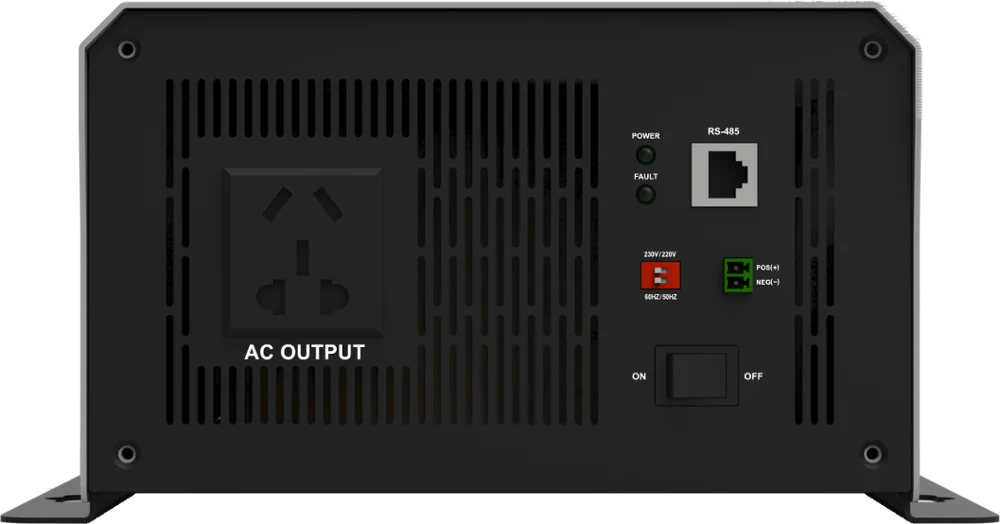

EPEVER NP2000 12/22/42 off grid pure sinve wave inverter 2KW 12V/24V/48Vdc 220/230V dc to ac converter
- Category: >>>
- Supplier: Cinco Electronics Tech Co. Ltd.
Share on (62504395986):
Product Overview
Description
Products Description
1. Adoption of advanced SPWM technology, pure sine wave output
2. The input and output adopt completely isolated inverter technology with high reliability
3. Low output harmonic distortion(THD≤3%)
4. Output voltage 220/230VAC and frequency 50/60Hz optional
5. RS485 port can connect the communication module, realize remote start/stop inverter and monitor the running status via the APP or PC software
6. The case is designed with the galvanized board, with high strength and strong corrosion resistance
7. Adopt voltage and current double closed-loop control to enhance the load capacity
8. The input adopts anti-surge design to meet the special requirements of surge limitation of the lithium battery and avoid dangerous surge current generated by connection of startup
9. The output adopts excellent EMC design to prevent interference of connected equipment
10. Extensive protections: input reverse polarity, input overvoltage, input low voltage, output overload and short circuit, overheating
11. Set the inverter’s ID via the APP or PC software to monitor several inverters

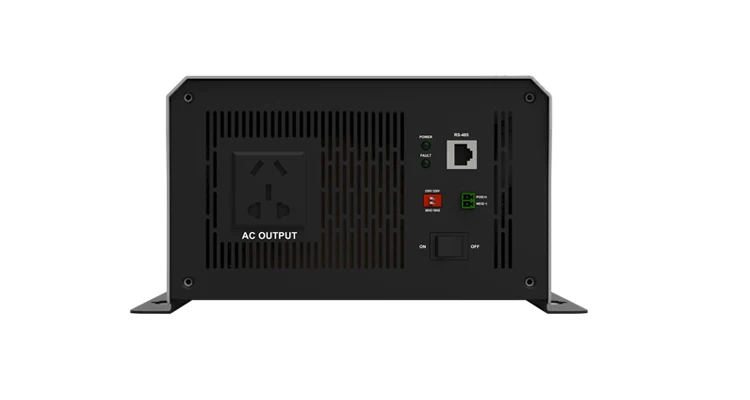

12. Chinese dual socket, Australia/New Zealand, European, Terminal selectable
2. The input and output adopt completely isolated inverter technology with high reliability
3. Low output harmonic distortion(THD≤3%)
4. Output voltage 220/230VAC and frequency 50/60Hz optional
5. RS485 port can connect the communication module, realize remote start/stop inverter and monitor the running status via the APP or PC software
6. The case is designed with the galvanized board, with high strength and strong corrosion resistance
7. Adopt voltage and current double closed-loop control to enhance the load capacity
8. The input adopts anti-surge design to meet the special requirements of surge limitation of the lithium battery and avoid dangerous surge current generated by connection of startup
9. The output adopts excellent EMC design to prevent interference of connected equipment
10. Extensive protections: input reverse polarity, input overvoltage, input low voltage, output overload and short circuit, overheating
11. Set the inverter’s ID via the APP or PC software to monitor several inverters
12. Chinese dual socket, Australia/New Zealand, European, Terminal selectable

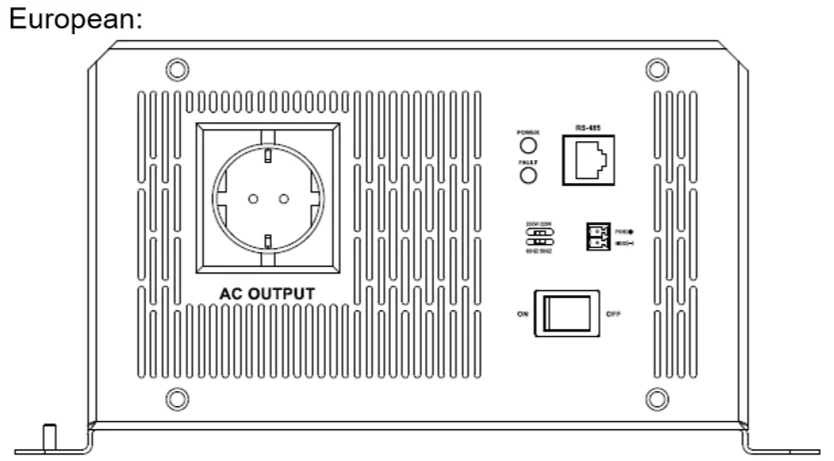

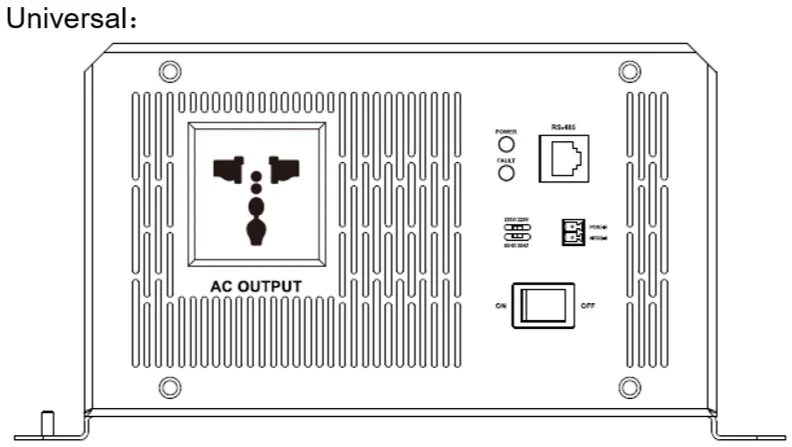

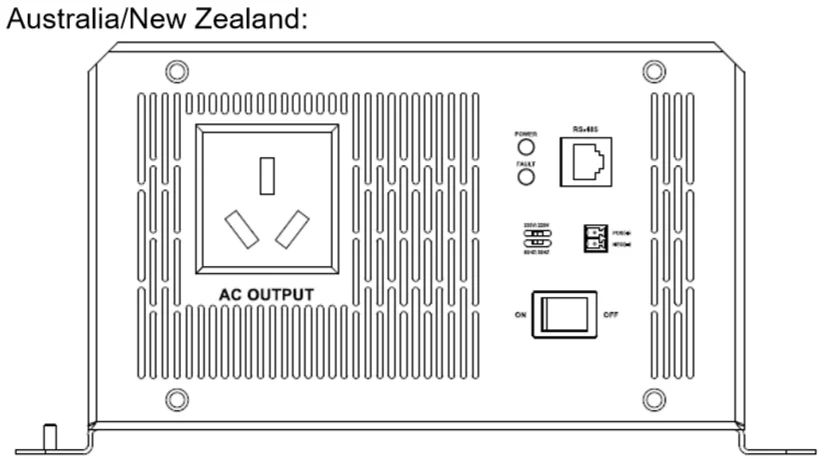

Socket type

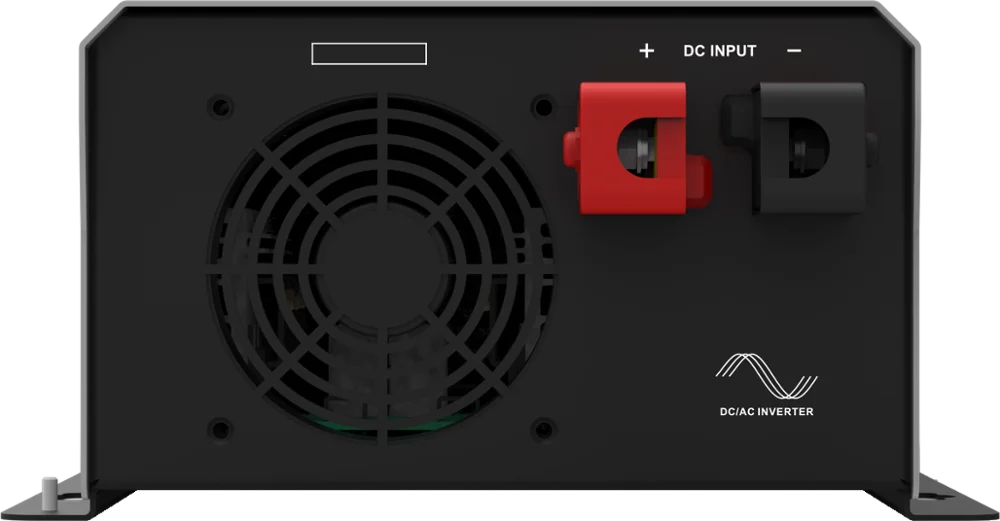

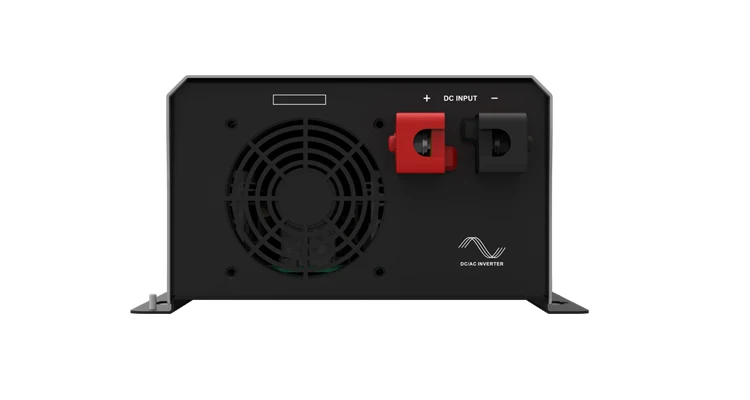

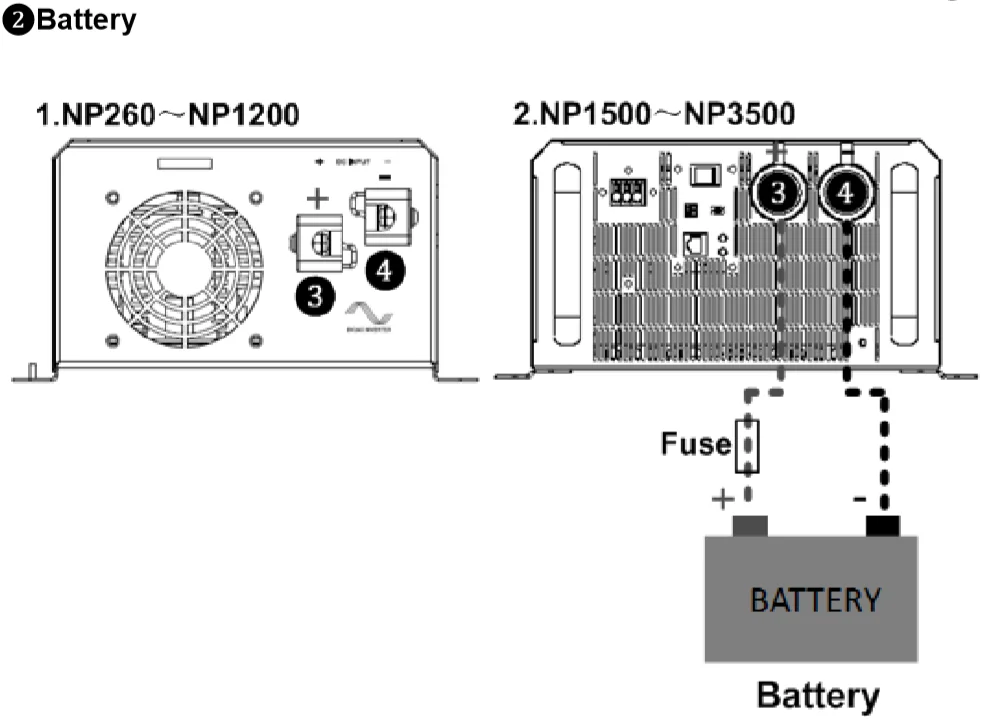

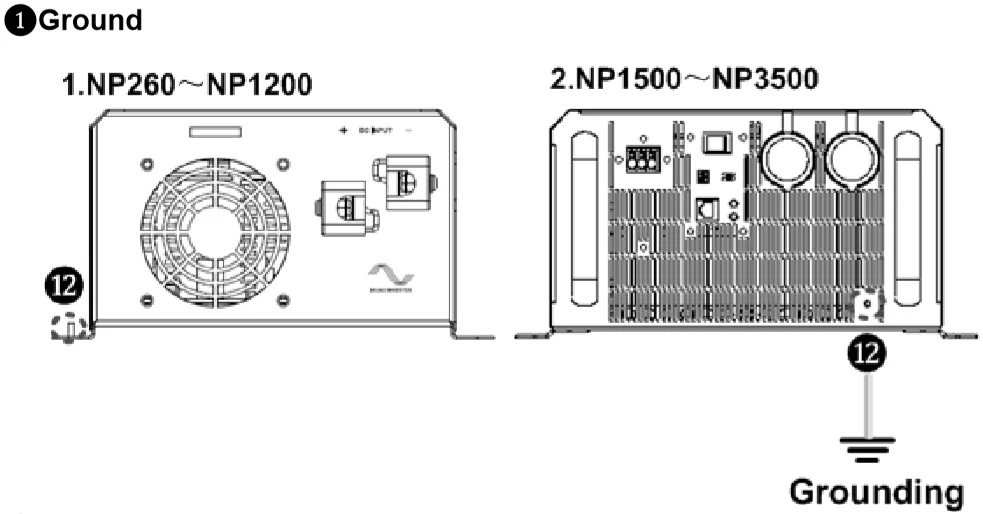

Wiring order & Accessories
Product Paramenters
Item | NP2000-42 | NP3000-42 | ||||||
Output Continuous Power | 2000W@25℃ | 3000W@25℃ | ||||||
Surge Power | 4000W 6000w | |||||||
Output Voltage | 220/230VAC(-5%~+3%) | 220/230VAC(±3%) | ||||||
Output Frequency | 50/60±0.2% | |||||||
Output Wave | Pure Sine Wave | |||||||
Output distortion THD | THD≤3%(Resistive load) | |||||||
Load Power Factor | 0.2~1(VA≤Continuous output power) | |||||||
Rated input voltage | 48VDC | 48VDC | ||||||
Input voltage range | 43.2～64VDC | 43.2～64VDC | ||||||
Output efficiency of80% rated power① | 89% | 90% | ||||||
Max. Rated Efficiency② | 87% | 89% | ||||||
Max. Efficiency | 93%(500W) | 94%(900W) | ||||||
No-load Current | ＜0.3A | ＜0.5A | ||||||
Rs485 Com. Port | 5VDC/200mA(Ioslation) | |||||||
Environmental parameters | ||||||||
Binding Post | M10 | |||||||
Overall dimension | 486×313×145mm | 584×328×170mm | ||||||
Mounting Dimension | 350×292mm | 350×307mm | ||||||
Mounting hole size | Φ9mm | |||||||
Weight | 20.7kg | 28.4kg | ||||||
Load power is 80% continuous output power(25℃) Load power is continuous output power (25℃) | ||||||||
