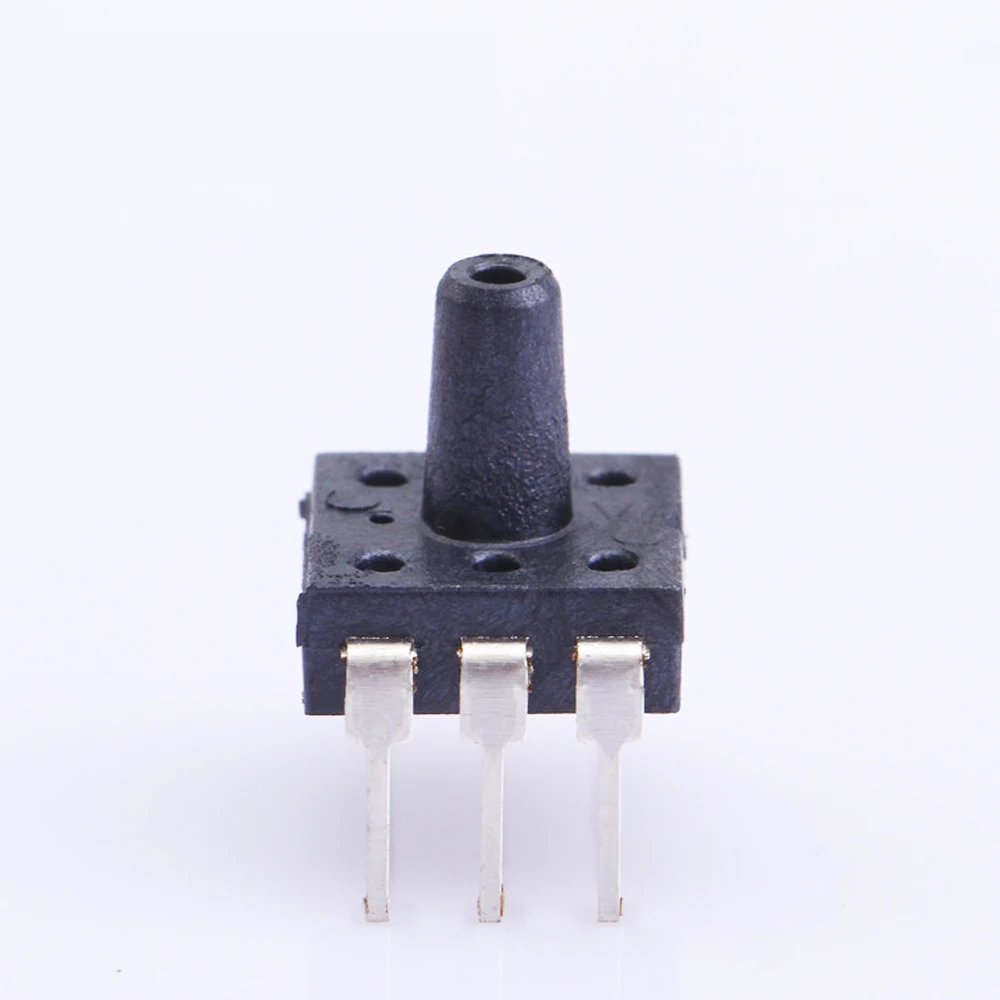

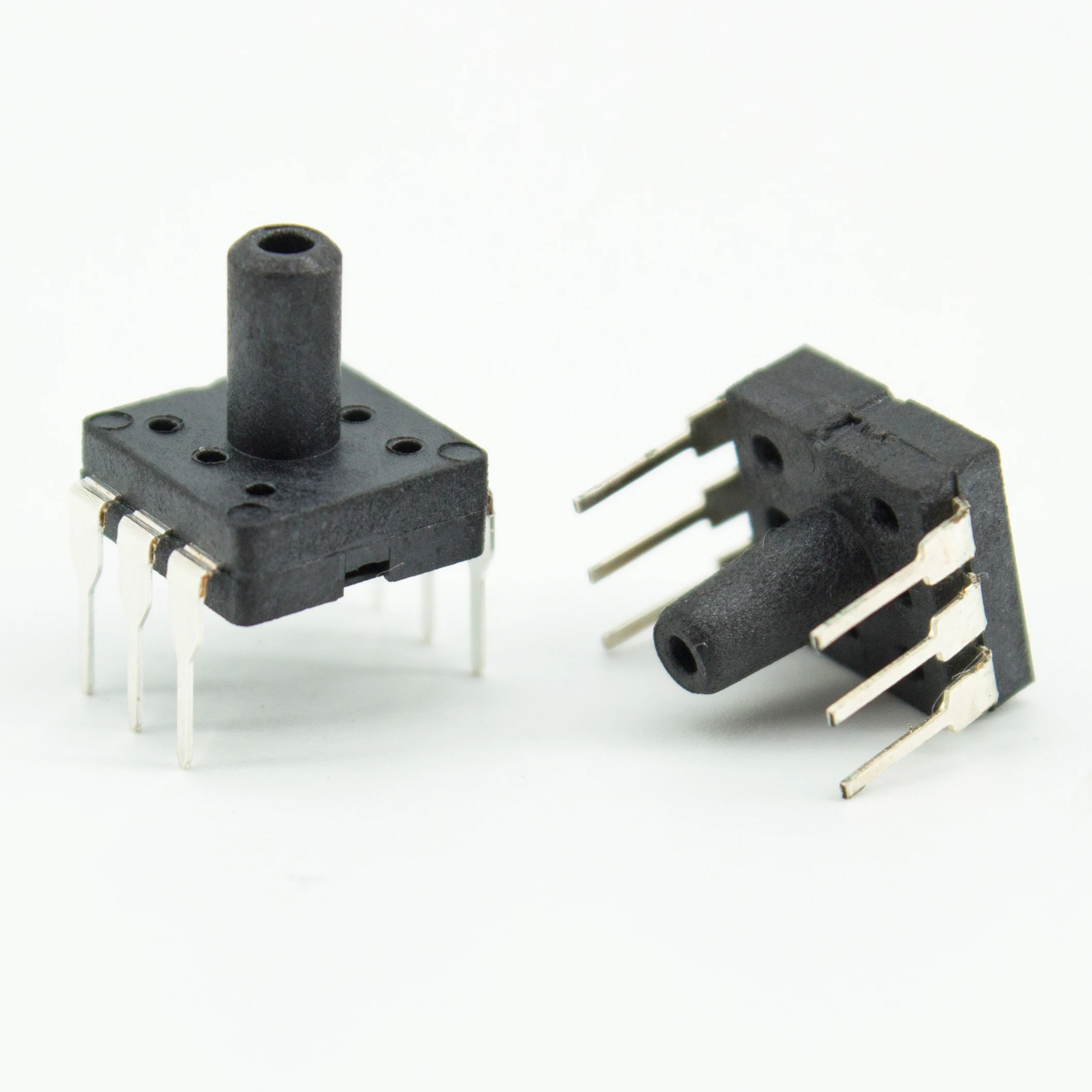

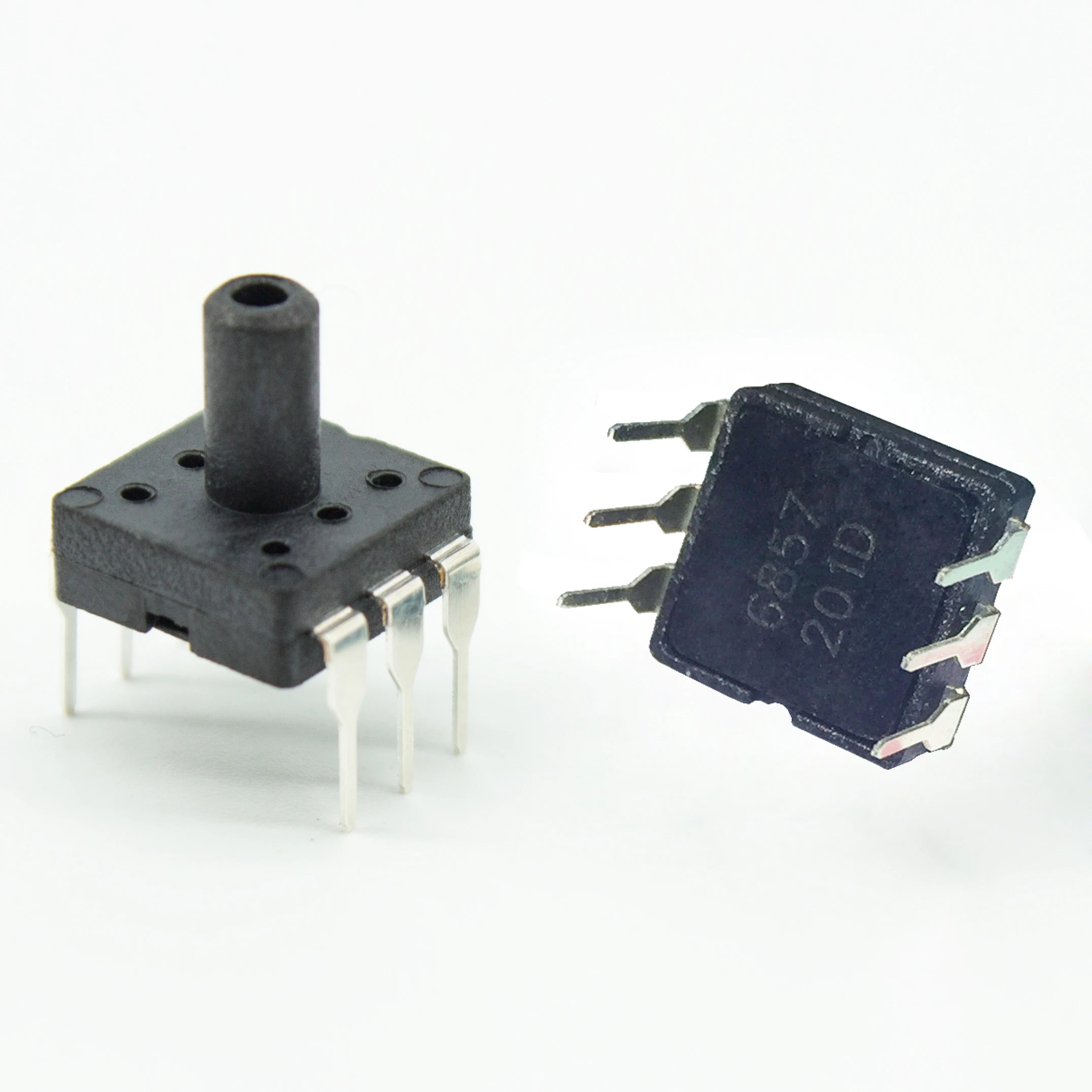

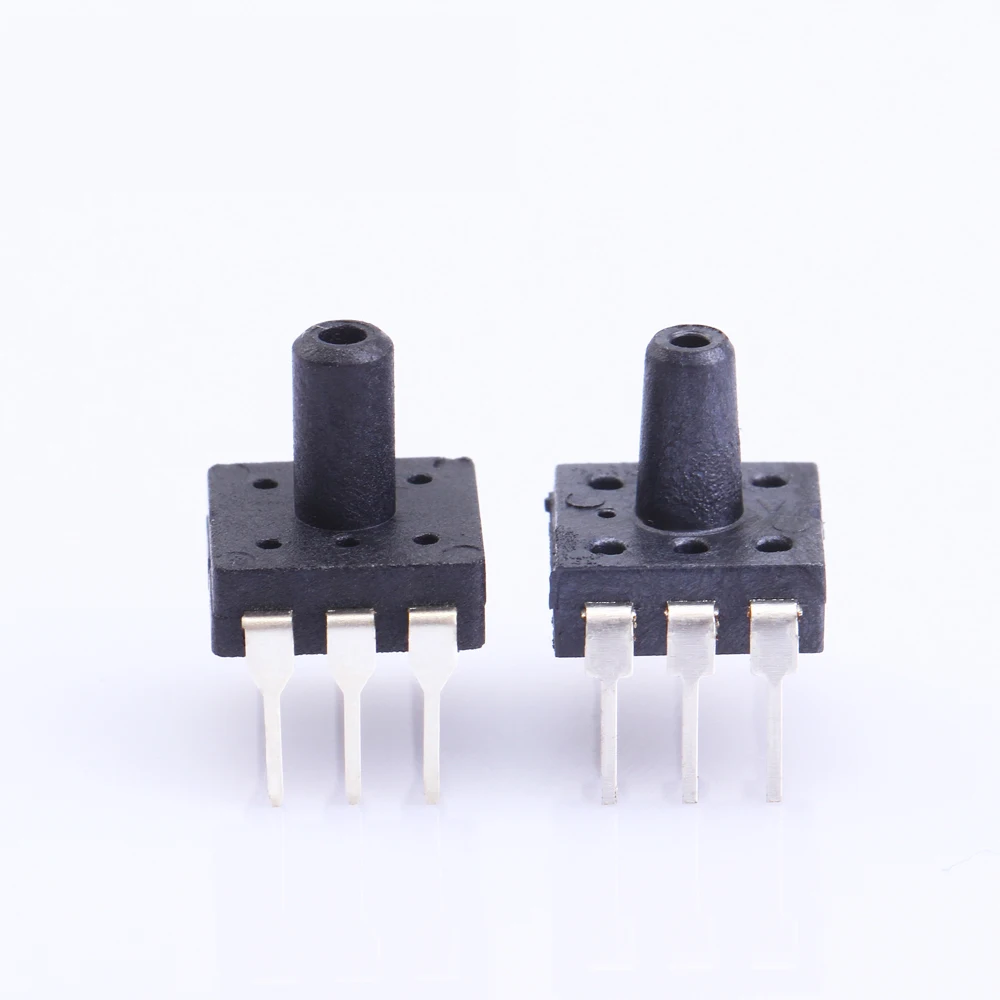

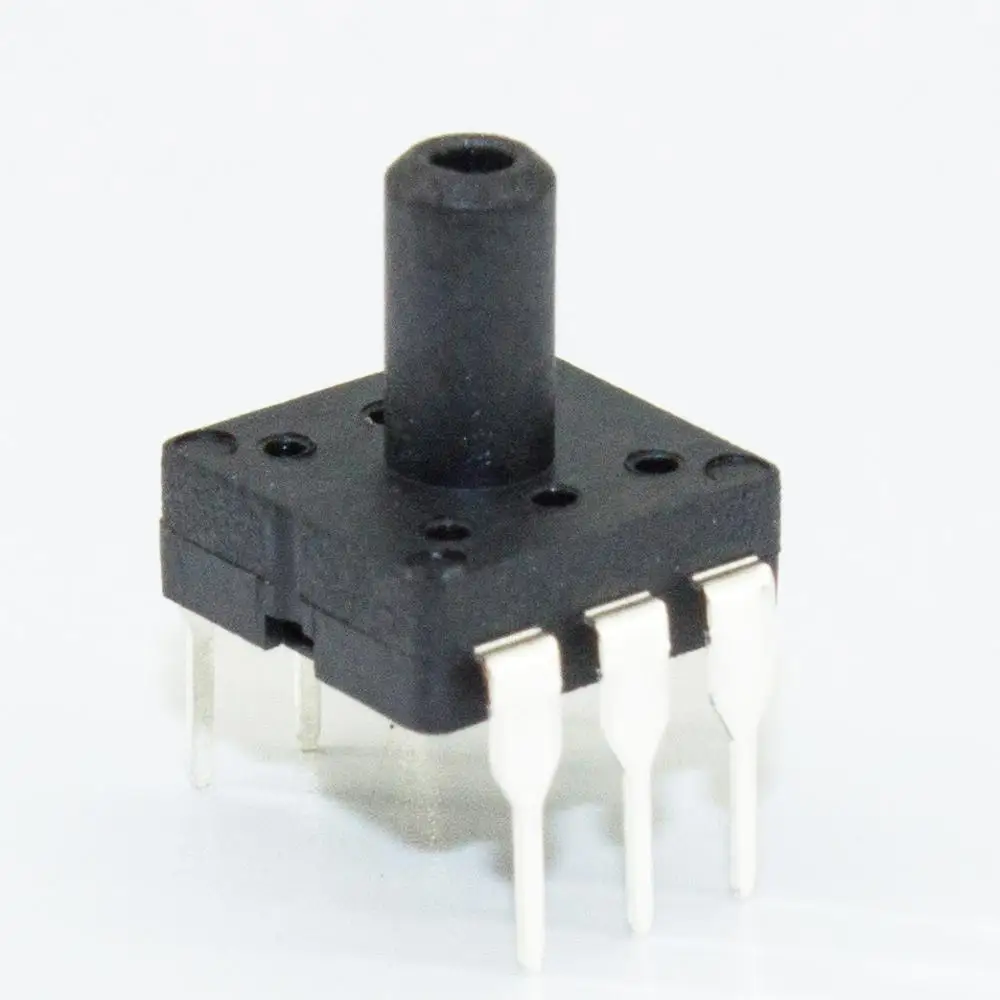

0 to 100Kpa Blood Pressure sensor gauges

Feature

• Ranges: -100kPa~5kPa…5kPa~200(-15PSI~0.7PSI…30PSI)


•


  Optional 5V or 3.3V power supply





• Gage, Vacuum Type


• For Non-corrosive gas or air


• Amplified, Calibrated analog output (i2c is available)


• Temp. Compensated:0℃~+60℃(32℉~+140℉)


• Low Cost for high volume application

Application

•


  For Medical and healthy equipment field, such as Blood pressure test and monitor, Patient Monitoring, Infusion and Syringe Pumps, Anesthesia Machines, Respirators and Ventilators, NPWT, DVT, COPD Treatment, catheter, Kidney dialysis, Cupping& Cosmetology, Massage device etc.





•


  For Home appliance field, such as Refrigerator, Printer, Humidifier, Washer/Dryer, Coffee Machine, Cleaner, Robotic, Emergency Lamp,Sport Equipment etc.





•


  For Other fields, such as air pump, emergency lamp, dust collector, HVAC and pneumatic device,automotive application etc.




Performance Parameter

 Unless otherwise specified, measurements were taken with a supply voltage of 5 Vdc at

a  temperature of 25±1℃ and humidity ranging from 25%~85%.

Pressure Range (100kPa=0.1MPa=1bar≈14.5PSI≈750mmHg)



Pressure Range(kPa)	Model
0~2.5	XGZP6857D025HPG
0 ~ 5	XGZP6857D005KPG
0 ~ 10	XGZP6857D010KPG
0 ~ 20	XGZP6857D020KPG
0 ~ 100	XGZP6857D100KPG
0 ~ 200	XGZP6857D200KPG
-100 ~ 0	XGZP6857D100KPGN
-30~ 0	XGZP6857D030KPGN
-20 ~ 0	XGZP6857D020MPGN
-100 ~ 0	XGZP6857D100KPGN
-20~ 0	XGZP6857D020KPGN
-5~ 5	XGZP6857D005KPGPN
-40~ 40	XGZP6857D040KPGPN
-100~ 100	XGZP6857D100KPGPN
-100~ 200	XGZP6857D200KPGPN
Available for more custom pressure range such like -2.5 to 2.5KPa,0-60Kpa etc.
Please contact factory for tailor-made parameter























































Dimension (Unit:mm/Inch)











 Electric Connection



1	2	3	4	5	6
GND	SLC	SDA	NC	VDD	N/C









NOTE:

          1,N/C Pins must be left floating

          2,Soldering of lead Pins:250’C for 5 sec max.

          3,0.1uf capacitor must be connected between VDD



Order Guide

Notes

1.ESD protection required.

2.Overload voltage(6.5Vdc) or current(5mA) may burn the ASIC.

3. Attention that the medium should be compatible with the pressure parts.

4. Please contact us if special request on parameter and application.
