Factory GYXTY Central Loose Tube Steel Wire Armoured Fiber Optical outdoor Cable
- Category: >>>
- Supplier: Ningbo Haishu Efon Communication Equipment Limited
Share on (62504438727):
Product Overview
Description
Factory GYXTY Central Loose Tube Steel Wire Armoured Fiber Optical outdoor Cable
Product Description

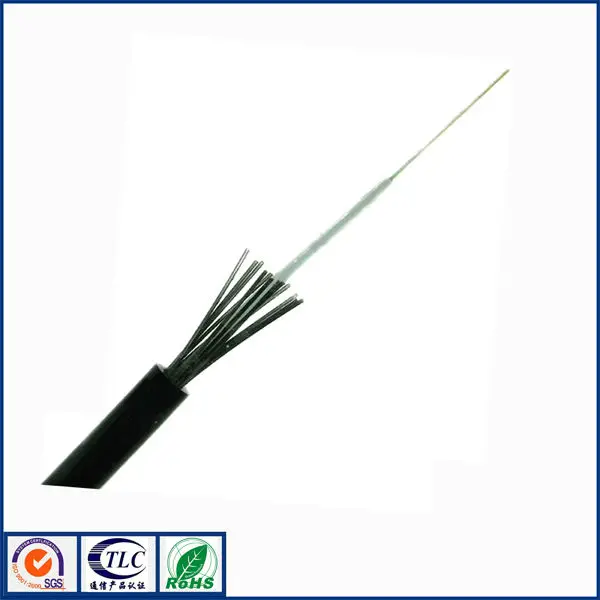

Steel Wire Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, protected with steel wire armor. The whole set cover with a black polyethylene outer jacket.

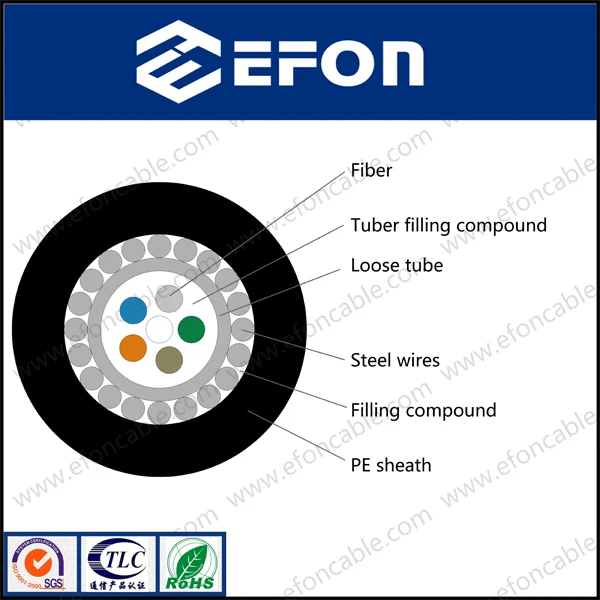

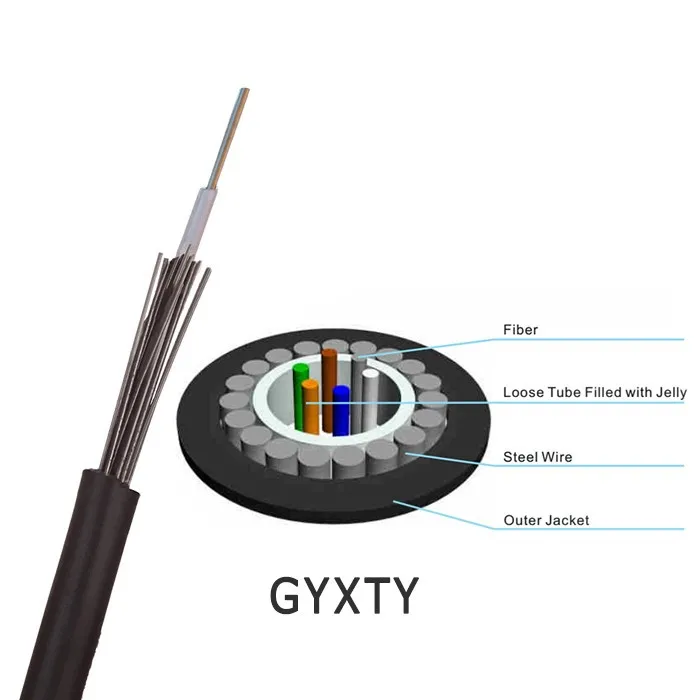

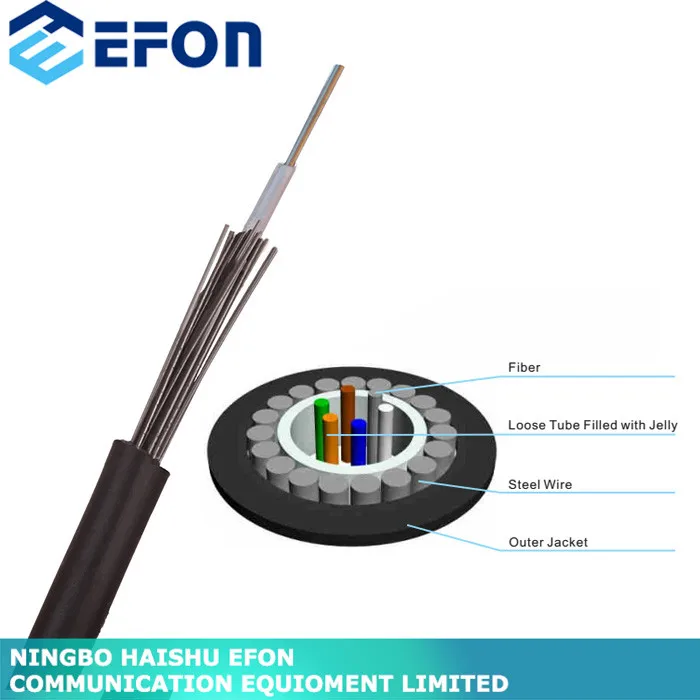

Product Construction
Fiber:
2-24 fibers
Uni-loose tube gel-filled
Armor:
Steel wire
OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).
Features
Uni-tube gel-filled construction for superiorfiber protection.
Compact, easy to install.
UV and moisture-resistant design
Applications
Installed in duct, direct burial.
FTTx.
Optical Charateristics
Fiber Type | G.652 | G.655 | 50/125 um | 62.5/125 um | |
Attenuation (+20X) | 850 nm |
|
| <3.0 dB/km | <3.3 dB/km |
1300 nm |
|
| <1.0 dB/km | <1.0 dB/km | |
1310 nm | <0.36 dB/km | <0.40 dB/km |
|
| |
1550 nm | <0.22 dB/km | <0.23 dB/km |
|
| |
Bandwidth | 850 nm |
|
| >500 MHz-km | >200 Mhz-km |
1300 nm |
|
| >500 MHz-km | >500 Mhz-km | |
Numerical Aperture |
|
| 0.200±0.015 NA | 0.275±0.015 NA | |
Cable Cut-off Wavelength cc | <1260 nm | <1450 nm |
|
| |
Structure and Technical Specifications
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance | ||
Short Term | Long Term | Short Term | Long Term | |||
2~12 | 7.5 | 74 | 3000 | 1000 | 1500 | 600 |
14~24 | 8.0 | 80 | 3000 | 1000 | 1500 | 600 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
We produce and test cable comply with following standard
Mechanical Performance | |
Max Tension Performance | IEC 60794–1-2-E |
Max. Operation Tension | IEC 60794–1-2-E1 |
Crush Test | IEC 6079 –1-2-E3 |
Impact Test | IEC 60794–1-2-E4 |
Repeated Bending | IEC 60794–1-2-E6 |
Torsion Test | IEC 60794–1-2-E7 |
Cable bend | IEC 60794–1-2-E11A |
Attenuation Coefficient | ITU-T G.652 |
Structural Test | IEC-60793-1-20 |
Environmental Performance | |
Temperature Cycling | IEC 60794–1-2-F1 |
Water Penetration | IEC 60794–1–2-F5B |
Filing Compound Flow | IEC 60794-1-E14 |
