Woodworking Machine Sliding Table Circular Saw Wood Cutting Machine
- Category: >>>
- Supplier: Asia Gongyou (Weihai) Co. Ltd.
Share on (62504450640):
Product Overview
Description
Product Description
Circular saw series
Finger Joint Shaper series
Table-sliding Milling Machine
Milling machine series
Planer series
Vertical Single-spindle milling machine
Woodworking Machine Sliding Table Circular Saw Wood Cutting Machine

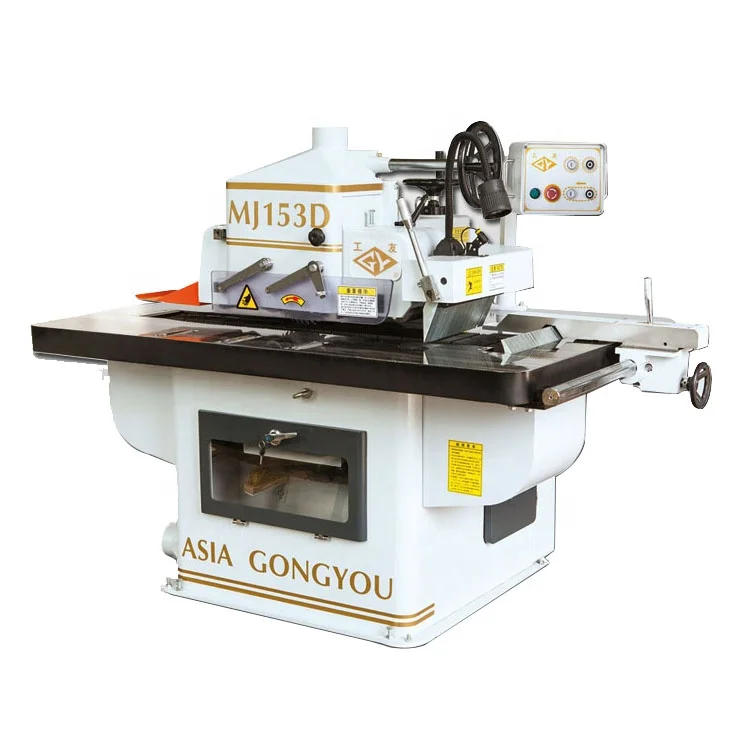

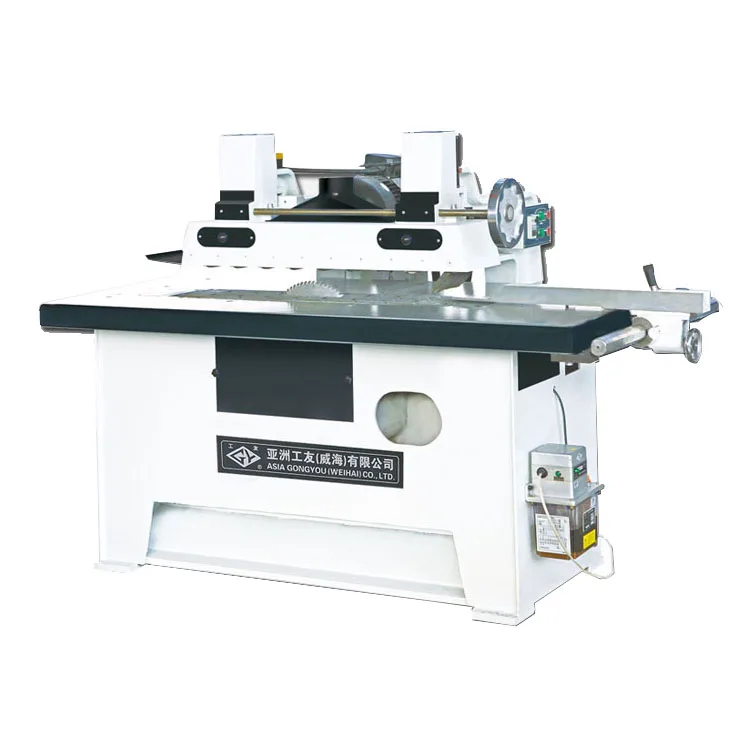

MJ153D Auto-feed rip saw

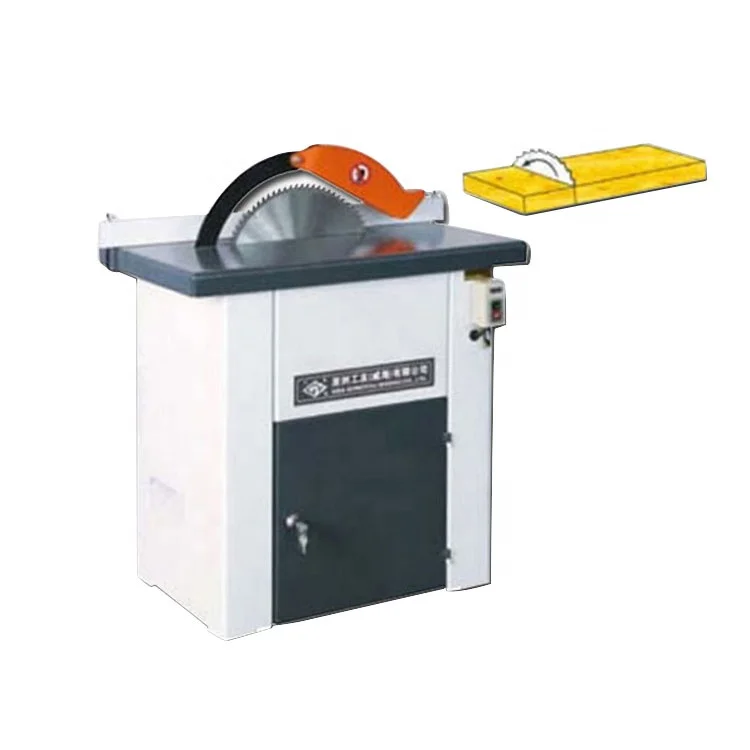

MJ104 Circular Saw

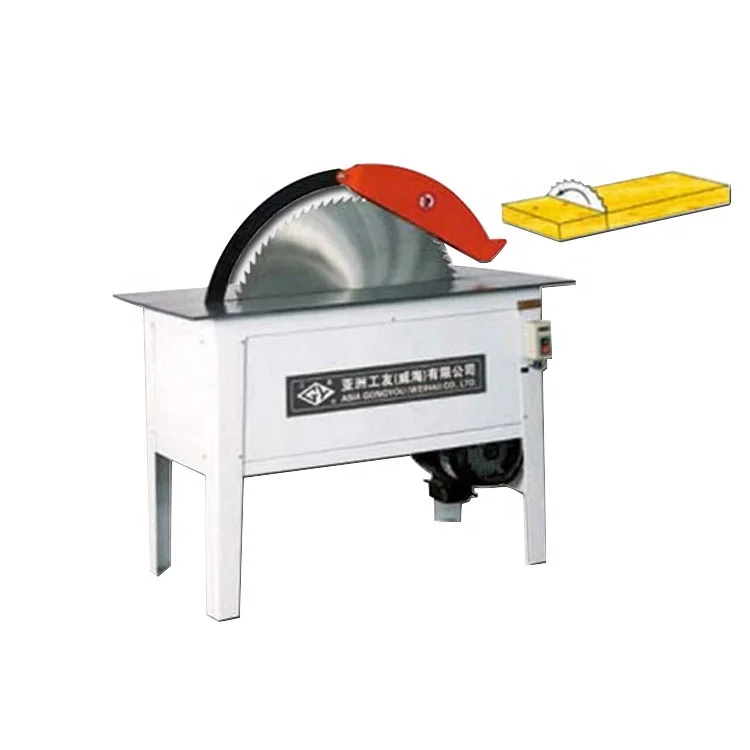

MJ104A MJ105
MJ107 MJ108 Circular Saw

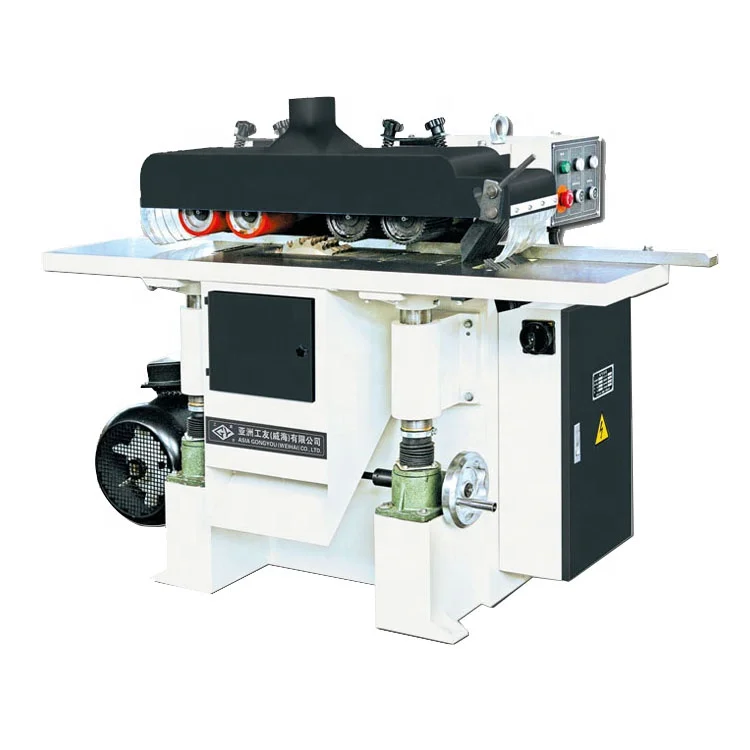

MJ162B Automatic Multiple Rip Saw
MJ162E Automatic Multiple Rip Saw

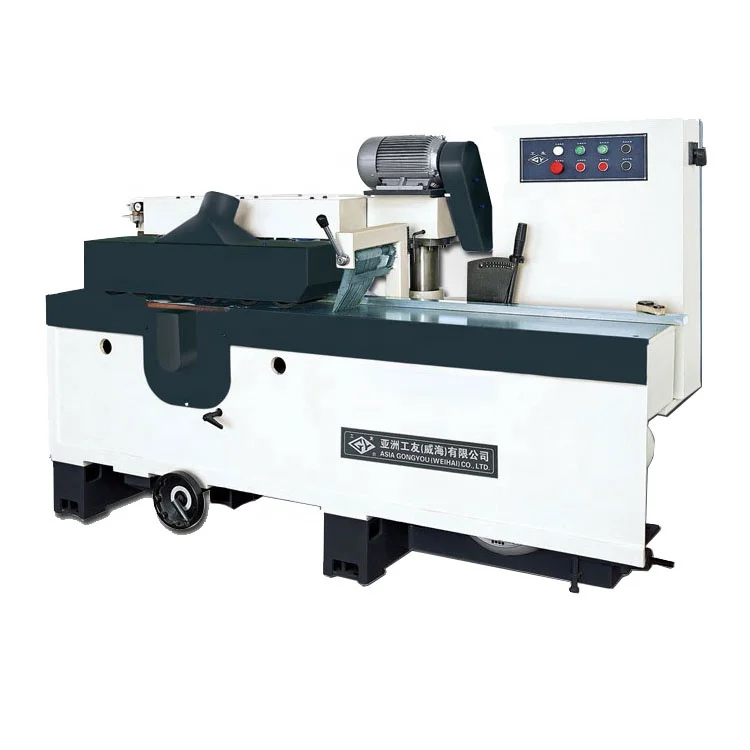

MJ183 MJ184 Auto-feed Edge Cutting Rip Saw

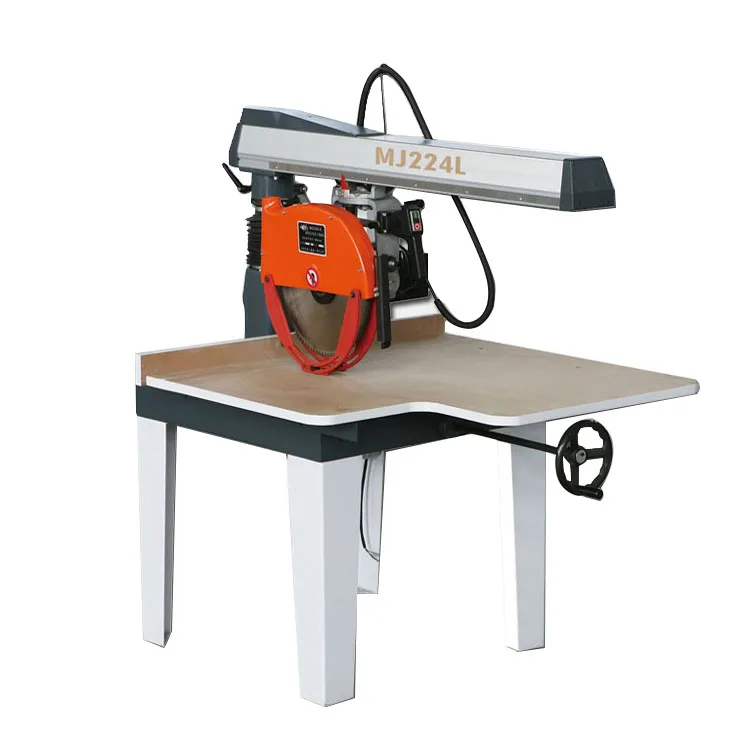

MJ223L MJ224L Radial Arm Saw
MJ243C Table - Sliding Circular Saw

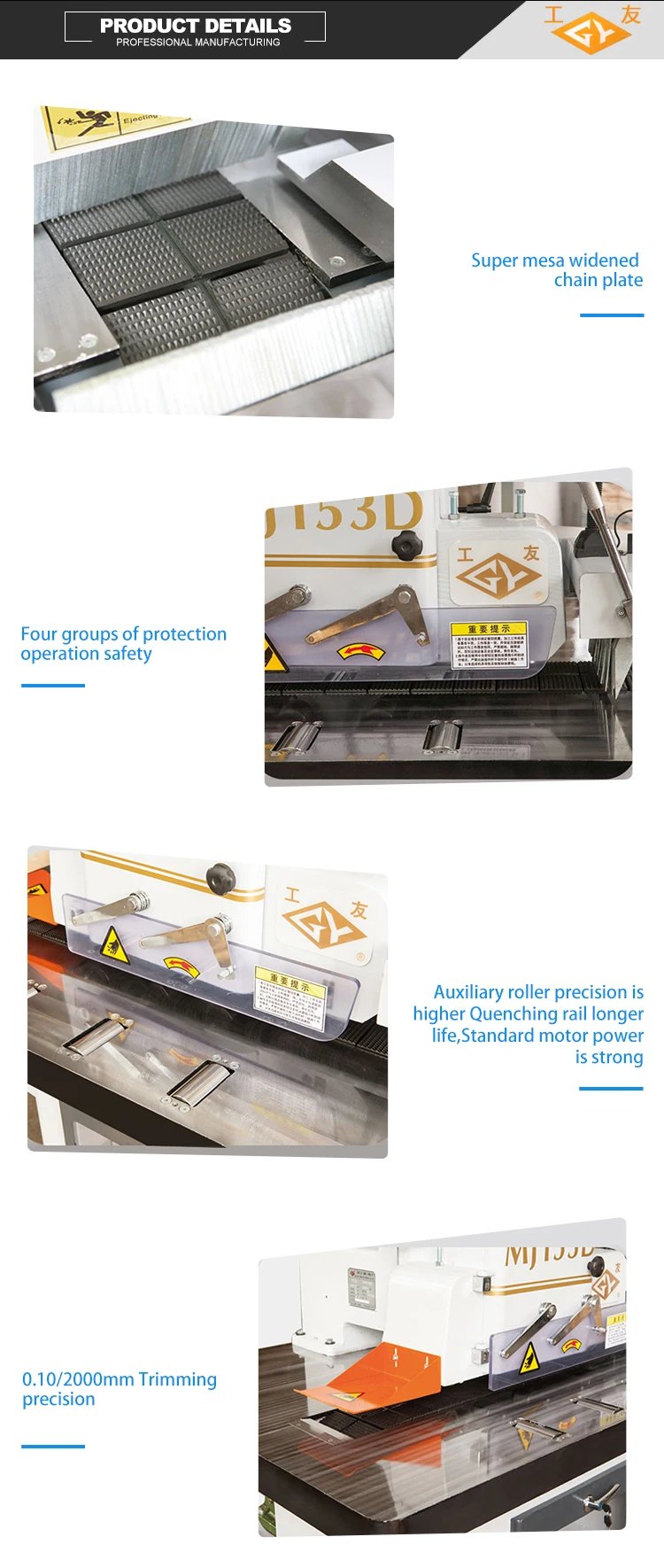

Detailed Images
Technical Specification
Technical Specification | MJ153D | MJ154D | MJ107 | MJ108 | MJ104 |
Min. sawing length | 230mm | 260mm | |||
Sawing thickness | 10-85mm | 10-125mm | 250mm | 315mm | 130mm |
Throat depth | 460mm | 610mm | |||
Saw blade diameter | Ø250-305mm | Ø305-405mm | |||
Spindle diameter | Ø25.4mm | Ø25.4mm | |||
Saw spindle speed | 4000r/min | 3500r/min | 1300r/min | 1194r/min | 2300r/ min |
Main motor power | 7.5kw | 11kw | 5.5/4kw | 7.5kw | 2.2kW |
Feeding motor power | 1.5kw | 2.2kw | |||
Feeding speed | 12.5/16/19.5/24m/min | 6~25m/min | |||
Fixed table size | 1100×1600mm | 1230×1750mm | |||
Overall dimensions | 1800×1100×1356mm | 2100×1400×1500mm | 1100×600×790mm | 1200×720×1220mm | 910×520×1000mm |
Net.weight | 980kg | 1200kg | 85kg | 150kg | 80kg |
Technical Specification | MJ243C | MJ223L | MJ224L | MJ184 | MJ183 | ||
Main spindle speed | 3400r/min | 2840r/min | 2840r/min | 2930r/min | 4200r/min | ||
Max.sawing thickness | 75mm | 60mm | 110mm | 10-120mm | 10-70mm | ||
Sawblade tilt degree | 0-45° | 0-90° | 0-90° | ||||
Saw blade size | Ø300×Ø30×3.2mm | ||||||
Motor power | 3kw | 3kw | 3kw | 11kw | 7.5kw | ||
Overall dimensions | 1680×1390×900mm | 1216×1100×1460mm | 1416×1100×1460mm | 2100×1716×1500mm | 1856×1068×1314mm | ||
Net.weight | 440 | 240kg | 250kg | 1800kg | 110kg | ||
Min. sawing length | 200mm | 200mm | |||||
Main saw blade dia. | Ø355-Ø455mm | Ø305-Ø355mm | |||||
Main spindle dia. | Ø50.8mm | Ø50.8mm | |||||
Feeding motor power | 1.5kw | 1.5kw | |||||
Feeding speed | 10-26mm | 10-26mm | |||||
Technical Specification | MJ162E | MJ162B | MJ143 | ||
Min. sawing thickness | 15mm | Saw blade diameter Ø200:35mm | |||
Max.sawing thickness | 60mm | 60mm | Saw blade diameter Ø250:60mm | ||
Min. sawing length | 200mm | 300mm | 390mm | ||
Saw blade diameter | Ø255mm | Ø250mm | Saw blade diameter Ø300:85mm | ||
Sawing width range | 10-180mm | Saw blade diameter Ø350:110mm | |||
Feeding speed | 8,10,12m/min | 5,10m/min | 6-48m/min | ||
Sawblade quantity: | 4-8mm | 2-8mm | Max.working width:950mm | ||
Main spindle motor power | 22kw | Main spindle dia.:Ø50mm | |||
Main spindle speed | 4500r/min | 4500r/min | 4200r/min | ||
Feeding motor | 2.2kw | 1.1kw | 1.1kw | ||
Lifting motor | 550W | Main motor power:22kw | |||
System pressure | 0.6MPa | ||||
Overall dimensions | 2260×866×1490mm | 1450×830×1085mm | 2425×1820×1728mm | ||
Net.weight | 1574kg | 600kg | 1800kg | ||
