Product Overview

Description



Product Description

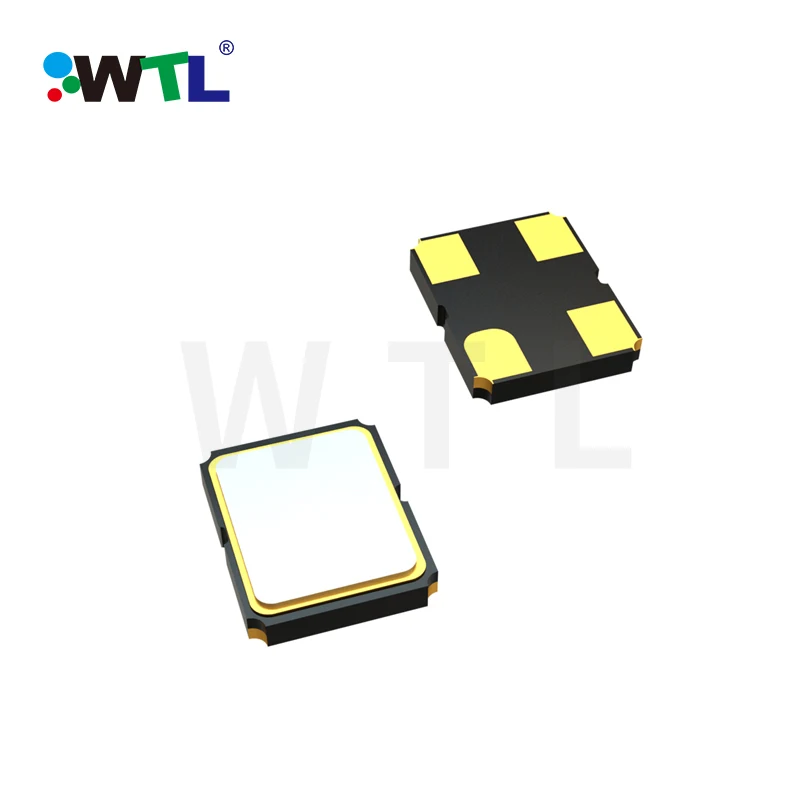

Quartz Crystal (Seam Sealed Ceramic 2.0*2.5mm SMD)
Item
Specifications
P/N
W2M40000000B12BC1N-1
Frequency Range
40.000MHz
Load Capacitance(CL)
12pF
Frequency Tolerance (at 25°C)
±10ppm
Frequency Stability Over Operating
Temperature Characteristics
±10ppm
Operating Temperature Range
-20°C--+70°C
Storage Temperature Range
-55 °C to + 125 °C
Shunt Capacitance (C0)
5.0 pF Max
Driver Level
100µW Max
Aging @25°C 1st year (Max)
± 3ppm/year
Shock Resistance
Drop test of 3 times on 2mm stainless plate from 75cm height





  • SMD Crystal Oscillator 2.5 ×2.0 mm


Feature
●Typical 2.5x 2.0x0.81 mm SMD package.
●Tight symmetry (45 to 55%) available.
●Operation voltage: l .8V,2.5V,3.3V
●Tri-state enable/disable
●RoHS compliant/Pb-free
