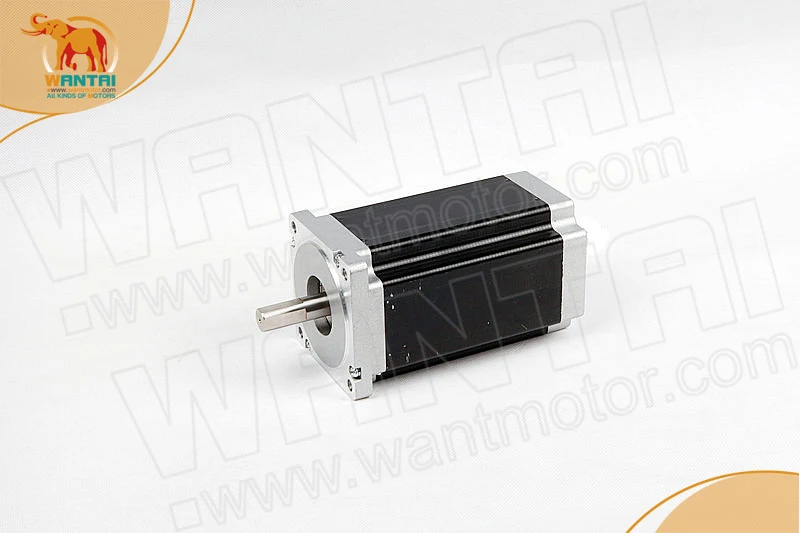

Nema 34 Stepper Motor with 1600oz-in holding torque for Dual shaft 3.5A,85BYGH450C-012B
General Specification:
Step angle accuracy: + - 5%(full step,not load)
Resistance accuracy: + - 10%
Inductance accuracy: + - 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ----------—20deg ~+50deg
Insulation resistance:100MΩ Min,500VDC
Insultion Strength--------500VAC for one minute
Datasheet(85BYGH450C-012B,3.5A, 1600oz-in or 11.2N.m holding torque)
PHASE
2 PHASE
STEP ANGLE
1.8 STEP
VOLTAGE
5.6V
CURRENT
3.5A /PHASE
RESISTANCE
1.6
INDUCTANCE
2.2
HOLDING TORQUE
1120N.cm
DETENT TORQUE
24.5N.cm
INSULATION CLASS
B
LEAD STYLE
AWG26 UL1007
ROTOR TORQUE
3600g.cm
RED A+
GREEN A-
YELLOW B+
BLUE B-

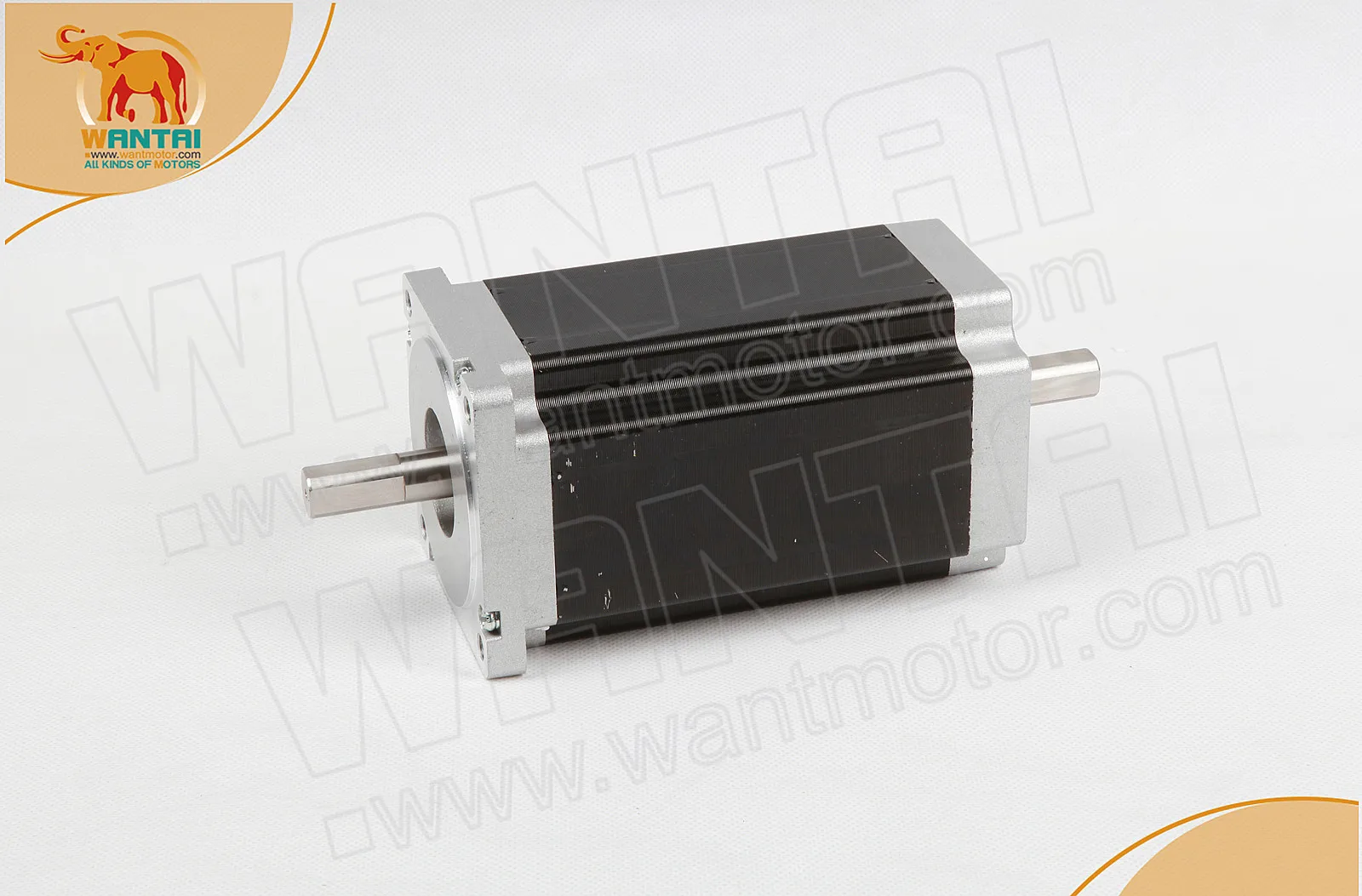

Note: Nema 34 Stepper Motor with 1600oz-in holding torque on dual shaft, front shaft length is 37mm with 25mm flats length, the rear shaft length is 34mm with 25mm flats length, the diameter for motor shaft is 14mm.
We are specializing in Stepper Motor, Brushless DC Motor, Stepper Geared
Motor, Servo Motor, Motor Driver and the Control System. And we also
provide professional OEM service, manufacture high-quality customized
products.
