Products Description


XSEW Series(Fast and High Precision)
1. 0.05 accuracy, the speed of measurement and control can be set from 10 to 400 times per second., 2.Display range -99999 ~ 99999.
3.Analog input, through the setting selection.
4.Optional 1-4 point alarm output. It includes the upper limit of measured value, lower limit of measured value, upper limit of
deviation, lower limit of deviation, upper limit of deviation absolute value, lower limit of deviation absolute value, seven basic alarm modes and four standby alarm modes. (standby alarm mode: refers to that the measured value does not alarm when it is in the output range when the instrument is energized, and the standby condition is established when the measured value enters the output range, and then the alarm is normal).
5.Improvement of standardization,multifunction. Including: input signal fault processing, measurement value zero, peak, valley value acquisition, 10 broken line correction and other functions.
6.Optional transmission, communication.






External Structure and Dimensions
All the dimensions are in mm.

A.Hole Size for 160×80*125 ：152×76
C.Hole Size for 96×48×82 ：92×45

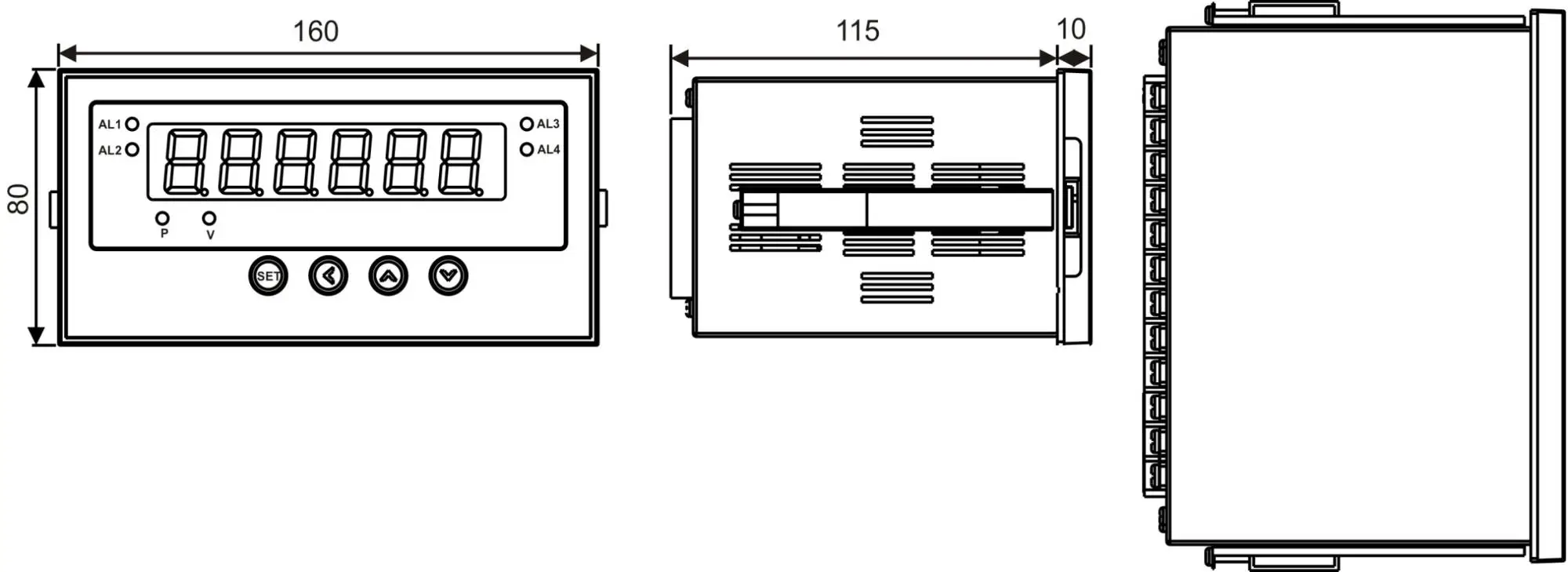

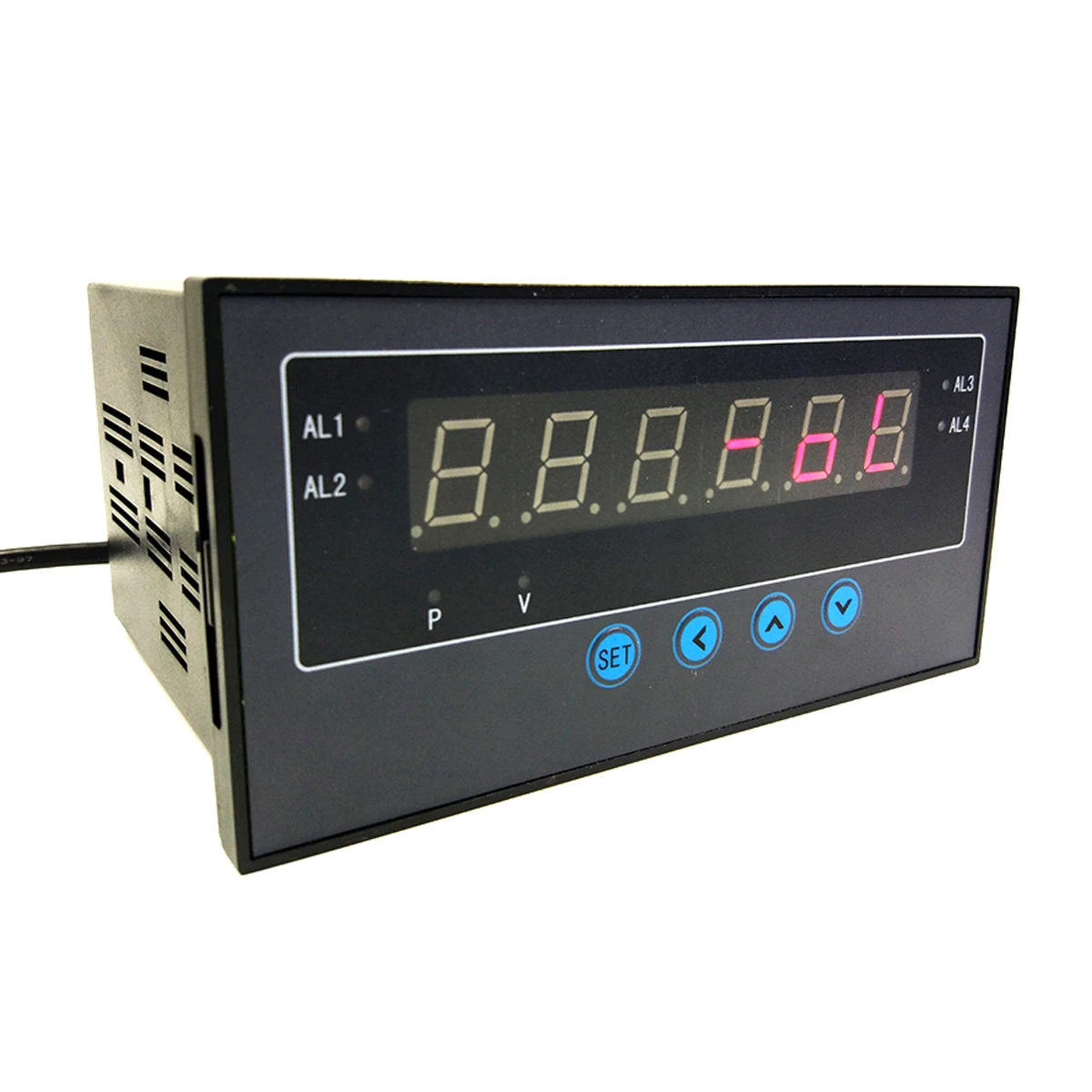

Device with a dimension of 160×80:

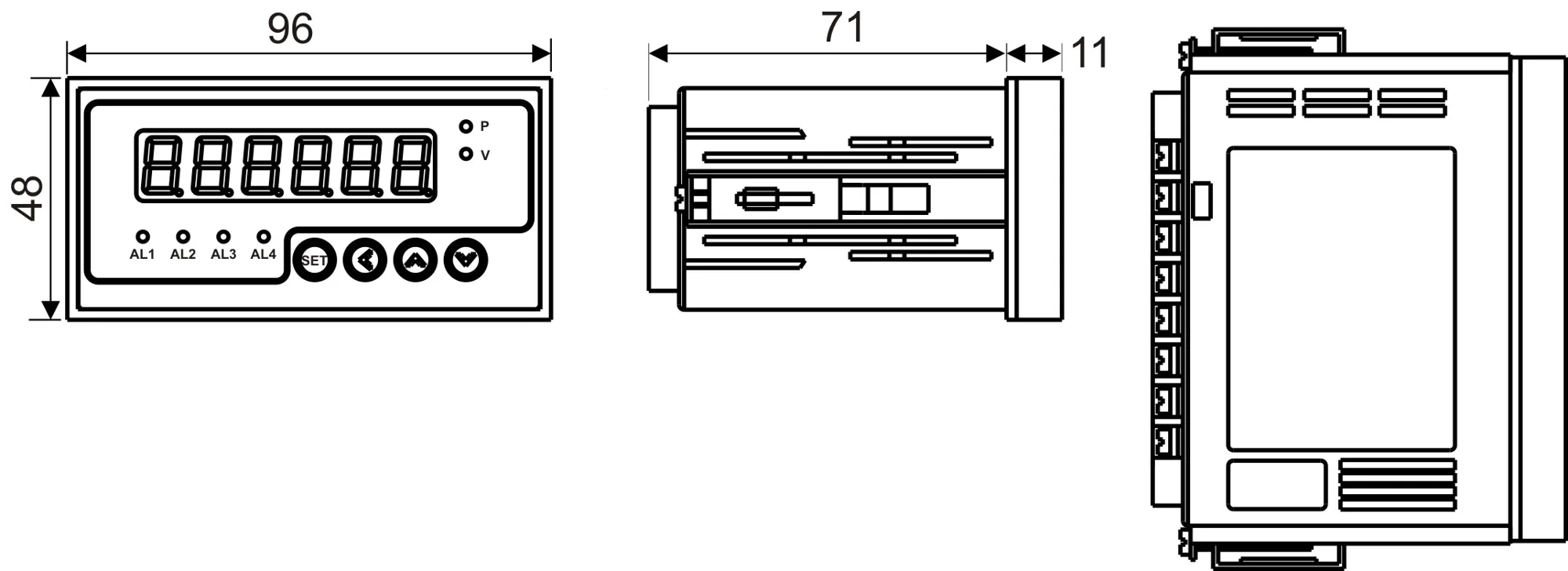

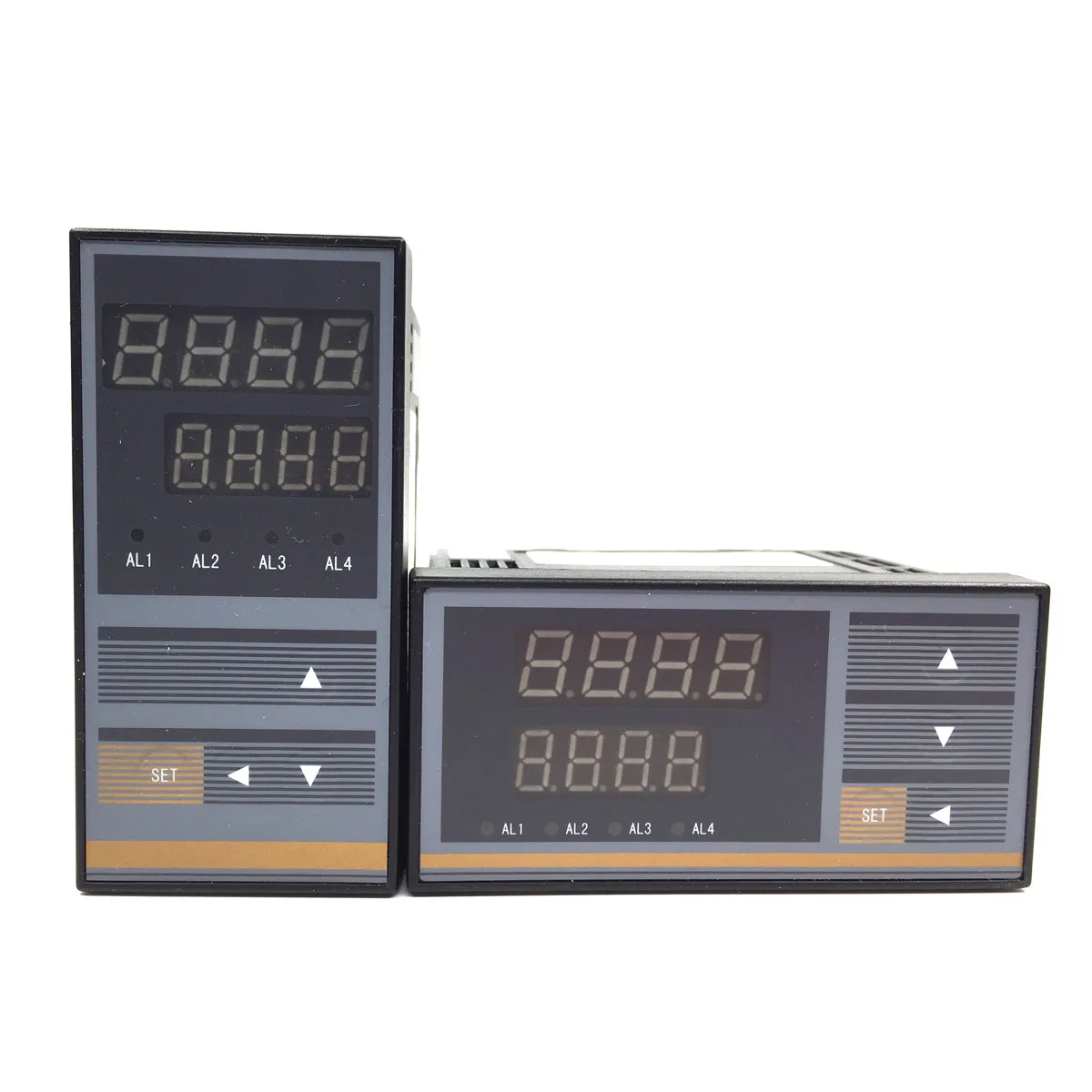

Device with a dimension of 96×48:







Technical Data

* Level 0.05 measurement accuracy, the speed of measurement and control can be set at 10 times/second ~ 400 times/second

*Size A instrument:
When selecting 1 point switch quantity input, the transformer output and communication function of the instrument can only choose
one of two

*Size C instrument:
1. When external power supply is selected, the 1-point switch input, transformer output and communication functions of the instrument can only be selected one of three (the communication only supports RS485 at this time).
2. When selecting the input of switch quantity at 1 point, the external output, transformer output and communication functions of the instrument can only be selected one of three (the communication only supports RS485 at this time).

Basic Operations

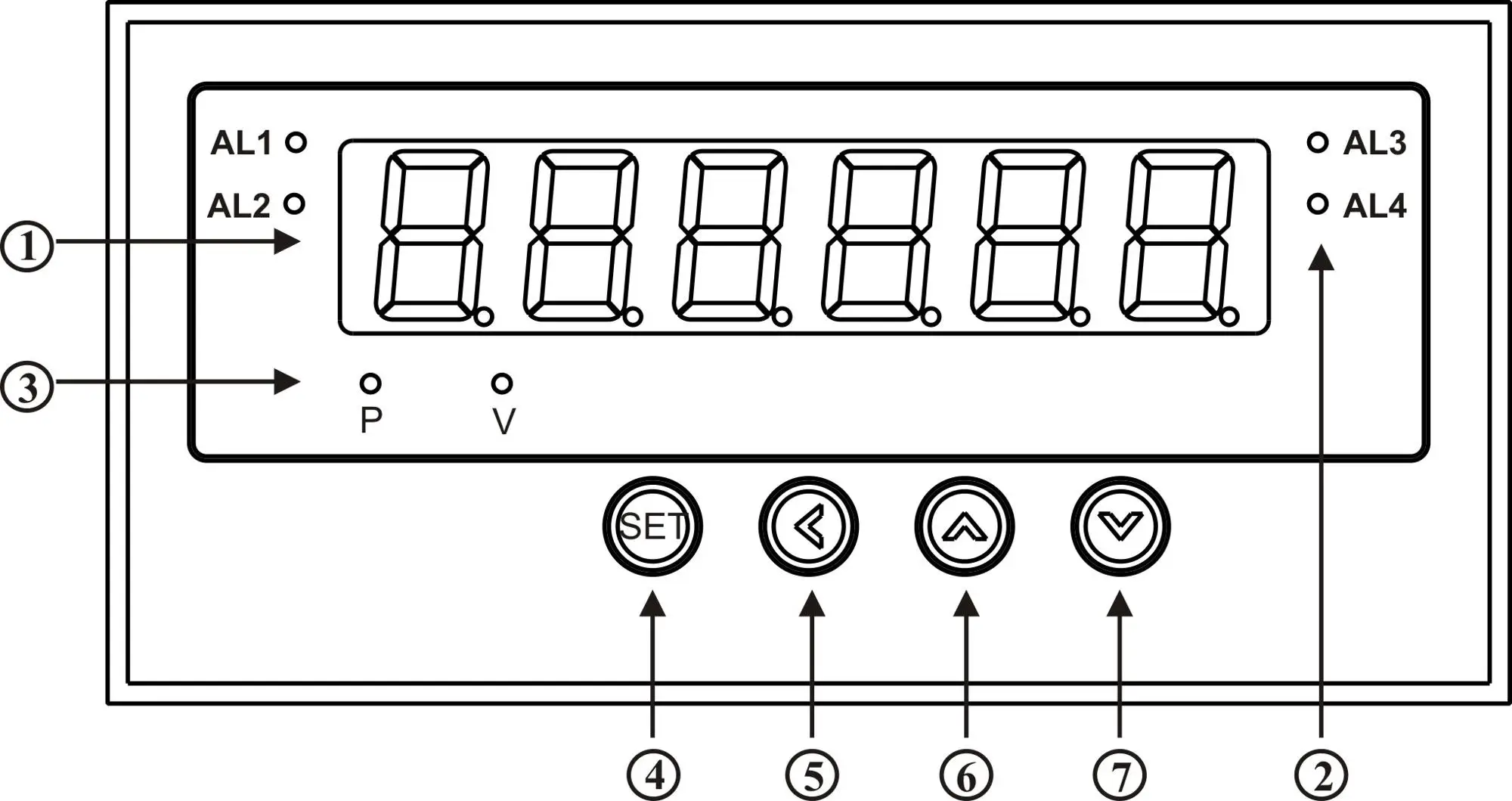

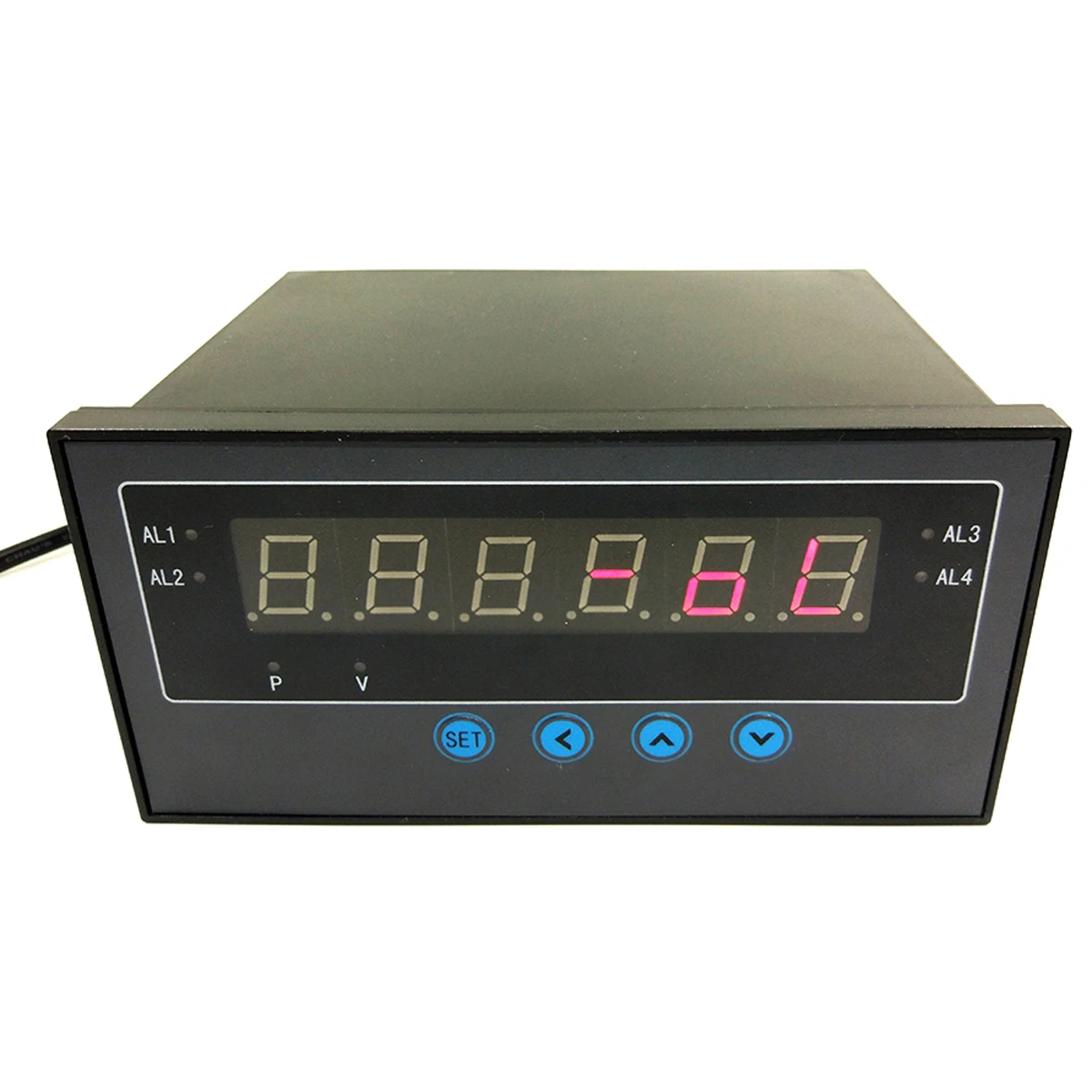

Panel & Buttons (illustrated by the device with dimension 160×80)




No.
Name
Description
1
Display
Displaying the measuring value (measuring mode)
Displaying parameter symbol or value (configuration mode)
2
Alarm output indicators
Indicating the states of alarm points
3
Display content indicator
Displaying measuring value: both P & V indicators are off;
Displaying peak value: only indicator P is on;
Displaying valley value: only indicator V is on;
Displaying peak-to-valley value: both P & V are on;
Displaying peak transition value: indicator P flashes;
Displaying valley transition value: indicator V flashes.
4
Set SET
In the measuring mode:
hold this button for over 2 seconds to enter the configuration mode.
In the configuration mode:
when a parameter symbol is displayed, hold this button for over 2 seconds to select next parameter category;
when a parameter symbol is displayed, press this button to select next parameter;
when modifying parameter value, press this button to save the changed parameter.
5
Left ◄
In the configuration mode:
when a parameter symbol is displayed, press this button to display the parameter value;
when modifying parameter value, press this button to select the digit to be revised.
In the measuring mode:
Press ◄ to switch the display to measuring value (mEAS), peak value (PEAk), valley value (vALL), peak-to-valley value (P-v), peak
transition value (tP) or valley transition value (tv).
6
Up ▲
In the configuration mode:
when a parameter symbol is displayed, press this button to select the previous parameter (hold this button to select the first
parameter of this category);
when modifying parameter value, use this button to the increase the value.
In the measuring mode:
press this button to set the input display value to zero (see note ★);
hold this button for over 1 seconds to display the input display value before zero setting.
7
Down ▼
In the configuration mode:
when a parameter symbol is displayed, press this button to select the previous parameter (hold this button to select the first
parameter of this category);
when modifying parameter value, use this button to the decrease the value.
In the measuring mode:
hold this button for over 1 second to reset the peak/valley value to the present input display value.


Manufacturing Technique


Specifications of Optional Functions


Specification
Rating/Condition
Digital input
K
1-point external digital input, used for zero setting
Alarm output
Size 160×80
T1~T4
Relay output of alarm point 1 to 4; all SPDT contact relays
250V AC/3A
Resistive load
Size 96×48
T1~T2
Relay output of alarm point 1 & 2; both are SPDT contact relays
T3
Relay output of alarm point 3, which is a SPST contact relay
O
OC gate alarm output (voltage smaller than 40V DC and current smaller than 40mA); for alarm relay output, it is omitted.
Analog output
A1
Current output (4~20)mA, (0~10)mA, (0~20)mA
Photoelectric isolation,
Resolution: 1/10000; Load: 600Ω
A2
Voltage output (0~5)V, (1~5)V
A3
Voltage output（0-10）V
A4
Voltage output（-5V~+5V）
A5
Voltage output（-10V~+10V）
Fast analog output
F
suitable for measure/control rate higher than 200 times/s
Power supply
B1
24V±5%, <50mA
B2
12V±5%, < 50mA
B3
10V±5%, <50mA
Communication interface
S1
RS232（only size A）
Photoelectric isolation,
Response time: <500μS (tested);
Software selectable protocol (TC-ASCII or Modbus-RTU)
S2
RS485


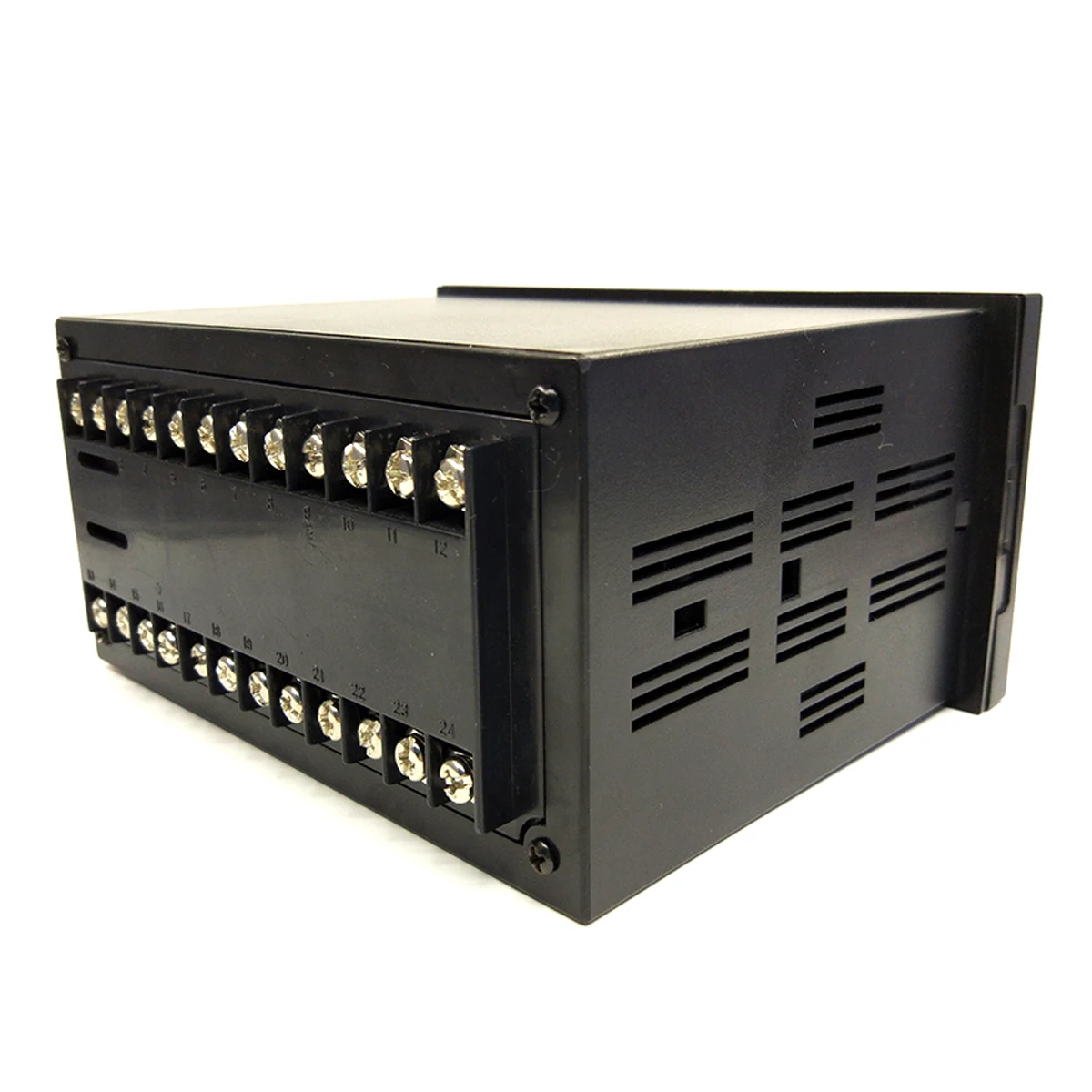

Details Images

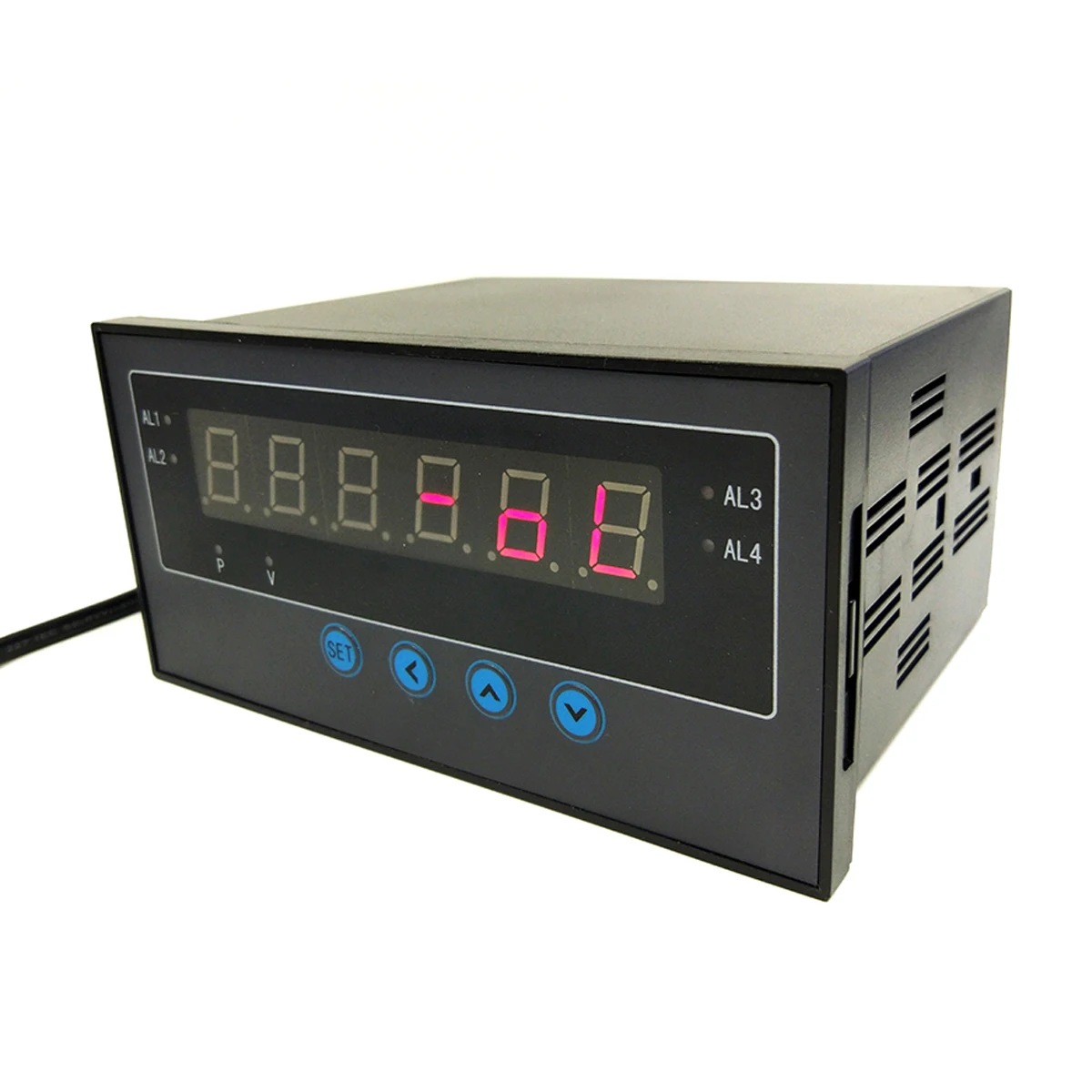

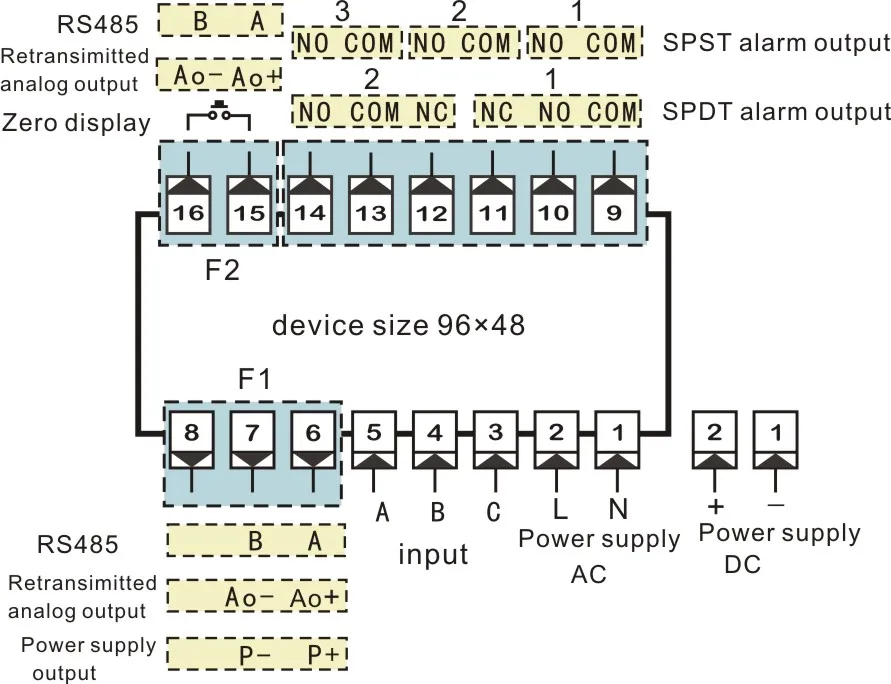

Wiring Diagram






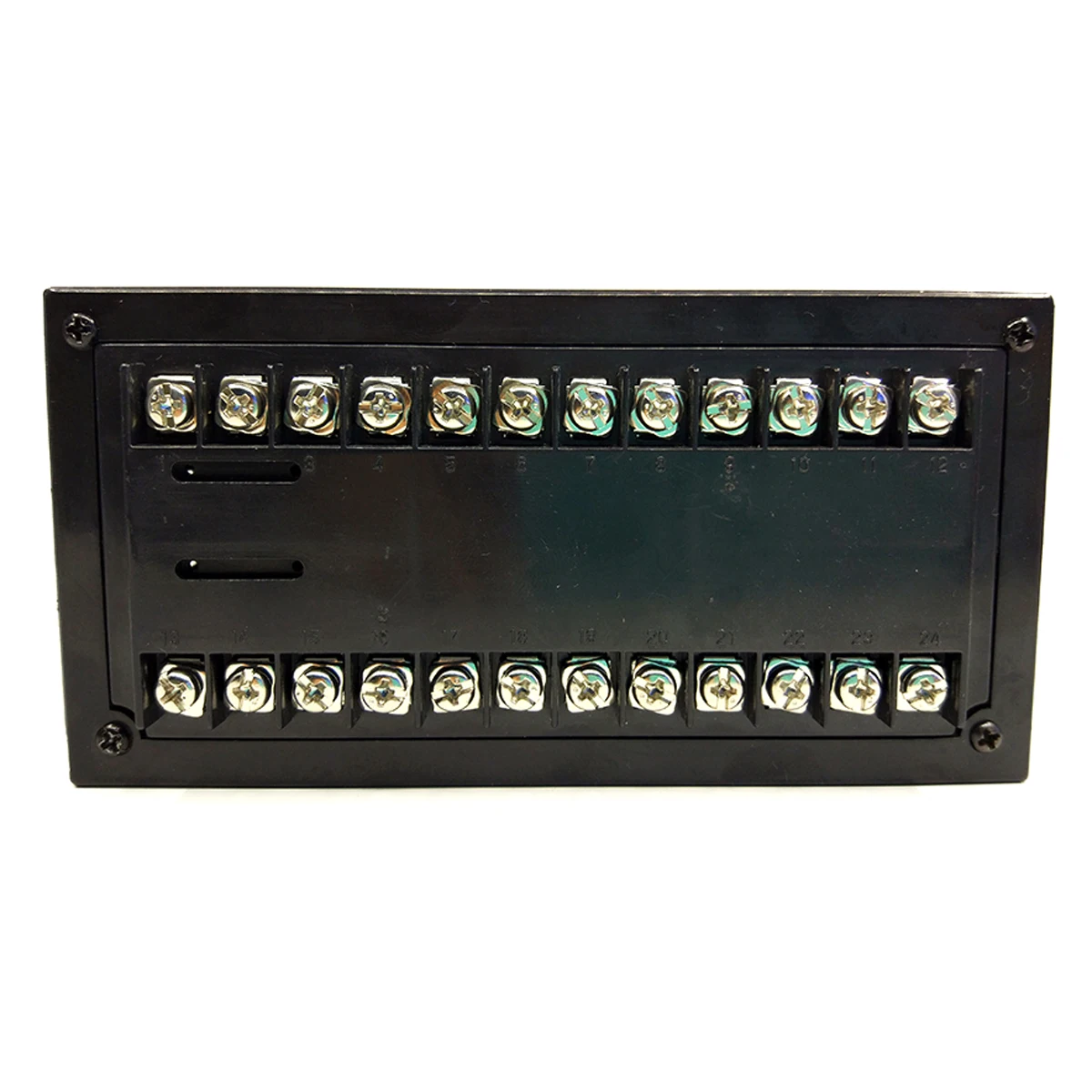

External Connections

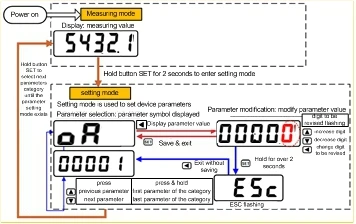

Parameters Configuration
