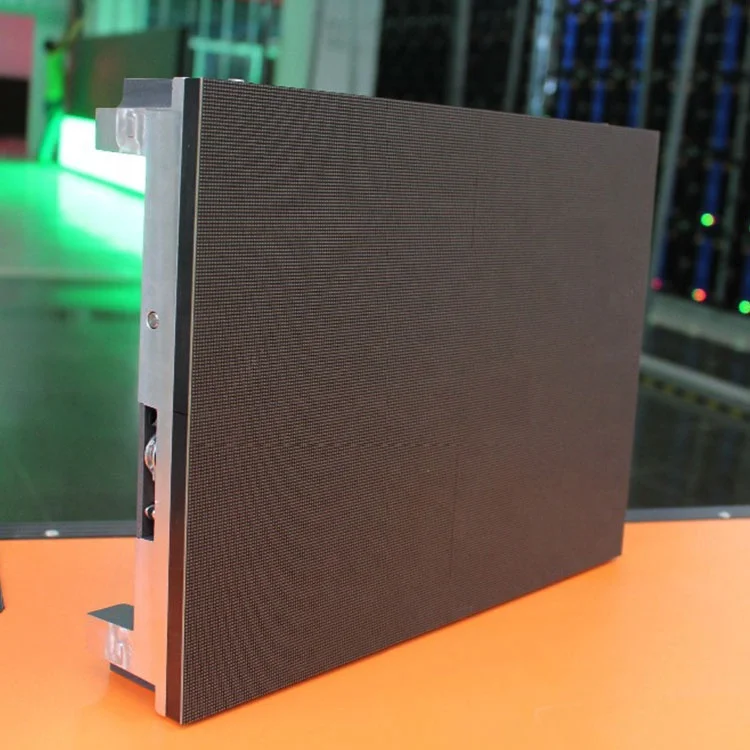

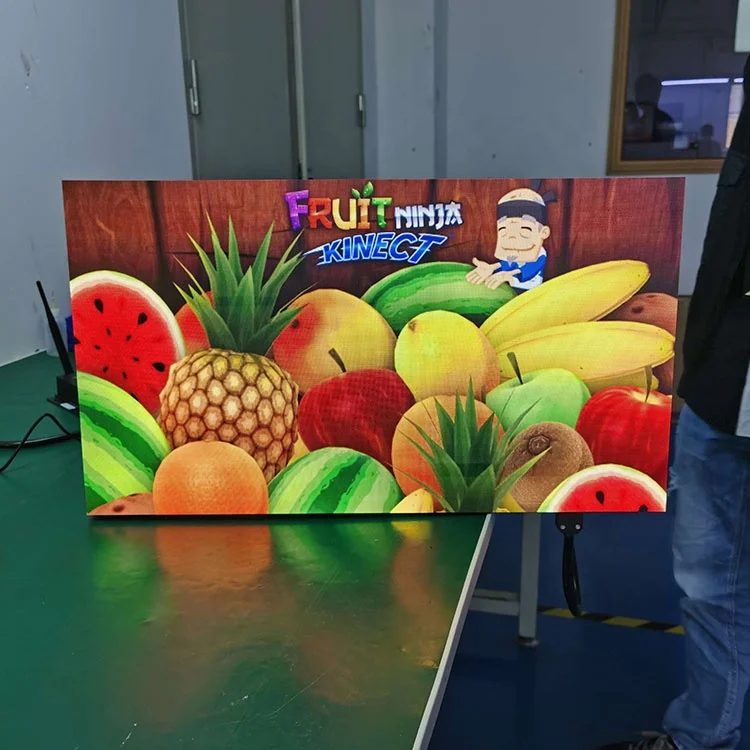

P1.56 Indoor LED Video Wall Screen HD UHD 4K Full Color LED Screen Support Rental to Use From RGX Factory
Product Description
Key Features:
• Dimensions: 15.75 in L x 11.81 in W x 2.75 in D( 400x300mm)
• Pixel Pitch: 1.56mm
• LED Type: 1010
• Refresh Rate: 3840+hz
• Brightness: 1500 NITS
• Display Color/Gray Scale: 14-Bit
• Front Serviceable
• Processing: Novastar/Huidu/Linsn Control System Compatible
• 90 Degree Quick Turn Rigging Points
• Voltage: Selectable 110/220v
• Power Consumption: 210W (max)

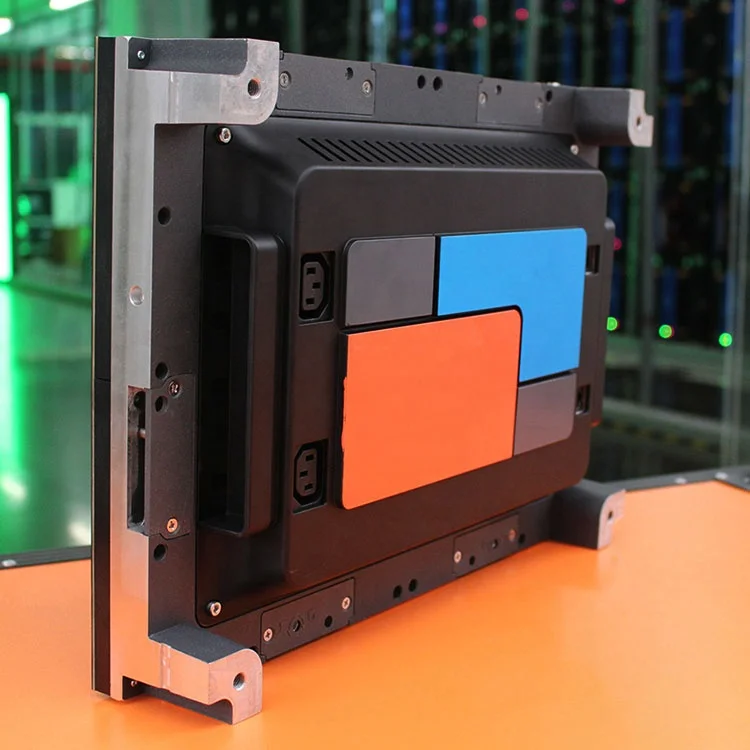

• Power Connection: PowerCON IN/THRUData Connection: RJ45 IN/THRU

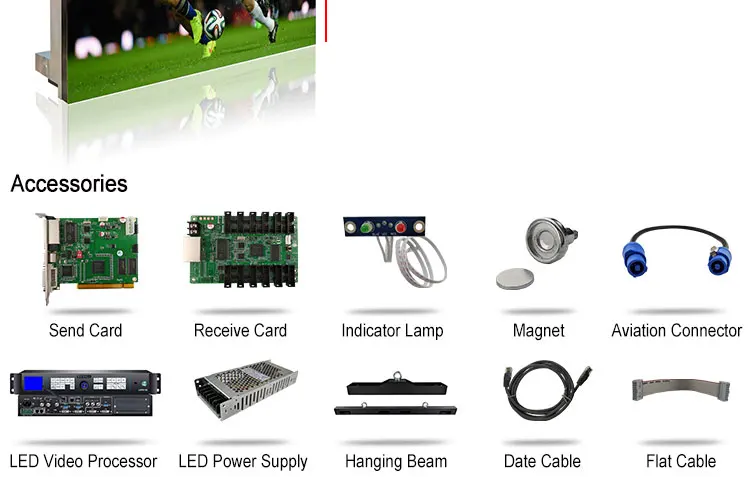

We offer full video wall packages that include full system ,cabling, rigging bars and flight cases so that you have everything you need to get up and running. All an exceptional value. Shop our store or message us for a quote!
Need a Custom Video Wall to Your Specification? Just send a message and we'll give you a quote!

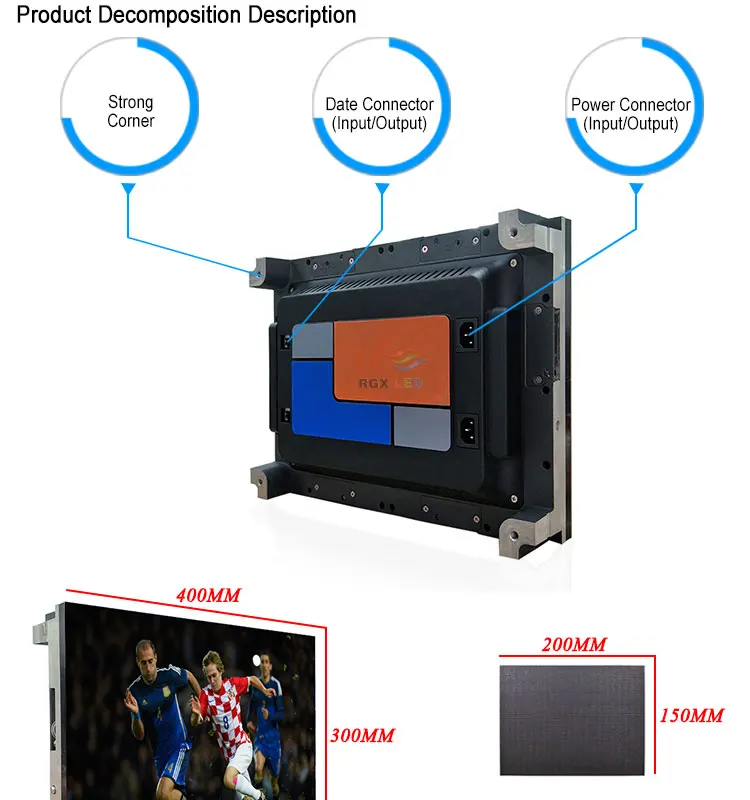

More details on the P1.56 indoor led display die casting aluminum cabinet.
• Dimensions: 15.75 in L x 11.81 in W x 2.75 in D( 400x300mm)
• Pixel Pitch: 1.56mm
• LED Type: 1010
• Refresh Rate: 3840+hz
• Brightness: 1500 NITS
• Display Color/Gray Scale: 14-Bit
• Front Serviceable
• Processing: Novastar/Huidu/Linsn Control System Compatible
• 90 Degree Quick Turn Rigging Points
• Voltage: Selectable 110/220v
• Power Consumption: 210W (max)
• Power Connection: PowerCON IN/THRUData Connection: RJ45 IN/THRU
We offer full video wall packages that include full system ,cabling, rigging bars and flight cases so that you have everything you need to get up and running. All an exceptional value. Shop our store or message us for a quote!
Need a Custom Video Wall to Your Specification? Just send a message and we'll give you a quote!
More details on the P1.56 indoor led display die casting aluminum cabinet.
Cableless Technology
A cableless connection between the modules and the cabinets via a hot plug makes for a quicker install, maintenance and lower EMC.
A cableless connection between the modules and the cabinets via a hot plug makes for a quicker install, maintenance and lower EMC.
Topcoat Technology
Topcoat Technology adds an extra layer of protection to the LED modules, protecting against impact, reduces pixel failure and improves viewing angles.
Topcoat Technology adds an extra layer of protection to the LED modules, protecting against impact, reduces pixel failure and improves viewing angles.
Superior Power Efficiency
The use of PFC power supplies, high quality LED’s, cabless design and die-cast aluminium cabinets provide a very power efficient system.
The use of PFC power supplies, high quality LED’s, cabless design and die-cast aluminium cabinets provide a very power efficient system.
Refresh Rates
A high refresh rate of 3840Hz ensures a high visual performance for photography as well as broadcast.
A high refresh rate of 3840Hz ensures a high visual performance for photography as well as broadcast.
Fanless
Our indoor LED Displays are fanless meaning that they not only draw less power, but run silently for sensitive environments.
RGX has more models of small pixel full color LED modules. The specifications are shown in the table below. If you want to know more, Just send a message and we'll give you a quote!
| Unit Module Specifications | ||||||
| Item | P1.25 | P1.56 | P1.667 | P1.875 | P1.904 | P1.923 |
| Pixel Pitch | 1.25 mm | 1.56 mm | 1.667 mm | 1.875 mm | 1.904 mm | 1.923 mm |
| Pixel Configuration | 3in1 (1R1PG1B) | |||||

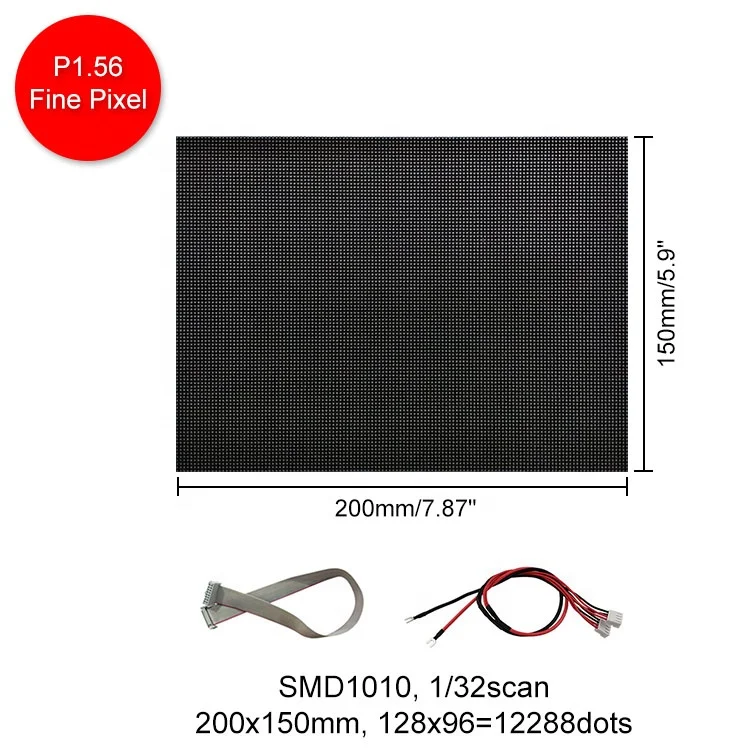

| Module Size(MM) | 200*150 | 200*150 | 200*150 | 240*120 | 160*160 | 200*150 |
| Module Resolution(Dots) | 160*120 | 128*96 | 120*90 | 128*64 | 84*84 | 104*78 |
| Package LED Mode | 1010 | 1010 | 1010 | 1515 | 1515 | 15 |
| Pixel Density(Dots/SQM) | 691'200 | 641'025 | 360'000 | 284'444 | 275'625 | 270'422 |
| Scan Method(Scan) | 1/30 | 1/32 | 1/30 | 1/32 | 1/28 | 1/26 |
| Interface Way | HUB 75 | |||||
| Brightness(CD/SQM) | ≥ 1500 | |||||
| Safety Standard | CCC,FCC,ROHS,TUV,CE,ETL,BIS..... | |||||
| Unit Cabinet Specifications | ||||||
| Cabinet Size(MM) | 400*300 | 400*300 | 400*300 | 480*480 | 480*480 | 400*300 |
| Cabinet Composing(PCS) | 4 | 4 | 4 | 8 | 9 | 4 |
| Power Supply Mode(Per Cabinet) | 5V60A | 5V60A | 5V60A | 5V60A | 5V60A | 5V60A |
| Cabinet Resolution(Dots) | 320*240 | 256*192 | 240*180 | 256*256 | 252*252 | 208*156 |
| Optimal Viewing Distance(M) | 1-100 | 1.5-150 | 1.6-160 | 1.8-180 | 1.9-190 | 1.92-200 |

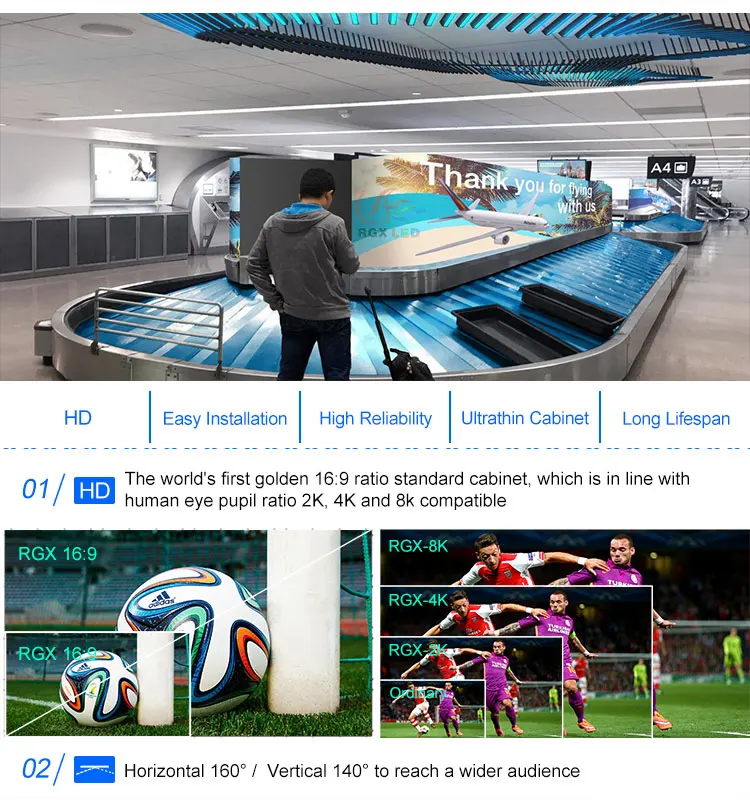

| Optimal Viewing Angle | Horizontal angle: 160 degree; Vertical angle: 140 degree | |||||
| Environment Temperature | Storage: -40 degree ~ +85 degree; Work: -20 degree ~ +60 degree | |||||
| Relative Humidity | 10% ~ 95% | |||||
| Main Technical Parameter Specifications | ||||||
| Refresh Rate | ≥ 1900-3840Hz | |||||
| Gray/Color | RGB each 256 grade, can display 16.7 million colors | |||||
| Lifespan | ≥ 100,000hours | |||||
| Power Switch | RGX Automatic Switch | |||||
| Issued by: RGX Technology Division. | ||||||
Online Service
Company Information

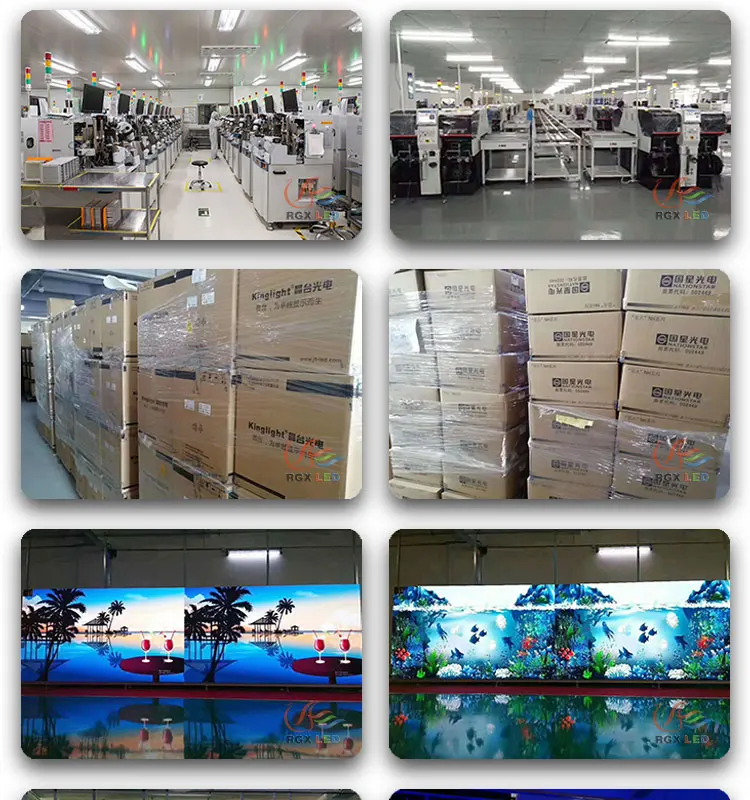

Shenzhen RGX Electronics Co.,LTD are direct led OEM manufacturer with 16 years, In shenzhen we are biggest Number 5, in shenzhen 80% smaller factory and trade companys buy material from us, so our quality and price was competitive force.
