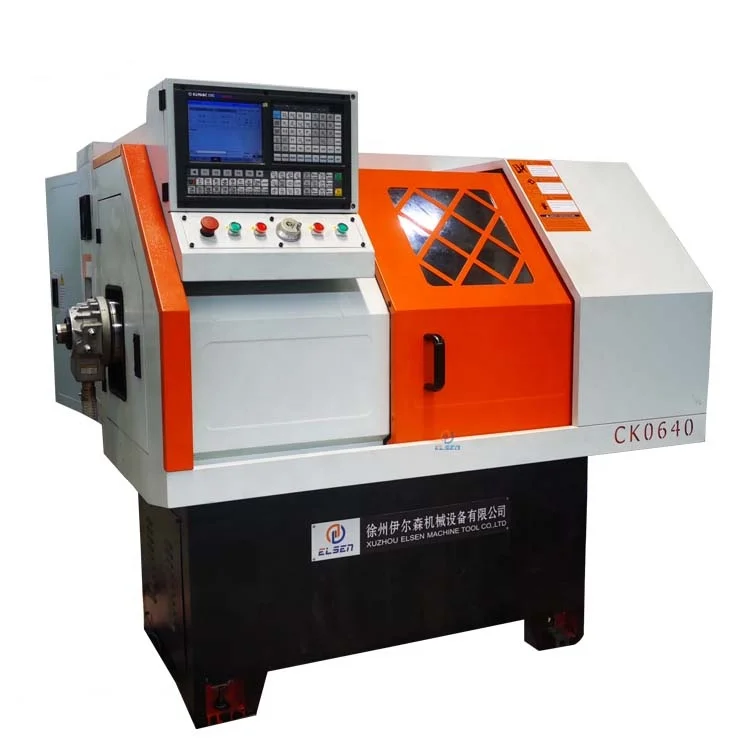

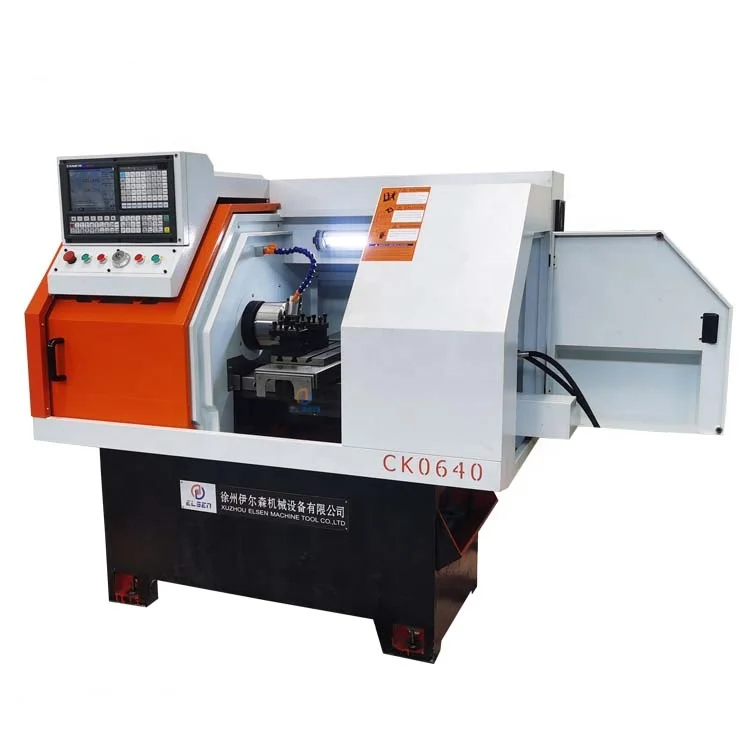

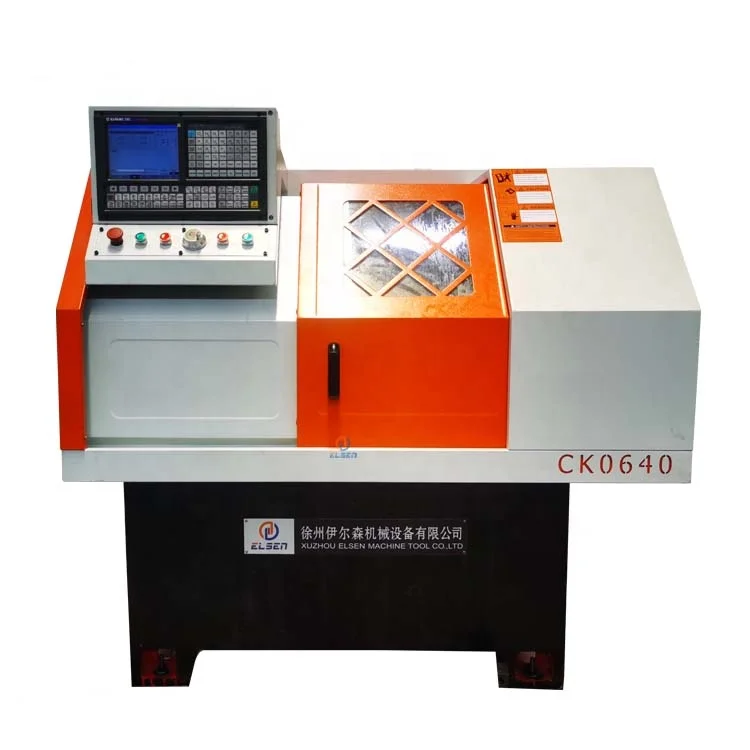

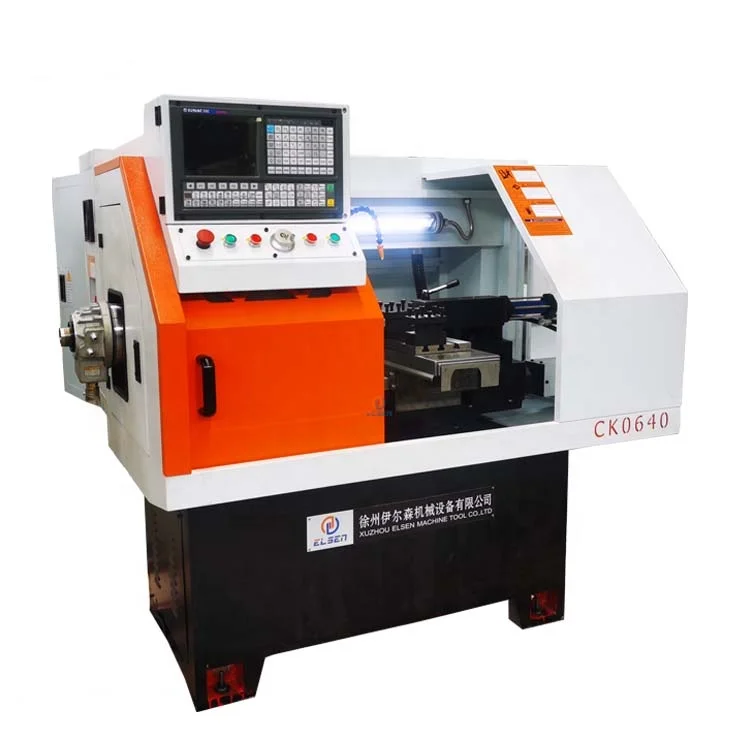

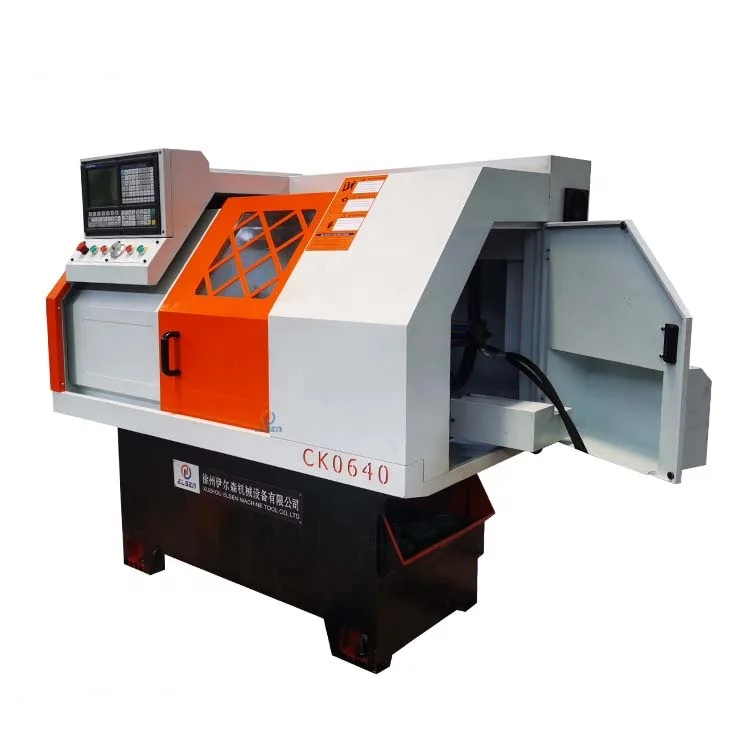

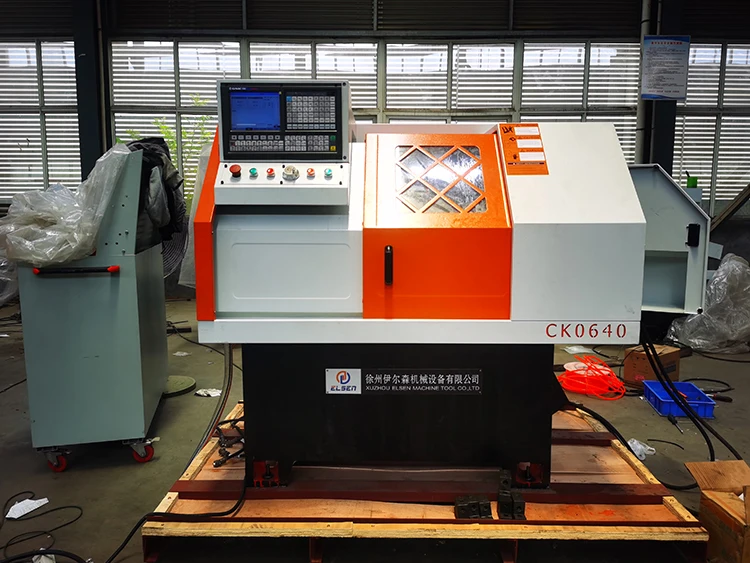

ck0640 2axis flat bed lathe small cnc lathe machine
- Category: >>>
- Supplier: Xuzhou Elsen Machine Tool Co. Ltd.
Share on (62504623709):
Product Overview
Description
Product Description
ITEM | UNIT | CK0640 |
SPECIFICATION | ||
Max. swing over bed | mm | Φ260 |
Max. swing over carriage | mm | Φ130 |
Max.length of workpiece | mm | Collet 200mm Chuck 120mm |
Spindle speed range | rpm | 50-2500 |
Spindle bore | mm | Φ48 |
Drawn pipe diameter | mm | Φ42 |
Chuck diameter | mm | Φ160 |
Main spindle motor | kw | 3.0 |
Turret max stroke | mm | X: 260 Z: 240 |
X/Z axis fast feeding speed | mm/min | X: 6000 Z: 8000 |
X/Z axis feed rates | mm/min | X: 1-2000 Z: 1-1800 |
X/Z axis repeat accuracy | mm | 0.012/0.013 |
Tool post type | gang-type tool carrier | |
Machine dimensin (L*W*H) | mm | 1600*1100*1550 |
N.W | kg | 950 |
Standard configuration:
1) System:GSK928TD-L.
2) Gang type tool.
3) Penumatic collet.
4) Without tailstock.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.

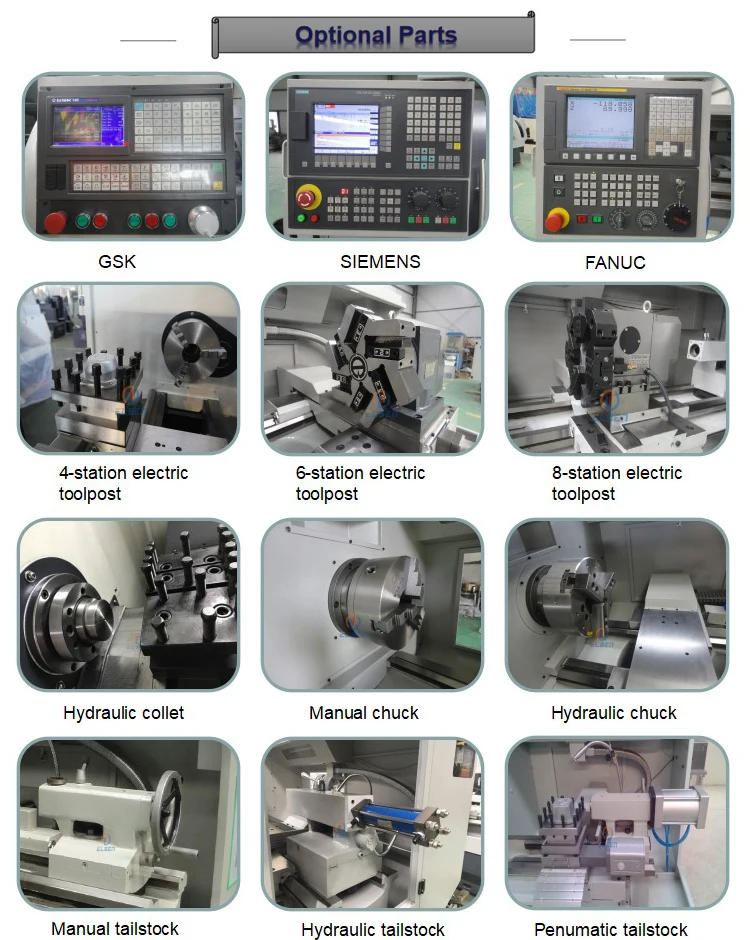

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). 3-jaw manual chuck,Hydraulic chuck, pneumatic chuck .
3). Manual tailstock,Hydraulic tailstock, pneumatic tailstock.
4). 4-station electric tool post,6-station electric tool post, 8- station electric tool post
5). Automatic bar feeder.
1) System:GSK928TD-L.
2) Gang type tool.
3) Penumatic collet.
4) Without tailstock.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.
Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). 3-jaw manual chuck,Hydraulic chuck, pneumatic chuck .
3). Manual tailstock,Hydraulic tailstock, pneumatic tailstock.
4). 4-station electric tool post,6-station electric tool post, 8- station electric tool post
5). Automatic bar feeder.

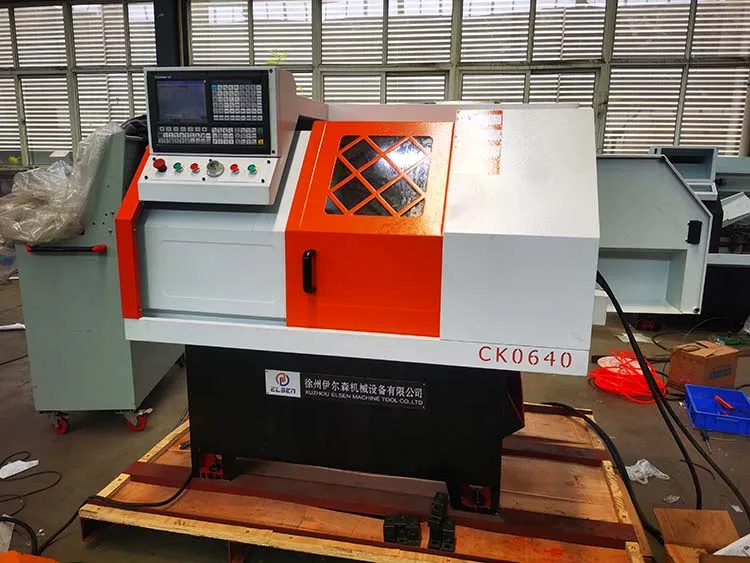

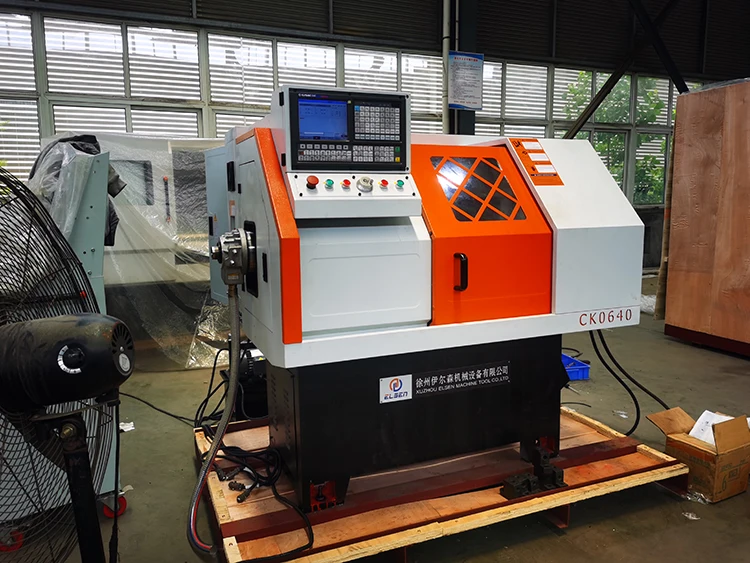

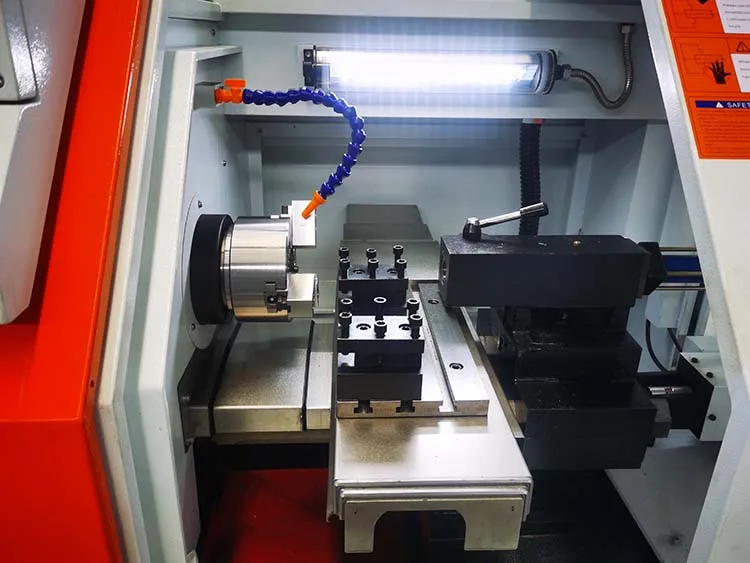

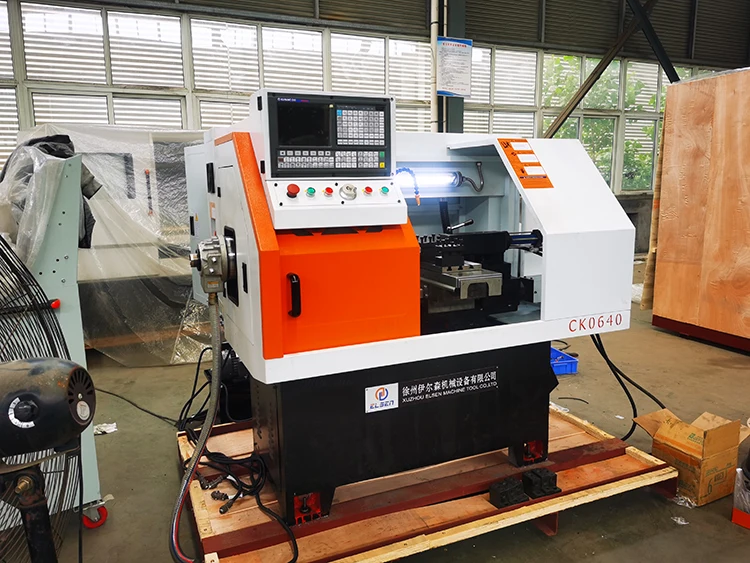

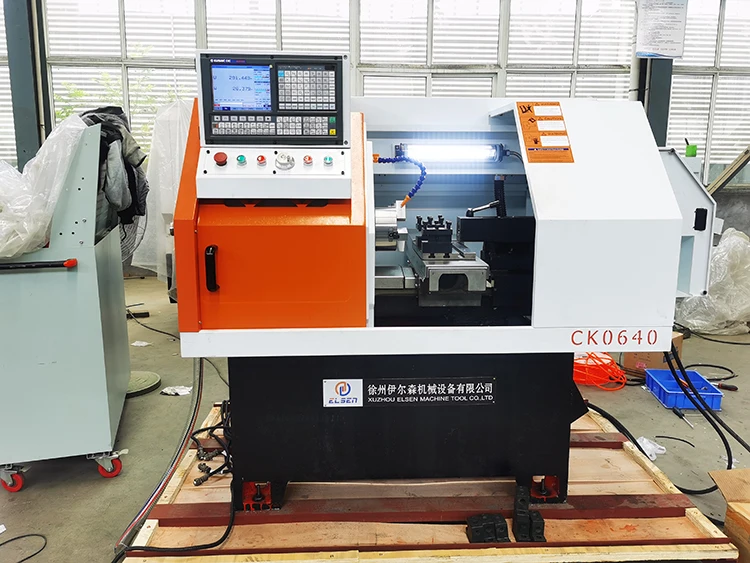

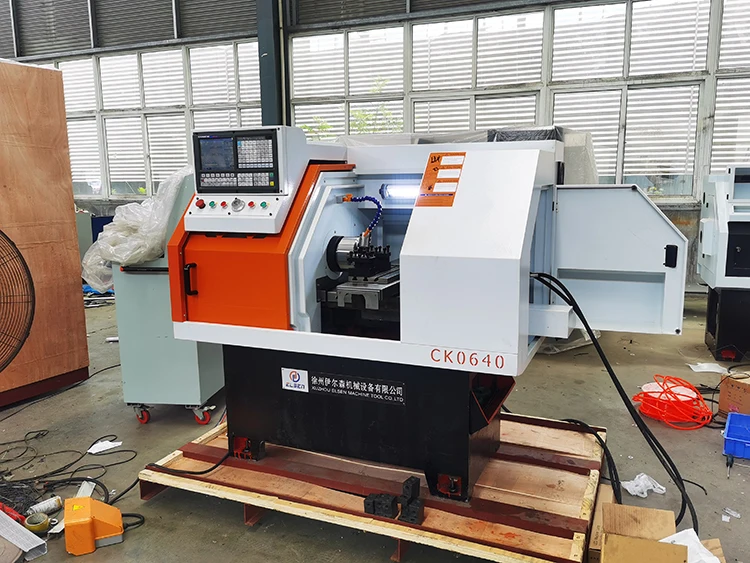

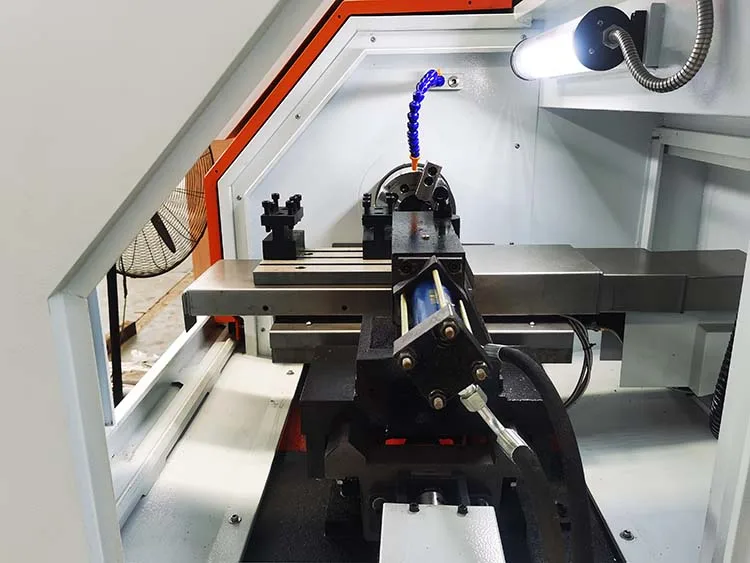

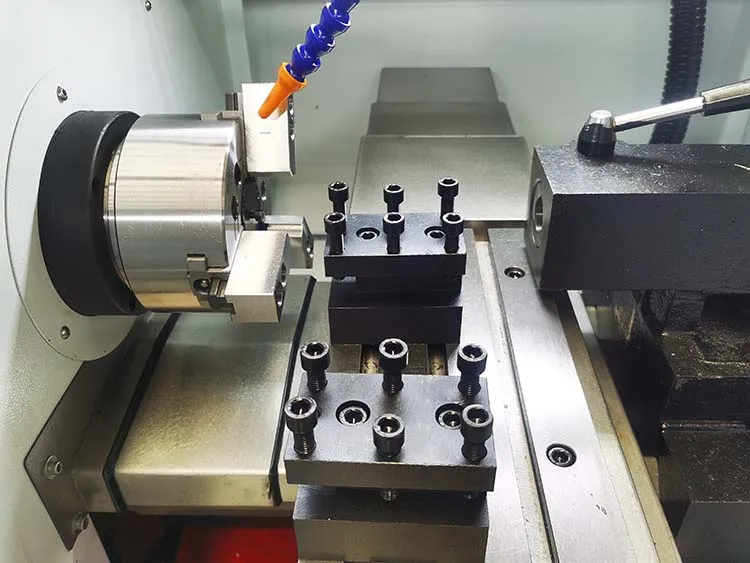

Machine Details
Related Products

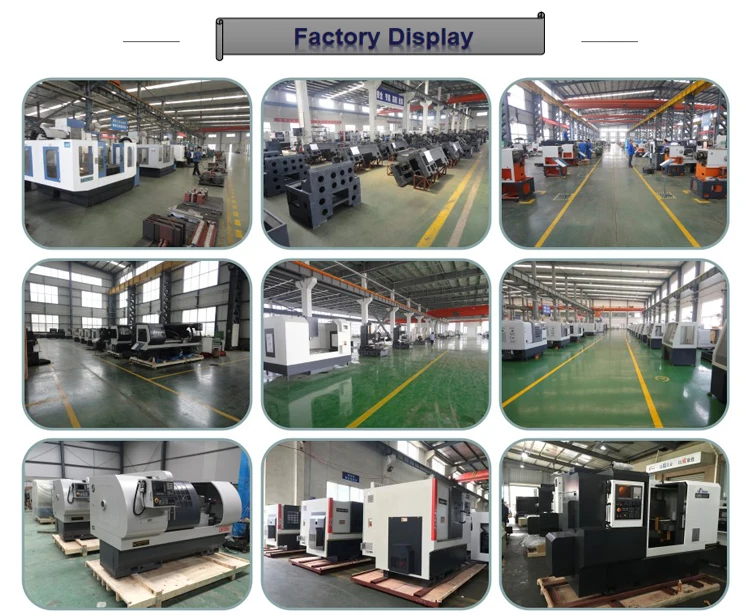

Company Information
Packing&Shipping
FAQ
1: Are you a manufacture?
A: Yes,we are a real manufacture.Welcome to visit our factory!
2: What is your payment terms?
A: Our payment terms is 30% T/T in advance,70% balance T/T before shipment.
3: Can you offer customized service ?
A: Machines listed on our website are just part of our conventional models,we can also provide customized service according to your requirements.
4: How can I choose the most suitable machines ?
A: Please tell me your need specifications ,we can introduce the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will introduce the most suitable machines for you .
5: Can you offer the training ?
A: Yes,we can provide a cost-free training,Teach you how to operate our machine,some common problems,and how maintain the machine etc. It would be great honor to us.
6: How about your after-sales service ?
A: Machines overall warranty is two years.During the normal using,we can send you the machine's components for free,not damaged on purpose.Our engineers are available to service overseas, we will offer lifetime service for machine.
