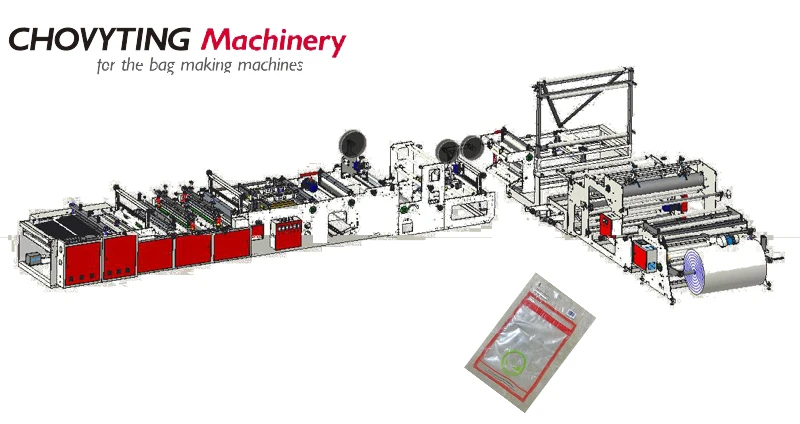

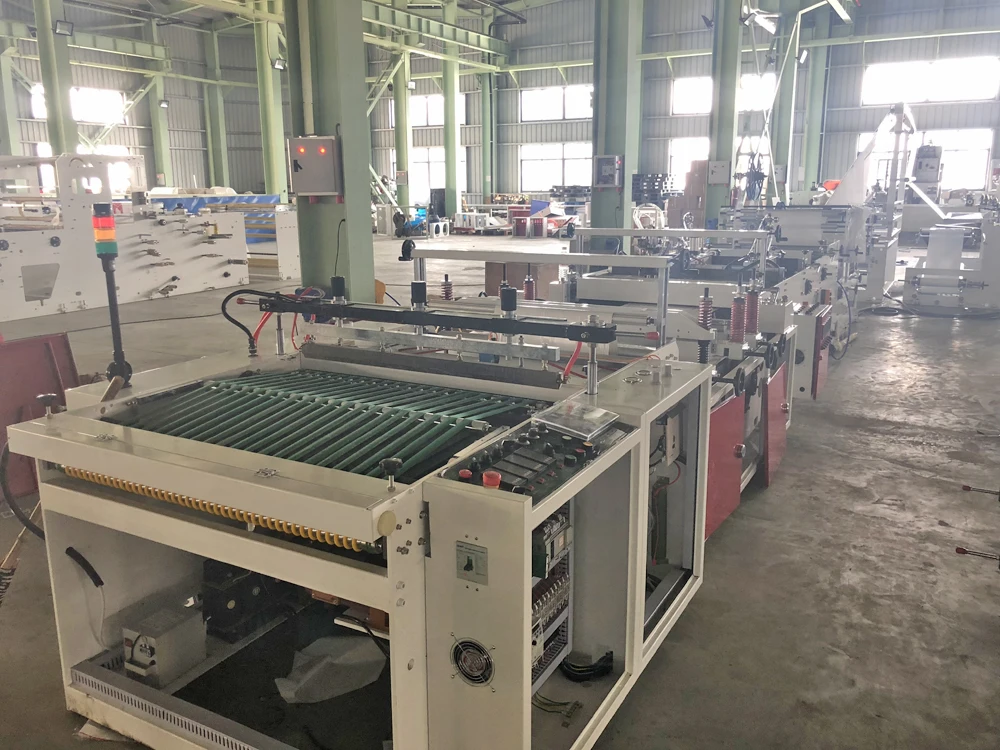

Automatic multifunctional security duty free courier bag making machine
Brief Introduction:
This fully automatic bag making machine is specially for various of courier bags, such as F3 security bags, duty free bags etc. Only use this all-in-one application to produce what you exactly want. Not only it can save labor but also improve your project.Moreover, it is easy to change the function of bag making.
Duty-free bag are Co-extruded or laminated clear bag that are strong and resilient to pull & puncture. Destructive tamper-evidence tape are used to notify broken packages. A Kidney or oval punch for the handle. The bag usually has 10mm wide sealing and sometimes has pocket inside for receipts.

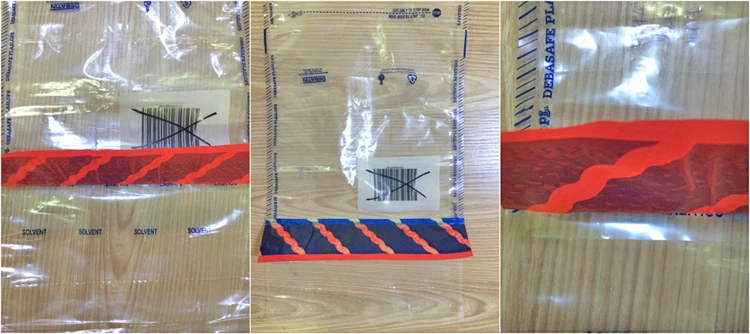

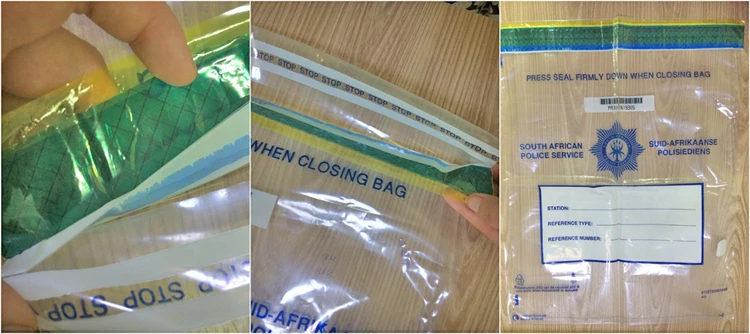

Security bag are Co-extruded or laminated clear bag that are strong and resilient to pull & puncture. Destructive tamper-evidence tape are used to notify broken packages. Used for transportation of police evidences, cash or valuable products.

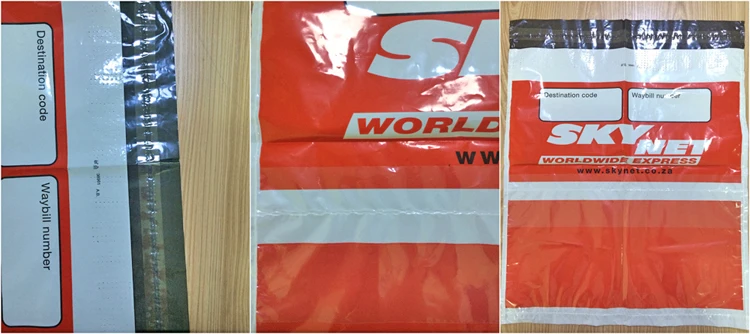

Courier bags are strong and resilient to pull & puncture (co-extruded film) with black layer to hide inner content. Courier bag are open for loading and seal by regular or destructive evidence tape. The front has a pocket for the courier receipt and printed with color block in the outer layer for writing.
Details Images:

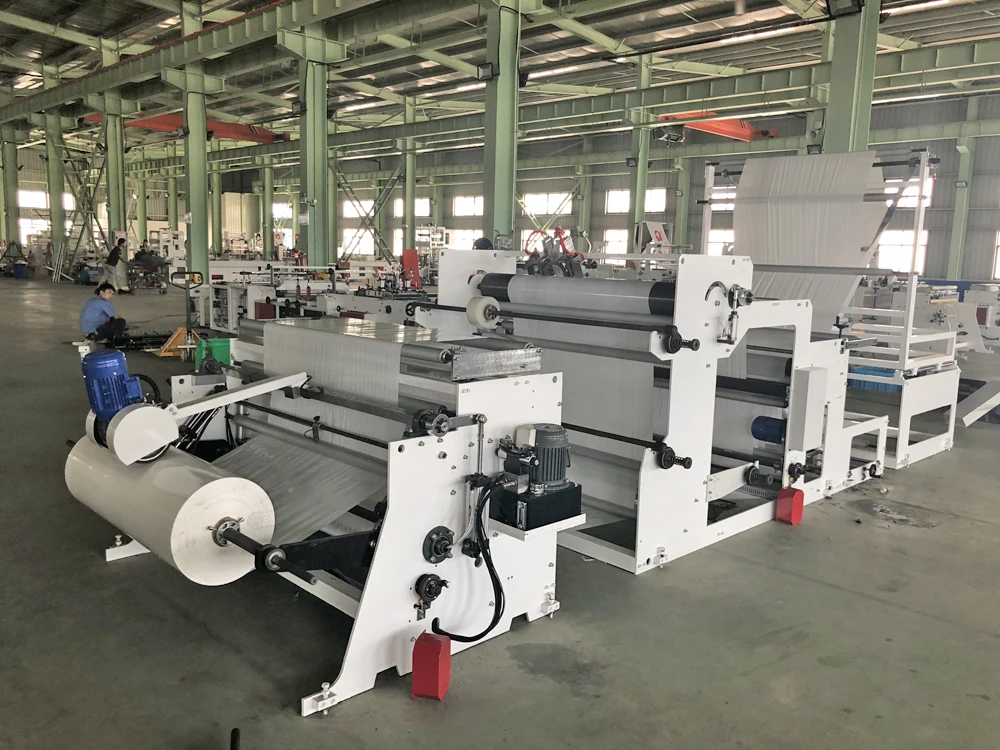

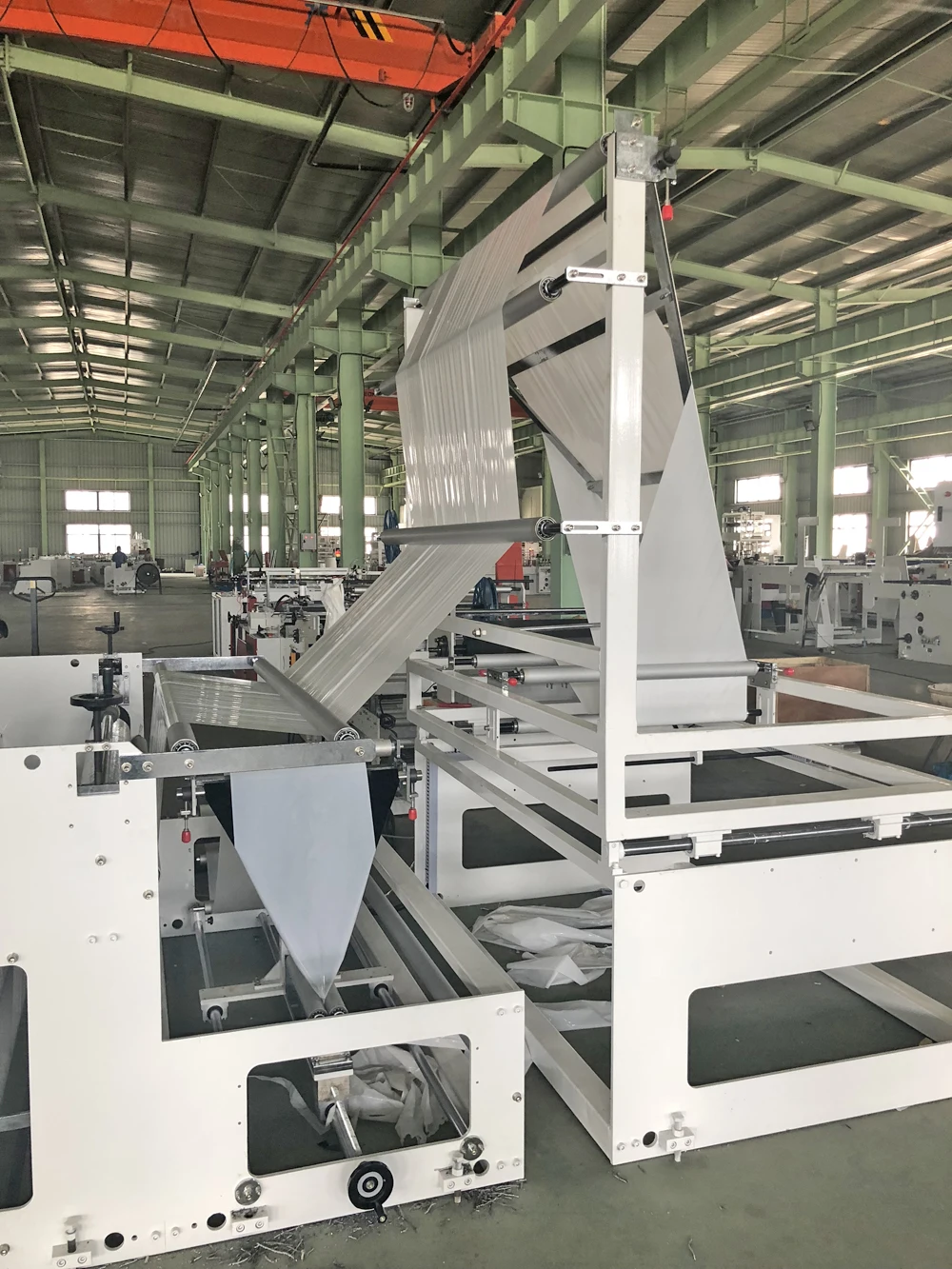

Auto Unwinding Part
with automatic pneumatic loading-up
and EPC correction system

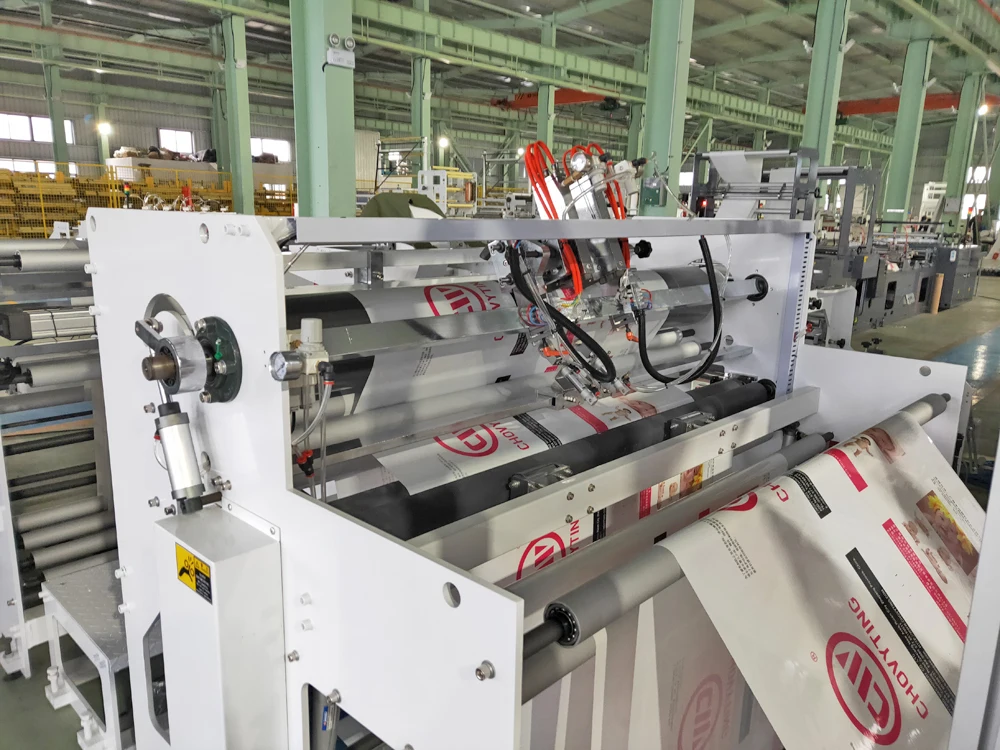

Hot air sealing device
special hot air sealing device sealing 100% strong and perfect

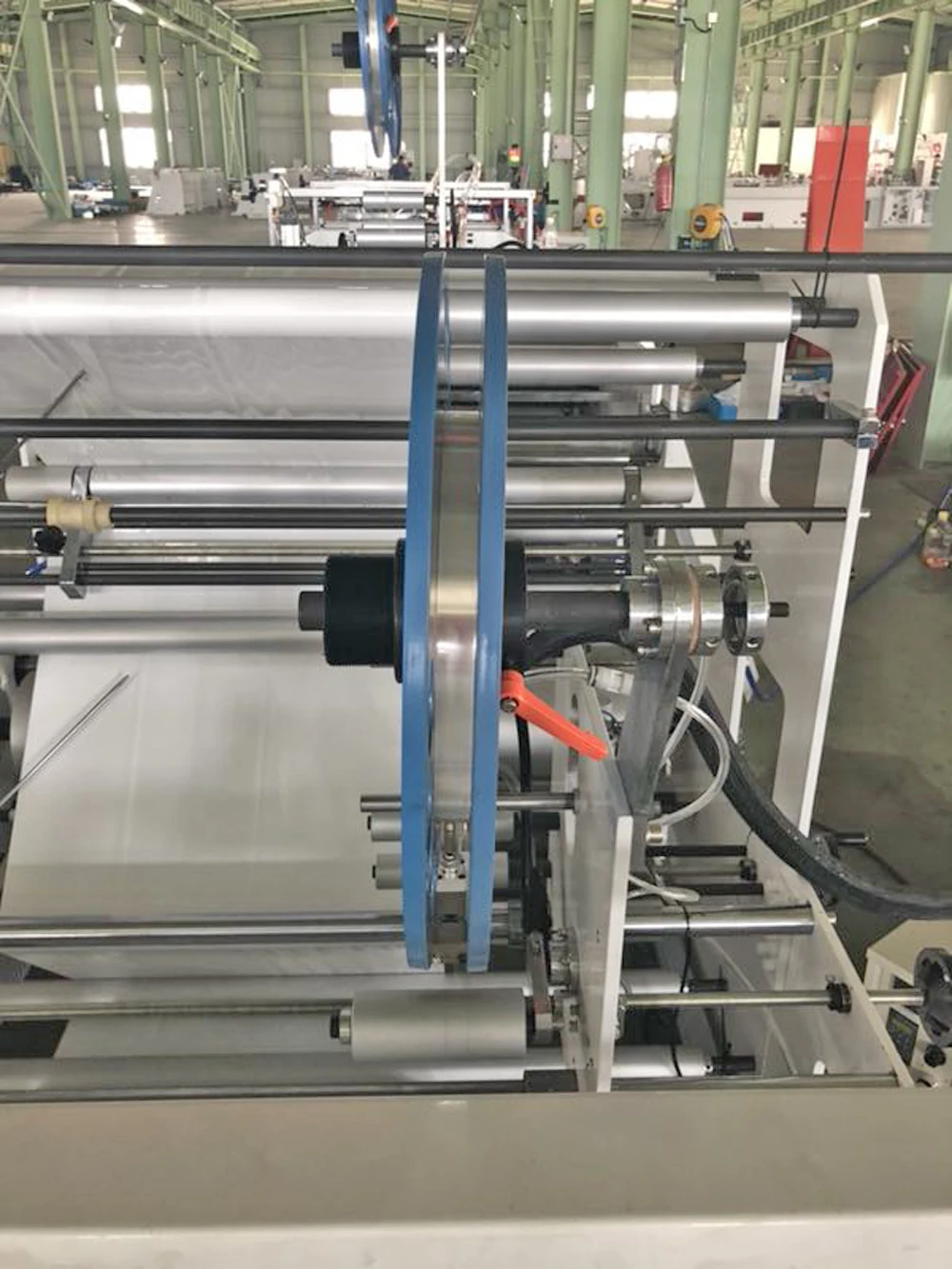

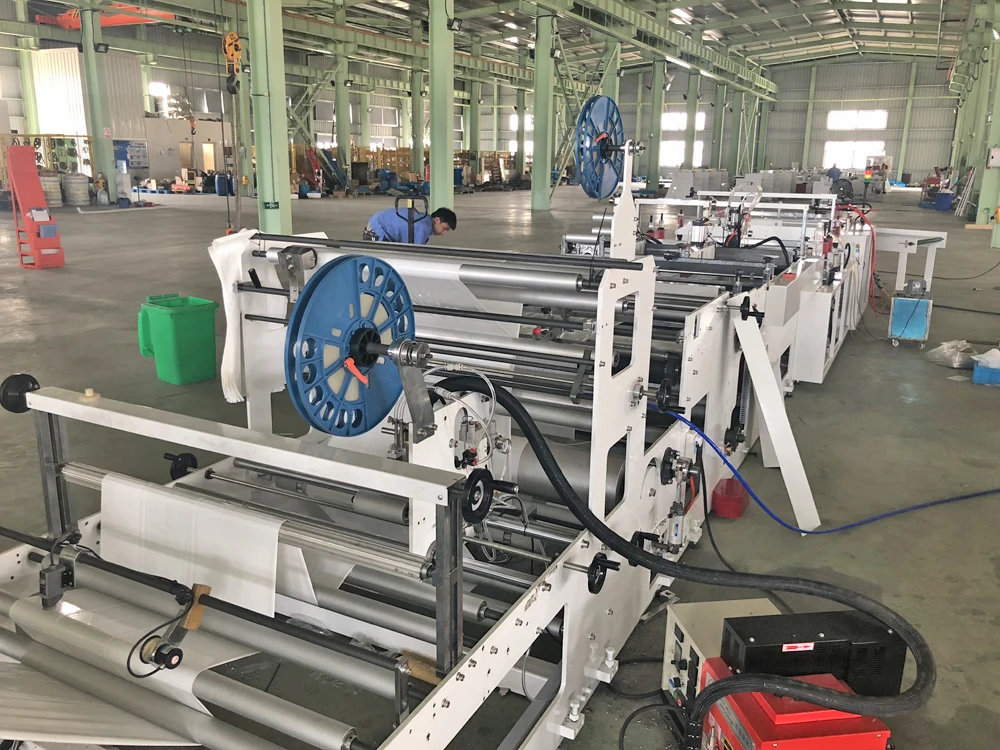

Tape unwind station

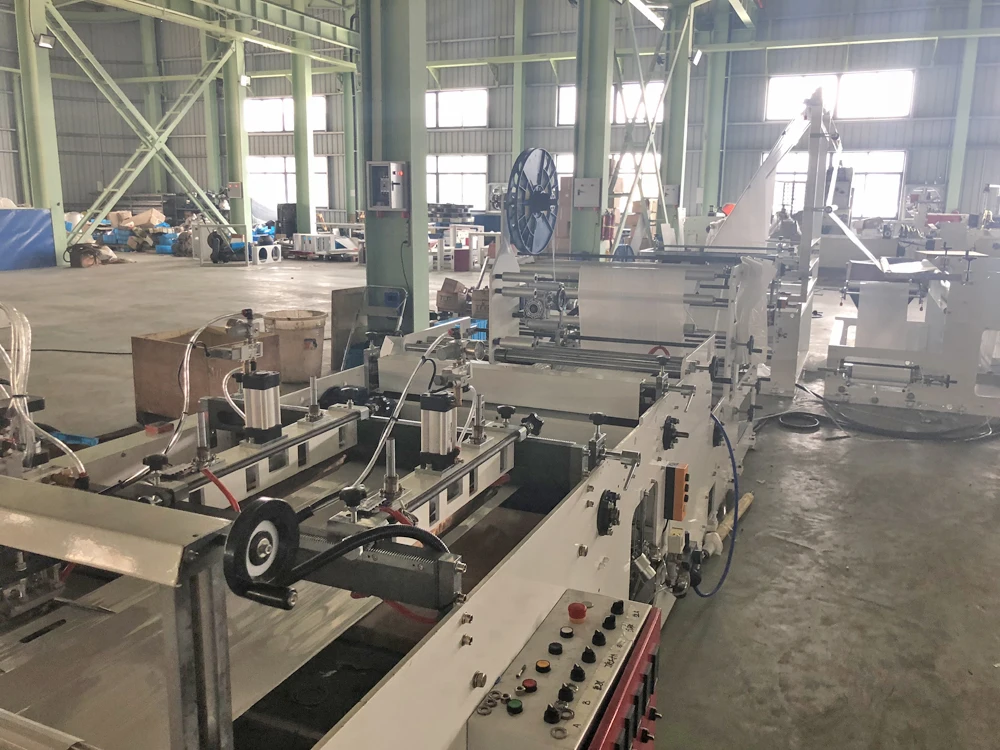

Special designed sealing bar
tailor designed sealing bar according customer needs
Technical Parameter :
MODEL
CW-1000SEC+DHL
Bag type
plastic courier bags, security cash bag, duty free bag
Unwind width
1600mm tube film
Unwind Dia.
φ1000mm (max.)
Bag width
100-300mm
Bag length
300-700mm
Bottom gusset
30-70mm
Cutting speed
80-100pcs/min
total power
16kw
Machine dimension
7800*3200*1850mm
Machine weight
3500kg
Air compressor
6HP
Machine Components
