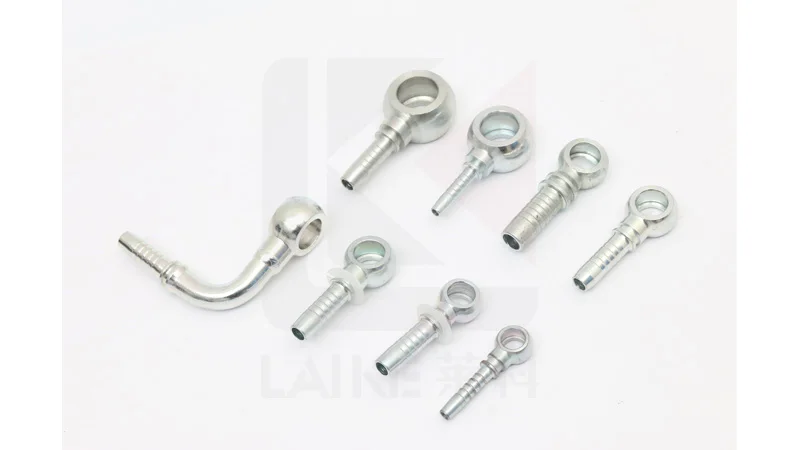

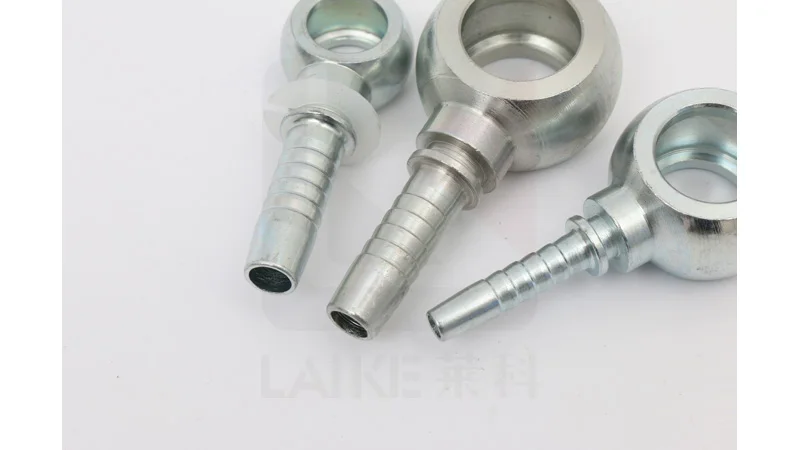

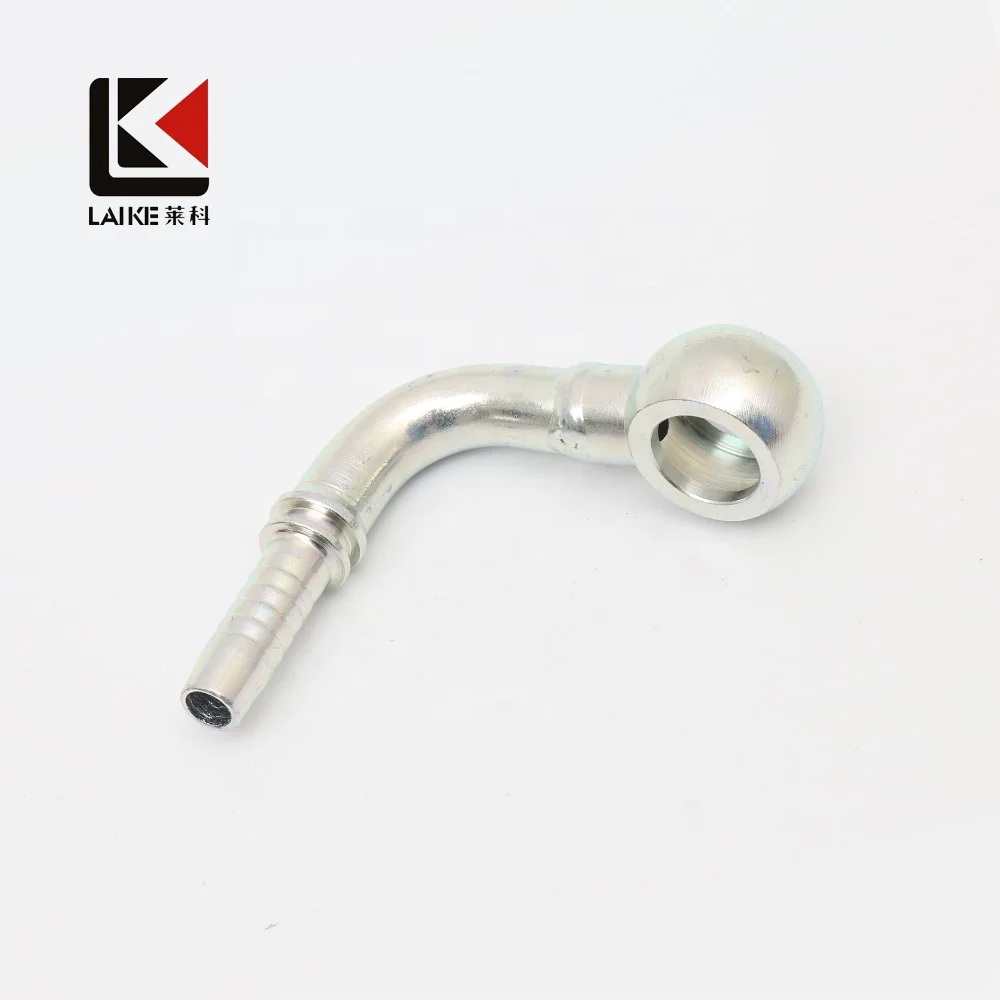

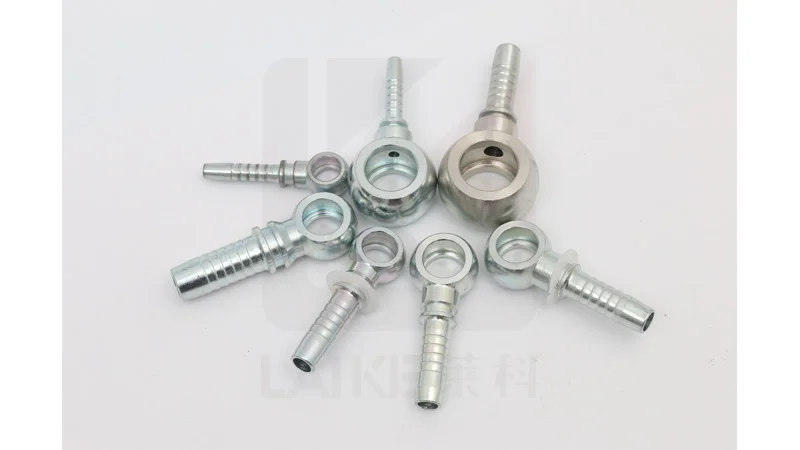

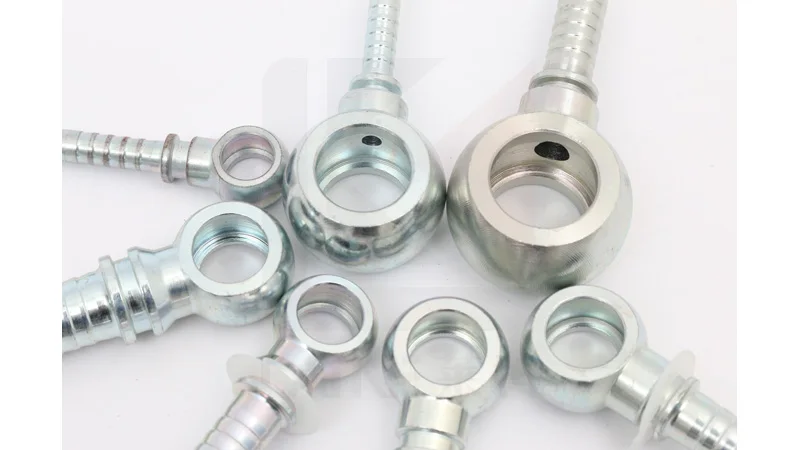

70011 Metric Banjo DIN 7642 Fitting with Bolt in Straight or 90 Elbow
- Category: >>>
- Supplier: Ningbo Laike Hydraulics Co. Ltd.
Share on (62504824897):
Product Overview
Description
Product Description

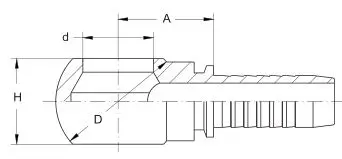

Fitting Parameter
METRIC BANJO - DIN7642
Laike: 70011 | Manuli: 020910 | Gates: DBJ
| PART NO | BOLT | HOSE O.D (MM) | DASH | A (MM) | d (MM) | D (MM) | H (MM) |
| 70011-10-03 | M10x1 | 5 | 3 | 14.5 | 10.1 | 17 | 10 |
| 70011-10-04 | M10x1 | 6 | 4 | 17 | 10.1 | 17 | 10 |
| 70011-12-04 | M12x1.5 | 6 | 4 | 20.5 | 12.1 | 20 | 12 |
| 70011-12-05 | M12x1.5 | 8 | 5 | 20.5 | 12.1 | 20 | 12 |
| 70011-12-06 | M12x1.5 | 10 | 6 | 20.5 | 12.1 | 20 | 12 |
| 70011-14-04 | M14x1.5 | 6 | 4 | 19 | 14.1 | 24 | 14 |
| 70011-14-05 | M14x1.5 | 8 | 5 | 19 | 14.1 | 24 | 14 |
| 70011-14-06 | M14x1.5 | 10 | 6 | 21 | 14.1 | 24 | 14 |
| 70011-16-04 | M16x1.5 | 6 | 4 | 20.5 | 16.1 | 28 | 16 |
| 70011-16-05 | M16x1.5 | 8 | 5 | 20.5 | 16.1 | 28 | 16 |
| 70011-16-06 | M16x1.5 | 10 | 6 | 20.5 | 16.1 | 28 | 16 |
| 70011-18-04 | M18x1.5 | 6 | 4 | 23 | 18.1 | 32 | 20 |
| 70011-18-05 | M18x1.5 | 8 | 5 | 24 | 18.1 | 32 | 20 |
| 70011-18-06 | M18x1.5 | 10 | 6 | 24 | 18.1 | 32 | 20 |
| 70011-18-08 | M18x1.5 | 12 | 8 | 24.5 | 18.1 | 32 | 20 |
| 70011-22-06 | M22x1.5 | 10 | 6 | 28.1 | 22.1 | 39 | 25 |
| 70011-22-08 | M22x1.5 | 12 | 8 | 28.5 | 22.1 | 39 | 25 |
| 70011-22-10 | M22x1.5 | 16 | 10 | 27.5 | 22.1 | 39 | 25 |
| 70011-26-12 | M26x1.5 | 20 | 12 | 33.5 | 26.1 | 46 | 30 |
| 70011-30-16 | M30x1.5 | 25 | 16 | 37 | 30.2 | 54 | 36 |
| 70011-30-20 | M30x1.5 | 32 | 20 | 41 | 30.1 | 54 | 36 |
METRIC BANJO BOLT- DIN7642
Laike: 700M | Manuli: 080810
| PART NO | THREAD E | A (MM) | B (MM) | C (MM) | S1 (MM) |
| 700M-10 | M10x1 | 19 | 4 | 6 | 6 |
| 700M-12 | M12x1.5 | 24 | 6 | 6 | 6 |
| 700M-14 | M14x1.5 | 26 | 8 | 7 | 7 |
| 700M-16 | M16x1.5 | 28 | 9 | 7.5 | 7.5 |
| 700M-18 | M18x1.5 | 32 | 11 | 8 | 8 |
| 700M-22 | M22x1.5 | 39 | 14 | 9 | 9 |
| 700M-26 | M26x1.5 | 45 | 18 | 10 | 10 |
| 700M-30 | M30x1.5 | 51 | 22 | 11 | 11 |
* More size availbale upon request.
* For different degrees of elbow, please consult sales.
Product Image
Company Information
FAQ
- Are you factory? Yes, we are.
- What do you manufacture? We produce fittings, adapters, ferrules, flanges, hose assemblies etc.
- What is the lowest price? Send us the specification and we will quote.
- What is the lead time? 30 - 45 days.
- Can I get samples? Yes, free samples upon request.
- Do you support OEM/ODM/Customization? Yes we do.
- Any other concerns? Contact us for a within-24 hours reply.
