Высокое качество, заводская цена, завод по переработке пластмассовых и резиновых шин

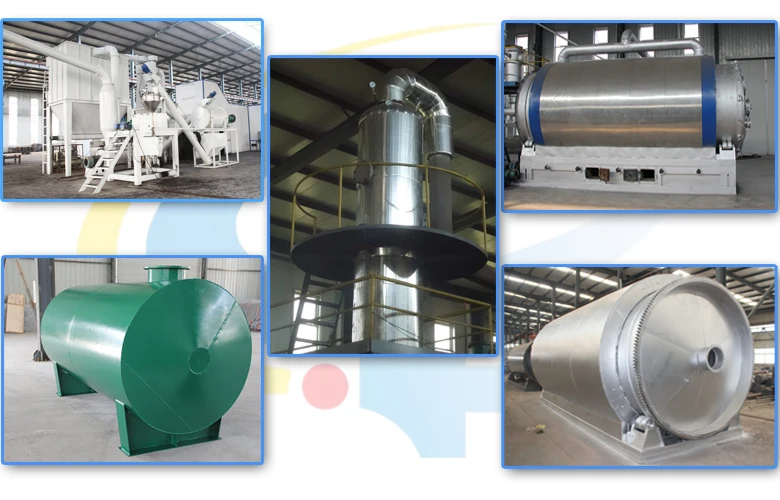

1. Main Parts of Pyrolysis Plant

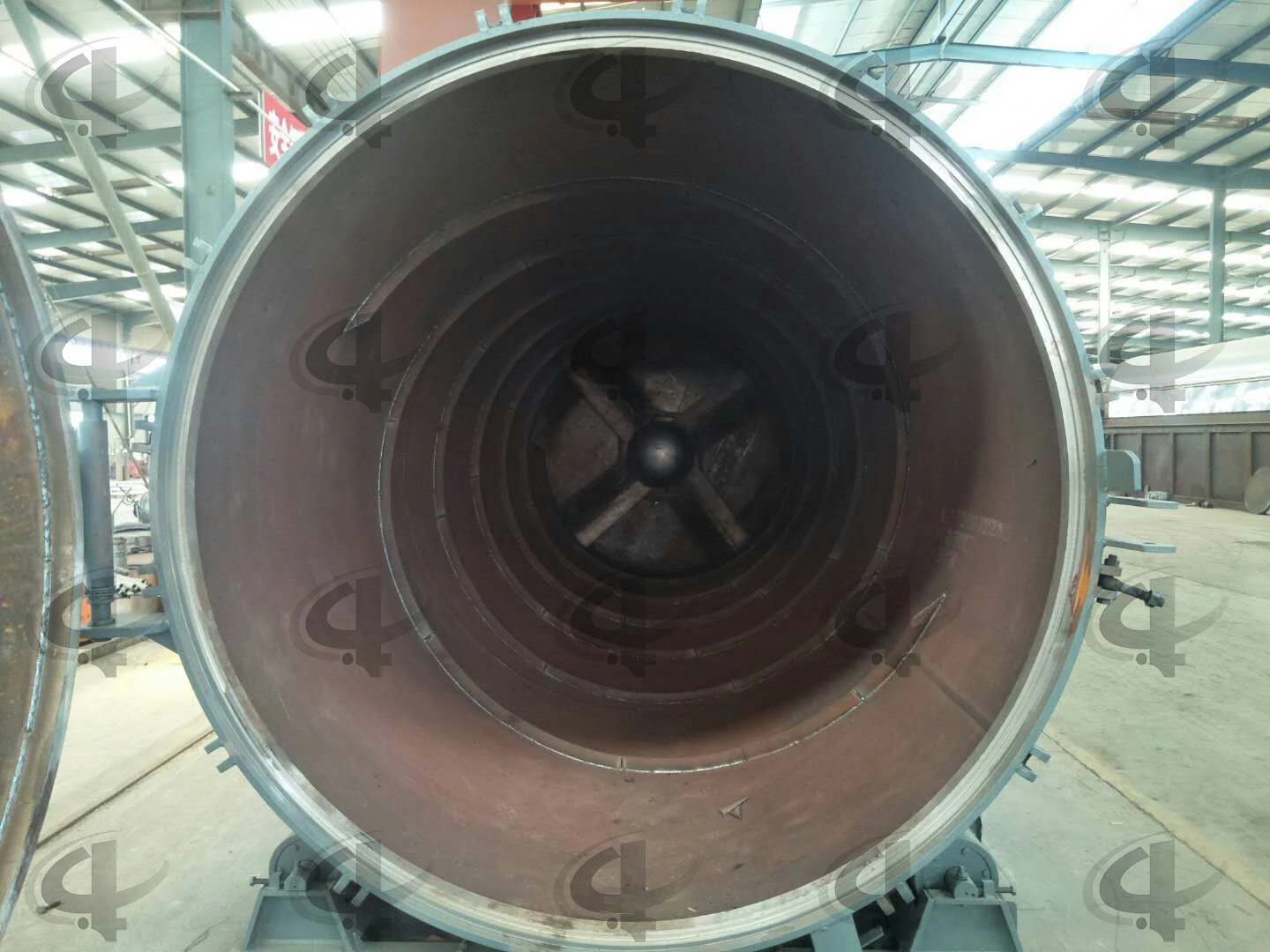

Reactor

Burning Room

Gas Separator

Condensers

Oil Tank

Cooling Tower

Sync Gas Recycling System

Waste Gas Burner

Smoke Scrubbers

Carbon Black Discharging System

2. Outstanding Features of XY-8 Pyrolysis plant

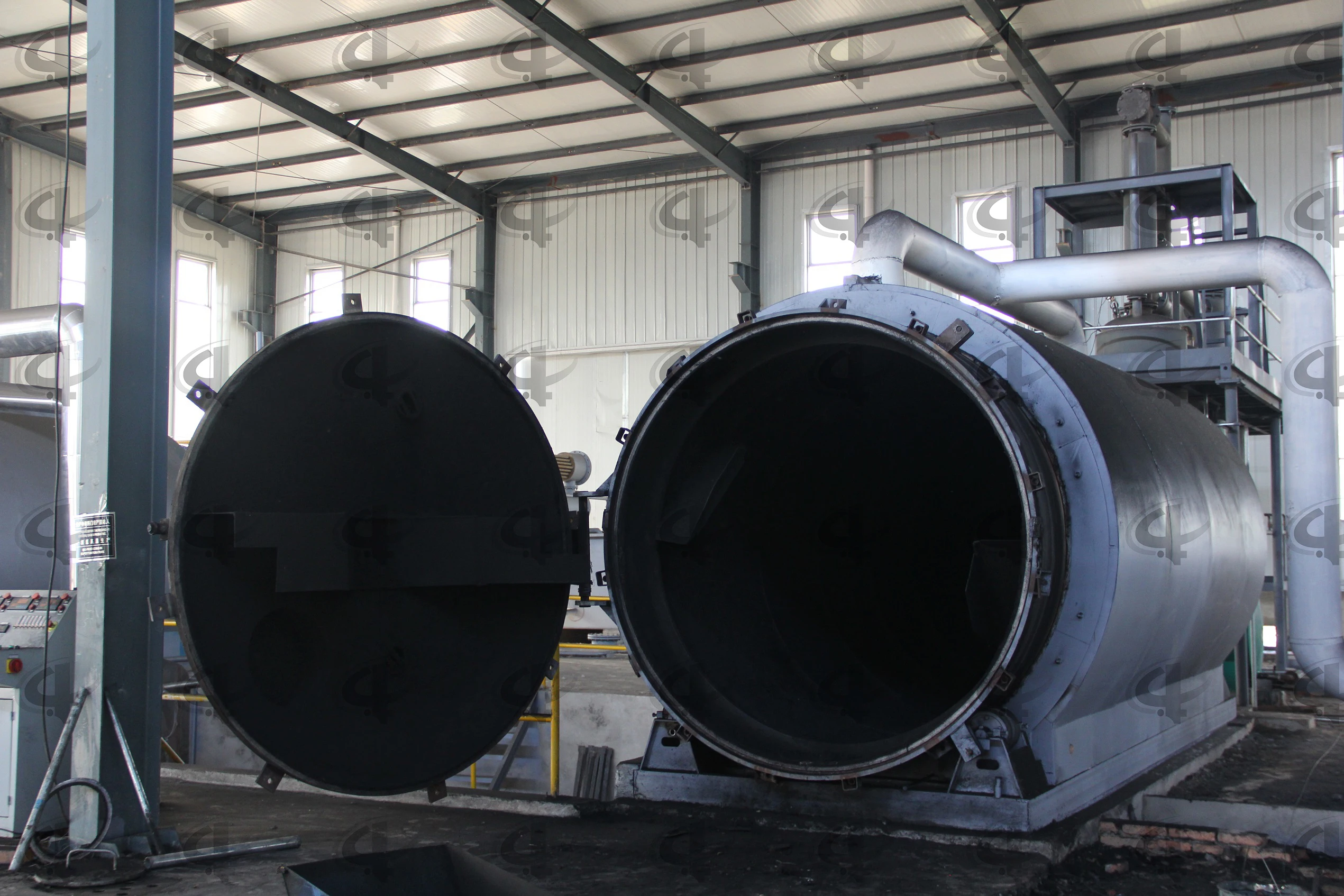

1. Full open door design: Speedy loading in and steel pulling out; Easily cooling down after one

batch finished, saving time; No leaking with special high temperature flexible graphite packing.

2. Unique Craft Condensers: High condensing efficiency with more oil output. Good quality oil,

longer lifetime, and easy to clean.

3. National Patent Unique Smoke Scrubbers: More efficient removal of the acid gas and dust of

the smoke by neutralization, purification and absorption, environmental friendly without pollution.

4. National Patent Carbon Black Discharging System: Speedy fully enclosed Auto-discharging

under high temperature, avoiding carbon black pollution, saving time.

5. Automatic Submerged welding technology, ultrasonic nondestructive testing, both manual and

the automatic safety devices.

6. Sync Gas Recycling System: Fully burned after recycling and utilization, saving fuel and

preventing pollution.

7. Direct Heating System: Enlarging heating square to lengthen the lifespan of the reactor and

easy to control the temperature.

8. National Patent, unique heat insulation shell; high efficiency temperature keeping, excellent

energy-saving effect.

3. Feasibility Analysis for your reference:

Note: A. This analysis is made with capacity of 10Mt tyres per day per batch.

          B. Please modify relative prices according to your actual market conditions.

4.

5. Raw Materials and Final Products and Its Usage.

Raw materials: Waste tyres, waste rubber and waste plastics, etc.

Final products: Steel wires, fuel oil, carbon black and sync gas...

The usage of the final products:

Steel wires: 12%-15% from tyres, to be sold or reprocessed.

Fuel oil: Widely used in industries such as steel and iron factories, ceramics or chemical industries

 or hotels, restaurants etc. as fuel oil, or used for heavy oil generators to get electricity.

Carbon black: Crude carbon black can be used for construction bricks, or widely used as industrial

 carbon black N774, N660, N330 or color carbon after deep-process.

1. Quality warranty period: One year warranty for the main reactor of pyrolysis machines.

2. Installation: According to the requirement of the buyer, our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's workers on operation, maintenance, etc.

3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer.

4. For the damage caused by the users, our company provides the parts and accessories with cost price

5. Our factory supplies the wearing parts with the cost price to clients.
