Share on (62505010202):


Price:RUB 755,236.02

Quantity:


Product Overview

Description

Main features:
* 6+1 Axis,Y1 Y2 X Z1 Z 2 R+Crowing
* Fast Released clamp
* Synchronized cylinders for Y1 & Y2 axis.
* Schneider Electrics, Yaskawa Servo Motor and Driver
* Imported ball bearing lead screw and linear guide rail
Controller
DELEM DA66T
Motor
Siemens
Valve
BOSCH Rexroth
Electrics
Schneider
Pump
Sunny
Servo
Yaskawa
Controller
DELEM DA66T
*2D graphical touch screen programming mode  *3D visualisation in simulation and production  *17" high resolution colour TFT  *Full Windows application suite  *Delem Modusys compatibility (module scalability and adaptivity)  *USB, peripheral interfacing  *User specific application support within the controllers multitasking environment  *Sensor bending & correction interface * Profile-TL offline software
Main Parameters
PB_CNC
6325
10032
10040
16032
16040
20032
20040
25032
25040
Nominal Pressure
800
1000
1000
1600
1600
2000
2000
2500
2500
Workbench Length
2500
3200
4000
3200
4000
3200
4000
3200
4000
Workbench Width
110
110
110
110
110
110
110
110
110
Poles distance
1960
2600
3200
2600
3200
2600
3200
2600
3200
Throat depth
320
380
380
400
400
400
400
400
400
Slipper Stroke
200
200
200
200
200
200
200
200
200
Max Opening Height
480
480
480
480
480
480
480
480
480
slipper stroke adjust Length
150
150
150
150
150
150
150
150
150
Oil Cylinder dia
Main motor
5.5
7.5
7.5
11
11
15
15
18.5
18.5
Oil pump
13
16
16
20
20
25
32
32
32
Hydraulic System Max Work Pressure
30
30
30
30
30
30
30
30
30
wallboard thickNess
35
45
45
50
50
50
60
70
70
slipper thickNess
40
50
50
60
60
60
60
70
70
support plate thickNess
40
60
60
70
70
70
70
80
80
Dimension(L×W×H)
2800×1700×2550
3800×1750×2580
2600×1500×2200
3800×1800×2900
2800×1900×2820
3800×1900×2920
4500×2100×2920
3800×2150×3020
4500×2150×3050
Machine weight
4.8
7.6
9
9
11
12
13.5
14
15
Detailed Images

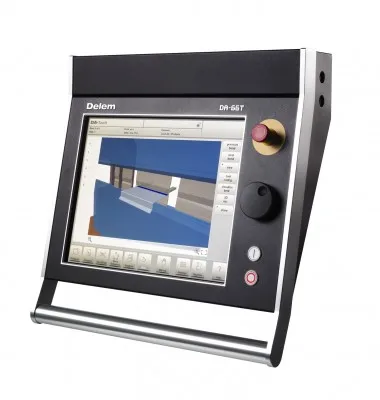

DA66T Controller
Touch Screed, suitable for 6 axis

Fast Released Clamp
One Key clamp and release.
Automatic Crowing
Automatic crowing table
Schneider Electrics
World famous bran, Stable quality. easy to get replace parts
Yaskawa Servo
Japanese Brand, High quality.
Taifeng Cylinder
Most Famous brand in China. Life-long time aftersale maintance.
Rexroth Valve
Germany BOSCH Valve. Simple Structure,Easy to repaire
Sunny Oil Pump
American most famous pump brand.
High quality
Siemens Motor
Siemens China Factory Made
Front Supportor
Factory Made, easy to feed plate
Kacon Foot Switch
South Koera CE Standard Foot Switch
GIVI Linear Encoder
High accuracy,stable quality.
Side Fence
CE Safety Standard. Power off when open
Back Fence
Movable Door. Power off when open the door
Hiwin Linear Guider and ball screw
Taiwan Brand. High Accuracy

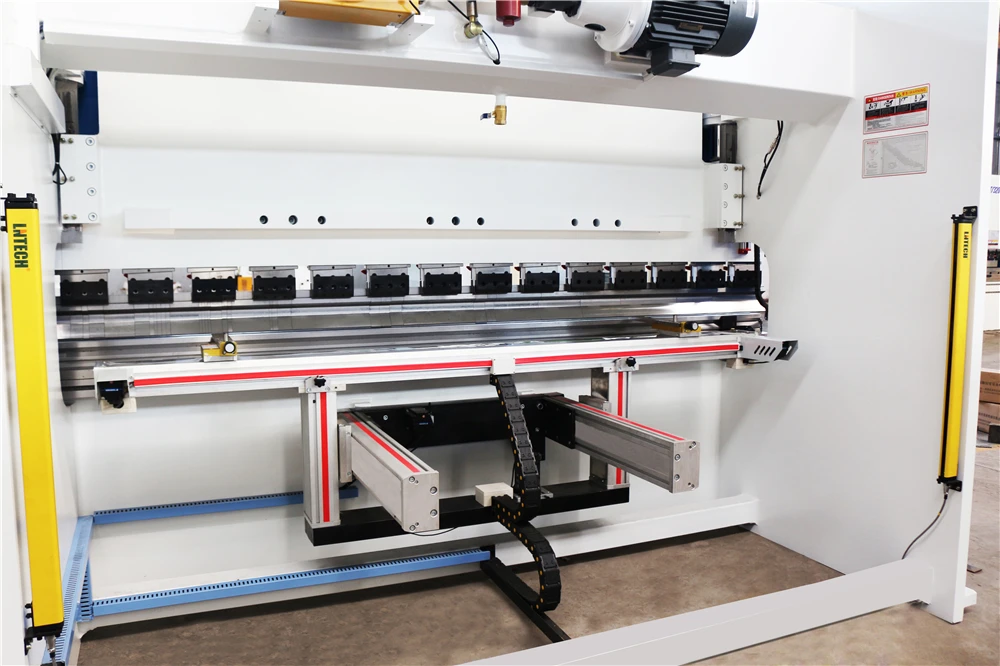

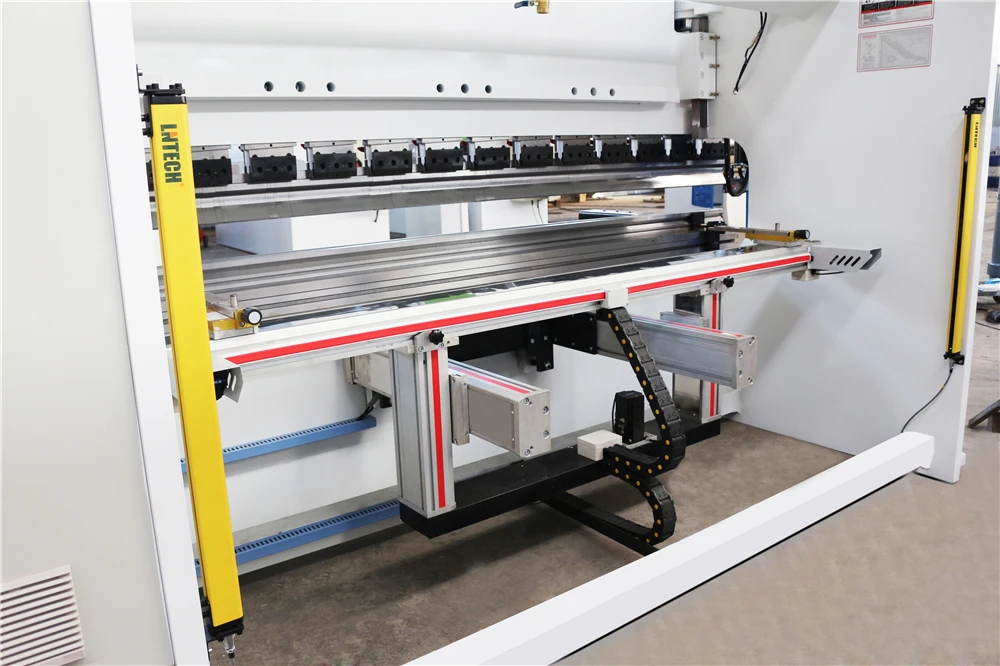

Backgauge
Controlled by servo motor. X,R,axis

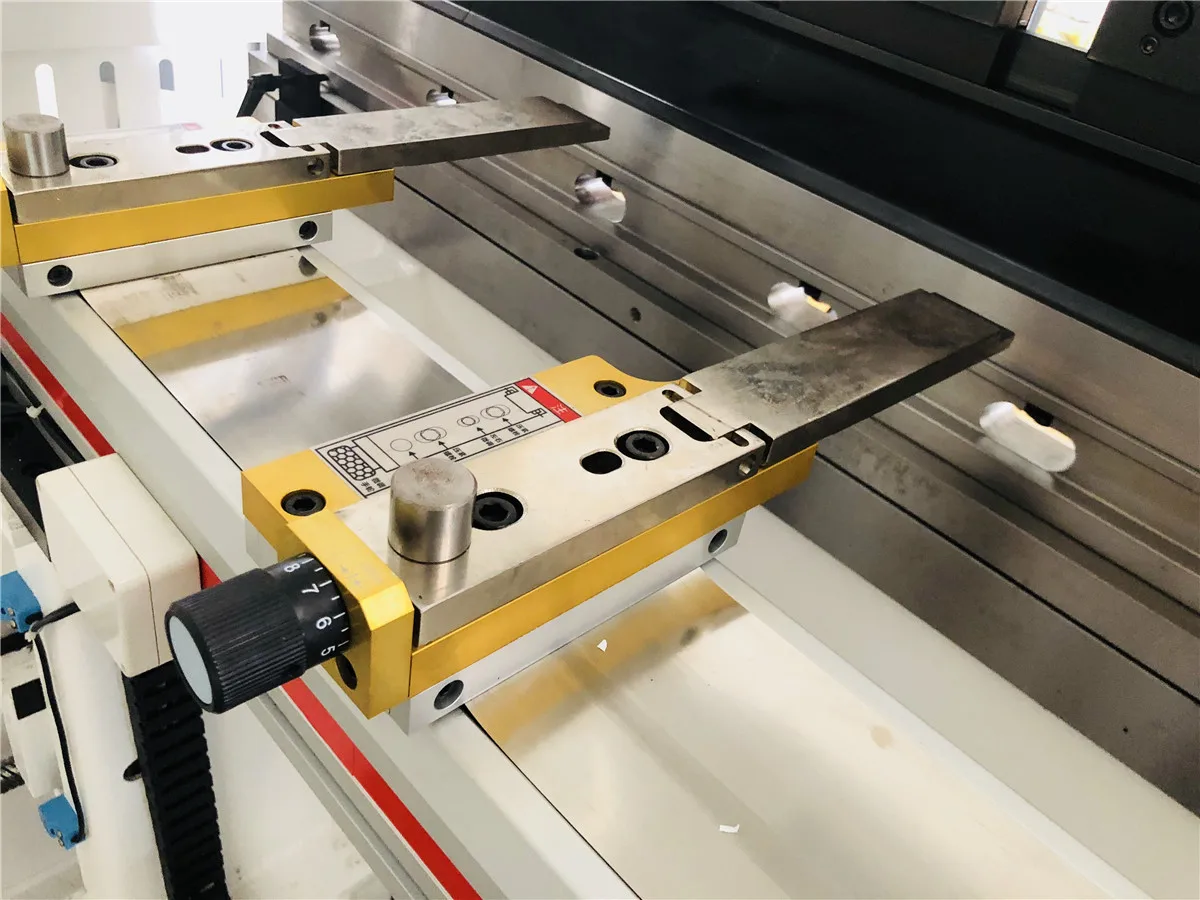

Stop Fingers
Standard equipped with 2 fingers
Standard AMADA type Toolings
*Cr12MoV material ,HRC>55
*Standard Segmented in to 835mm length each
*one piece segmented for small part
*Left and Right side with L shape cut
*Other types tooling for optional
Related Products
Optional Parts
Laser Protection Device
For CE Standard use. Keep safety of finger
Servo Main Motor
Fast Speed. No Noise when machine works. Need less hydraulic oil.
DELEM DA69T Controller
DELEM Top Grade Controller, can use 3D function
Packing&Shipping
Machine usually send by sea. Is suitable for 20GP/40GP/40HQ/40OT container.
Some small machine can use Plywood case packing.
After loading machine will use carbon steel fix it.
