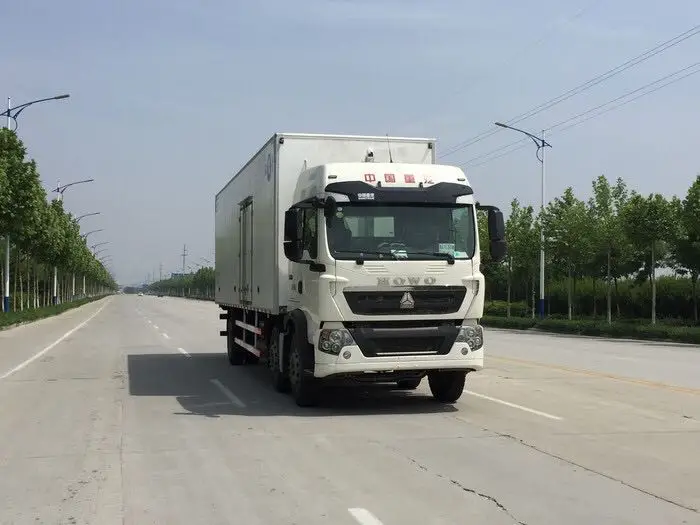

HOWO Diesel 10T Thermo King freezer refrigerator truck
- Category: Refrigerator Trucks >>>
- Supplier: Hubei Xindongri Special Vehicle Co. Ltd.
Share on (62505058239):
Product Overview
Description
Product Description
Refrigerator truck is a van truck designed to carry perishable freight at specific temperatures,such as fruit ,vegetable,milk ,medicine,meat and so on .The materalued is polyurethane and fiber glass for the van.it is useful and economical transportation truck in nowadays. our company has different size of refrigerated van equipped in different chassis.
| 6x2 HOWO 8-10 cbm refrigerated trucks | ||
| Vehicle Parameters | ||
| General | Vehicle Model | XDR5167XLCK561GE1 |
| Vehicle Brand | XDR | |
| Chassis Brand | HOWO | |
| Overall Dimension(mm) | 10000×2550×3980 (mm) | |
| GVW/Curb Weight(kg) | 16000/7815 | |
| Chassis Parameters | ||
| Cab | Cab Seat | 2 |
| Air Conditioner | Optional | |
| Engine | Fuel Type | diesel |
| Engie Model | MC05.14-50 | |
| Engine Brand | ZZ | |
| Emmission Standard | Euro5 | |
| Chassis | Drive Type | 6*2 |
| Wheelbase(mm) | 5600 | |
| Tyre Specification | 295/80R22.5 | |
| Tyre No.(pcs) | 6 | |
| Max Speed(km/h) | 101 | |
| Leaf Spring | 11/9+8 | |
| Axle Load | 6000/10000kg | |
| F/R Tread | 1930/1800 mm | |
| F/R Overhang | 1430 /2970 mm | |
| Approach Angle | 19 | |
| Departure Angle | 10 | |
| Displacement | 4580 | |
| Super structure | ||
| Cargo box | Loading weight : | 8-10 Tons |
| Cargo box length : | 1380-3320 mm | |
| Reefer-Temperature Required | -5 | |
| Features | 8mm Polyurethane in middle,covered by 3 mm fiber glass inside and outside ,2 mm amluminum floor | |
