Product Overview
Description
Product Description
Raynool Optical Transceiver
Raynool specialize in Optical Transceiver.
Mainly product:
SFP
10G SFP+
XFP+
SFP+/XFP BIDI 80km
CSFP/OTDR SFP
40G QSFP
25G SFP28
DAC/AOC
SFP |
Supports Daterate: 155M~4.25G |
Dual LC connector |
Hot pluggable SFP footprint |
Wavelength: 850nm,1310nm ,1490nm ,1550nm, CWDM 1270~1610nm |
Applicable for 550m~120km connection |
Digital Diagnostic Monitor Interface |
Operating temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C |
SFP LC Bidi |
Supports Daterate 155M~3.125G |
Simplex LC connector |
Hot pluggable SFP footprint |
Wavelength: TX1310nm,1490nm,1550nm other CWDM 60nm Bidi |
Applicable for 3km~120km |
Digital Diagnostic Monitor Interface |
Operating case temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C |
SFP SC Bidi |
Supports Daterate 155M~3.125G |
Simplex SC or SC/APC connector |
Hot pluggable SFP footprint |
Wavelength: TX1310nm,1490nm,1550nm other CWDM 60nm Bidi |
Applicable for 3km~120km |
Digital Diagnostic Monitor Interface |
Operating temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C |
SFP+ Duplex |
Supports 9.95 to 11.3Gb/s bit rates |
Duplex LC connector |
Hot pluggable SFP+ footprint |
Wavelength: 850nm,1310nm,1550nm,CWDM,DWDM |
Applicable for 300m~80km |
Digital Diagnostic Monitor Interface |
Operating temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C |
Dual LC XFP |
Supports 9.95 to 11.3Gb/s bit rates |
Duplex LC connector |
Hot pluggable SFP+ footprint |
Wavelength: 850nm,1310nm,1550nm,CWDM DWDM |
Applicable for 300m~80km |
Digital Diagnostic Monitor Interface |
Operating temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C |
Bidi XFP |
Supports 9.95 to 11.3Gb/s bit rates |
Simplex LC Connector |
Hot pluggable SFP+ footprint |
Wavelength: 1270nm,1330nm(10~60Km)1490nm,1550nm(>80Km) |
Applicable for 10km~80km |
Digital Diagnostic Monitor Interface |
Operating temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C |
SFP/XFP Bidi 80km |
Supports 9.95 to 11.3Gb/s bit rates |
Simplex LC Connector |
1490nm EML transmitter, 1550nm APD receiver 1550nm EML transmitter, 1490nm APD receiver |
Applicable for 80km SMF |
Low power consumption, < 1.5W |
Digital Diagnostic Monitor Interface |
Operating case temperature: Commerical:0 to 70 °C |
CSFP |
Transceiver unit with independent |
1310/1490nm: 1310nm FP Laser diode transmitter*2& 1490nm InGaAs PIN photodiode receiver*2 |
1490/1310nm: 1490nm DFB Laser diode transmitter*2 &1310nm InGaAs PIN photodiode receiver*2 |
Up to 20 km on 9/125μm SMF |
Support Digital Diagnostic Monitoring interface |
Operating temperature Commercial: 0°C to +70°C Industrial: -40°C to +85°C |
OTDR SFP |
Integral Micro-OTDR SFP Transceiver |
Dual Fiber, Full Duplex, SFP LC connector |
Data transmission distance:20~80Km |
Dead Zone 30 meters(Max) |
Resolution of 10 meters(Min) |
Accuracy of 50 meters(Min) |
Minimum 26 dB Link Budget for FE Data Model |
Minimum 18 dB Link Budget for GbE Data Model |
Minimum 55 dB Dynamic Range for the OTDR |
Automatically Transitions to Micro-OTDR Mode |
25G SFP28 |
Supports up to 25.78Gb/s bit rates |
Digital Diagnostic Monitor Interface with SFF-8472 |
Hot pluggable SFP+ footprint |
Wavelength: 850nm,1310nm CWDM 1270~1370nm,1470~1570nm Bidi 1270/1330nm |
Applicable for 10km SMF |
Low power consumption<1.5W |
Operating temperature Commercial: 0°C to +70°C Industrial: -40°C to +85°C |

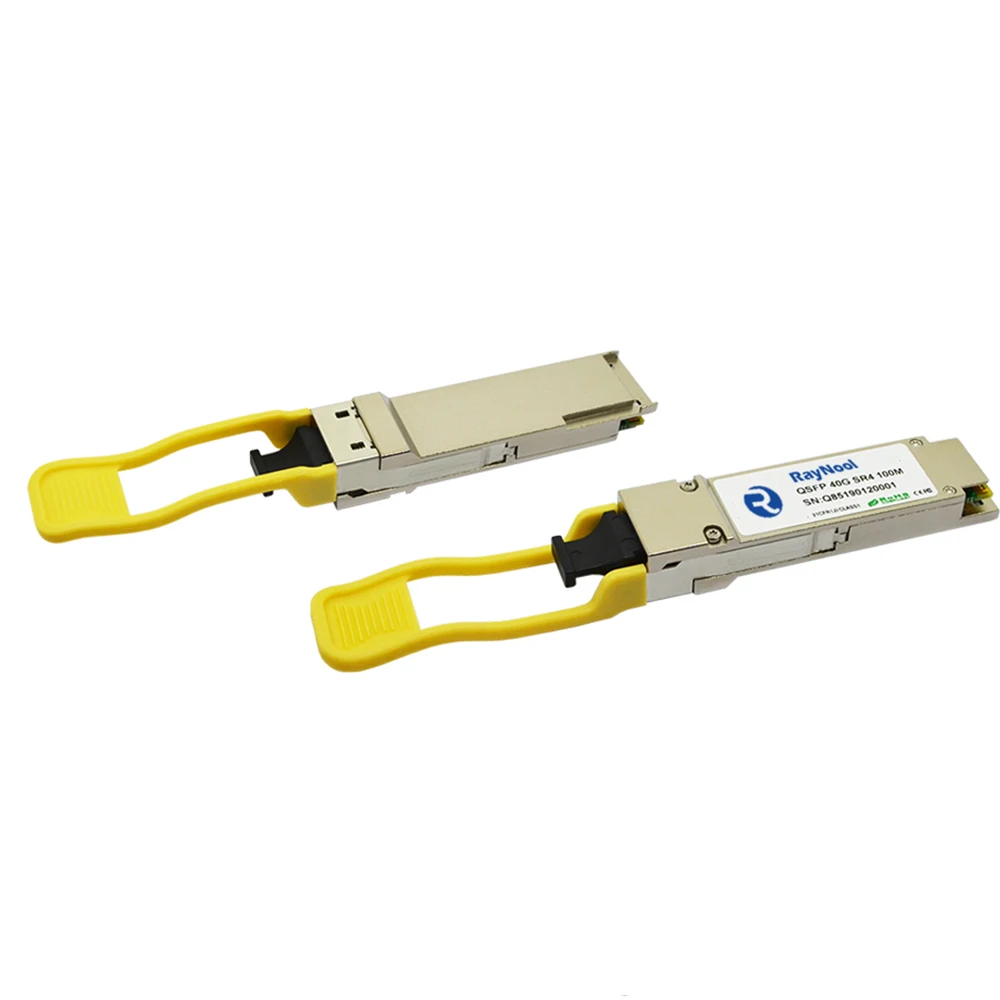

40G QSFP+ SR4 |
Supports 1.06 to 10.5Gb/s / Channel |
Four-Channel ,1x12 MPO receptacle |
Hot pluggable QSFP+ form factor |
VCSEL 850nm array Technology |
Applicable for 100m on OM3, 150m on OM4 MMF. |
Built-in digital diagnostic functions |
Low power consumption, < 1.5W |
Unretimed XLPPI electrical interface |
40G QSFP+ PSM LR4(MPO) |
Support up to 10.7Gbit/s per channel |
Single 1x12 MPO connector receptacle |
Hot pluggable QSFP+ form factor |
DFB 1310nm array Technology |
Applicable for 10Km on SMF |
Built-in digital diagnostic function |
Low power consumption <3.5W |
40G QSFP+ LR4(LC) |
Supports 41.2Gb/s bit rates |
Duplex LC receptacle |
Hot pluggable QSFP+ form factor |
4x10Gb/s CWDM transmitter(1270~1330nm) |
Applicable for 10km on SMF. |
Built-in digital diagnostic functions |
Low power consumption, < 3.5W |

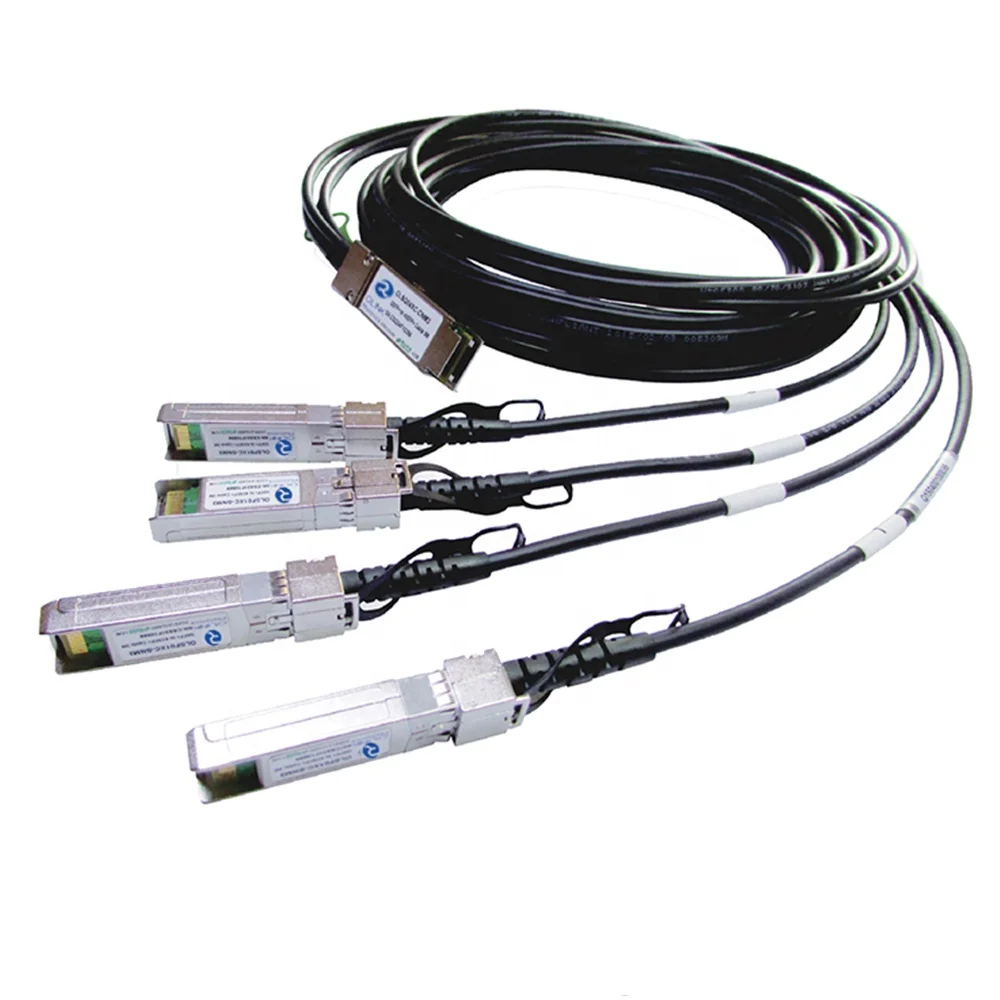

DAC(Direct Attach Passive Cable) |
Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s) |
Hybrid cable link length up to 5m (passive limiting) |
High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector |
Compliant with SFP MSA and SFF-8472 |
Compatible to QSFP+ MSA and SFP+ MSA |
RoHS compliant |
Power Supply :+3.3V |

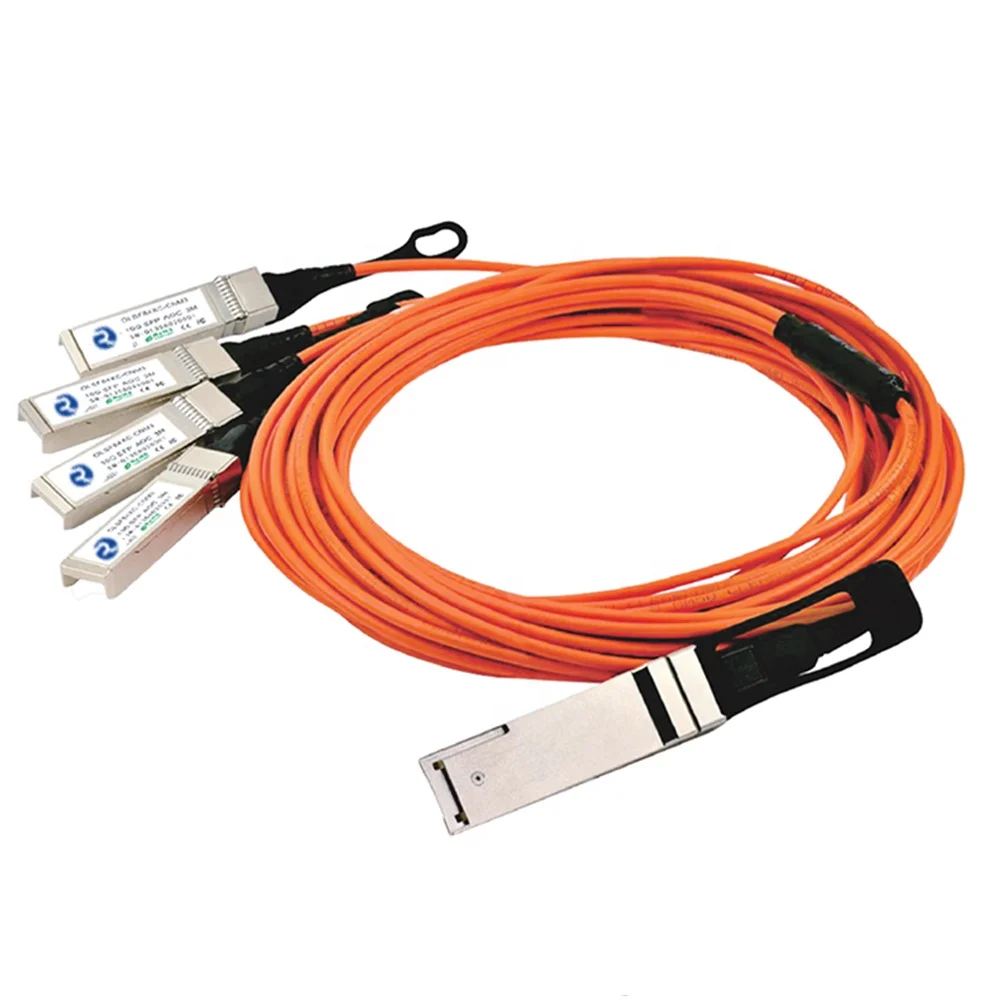

AOC(Active Optical Cable) |
Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s) |
Hybrid cable link length up to 100m |
High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector |
Compliant with SFP MSA and SFF-8472 |
Compatible to QSFP+ MSA and SFP+ MSA |
RoHS compliant |
Power Supply :+3.3V |
100G

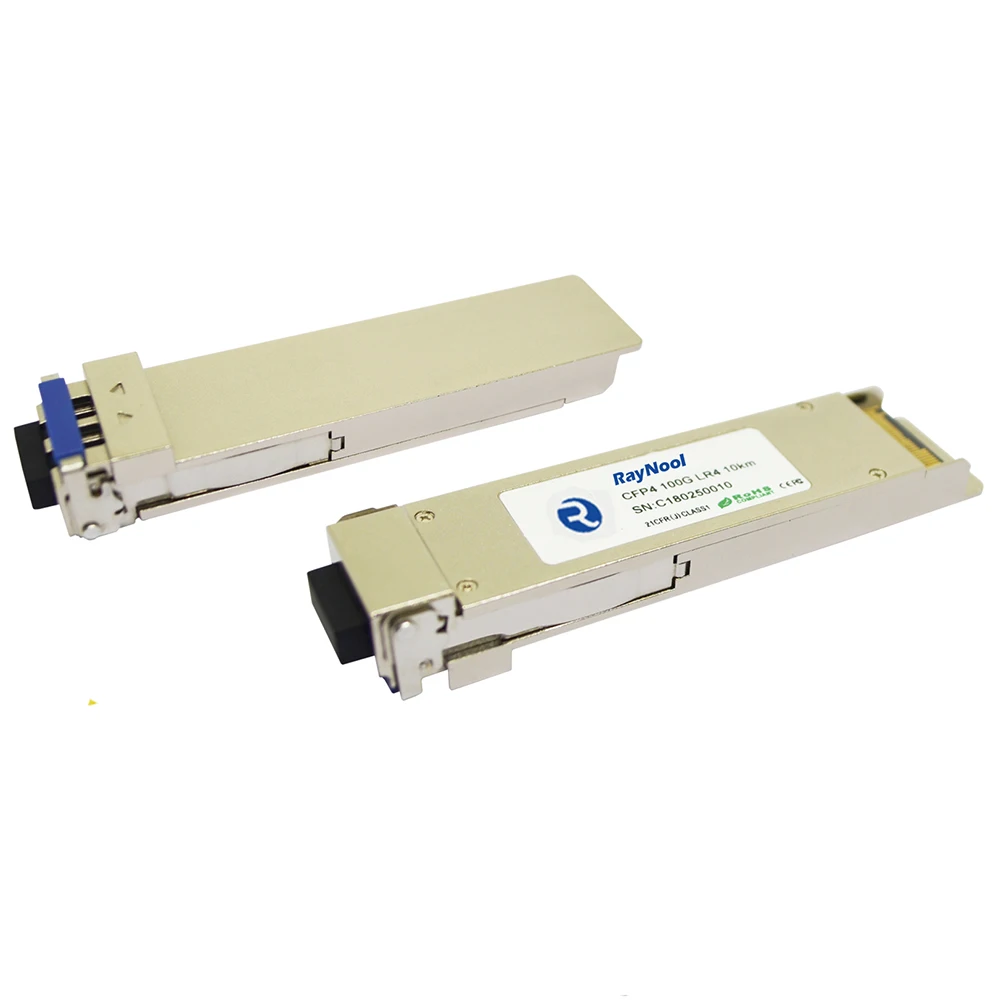

CFP4

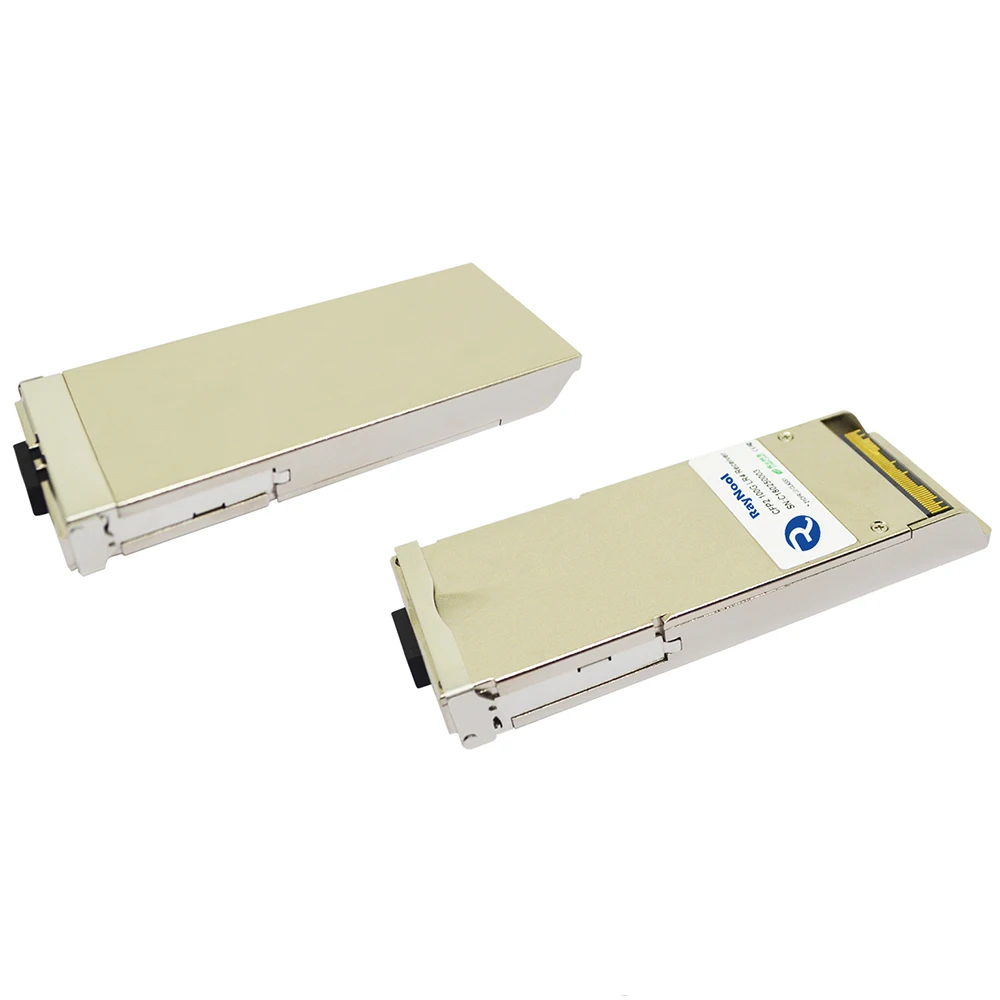

CFP2

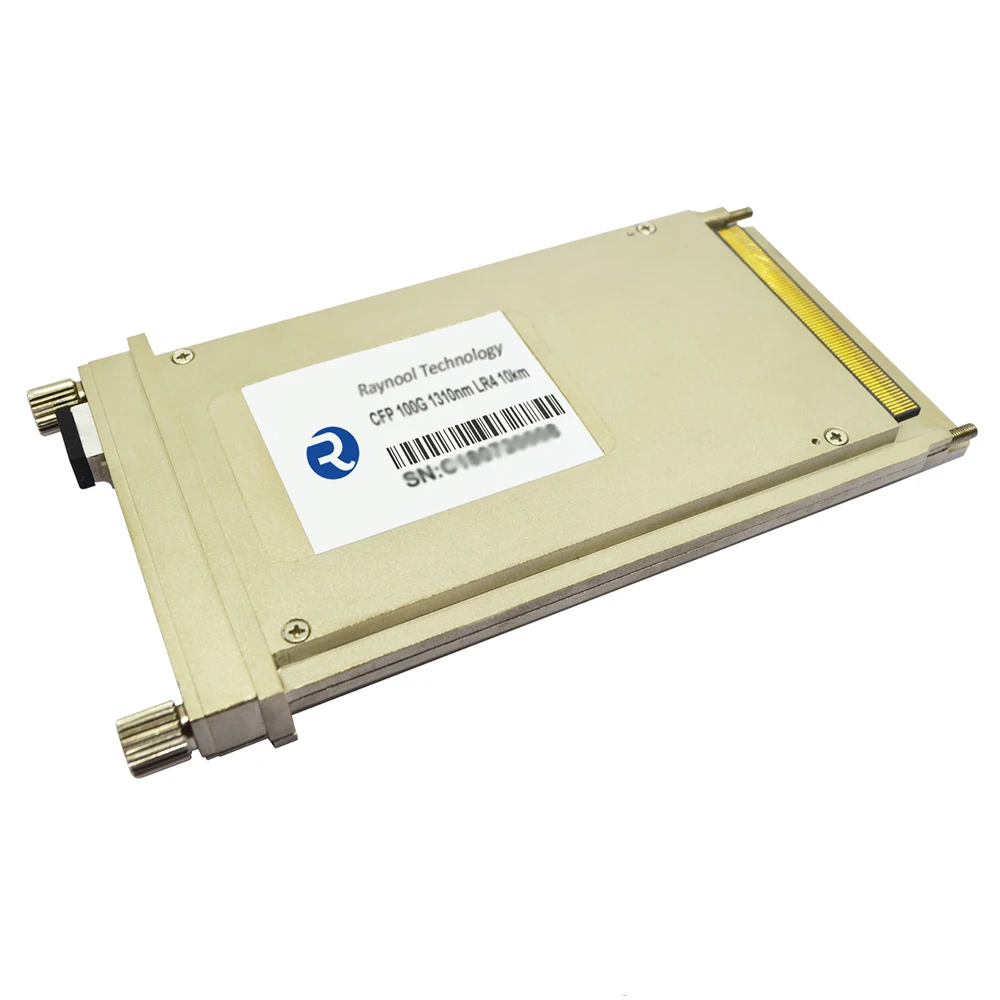

CFP
Why Choose Us
Provide Excellent service to our customer
No matter you order 1 pcs or 1 meter
You will get the same quality service.
Cable, Connector, Cable Assembly.
Raynool can help you.
FAQ
Q:Could you please advise reference list of customers?
A: We are an OEM manufacture of Amphenol & Rosenberger.
Q: Could you accept custom products?
A: Raynool is a custom solution provider,especially in Low PIM products,pls contact our sales and share the specification to us.
Q: What is your MOQ?
A: Our MOQ is normally 200 pcs.
Q: How about the Lead Time?
A: For connector, the LT is 2 weeks.
For Cable Assembly, the LT is 3 to 4 weeks.
For Coaxial Cable ,the LT is 4 weeks.
Leave a message to us,
We will come back to you with custom solution!
