GRIP L PIPE COUPLING SS04 EPDM/NBR PIPE COUPLING

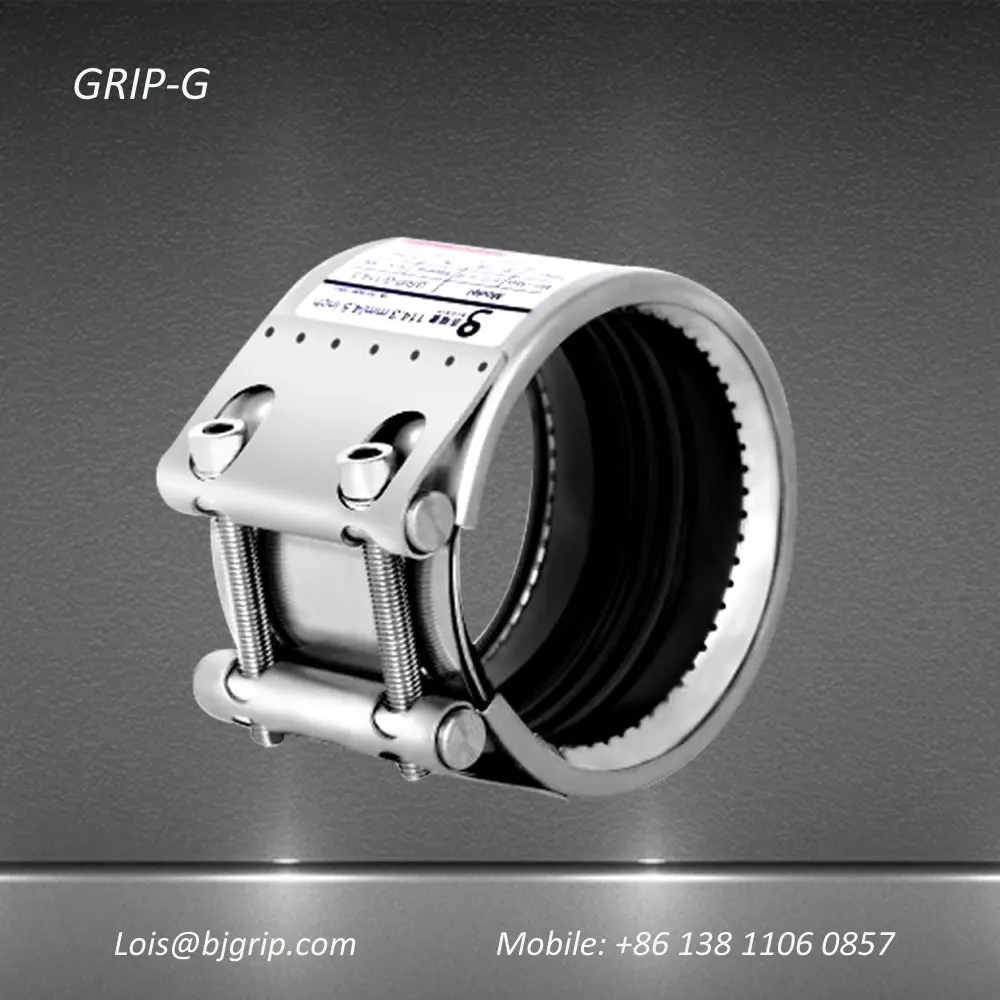

GRIP-G

Axially Restrained with Double Anchor Rings Couplings

The GRIP-G coupling is designed to replace the need for flanging, welding, pipe grooving and pipe threading by providing a quich and easy solutio to joining plain-end pipe.

The GRIP-G has two anchor rings which are placed adjacent to, but separate from, the sealing mechanism.

Suitable for pipes O.D 26.9mm~610mm

Please check follow detail technical data sheet, which include grip coupling size, coupling working pressure, and others.

Material in SS304, SS316, SS316TI and rubber in EPDM/NBR,/VITON/FKM.

More detail please check following material data.

GRIP pipe couplings offer you an easy to install, time saving and money saving solution. GRIP pipe couplings allow pipes to be joined without the need for flanging, grooving, threading or welding. By simply butting two pipes together and connecting with a GRIP pipe coupling, space, weight , time and cost savings are achieved with every installation .

Benefits of GRIP Couplings

1.  Universal use

l  Compatible with any traditional jointing system

l Joins pipes of the same or dissimilar materials

l Quick and simple repairs of damaged pipes without service interruptions

2. Reliable

l Stress-free, flexible pipe joint

l Compensates axial movement and angular deflection

l Pressure-resistant and leak-proof even with inaccurate pipe assembly

3. Easy handling

l Detachable and reusable

l Maintenance free and trouble free

l No time-consuming alignment and fitting work

l Easy installation technology

4. Durable

l Progressive sealing effect

l Progressive anchoring effect

l Corrosion resistant and temperature resistant

l Good resistant to chemicals

l Long service time

5. Space-saving

l Compact design for space-saving installation of pipes

l Light weight

l Needs little space

6. Fast and Safe

l Easy installation, no fire or explosion hazard during installation

l No cost for protective measures

l Absorbs vibration /oscillations

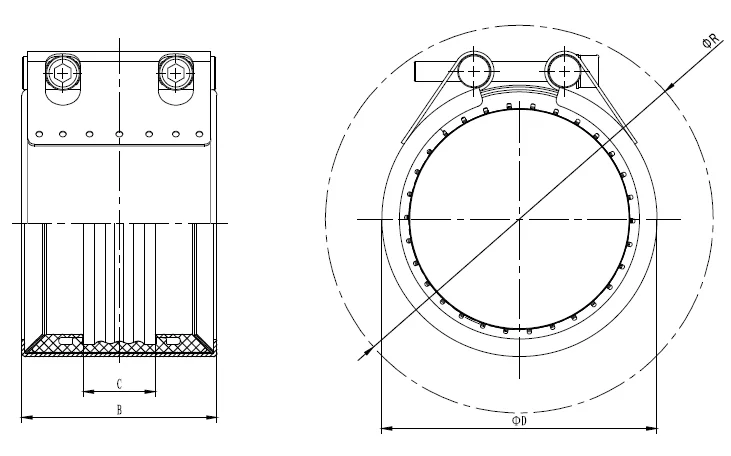

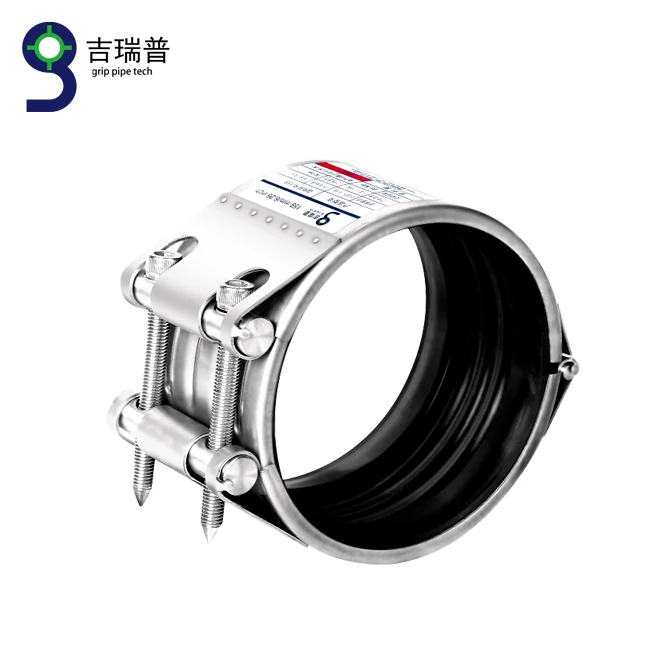

GRIP-G Pipe Couplings Outside View

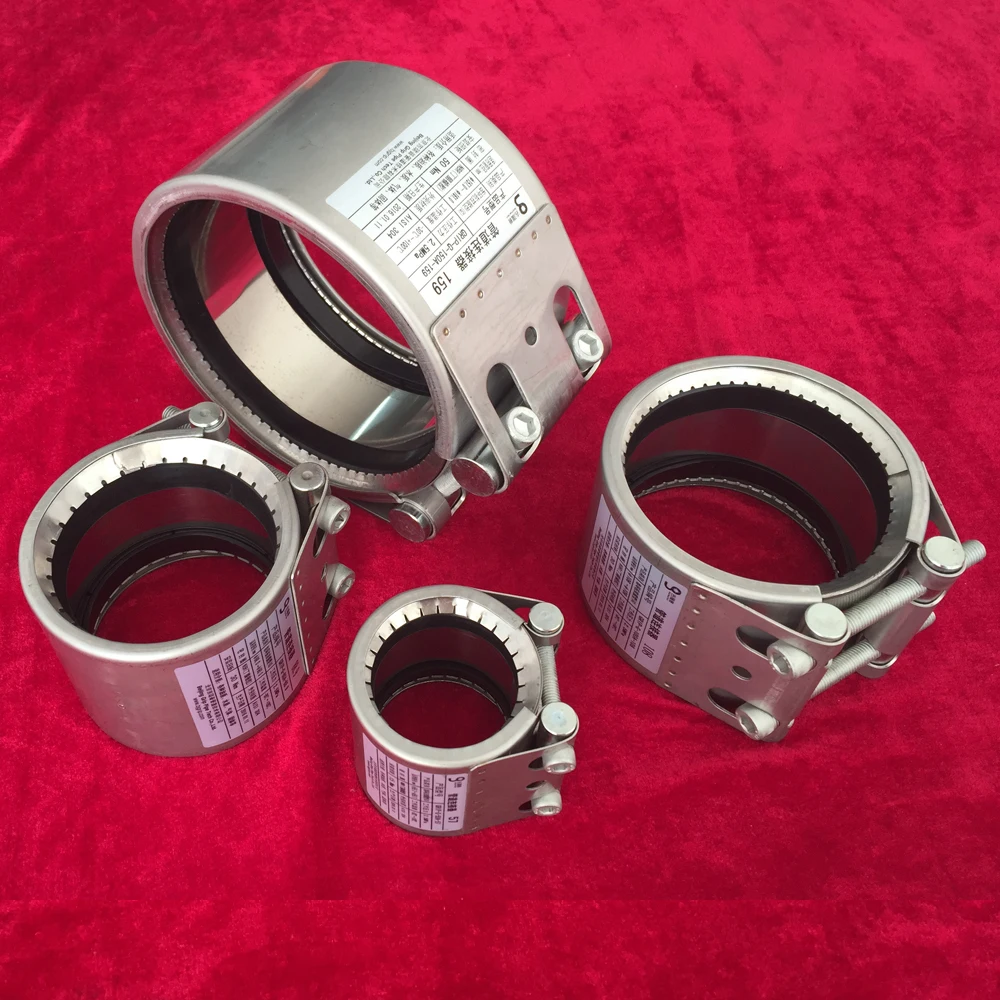

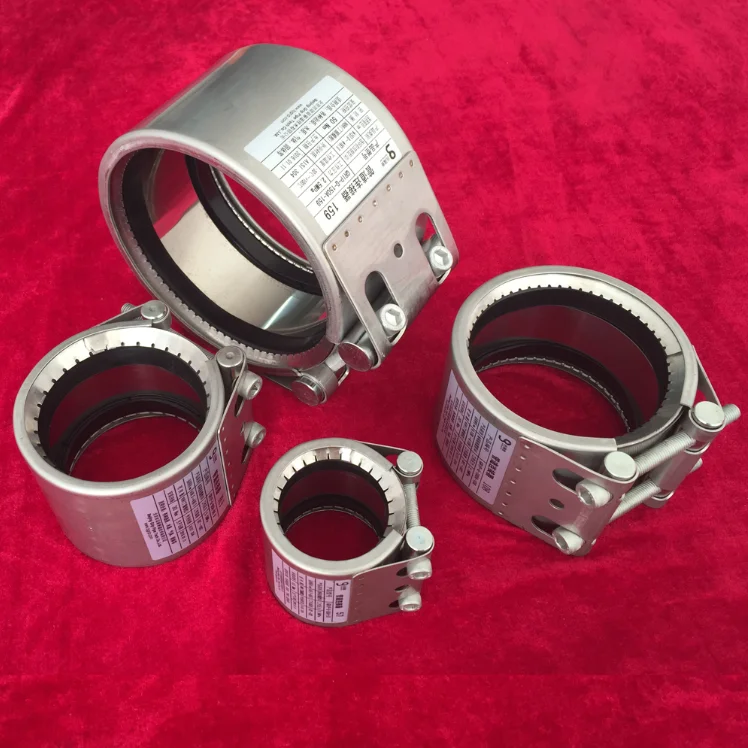

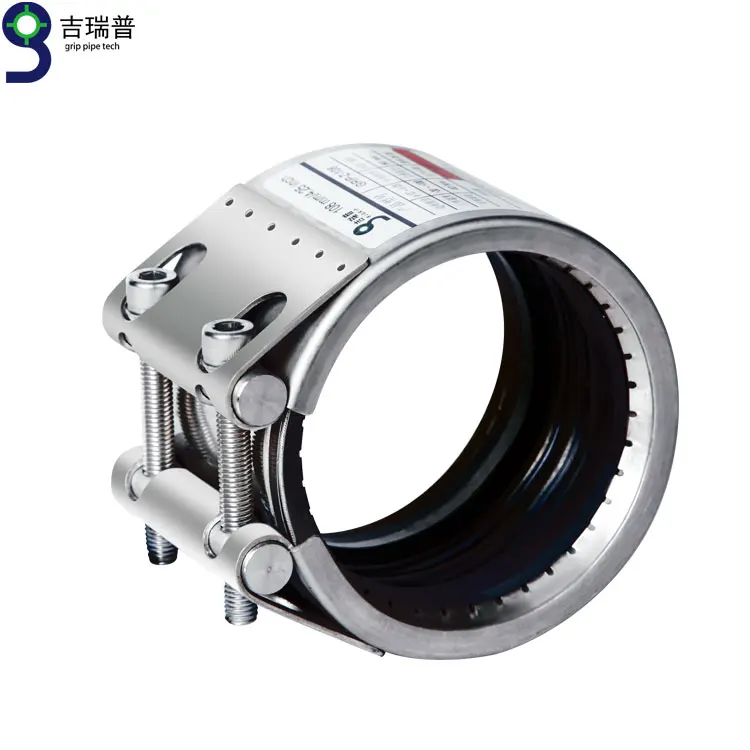

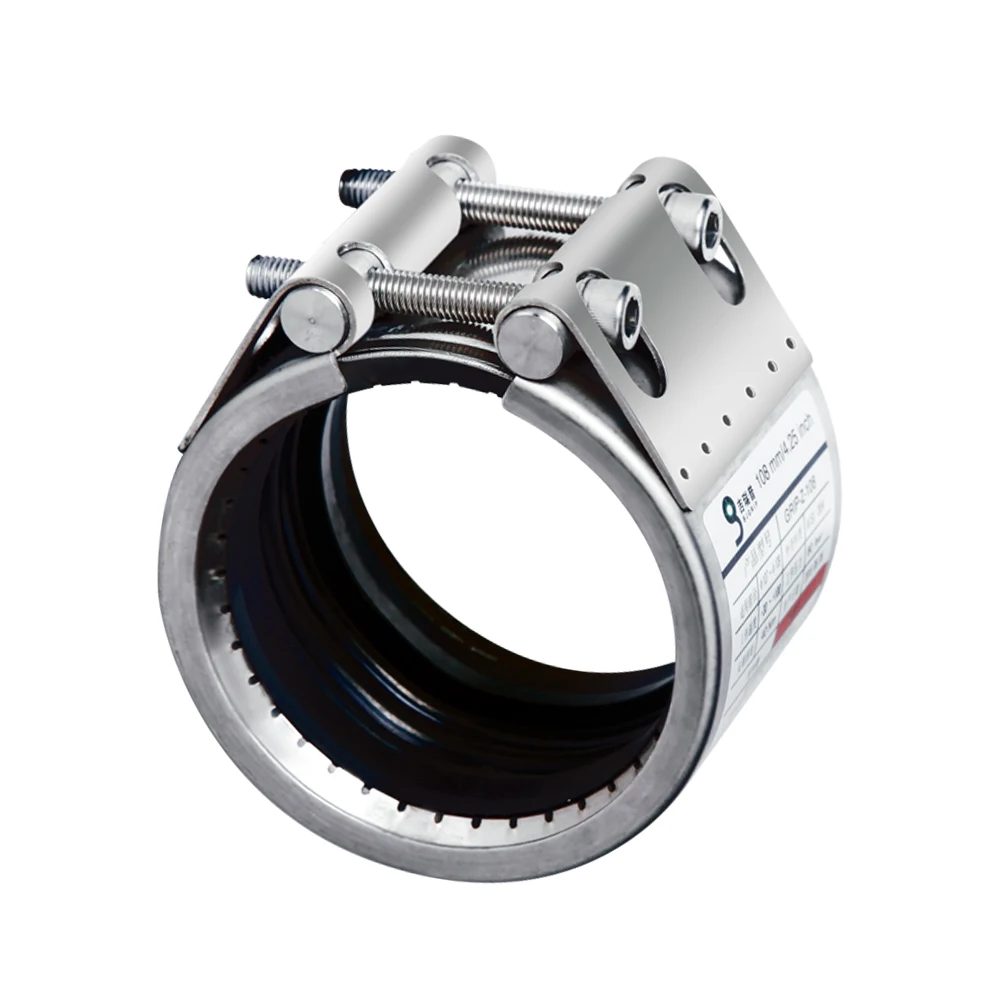

GRIP-G Pipe Couplings Pictures

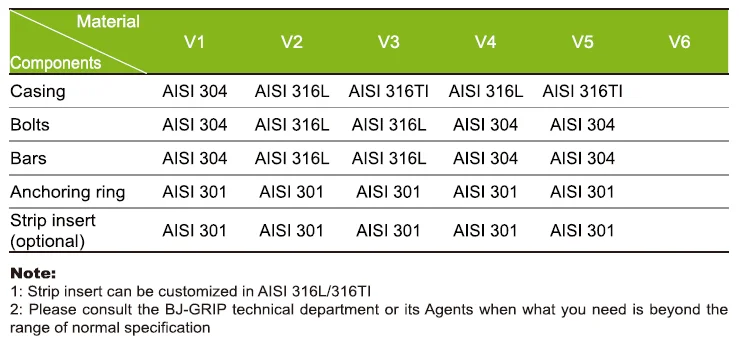

GRIP-G Pipe Couplings Material

Material                               Components	V1	V2	V3	V4	V5	V6
Casing	AISI 304	AISI 316L	AISI 316TI	AISI 316L	AISI 316TI	AISI 304
Bolts	AISI 304	AISI 316L	AISI 316L	AISI 304	AISI 304	AISI 4135
Bars	AISI 304	AISI 316L	AISI 316L	AISI 304	AISI 304	AISI 4135
Anchoring ring	AISI 301	AISI 301	AISI 301	AISI 301	AISI 301	AISI 301
Strip insert (optional)	AISI 301	AISI 301	AISI 301	AISI 301	AISI 301	AISI 301

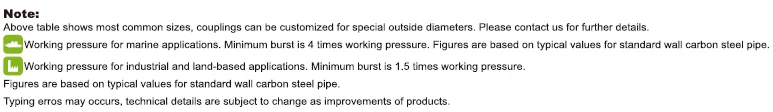

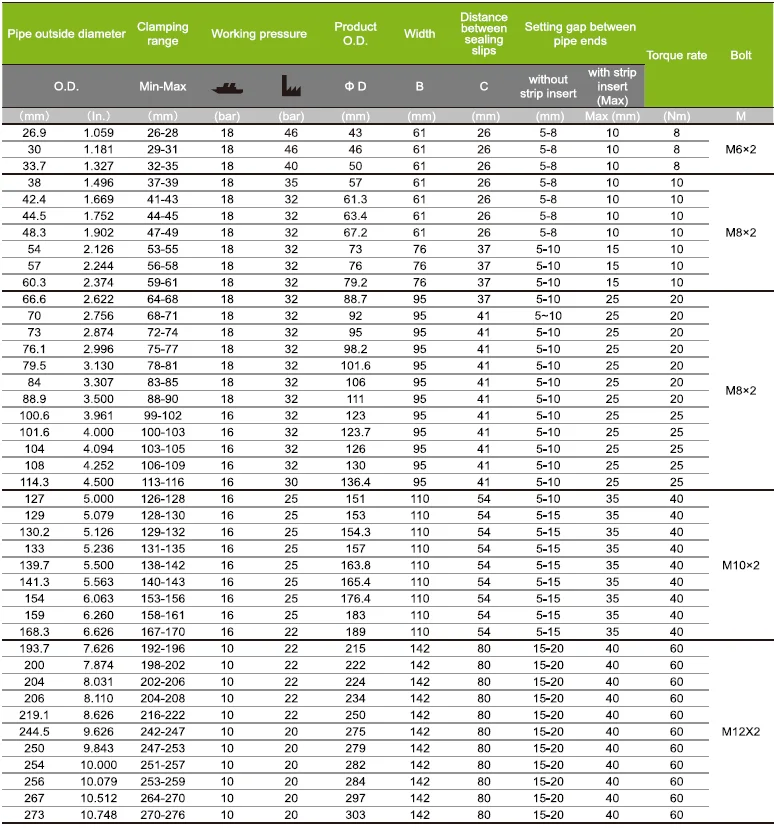

GRIP-G Pipe Couplings Technical Parameter

Beijing Grip Pipe Technologies Company Limited is located in Beijing Development Area (BDA), started pipe couplings and clamps R&D in late 1990s and started manufacturing in early 2000. Our patent, reliable and high quality pipe couplings and clamps were popular among military industries soon after they obtained the samples. Our products ideally solved their technical problems. Since then we Beijing Grip was acknowledged as an appointed pipe couplings supplier for marine equipment, shipbuilding, oil & gas in China for over decade. We continue developing and improving our products to meet customers increasingly demands.

Our products are certified with  ISO9001-2008 ,CCS (China Classification Society), DNV, which confirm BJGRIP quality and make us the No.1 pipe couplings manufacturer in China. We obtain 2000 square meters manufacturing workshop, two R&D teams and one QC team to ensure timely and qualified production.

Along with the development and business growth, we just expanded oversea markets in year 2012. Our mission is to supply our excellent high quality and cost effective pipe couplings to users worldwide!

Q: Are you a manufacturer or agent?
A: We are a professionaol pipe fittings manufacturer in Beijing.  With over 1500 square meters workshop, 60 skilled workers,advanced process equipment,we provide high quality and various pipe fittings, from stainless steel pipe couplings and clamps to forged steel victualic coupling, we can provide almost all pipe couplings you need.

Q: How can I buy from you?
A: Please send us an inquiry through alibaba or send emails to us directly. A quotation would be sent to you soon.

Q:How to pay you?
A: We accept L/C, T/T, Western Union as well as Paypal.

Q: What's your working time?

A: Regular opening hours: 8:30-12:00 and 13:00-17:30 from Monday to Friday.

Q: What will be the delivery time?
A: We usually keep small quantity of stock on regular items for immediate delivery.

     Please check with us again before ordering in case of any possible changes on stock.

Q: Can I visit you in China?
A:  You are welcome to visit us at any time.

Q: What's your address:
A:  Office located in  32# Jinghai 1st Rd BDA  Beijing China .

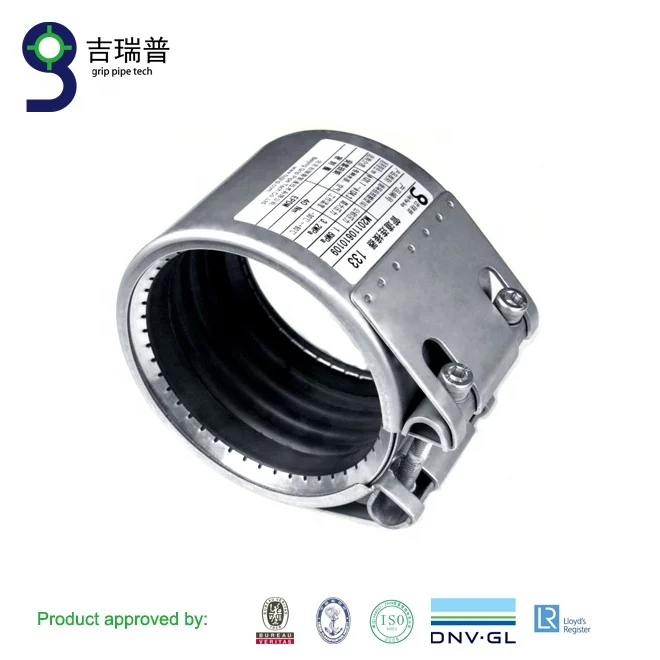

All products have been ISO9001 certified and DNV.GL, CCS, BV, RS approved.
