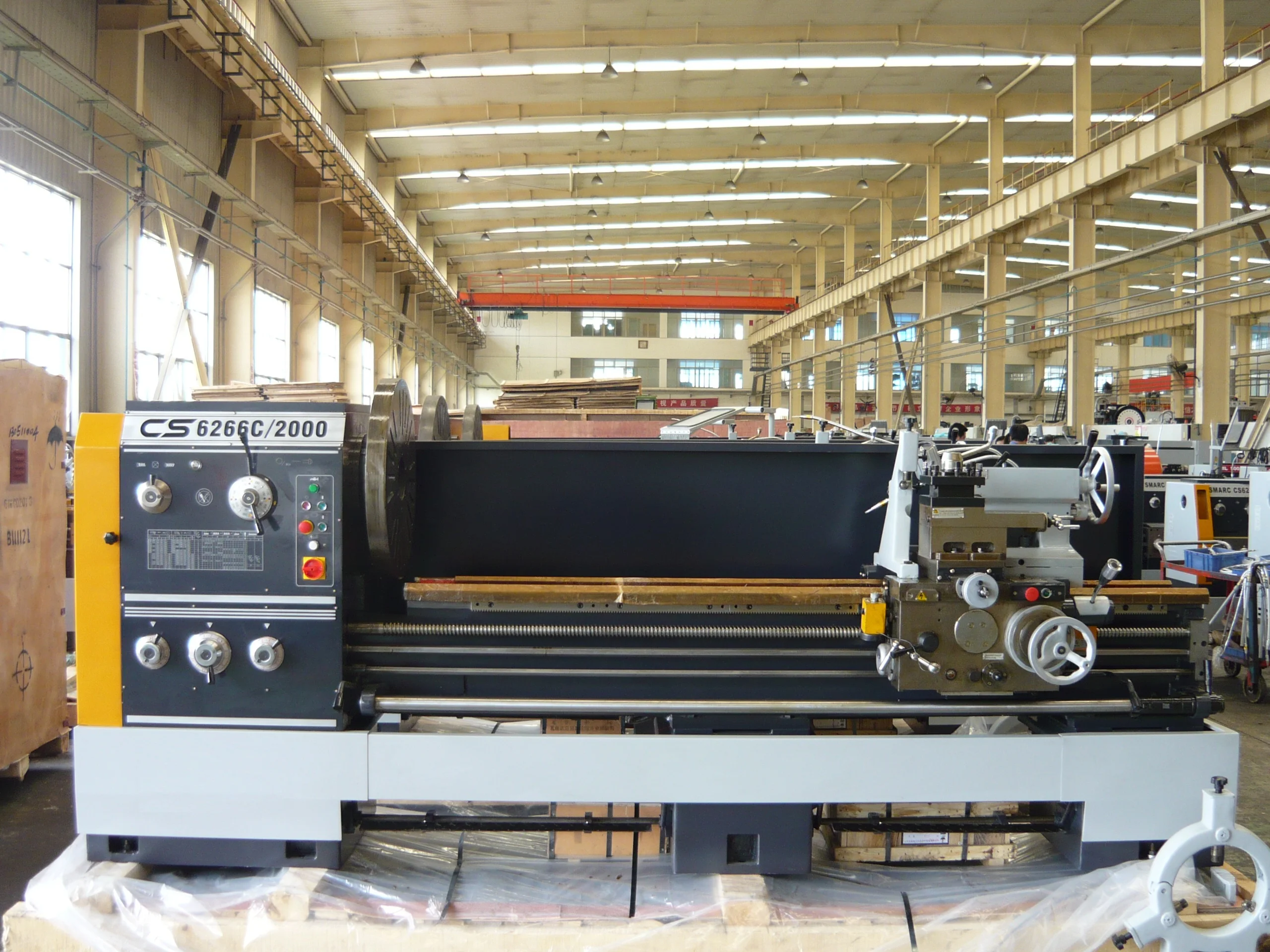

manual lathe CS6266Cx2000 big spindle bore 105mm China lathe machine with CE standard
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (62506075436):
Product Overview
Description
Product Description
Manual lathe Main Features:
1. This lathe is of high power, high rigidity, wide rotating speed.
2. It can achieve high-speed powerful cutting for cast iron, steel and other various metal.

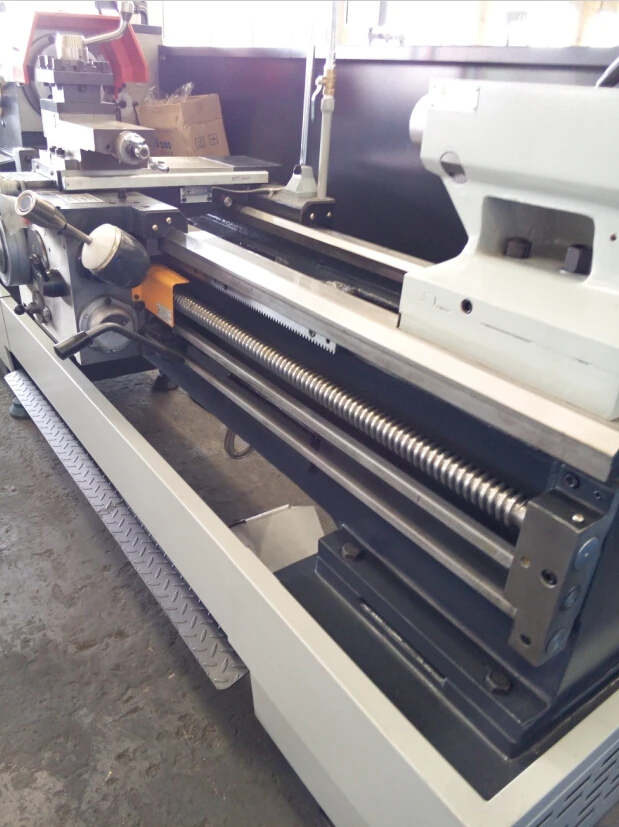

3. Machine guideway is TSF type with durable use.

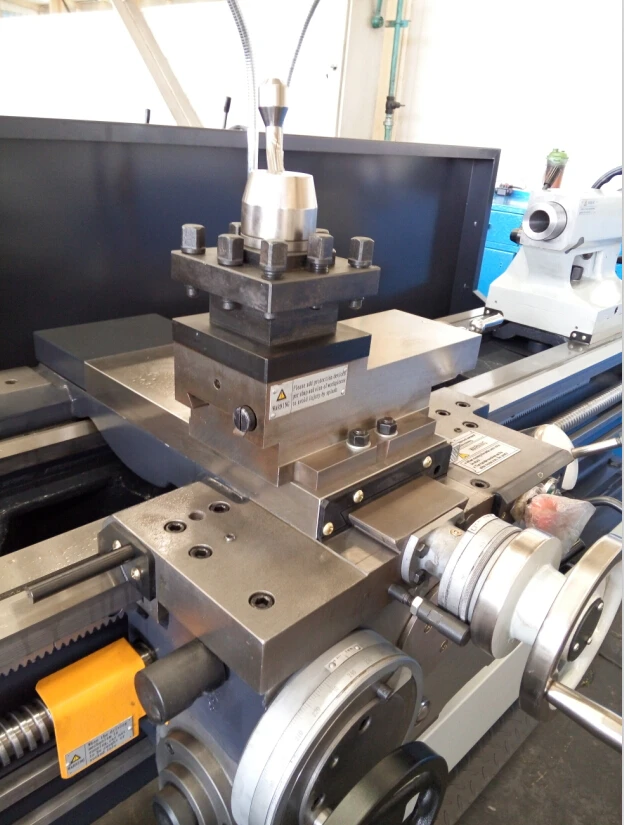

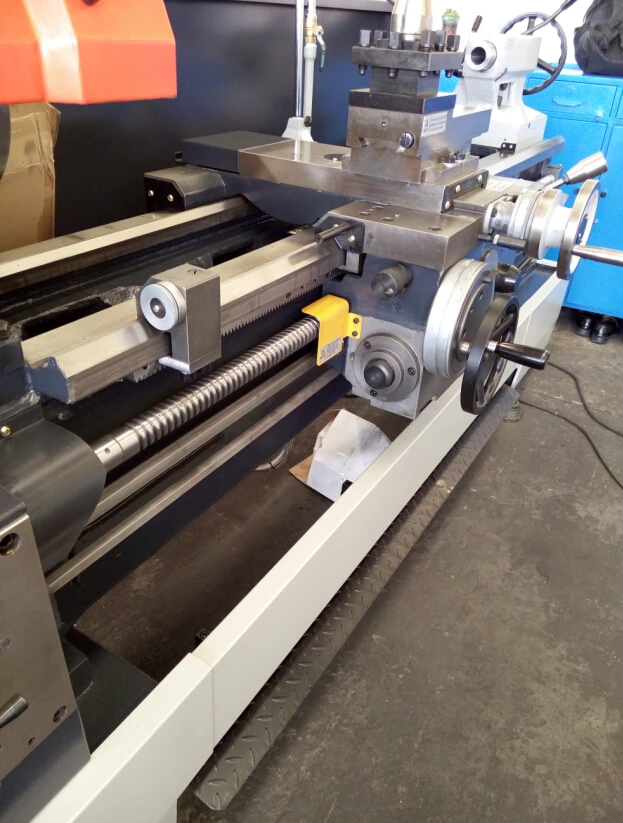

4. The carriage comes with rapid speed, easy to operate.
Specifications | CS6240 | CS6250B | CS6266B | CS6280B | CS6250C | CS6266C | CS6280C | ||||||
Swing over bed | 400mm | 500mm | 660mm | 800mm | 500mm | 660mm | 800mm | ||||||
Swing over cross slide | 220mm | 300mm | 420mm | 560mm | 300mm | 420mm | 560mm | ||||||
Swing over gap | 630mm | 710mm | 870mm | 1000mm | 710mm | 870mm | 1000mm | ||||||
Max. workpiece length | 750/1000/1500/2000/3000mm | 1000/1500/2000/3000mm | 2000/3000mm | 1000/1500/2000/3000mm | 2000/3000mm | ||||||||
Spindle bore | 52mm | 82mm | 105mm | ||||||||||
Spindle taper | CS6240: ISO 702/III NO.6 bayonet lock; others: ISO 702/III NO.8 com-lock type | ||||||||||||
Spindle speed | 24 steps 9-1600rpm | 24steps 8-1400rmp | 12 steps 36-1600rpm | 12 steps 30-1400rmp | |||||||||
Spindle motor | 7.5kw | ||||||||||||
Diameter of quill | 75mm | 90mm | |||||||||||
Metric thread range | 48kinds 0.5-224mm | 22kinds 1-14mm | |||||||||||
Inch thread range | 48 kinds 72-1/4t.p.i | 25kinds 28-2t.p.i | |||||||||||
Taper of tailstock | MT5 | ||||||||||||
N.W/G.W | 1795/2050/2250/2450/2850KGS | 2050/2100/2300/2500/2900KGS | 2400/2600/2800/3000KGS | 3300/3700KGS | 2100/2300/2500/2900KGS | 2200/2400/2600/3000KGS | 3000/3200KGS | ||||||
Packing size | 2328/2632/6132/3632/4632*975*1230mm | 2632/6132/3632/4632*1050*1350mm | 3365/4365*1340*1430mm | 2632/6132/3632/4632*975*1270/1450mm | 3365/4365*1340*1490mm | ||||||||
Standard accessories:
3 jaw chuck,
4 jaw chuck,
face plate,
coolant system,
working light,
foot brake,
rapid travel,
steady rest,
follow rest,
change gears set
Tool Box & Tools
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?

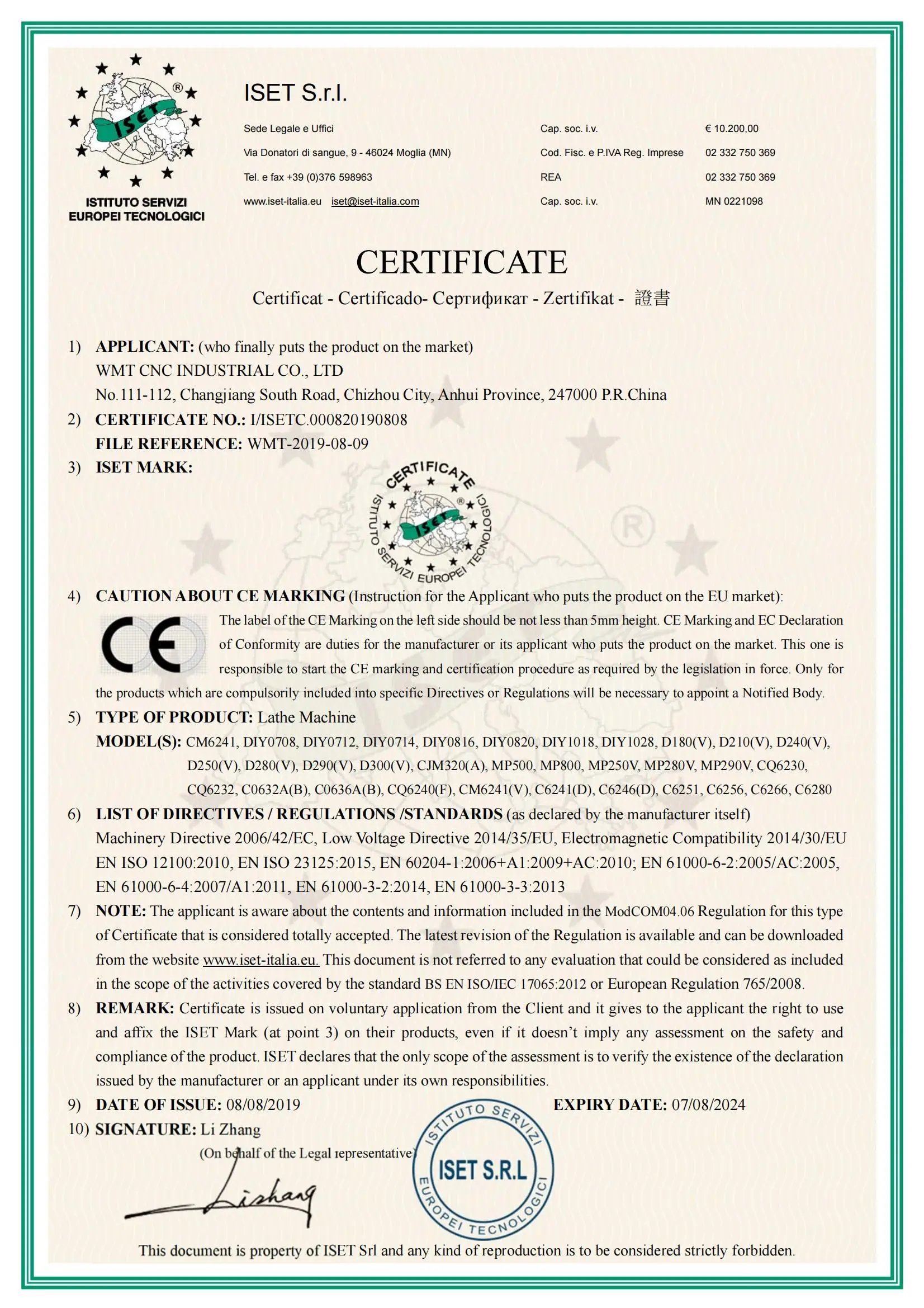

A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
