CE RS485 Modbus 4 20mA SDI12 Compact Weather Station Instrument Ultrasonic Wind Speed Direction Sensor for Environment
- Category: >>>
- Supplier: BGT Technology (Beijing) Co. Ltd.
Share on (62506150101):
Product Overview
Description
Please Attention
**One-stop Emergency Solution Supplier**
2. Nice quality.
3. Small order is welcome.
4. Online payment.
5. Refund money in case of bad quality.
6. Sample offered but you need to pay it.
7. 1 year free repair for quality warranty.
Products Description

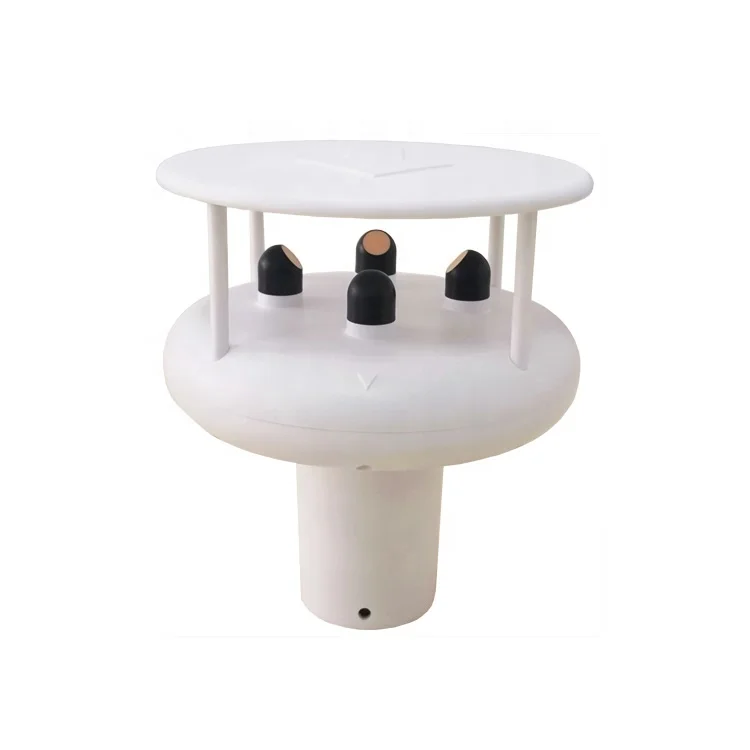

BGT-CF2 Ultrasonic Wind Speed and Direction Sensor
BGT-CF2 ultrasonic anemometer has advantage of light weigh, robust,no moving parts, free of maintenance and calibration on site, simultaneously output wind speed and direction.
BGT-CF2 can be used in conjunction with a PC, data logger or other device, which has compatible communication protocol with it.
BGT-CF2 can integrate optional modules to meet customers’ requirement without changing its appearance. Such
BGT-CF2 can be used in conjunction with a PC, data logger or other device, which has compatible communication protocol with it.
BGT-CF2 can integrate optional modules to meet customers’ requirement without changing its appearance. Such
as adding barometric pressure sensor to measure air pressure, or adding 3D module to measure vertical or horizontal amplitude of vibration.
Data Sheet
Item No. | BGT-CF2 | ||
Wind speed | Range | 0 - 60m/s | |
Accuracy | ±2% | ||
Resolution | 0.01m/s | ||
Unit | m/s,km/h,knots,mph,ft/min (selectable) | ||
Wing direction | Measure Range | 0-359° | |
intersection angle with geographic north | 0-359° | ||
Accuracy | ±3° | ||
Resolution | 1° | ||
Digital output | Interface | RS232/RS485/SDI-12 | |
Baud rate | 9600(default) 1200-19200(configurable) | ||
Frequency | Standard: 1Hz (1 output per second) Customized:4Hz(4 outputs per second) | ||
protocol | ModBus-RTU/NMEA 0183/SDI-12 | ||
Analogue output (current output is optional) | Two ways 4-20mA Max.load 500Ω | ||
Protection grade | IP65 | ||
Operating Temperature | -40℃ - +70℃ | ||
Operating Humidity | 0 - 100% | ||
Power supply | DC 5－30V | ||
Power Consumption | 5mA@12V(Heater off) 125mA@12V(Heater on) | ||

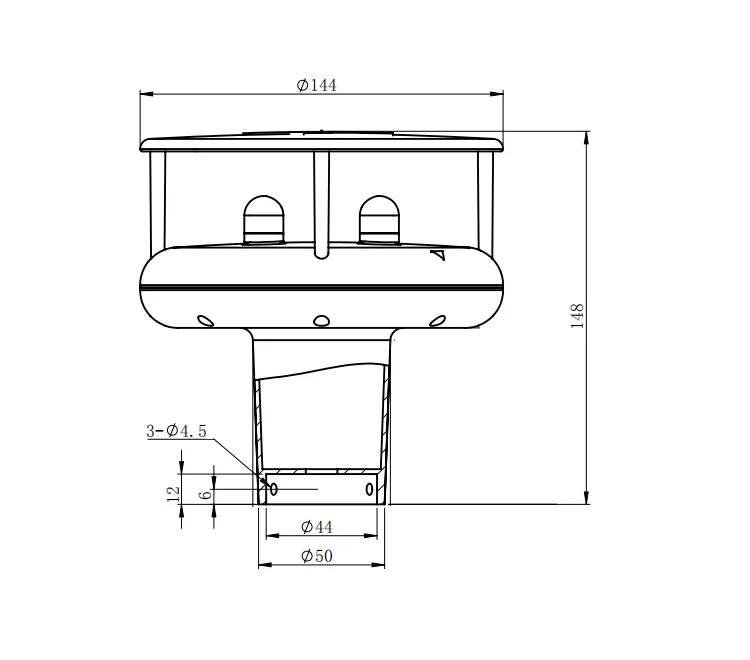

Size/Weight | Φ144×165mm / 0.68kg | ||
Body material | ASA | ||

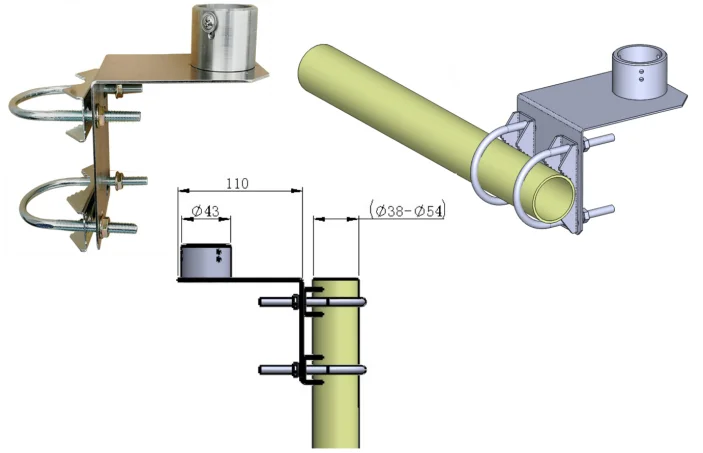

Installation
Installation notice:
1.Check frequently to ensure that sensors are not interfered with by other operating equipment that may not fully comply with common standards, such as radio/radar transmitters, ship engines, engines, etc.2. Do not install in the same plane with any radar scanning device, at least 2M above the distance;
3.It is recommended to keep some distance from the surrounding radio receiving antennas;
4.Use the cable recommended by the company;
5.If there is no correct connection after the cable is cut off, or the cable shielding wire is not properly connected, there is no need to create a ground loop, just wire it according to the installation instructions;
6.Ensure the continuous power supply of the equipment during operation;
7.Avoid the flocculation generated by surrounding buildings such as trees, telegraph poles, tall buildings, etc., which can affect the accuracy of ultrasonic anemometer;
Application
weather Station.
Environment Mornitoring
Road & Bridge
Order process
--In order to send you the specific quotation, please feel free to tell us the following information:
1. The power supply you required -- We have DC12V /DC24V for your choices.
2. The output method you required -- We have RS485 /RS232/SDI12for your choices.
3. The cable length you required -- The standard is 2.5m, if you want longer, please let me know.
3. The cable length you required -- The standard is 2.5m, if you want longer, please let me know.
4. The quantity you want to order--Sample is also welcome.
5. Price--EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
BGT Product Good Feedback
More than 30 good feedback from Alibaba Trade Assurance Order since 2018.
Company Profile
As a wholly owned subsidiary of Beijing Guoxinhuayuan Technology Co., Ltd , BGT Technology (Beijing) Co., Ltd. specialized in the import & export business, which is a one-stop emergency solution supplier with production, research and development, sales of emergency supplies, road rescue, fire supplies, flood prevention supplies, Relief supplies, chemical accident emergency treatment, natural disaster monitoring and early warning solutions and other industrial products. Our products have been sold to more than 70
countries. Meanwhile, we have software and hardware R&D department and a team of experts to support customers' program planning and customized services, owned more than 50 patents and 60 software copy rights. We cooperate with disaster prevention experts at home and abroad to plan and implement a number of comprehensive hazards prevention monitoring and early warning projects, and set up a national demonstration base in Changping district, Beijing, China. In line with the professional, innovative, integrity,
persistent concept, committed to customers’ demands, to provide customers with a full set of solutions, as well as efficient, timely after-sales service! We would like to become an IoT enterprise serving the field of global disaster prevention and reduction.
countries. Meanwhile, we have software and hardware R&D department and a team of experts to support customers' program planning and customized services, owned more than 50 patents and 60 software copy rights. We cooperate with disaster prevention experts at home and abroad to plan and implement a number of comprehensive hazards prevention monitoring and early warning projects, and set up a national demonstration base in Changping district, Beijing, China. In line with the professional, innovative, integrity,
persistent concept, committed to customers’ demands, to provide customers with a full set of solutions, as well as efficient, timely after-sales service! We would like to become an IoT enterprise serving the field of global disaster prevention and reduction.
Our Factory
FAQ
Q1: Are you trading company or manufacturer?
A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs.
Q2. Can I have a free sample for testing ?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products?
A: BGT Technology (Beijing) Co., Ltd. is a trading company 100% holding by Beijing Guoxinhuayuan Technology Co., Ltd. Beijing Guoxinhuayuan Technology Co., Ltd is manufacturer for emergency solutions and producs.
Q2. Can I have a free sample for testing ?
A: Sample order is acceptable, but need you to pay for the product cost and freight .
Q3. What about the lead time?
A: Sample needs 4-5 working days after receiving your payment, mass production needs extra 4-5 working days.
Q4: Is it OK to print my logo on the products?
A: Yes, we support OEM/ODM service.
Q5: Do you offer guarantee for the products?
Q7. Do you have certifications?
A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc.
Q8: How is the quality of your goods?
A:Yes, we offer 1 year warranty to our products.
Q6: Can I visit your company?
A: Yes, warmly welcome to visit our company.
Q7. Do you have certifications?
A: Yes, we have ISO9001, ISO 14001, OHSAS18001, CE, etc.
Q8: How is the quality of your goods?
A: We make a commitment to offer products with good apperance and nice quality to customers. If there is some questions for the product, we have after-sale team to serve you. And we offer 1 year warranty
