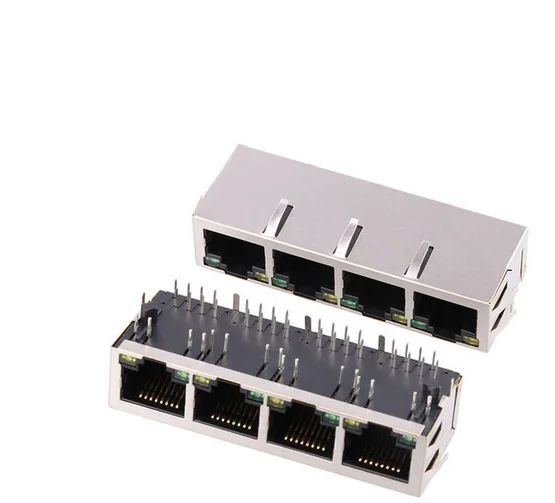

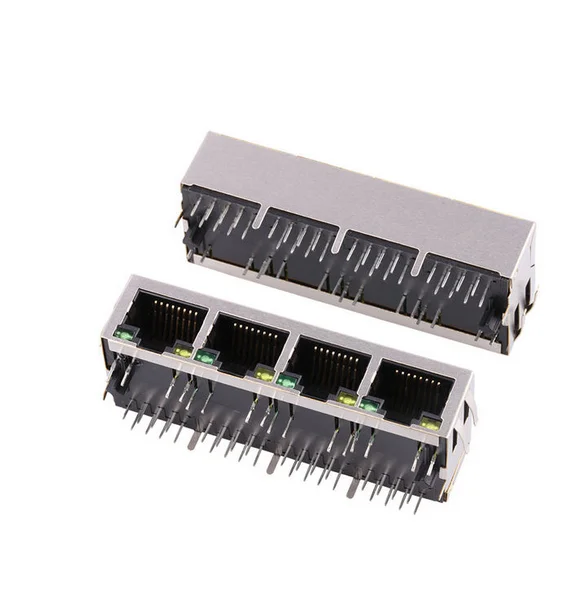

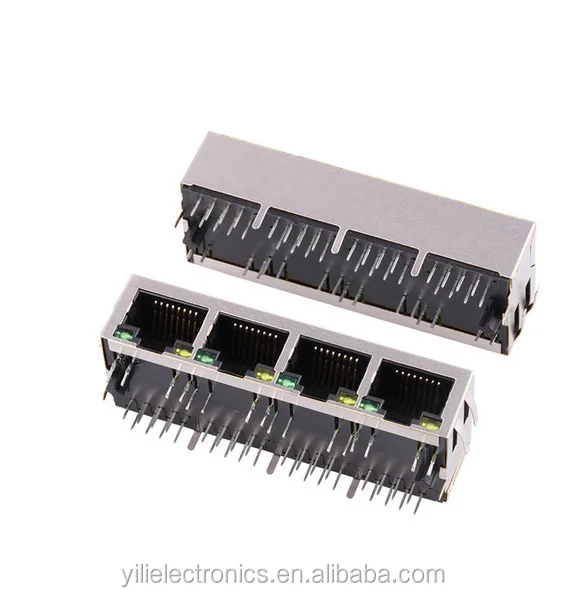

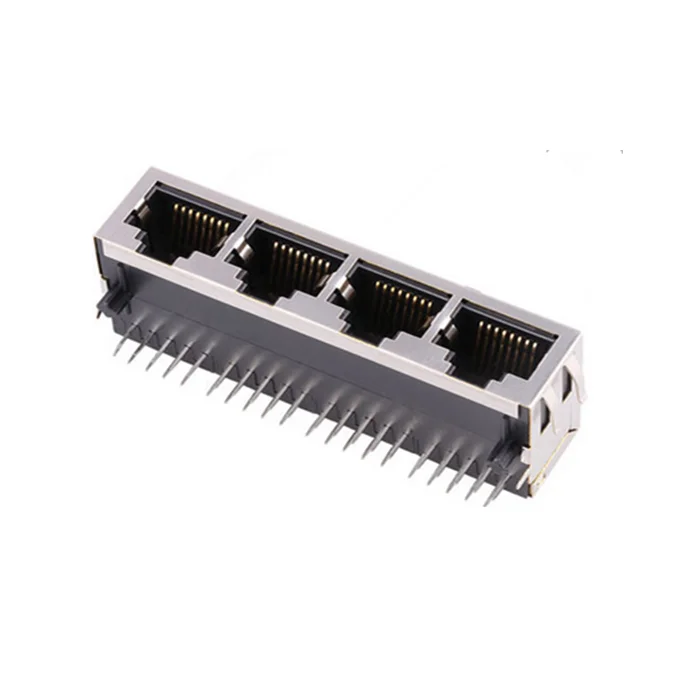

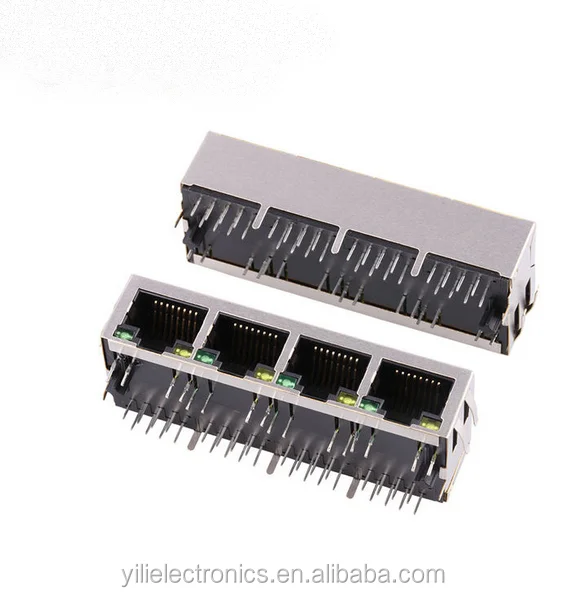

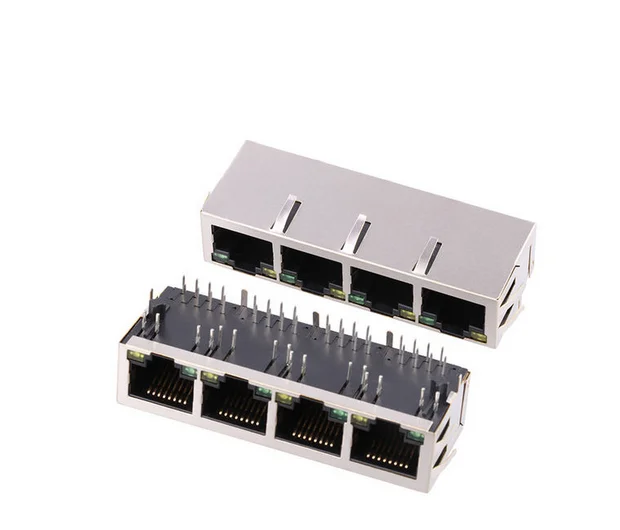

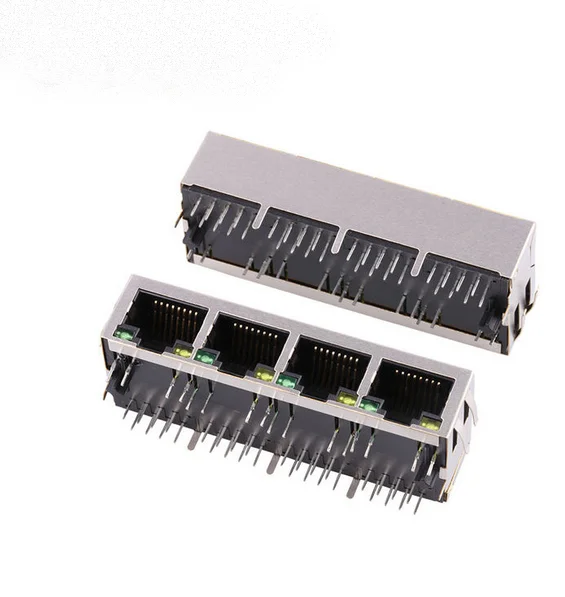

Professional Manufacturer 100 Base 1x4 Port RJ 45 Connector Transformer with Shield Jack
Professional Manufacturer 100 Base 1x4 Port RJ 45 Connector Transformer with Shield Jack
Professional Manufacturer 100 Base 1x4 Port RJ 45 Connector Transformer with Shield Jack
Professional Manufacturer 100 Base 1x4 Port RJ 45 Connector Transformer with Shield Jack
Professional Manufacturer 100 Base 1x4 Port RJ 45 Connector Transformer with Shield Jack
Professional Manufacturer 100 Base 1x4 Port RJ 45 Connector Transformer with Shield Jack
Professional Manufacturer 100 Base 1x4 Port RJ 45 Connector Transformer with Shield Jack

Professional Manufacturer 100 Base 1x4 Port RJ 45 Connector Transformer with Shield Jack

Share on (62506318075):


Price:$1.92 - $1.98

Quantity:


Product Overview

Description



Product Description


Professional Manufacturer of 1X4 Port RJ 45 Female Connector with Shield


1.MATERIAL:
1-1.SHELL:
BRASS
1-2.HOUSING:
PBT+30%G.F. UL94 V-0 BLACK
1-3.TEMINARL:
Phosphor Bronze
2.PLATING SPECIFICATION
2-1.TERMINAL:
GOLD PLATED/3U"/6U"/15U"/30U"
2-2.SHELL:
NICKEL PLATED
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE:
5N~20N.
3-2.WITHDRAWAL FORCE:
 INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY:
750 Cycles MIN.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING:
1.5A.
4-2.CONTACT RESISTANCE:
30milliohm Max
4-3.INSULATION RESISTANCE:
500 MΩ MIN @ 500V DC.
4-4.DIELECTRIC WITHSTAND VOLTAGE:
100V/AC.
5.OPERATING TEMPERATURE RANGE:
-40℃ to +85℃
6.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
