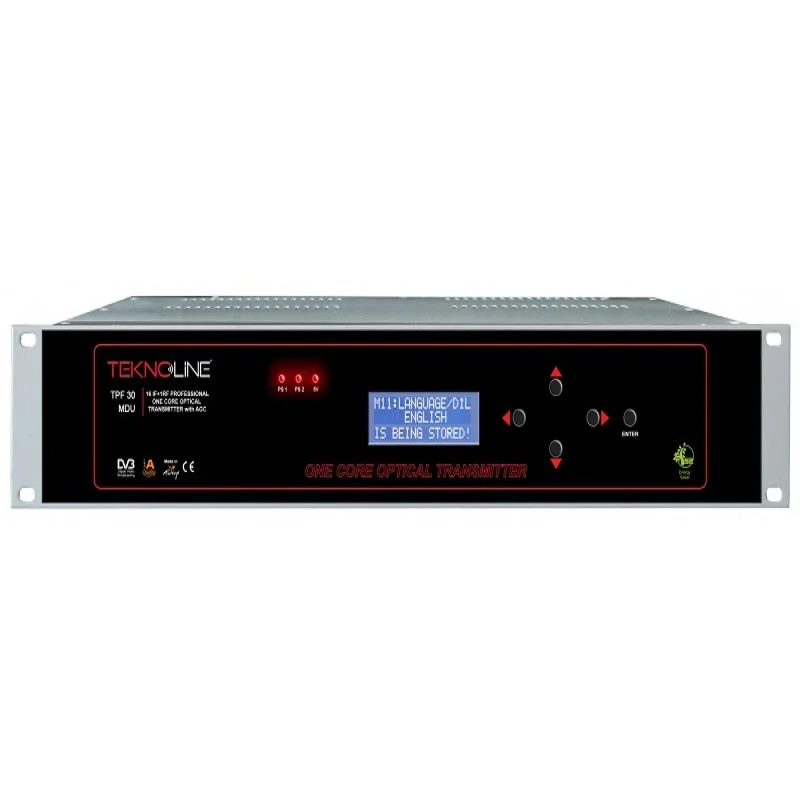

Best Quality TPF 30 MDU 2 SAT&MDU 1 TERR (9 IF 1 RF) Transmitter
- Category: >>>
- Supplier: TEKNOLINE TEKNOLOJIK SISTEMLERI ANONIM SIRKETI
Share on (62506346735):
Product Overview
Description
Product Description
[TPF 30 MDU] 2 SAT&MDU + 1 TERR (9 IF + 1 RF) Transmitter
Input\t10 F Connector (9IF+1RF) (75 Ohm)
Output\t1 SC/APC (Full Band) Optical Connector
TERR Frequency Range\t47-870MHZ
Satellite Frequency Range\t950-2150MHZ
Satellite Gain\t23dB ±2
Terr Gain(DVB-C/DVB-T)\t15 dB ± 1
Gain Adjustment\t0-15 dB (with multi-turn trimpot)
Optical Wavelength Width\t1270-1430 (CWDM)
Max. Terr Signal Input\t90 dB ± 5
Max. Sat Signal Input\t80 dB ± 5
Optical Output Power\t4 mW (6dBm)
Power Supply\t100-240 VAC 50 W
Operating Temperature\t-40+85°C
Dimensions\tDimensions\t
Weight\t3900 gr
Output\t1 SC/APC (Full Band) Optical Connector
TERR Frequency Range\t47-870MHZ
Satellite Frequency Range\t950-2150MHZ
Satellite Gain\t23dB ±2
Terr Gain(DVB-C/DVB-T)\t15 dB ± 1
Gain Adjustment\t0-15 dB (with multi-turn trimpot)
Optical Wavelength Width\t1270-1430 (CWDM)
Max. Terr Signal Input\t90 dB ± 5
Max. Sat Signal Input\t80 dB ± 5
Optical Output Power\t4 mW (6dBm)
Power Supply\t100-240 VAC 50 W
Operating Temperature\t-40+85°C
Dimensions\tDimensions\t
Weight\t3900 gr
| \t | \t | \t |
| \t | \t | \t |
Detailed Images
Packing & Delivery
Packing and Delivery
We pack your products in the best way and deliver them to you as soon as possible.
We pack your products in the best way and deliver them to you as soon as possible.
