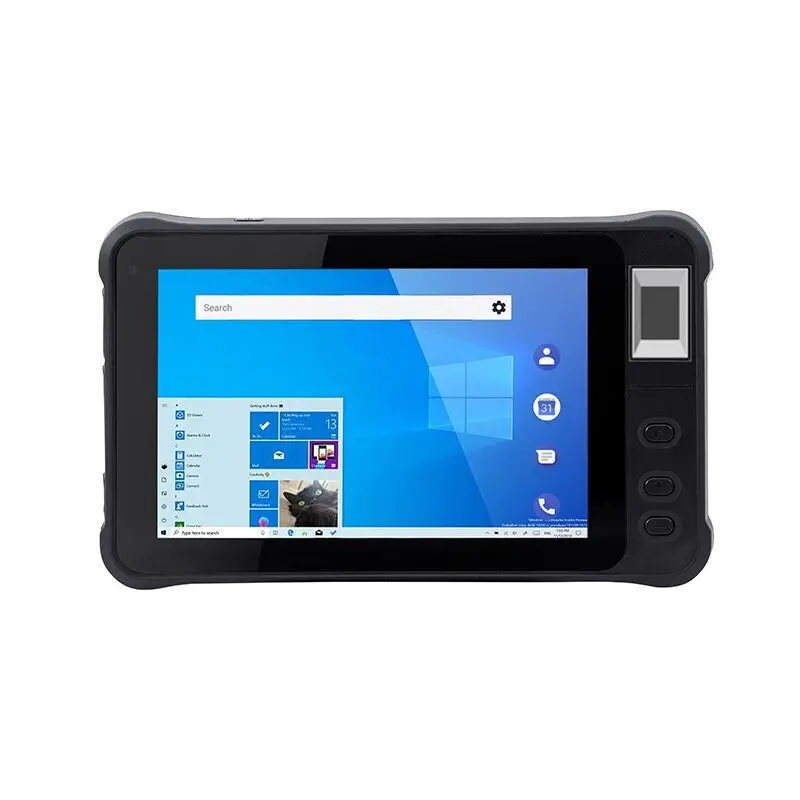

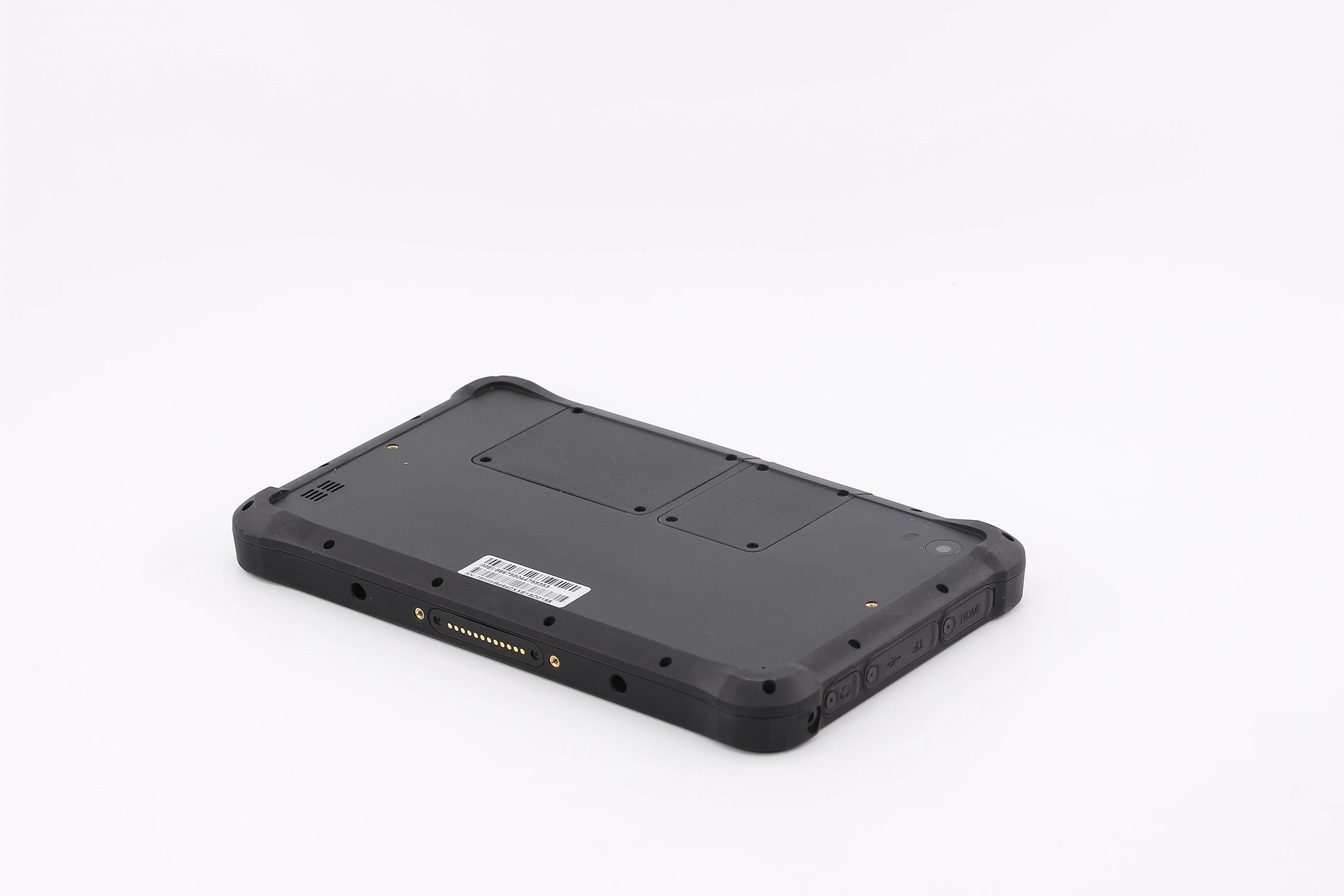

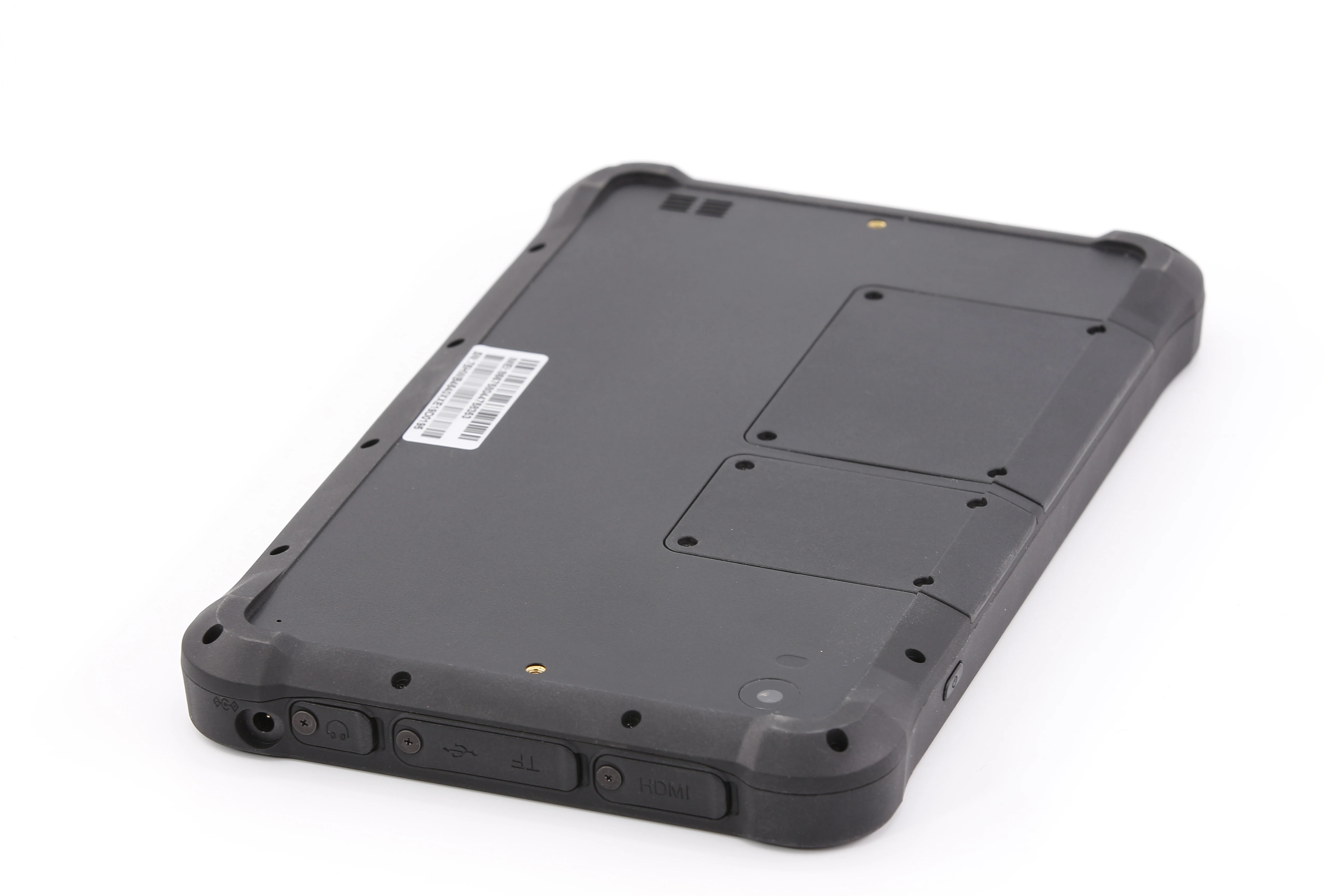

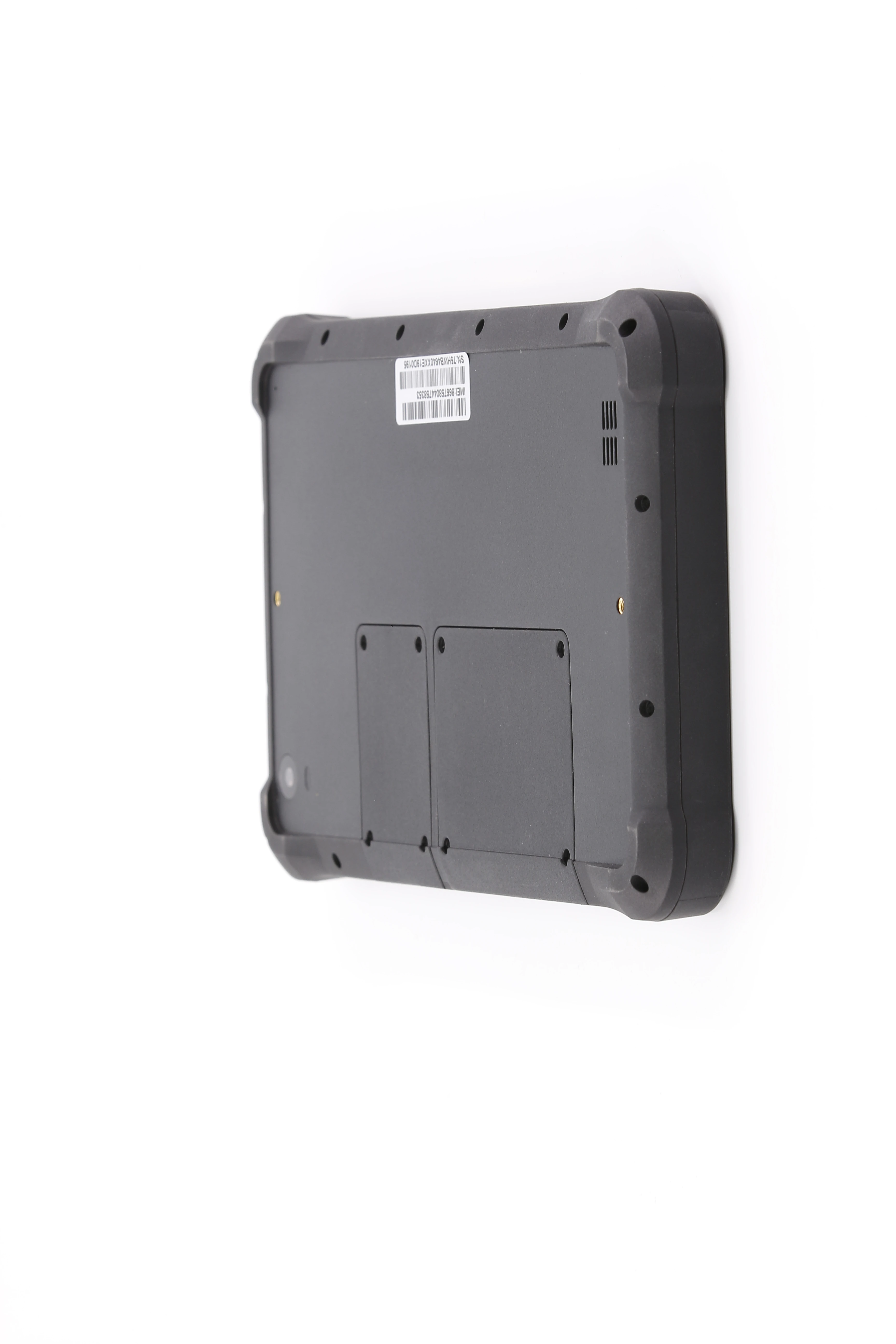

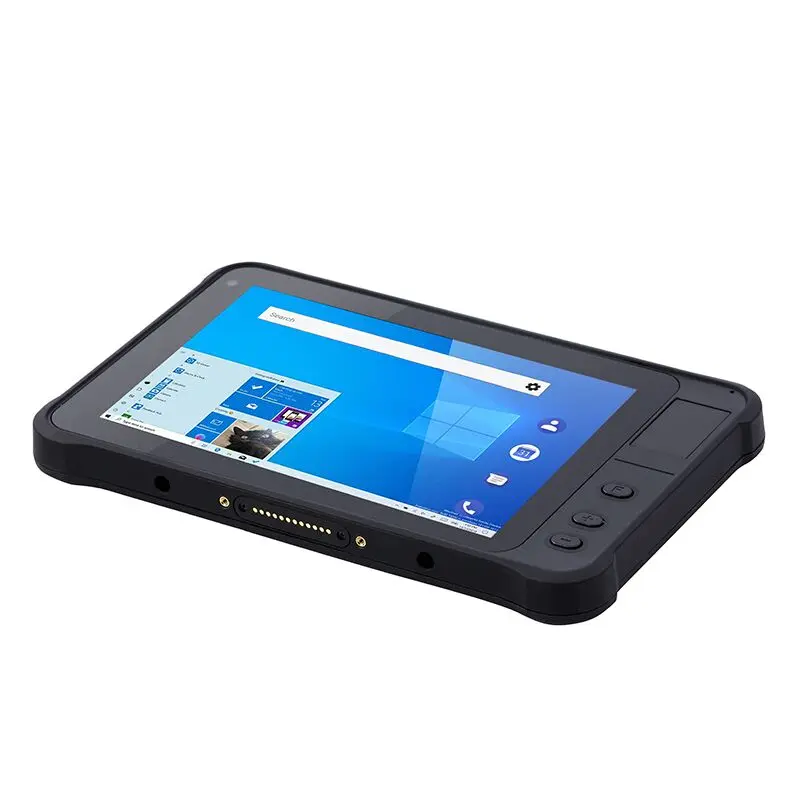

7 inch industrial tablet PC supports 4G LTE,HF RFID,NFC,fingerprint,UHF,1000 nits screen
- Category: >>>
- Supplier: Shenzhen MobileX Technology Co. Ltd.
Share on (62506380347):
Product Overview
Description
Product Description
Rugged tablet with UHF RFID fingerprintindustrial Tablet PC,Biometric Tablet.
-7'' Gorilla glass screen,with dual OS
-Rugged IP67 protective class for outdoor industrial usage
-Supports UHF and fingerprint
-4G LTE/1D/2D barcode scanner/NXP NFC(13.56M)
-4G LTE/1D/2D barcode scanner/NXP NFC(13.56M)
OS | Windows 10 HOME/Pro/IOT |
SDK | C++,C# Software Development Kit |
CPU | Intel Cherrytrail Z8350 1.44Ghz-1.92GHz |
GPU | Intel® HD Graphics |
Memory | 4GB DDR3 RAM + 64GB Frash ROM Storage ;2GRAM+32G/128GB ROM optional |
G_sensor | Gravity acceleration sensor |
Display | 7 inch 16:9 IPS Screen 800*1280 IPS LCD,Minimum 1000cd/m2, hardness over 7H, scratch resistant,support Handwriting pen |
GSM/GPRS/3G/4G | GSM band 850/900/1800/1900MHz,Class 12;3G WCDMA;4G LTE FDD TDD(LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28,LTE TDD: B40) |
WiFi | WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI, |
Bluetooth | BT4.2 (BLE) class 1.5 transmission distance:10m |
GPS | U-BLOX M8 GNSS.Support GPS/Beidou/glonass |
Dimensions/Weight | 216.98*133.96*21.4,weight 680g |
Expansion Slots/Keypad | Max 64G TF slot |
Battery | Rechargeable Li-ion battery 3.7V/7500mAh.nearly 7hours ( 50% volume sounds, 50% brightness, 1080P HD video display by default ) |
Camera | Front 2MP with indicator light, Rear 5MP Camera Auto focus with flash |
Interfaces | MicroUSB 2.0*1,SIM card slot*1,TF card slot*1,∮3.5mm standard earphone jack x1,DC 5V 3A ∮3.5mm Power connector x1,HDMI 1.4a Type C x1,12pin Pogo Pin x1 |
Speaker | Embedded 8Ω/0.8W waterproof speakerx 1 |
Mic | Sensitivity:-42db, output resistance2.2kΩ |
1D barcode scanner(Optional) | Honeywell N4313 Scan engine,optical resolution: 5mil,SCAN Speed: 50 times/s,support code system :UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93 ,Code 11 |
2D barcode scanner(Optional) | Honeywell N3680 scan engine, optical resolution:5mil,scan speed:50 times/s,support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse,Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse |
NFC(Optional) | NXP NFC 13.56MHz support SO/IEC 14443A/14443B/15693/18092/mifare protocol,Card reading distance:4cm |
RFID(Optional) | 1：read ISO14443A UID； 2：read ISO14443A/B、the 2nd generation UID； 3：read ISO14443A/B/15693/Felica； PS：(Select one from three as above) |
Fingerprint(Optional) | Standard UART/ USB port,Sensor type：Semiconductor capacitance，Image size 256 * 360 pixel,working voltage 3.8~5V,Working current 50mA,Standby current 35mA |
UHF(Optional) | M-550 UHF RFID slim all-in-one module: |
OTG cable | USB OTG to MICRO USB cable length:45mm |
USB cable | USB to micro 5P L=1.2M 4core aluminum foil shield cable |
Power Adaptor | AC100V ~ 240V,50Hz/60Hz output DC 5V/3A USA Standard CE approval |
Operating Temp/Humidity | Operating Temp:-20 to 50℃; Storage temperature-30°C to 70°C; Humidity:10%RH - 90%RH (Non-condensing) |
Protection class/Drop | Protection class:IP67; Drop resistance level:1.5M |
