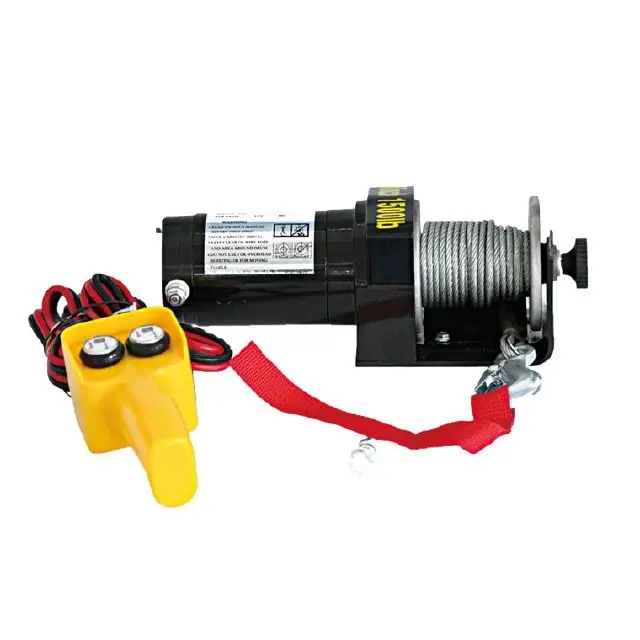

12V/24V ATV WINCH GDY 1500A 1, Electric winch 1500lbs for ATV Bicycle,Electric winch/Auto winch
- Category: >>>
- Supplier: Ningbo Good Shine Import And Export Co. Ltd.
Share on (62506402317):
Product Overview
Description
ATV/UTV Winch
- Permanent magnet motor supplies excellent line pull and faster speed
- Differential Planetary gearbox delivers the most stable and durable performance and is smooth and efficient for operation
- Wire rope can be easily pulled out with the freespooling clutch.
- Easy for installation, operation and maintenance.

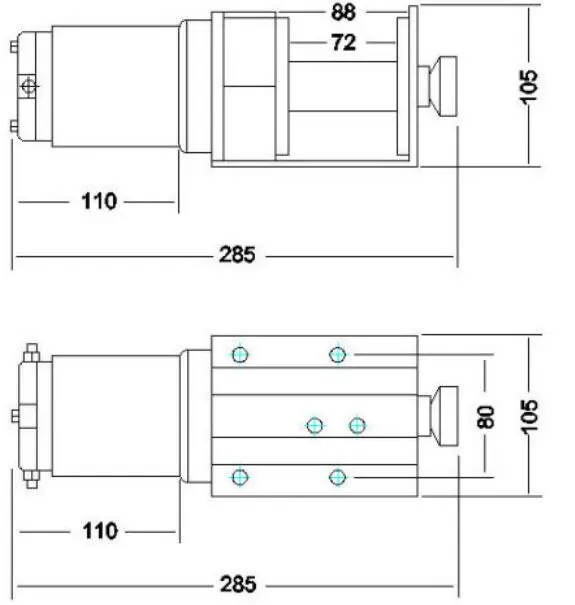

1500LB, WINCH SPECIFICATIONS
| Rated line pull: | 1500LBS(680kgs) single line | Motor: | Permanent magnet, 0.7kw/1.0hp |
| Voltage: | 12V/24V | Gear train: | Dierential Planetary |
| Cable(Dia×L): | Dimaete (4mm) Length (15m) | Control: | Remote switch |
| Drum size (Dia×L) | 32×72mm | Clutch | Sliding Ring Gear |
| Braking action | Automatic In-The-Drum | NW/GW: | 20kg/22kg(4pcs) |
| Gearing: | Differential planetary | MEAS: | 48x34x34cm (4pcs) |
| Gear Ratio: | 153:1 |
Pull, Speed, Amperes, Volts
| Line Pull (lbs./kgs) | Line Speed FBM (m/min) | Motor (Amps) |
| 0 | 10.5ft (3.2m) | 8 |
| 500(227) | 9.2ft(2.8m) | 30 |
| 1000(454) | 7.5ft(2.2m) | 60 |
| 1500(680) | 5.2ft(1.6m) | 90 |
| 2000(907) | 2.9ft(0.9m) | 120 |
Line Pull and Rope Capacity IN Layer
| Layer | Rated Line Pull (lbs./kgs) | Tatal Rope On Drum(ft/m) |
| 1 | 1500(680) | 6.6(2.0) |
| 2 | 1227(557) | 14.0(4.3) |
| 3 | 1038(470) | 23.5(7.2) |
| 4 | 899(408) | 35.0(10.6) |
| 5 | 793(360) | 47.0(14.4) |
| 6 | 709(322) | 50.0(15.0) |
