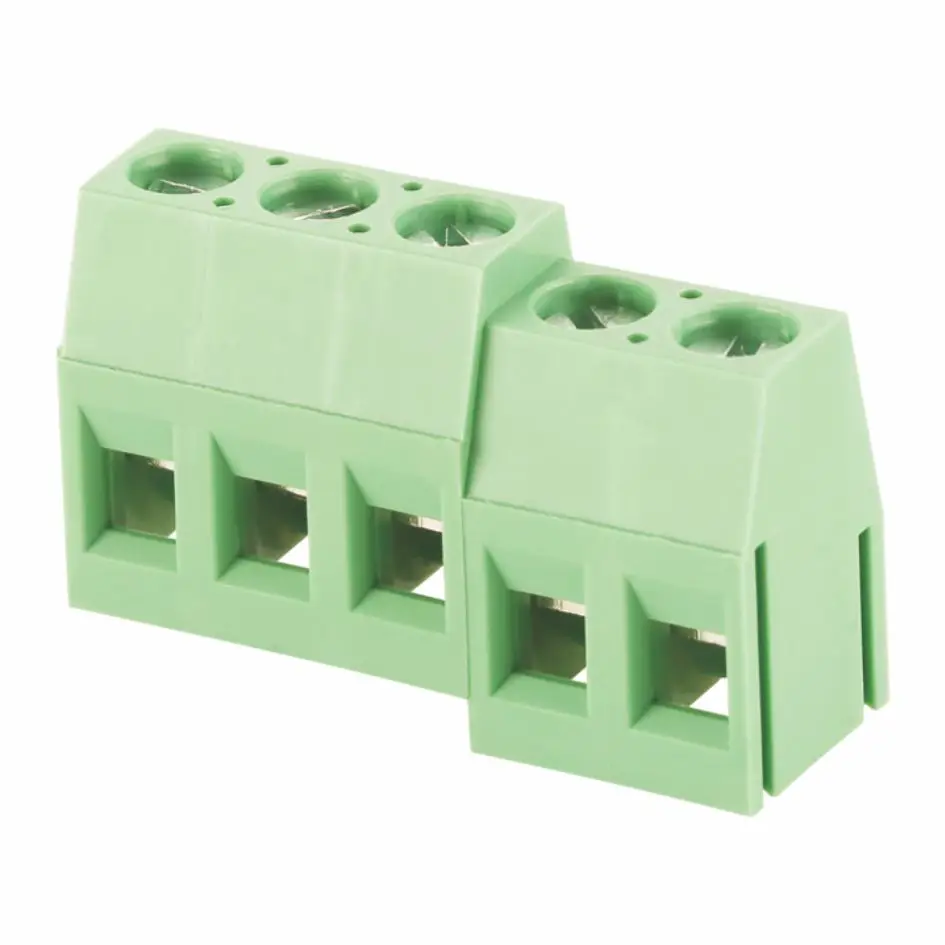

WANJIE 5.0mm pitch right angle pcb screw terminal block WJ125R 5.0
- Category: Terminal Blocks >>>
- Supplier: Cixi Wanjie Electronic Co. Ltd.
Share on (62506437608):
Product Overview
Description
WANJIE 5.0mm pitch right angle pcb screw terminal block
Product Description
Material
| Screws | M2.5 Steel Zn plated |
| Cage | Brass,Ni plated |
| Pin header | Brass,Sn plated |
| Housing | PA66 UL94V-0 |
Electrical
| Standed | UL IEC |
| Rated voltage | 300V 250V |
| Rated current | 16A 24A |
| Wire range | 24-12awg 2.5mm2 |
| Contact resistance | 20mΩ |
| Insulation resistance | 500MΩ,DC500V |
| Withstanding voltage | AC2000V/1Min |
Mechanical
| Temp.range | -40℃-+105℃ |
| Max.soldering | +250℃ for 5 sec |
| Torque | 4.08kgf-cm/0.4Nm/3.54Lbin |
| Strip length | 6-7mm |
