Automatic Feeding double sides Rotary Hot and Cold Laminator Roll Laminating machine for Printingshop LM 350D
- Category: Laminating Machines >>>
- Supplier: Anhui William CNC Technology Co. Ltd.
Share on (62506509978):
Product Overview
Description
Product Description
Mutil-Function Flatbed Cutter Creasing Paper Box Cutter Plotter
Automatic Hot and Cold Laminator
The F series automatic laminator is suitable for hot and cold lamination on papers,books, brochures,etc. We provide different models with various optional functions; customer can choose the right model according to real practical usage.Technical Parameters | ||||||||||||||
Model | LM-350A | LM-350B | LM-350C | LM-350D | LM-350E | LM-650A | LM-650B | |||||||
Paper feeder | manual | manual | manual | auto | auto | manual | manual | |||||||
Slitting | manual | manual | auto | auto | manual | manual | manual | |||||||
cold lamination device | / | √ | √ | √ | √ | / | √ | |||||||
film press gear | / | √ | √ | √ | √ | / | √ | |||||||
Perforate of film | / | √ | √ | √ | √ | / | √ | |||||||
Auto Seperator | / | / | √ | √ | / | / | / | |||||||
Manual Cutter | √ | / | / | / | / | √ | / | |||||||
Collecting Device | / | √ | / | / | √ | / | / | |||||||
Paper length | 110-700mm | 150-700mm | 110-700mm | |||||||||||
Paper thickness | 80-400gsm | 100-300hsm | 80-400gsm | |||||||||||
Max. Lamination width | 130-330mm | 130-630mm | ||||||||||||
Max. film roller diameter | 220mm | |||||||||||||
Laminating speed | 240m per hour | |||||||||||||
display | LCD Displayer | |||||||||||||
Heating roller | two heating rollers | |||||||||||||
Double side films | yes | |||||||||||||
Auti-curl device | Anti-curl level 18 | |||||||||||||
voltage | 220V(110V)+-10% 50Hz(60Hz) | |||||||||||||

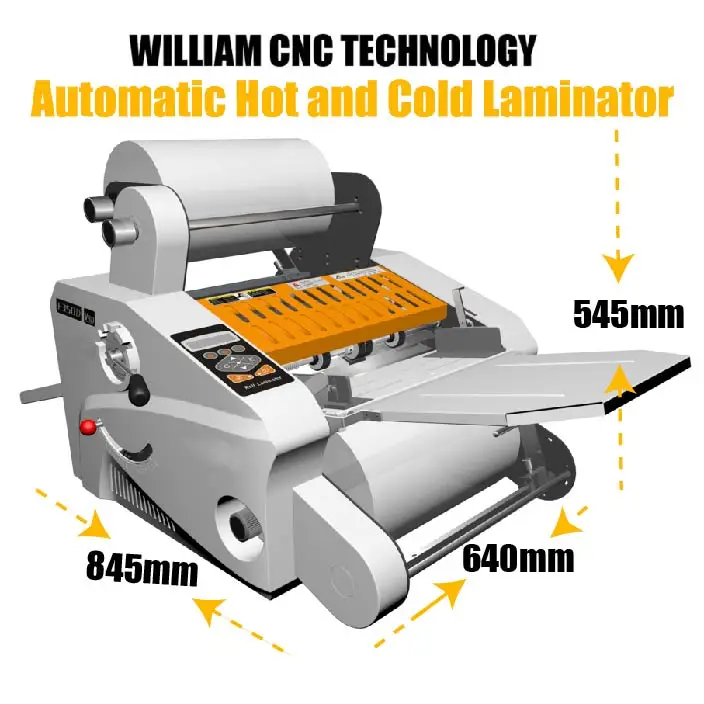

Dimension | LM-350A/LM-350C: 730*640*545mm LM-350B/LM-350D:845*640*545mm LM-350E:1020*640*545mm | 650A:730*960*1220mm 650B: 845*960*1220mm | ||||||||||||
N.W/G.W | 55kg/60kg | 93kg/99kg | ||||||||||||
Main Features
♦ Classic and patent design.
♦ More convenient and easily side roll patent.
♦ Automatic slitting patent,release man power.
♦ Cut gap patent,apart the paper automatically.
♦ Infrared judge the feeder,end paper stopping automatically and avoid the film in resin roll by error.
♦ Cold laminator roll,adjustable the loose and tight.
♦ LCD display,setting easily.
♦ 18 gear anti roll,have ilmstabilized cool fan.
♦ Standard configure is 1” and 3” film, max biggest roll is 220mm.
♦ Adjustable digital speed and fed power,which suitable for different demand.

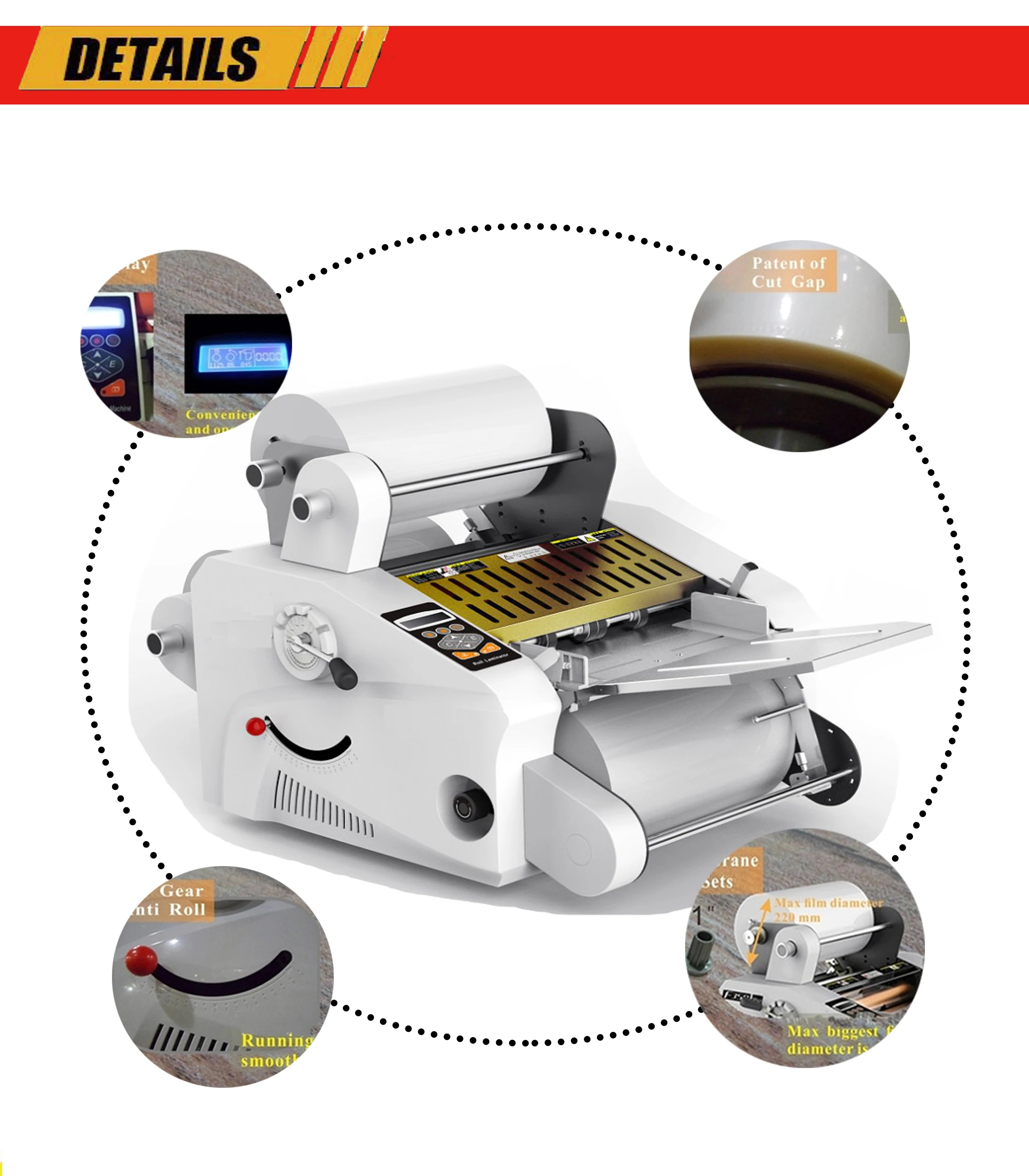

Detailed Images
