Gigabit PoE Injector cable use as poe splitter / power over ethernet connector from 12V 56V for MikroTik and other PoE Products
- Category: >>>
- Supplier: Shenzhen Zhangqing Electronic Ltd.
Share on (62506536657):
Product Overview
Description
Products Description

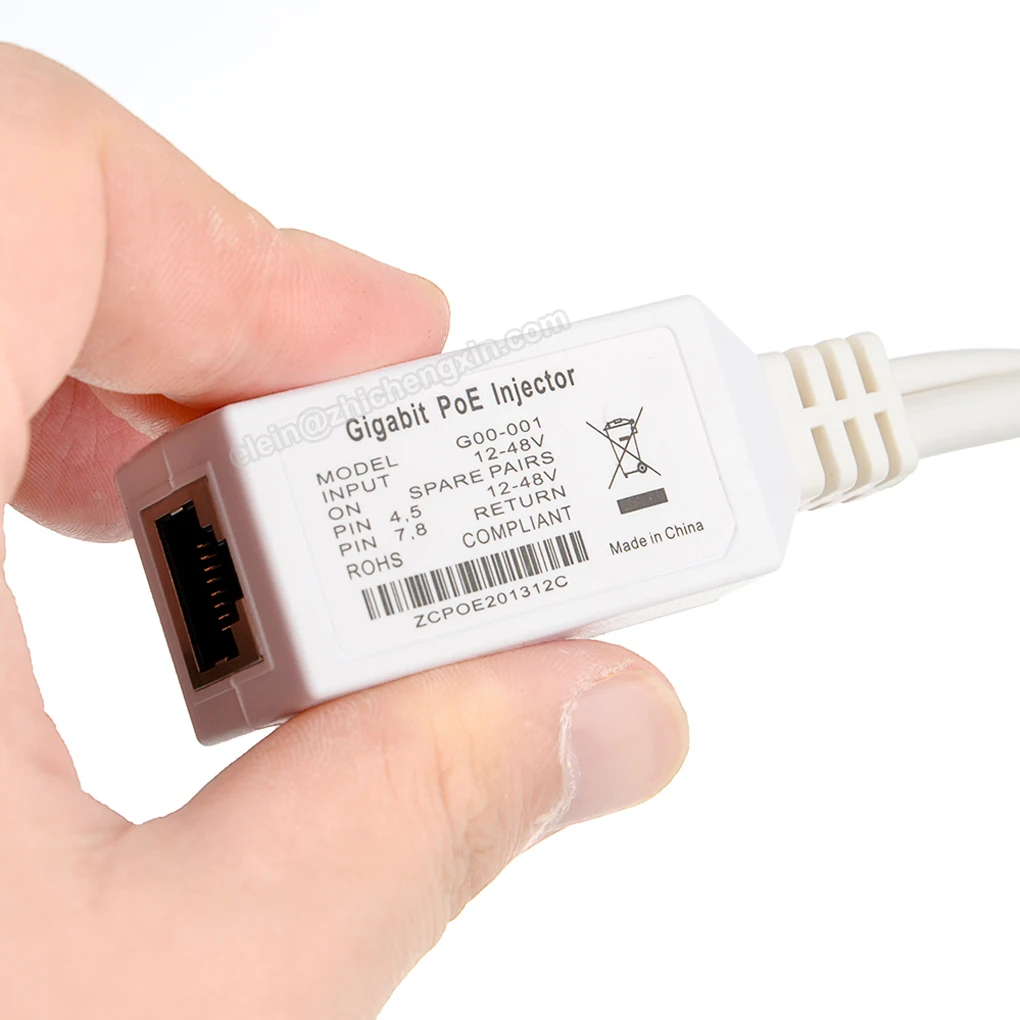

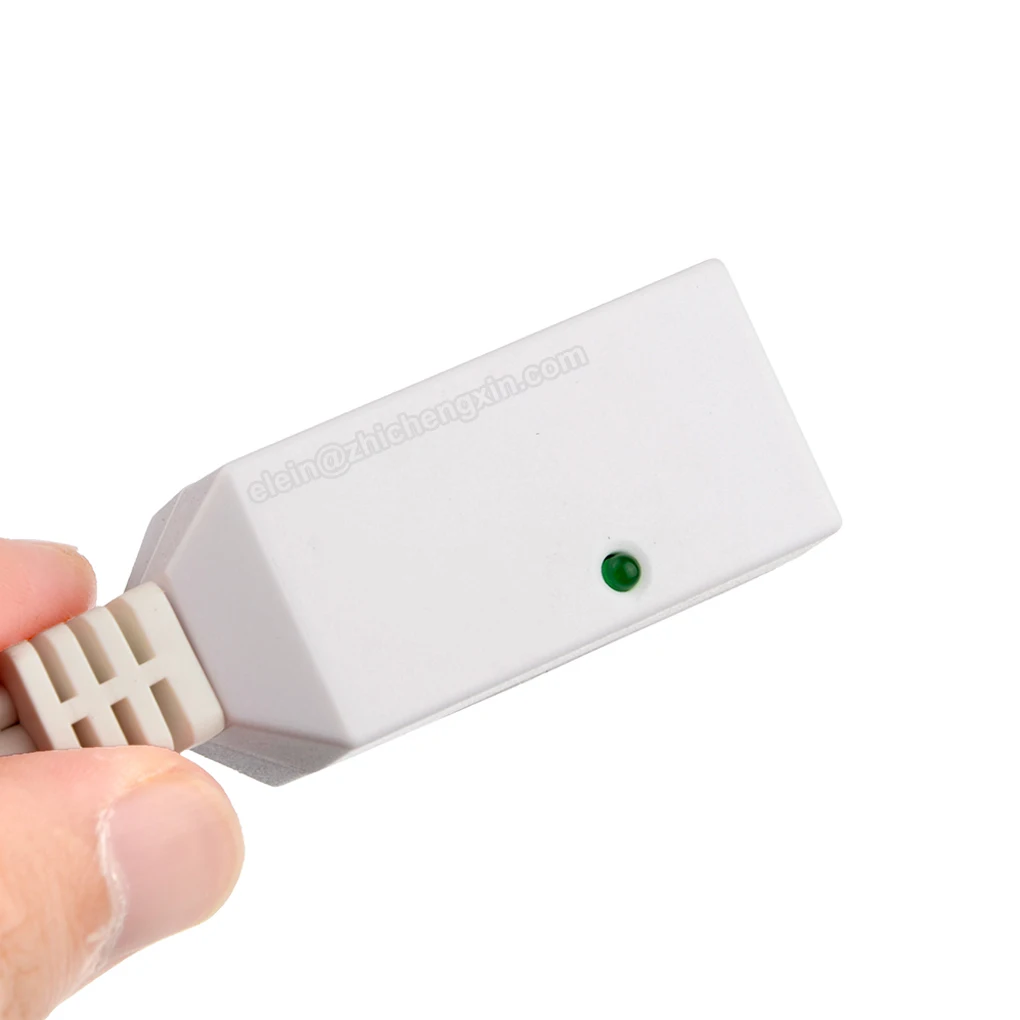

Gigabit POE Injector cable use as poe injector or poe splitter

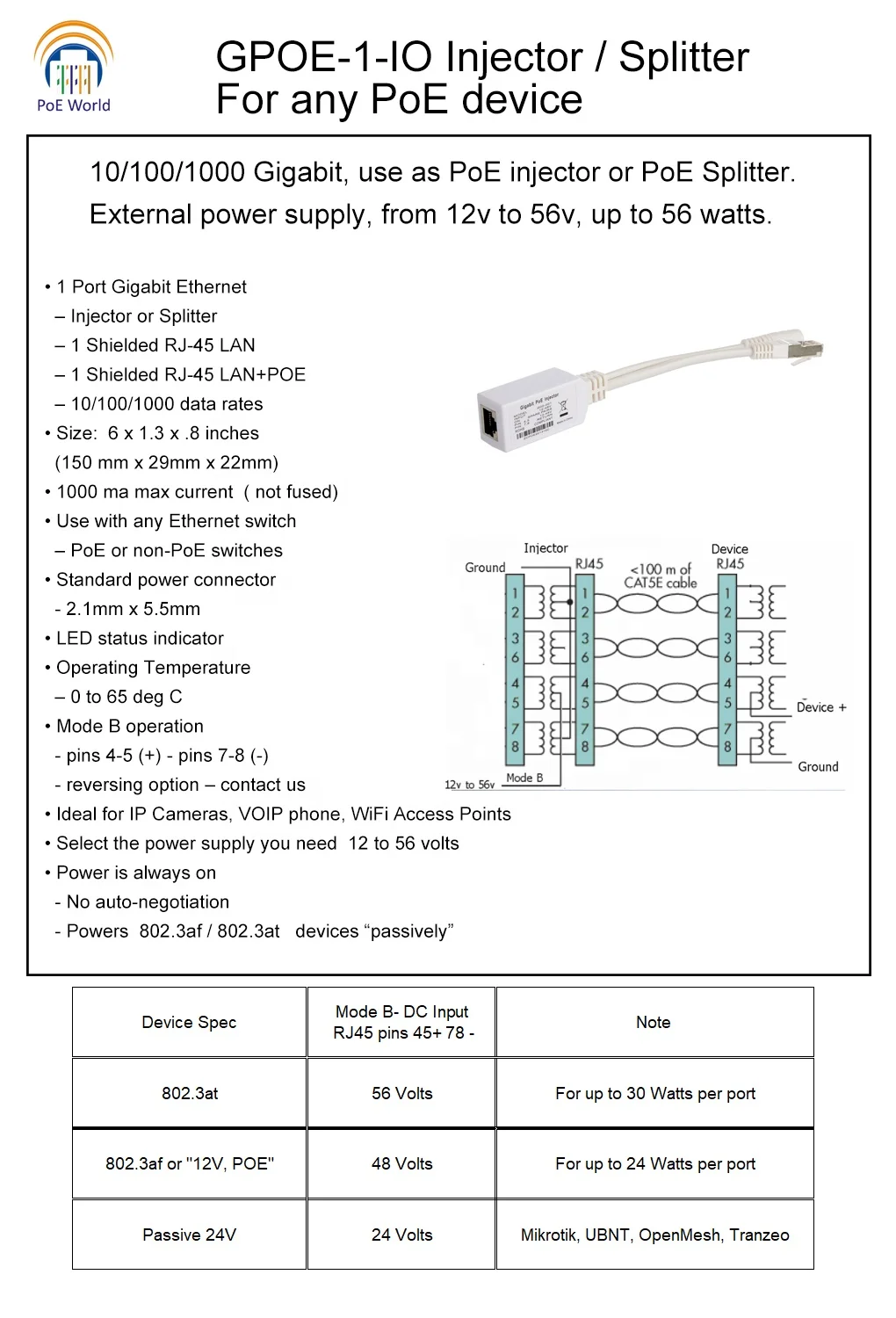

Specification :
1 Port Gigabit Ethernet
– Injector or Splitter

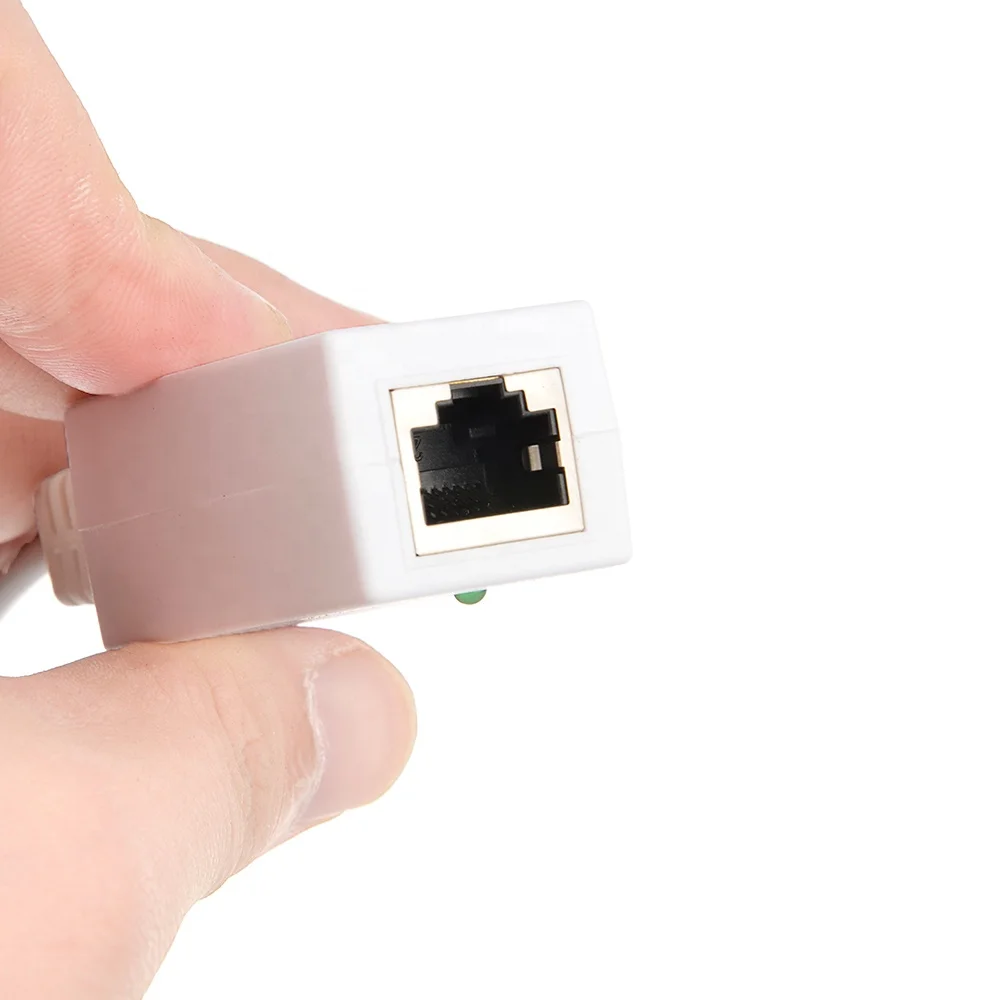

– 1 Shielded RJ-45 LAN

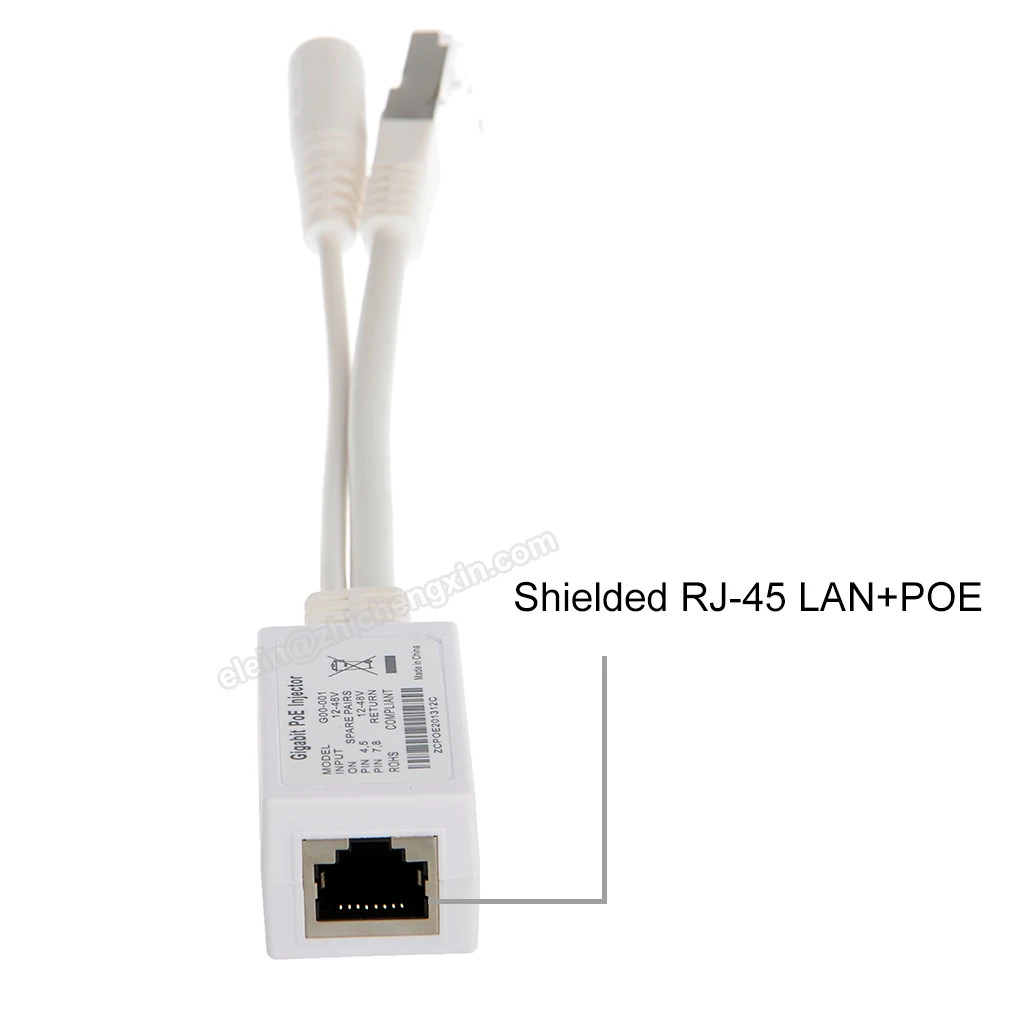

– 1 Shielded RJ-45
LAN+POE – 10/100/1000 data rates
LAN+POE – 10/100/1000 data rates
• Size: 6 x 1.3 x .8 inches (150 mm x 29mm x 22mm)
• 1000 ma max current ( not fused)
• Use with any Ethernet switch –PoE or non-PoE switches

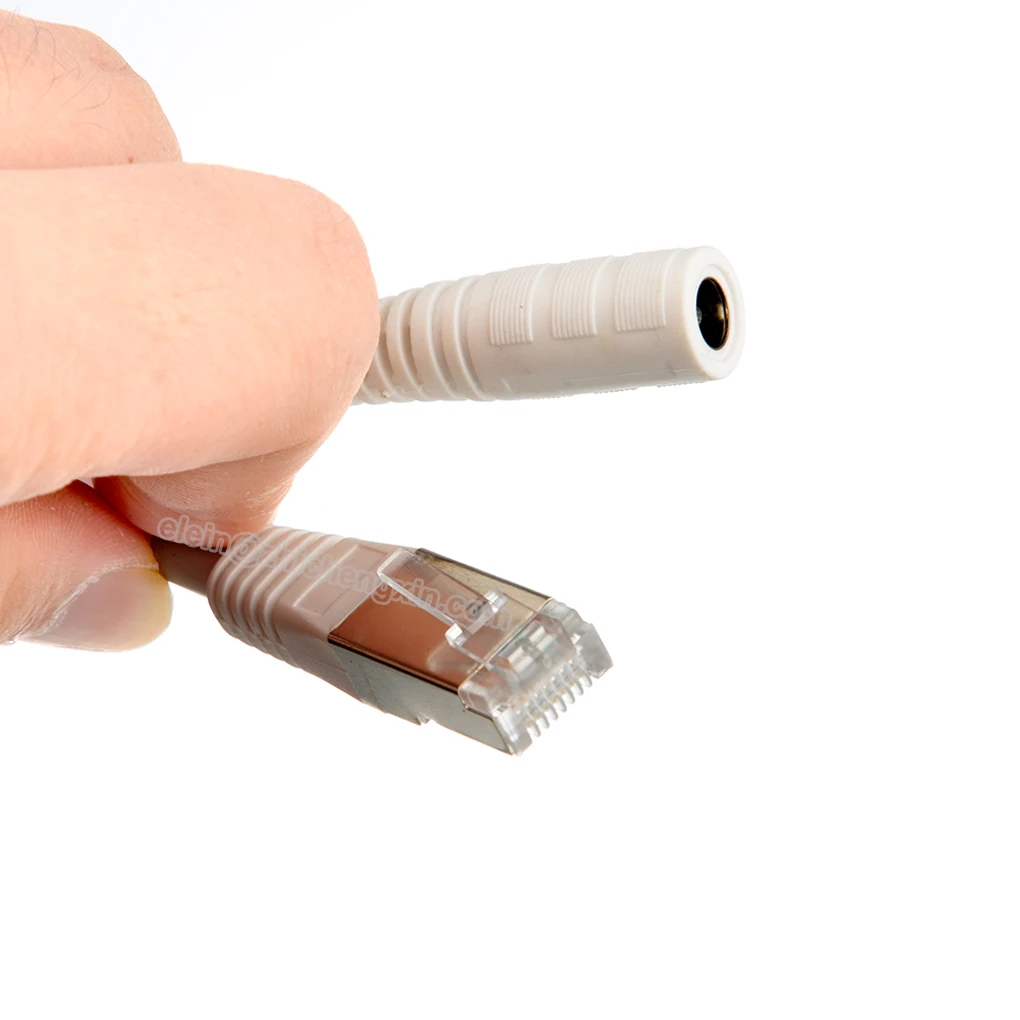

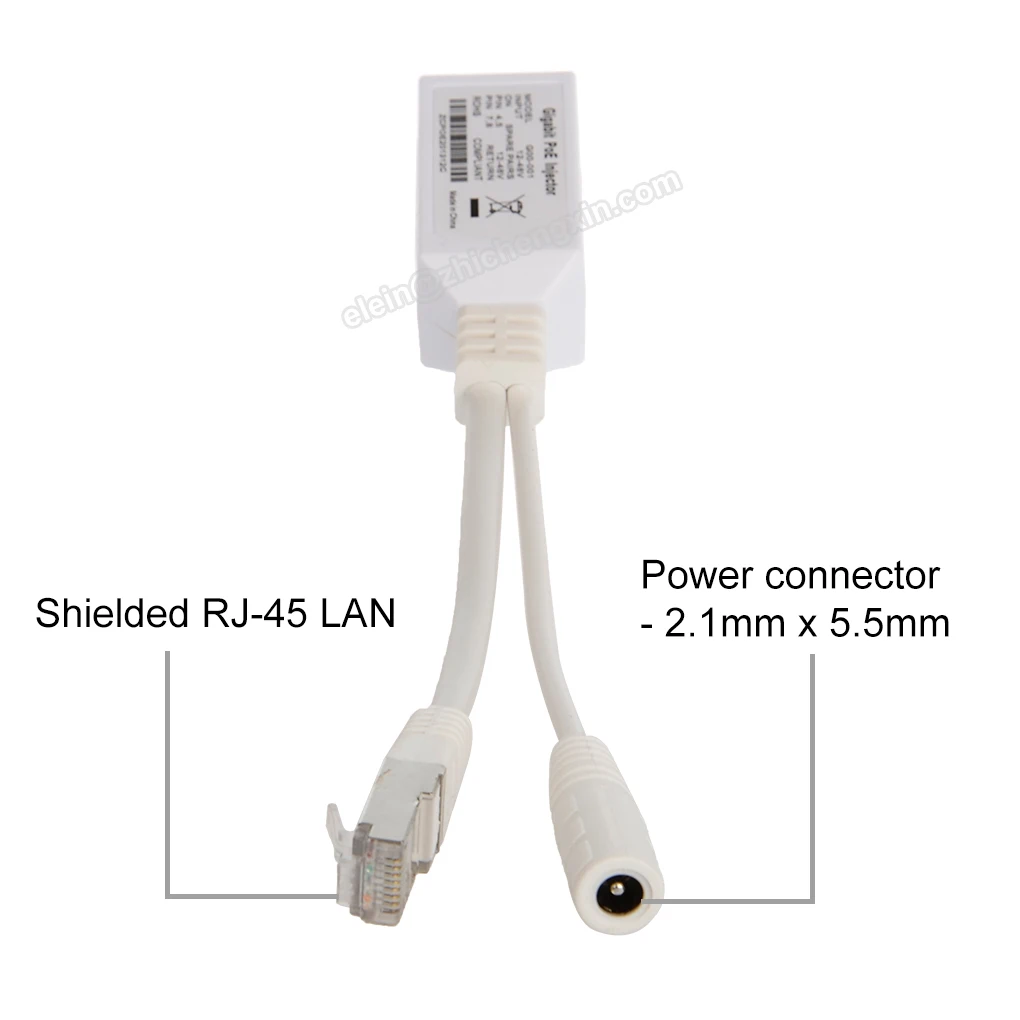

• Standard power connector - 2.1mm x 5.5mm

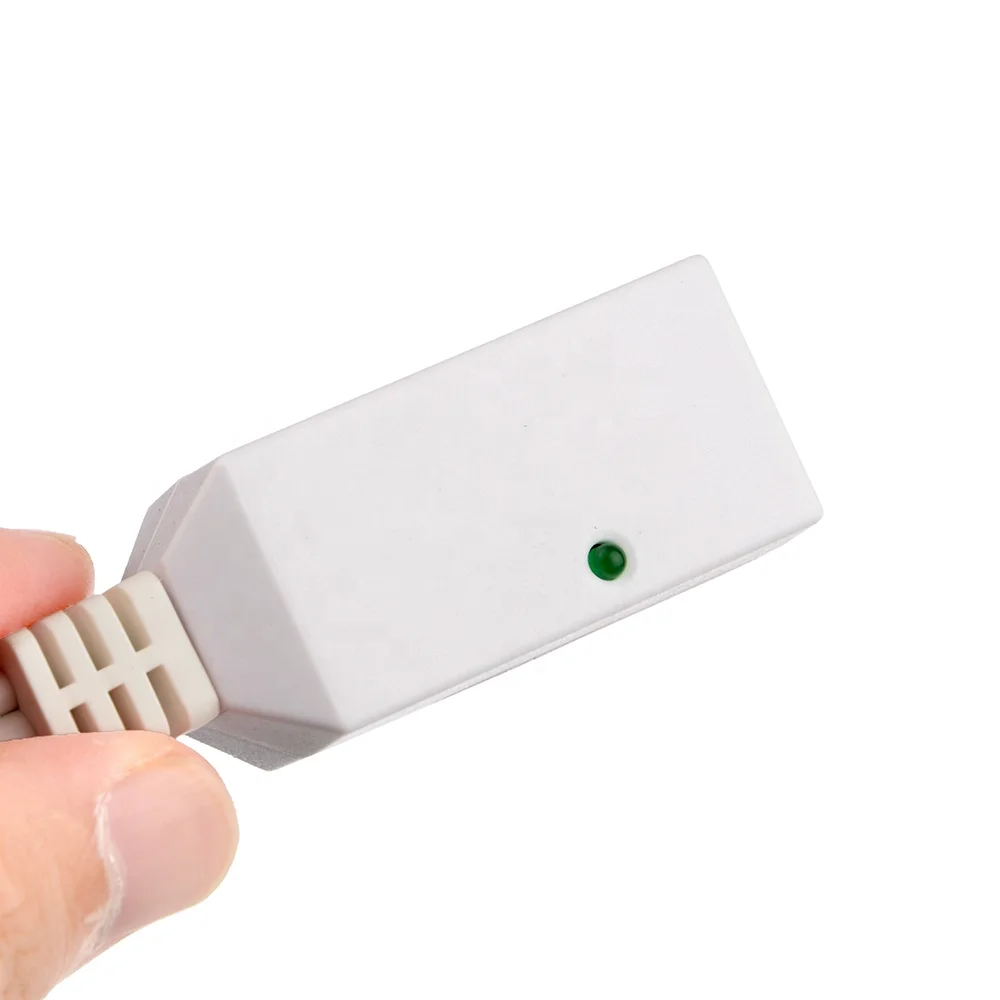

• LED status indicator • Operating Temperature – 0 to 65 deg C
• Mode B operation- pins 4-5 (+) - pins 7-8 (-) • 1000 ma max current ( not fused)
• Use with any Ethernet switch –PoE or non-PoE switches
• Standard power connector - 2.1mm x 5.5mm
• LED status indicator • Operating Temperature – 0 to 65 deg C
• Ideal for IP Cameras, VOIP phone, WiFi Access Points
• Select the power supply you need 12 to 56 volts.
• Power is always on
- No auto-negotiation
- Powers 802.3af / 802.3at devices “passively”
Please contact elein@zhichengxin.com if you need any help.
