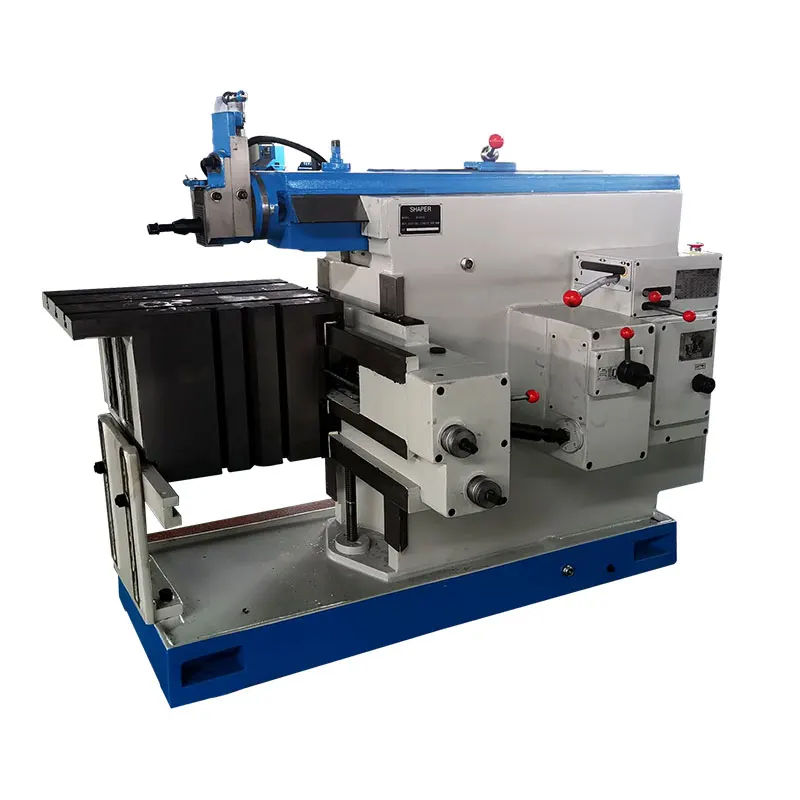

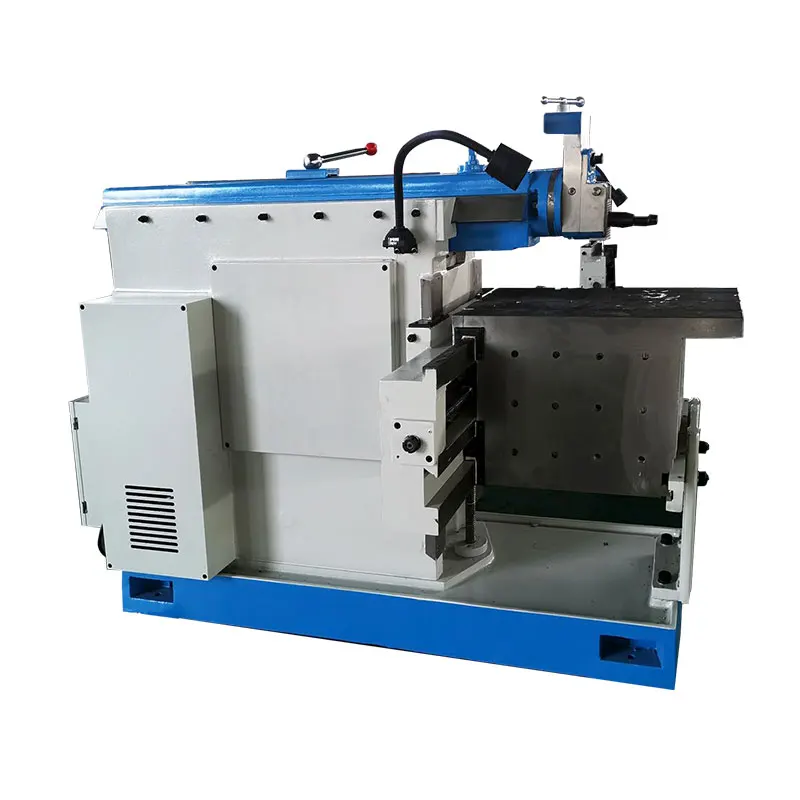

BC6066 metal working shaping machine price
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (62506658821):
Product Overview
Description
Product Description
Model | BC6066 | ||
Maximum cutting length(mm) | 660MM | ||
Max.range horizontal movement of the table | 385MM | ||
Max.distance between the ram bottom and table | 630MM | ||
Max.length of the vertical movement of table | 360MM | ||
Dimensions of table top(L×W) | 660X400MM | ||
Max.stroke length of the toolhead | 120MM | ||
Max.swivel angle of the toolhead | ±60° | ||
Max.section of tool(W×T)(mm) | 20×30MM | ||
Number of ram reciprocation per minute | 14-80 | ||
Range of table feed: | horizontal | 0.2-2.5 | |
Vertical | 0.08-1.00 | ||
Width of the T-slot(mm) | 18MM | ||
Power of the main motor | 3KW | ||
N.W/G.W(kg) | 1800/1920KGS | ||
Overall dimensions(L×W×H)(mm) | 2357×1225×1480MM | ||
