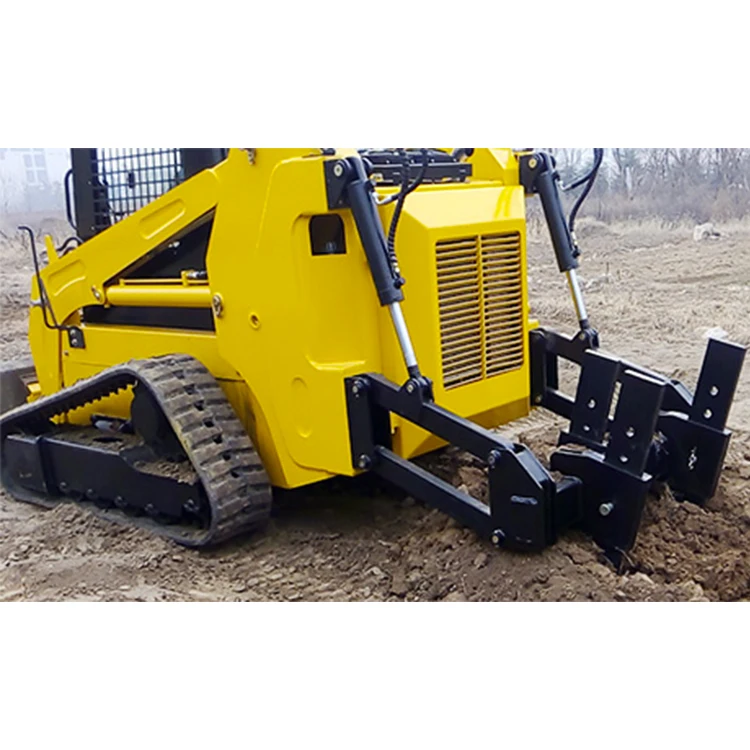

Китайский многофункциональный мини погрузчик с бортовым поворотом от двери до двери из Юго Восточной Азии TS100
- Category: Loaders >>>
- Supplier: Changzhou Chuangcheng Precision Machinery Co. Ltd.
Share on (62506673099):
Product Overview
Description

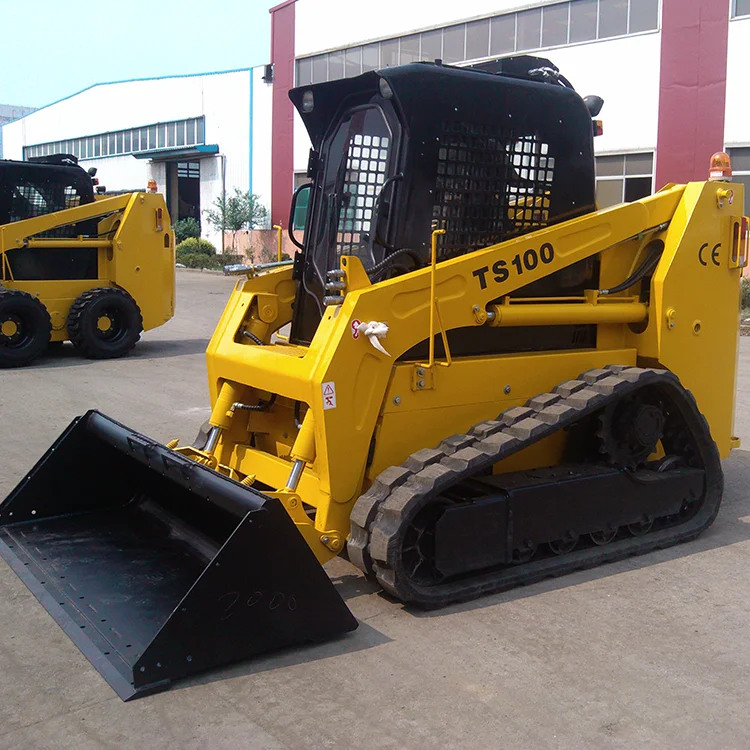

Door to door Southeast Asia TS100 Chinese Multifunctional Mini Skid Steer Loader

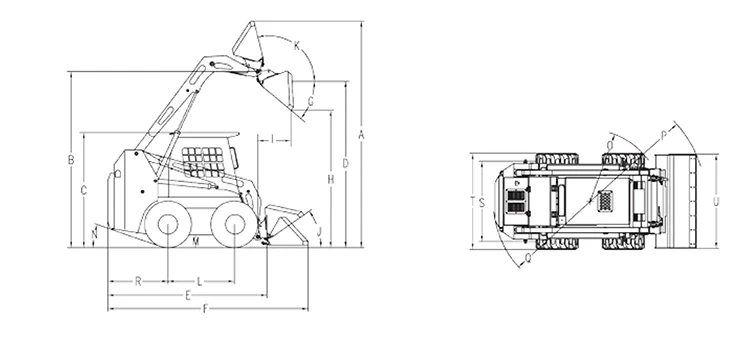

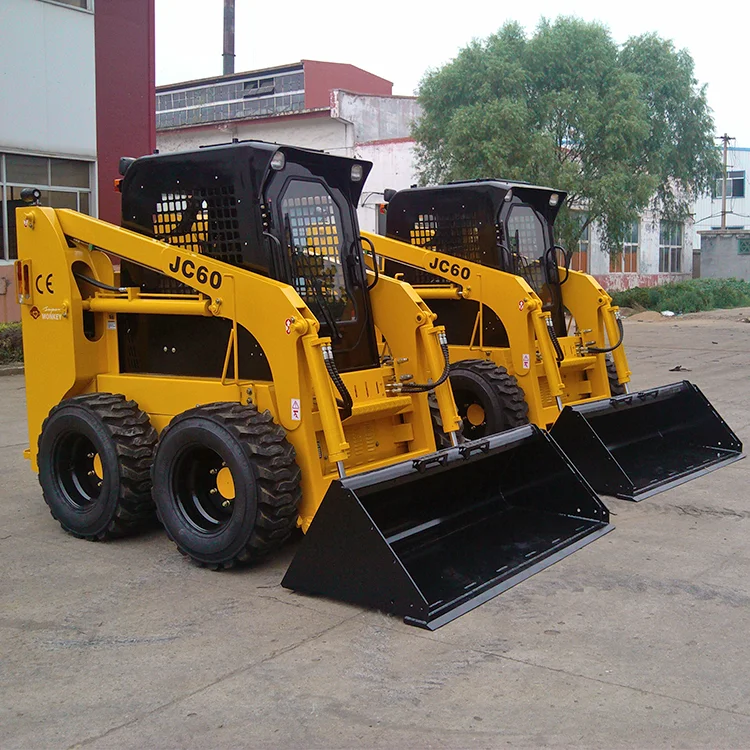

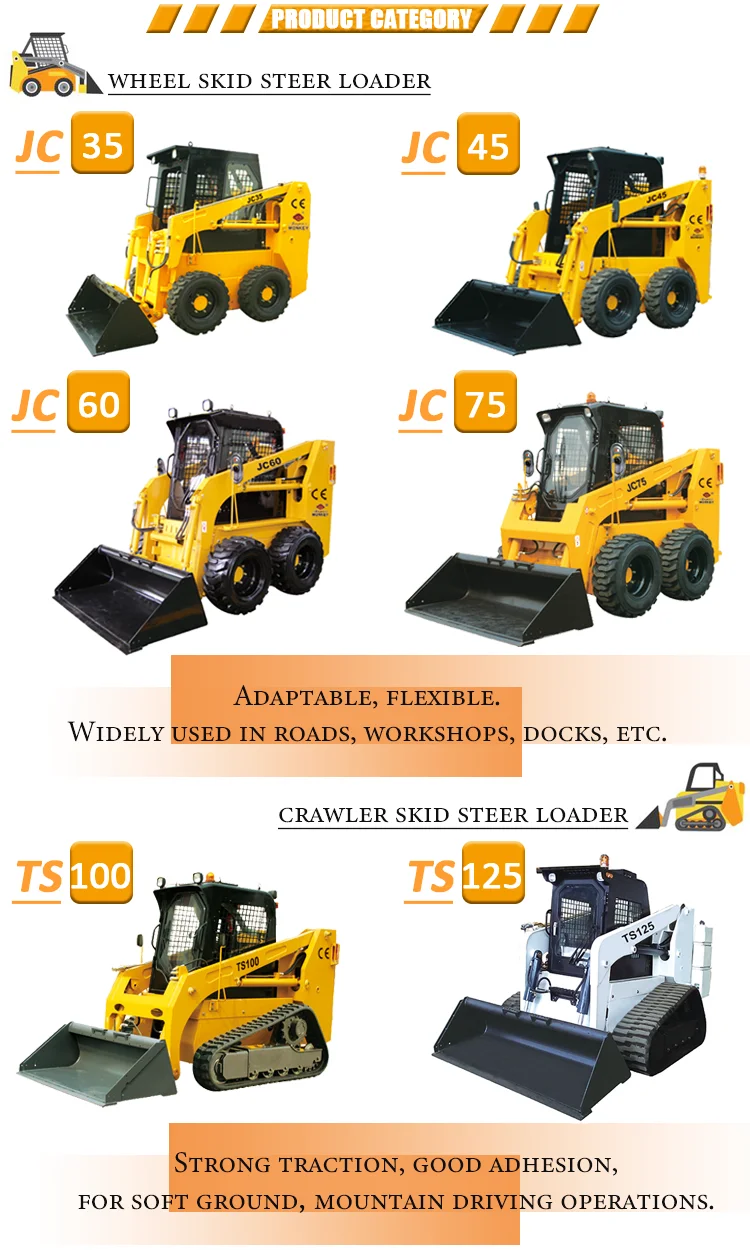

JC wheel skid steer loader

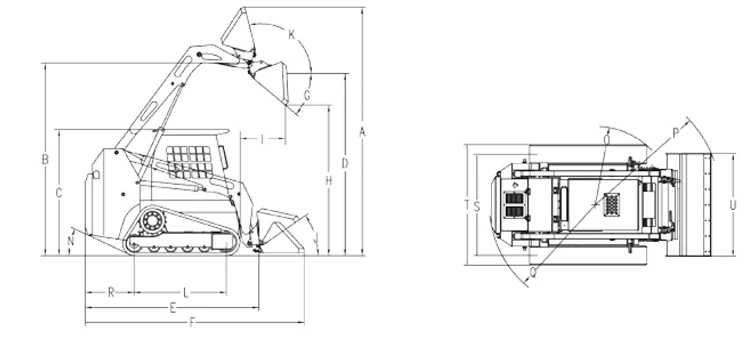

TS crawler skid steer loader
Model | JC35 | JC45 | JC60 | JC75 | TS100 | TS125 | |
Operating load (kg) | 500 | 700 | 850 | 1050 | 1200 | 1500 | |
Max Speed(km/h) | 10 | 12 | 12 | 12 | 12/18 | 12/18 | |
Rated flux (L/min) | 60 | 62.5 | 75 | 80 | 88 | 88 | |
Tire(track) model | 8.5-15 | 10-16.5 | 12-16.5 | 12-16.5 | 320*84 | 450*86 | |
Rated power (Kw) | 29.5 | 37 | 45 | 55 | 74 | 103 | |
Fuel tank capacity (L) | 60 | 60 | 60 | 75 | 90 | 90 | |
Self weight bucket (kg) | 2300 | 2600 | 3000 | 3500 | 4500 | 4800 | |
Bucket capacity (m3) | 0.3 | 0.4 | 0.45 | 0.5 | 0.55 | 0.6 | |
A | Overall operating height (mm) | 3300 | 3670 | 3690 | 4070 | 4070 | 4070 |
B | Height to bucket hinge pin (mm) | 2725 | 2900 | 2920 | 3150 | 3150 | 3150 |
C | Height to top of cab (mm) | 2000 | 2030 | 2050 | 2160 | 2160 | 2160 |
D | Height to bottom of level bucket(mm) | 2558 | 2733 | 2753 | 2983 | 2983 | 2983 |
E | Overall length ithout bucket(mm) | 2300 | 2450 | 2630 | 2880 | 3000 | 3000 |
F | Overall length with bucket(mm) | 2950 | 3200 | 3380 | 3580 | 3700 | 3700 |
G | Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 |
H | Dumping height(mm) | 2050 | 2380 | 2400 | 2450 | 2450 | 2450 |
I | Dumping reach(mm) | 790 | 700 | 750 | 700 | 700 | 700 |
J | Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 |
K | Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 |
L | Wheelbase(mm) | 897 | 991 | 991 | 1115 | 1500 | 1500 |
M | Ground clearance(mm) | 140 | 185 | 205 | 205 | 200 | 200 |
N | Angleof departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 |
O | Front turning radins without bucket(mm) | 1098 | 1168 | 1198 | 1250 | 1365 | 1365 |
P | Front tuning radius(mm) | 1760 | 1958 | 1958 | 2112 | 2200 | 2200 |
Q | Rear tuning radius(mm) | 1296 | 1630 | 1728 | 1774 | 1742 | 1742 |
R | Rear axle to bumper (mm) | 964 | 1108 | 1208 | 1082 | 938 | 938 |
S | Tread width,enterline to centerline (mm) | 1080 | 1450 | 1500 | 1500 | 1654 | 1654 |
T | Width (mm) | 1350 | 1720 | 1800 | 1880 | 1994 | 2124 |
U | Bucket width (mm) | 1400 | 1740 | 1820 | 1880 | 2030 | 2160 |

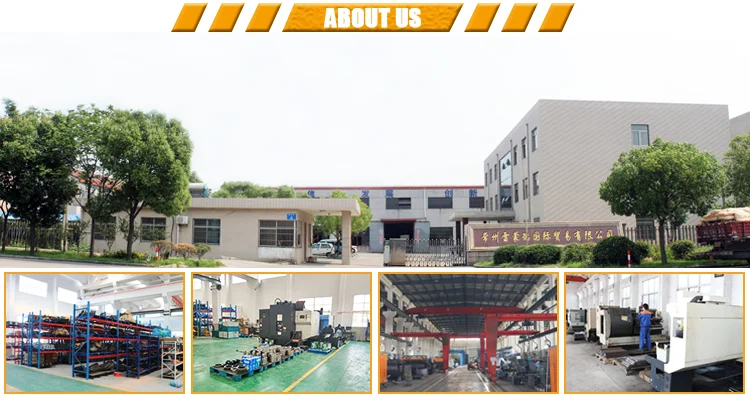

RAYMOND is a factory with authorized Imp. & Exp. right which including two companies,Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd, located in Changzhou City,Jiangsu Province,China,Factory building areas cover around 20,000 Square Meters.Raymond Precision Machinery Co.,Ltd was established in 2002,committed to focus on the development,production and sales of construction machinery and their spare parts.
FAQ:
Q: Are you a manufacturer?
A: Yes,our factory was established in 2002 and we have our own trading company.
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers’ design?
A: Sure, we can provide OEM and ODM service.
Q: What’s the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: About 10 work days after the payment, depend on your quantity.
Q: How about the package?
A: Our vibro ripper packed by polywood case.
Q: Which country have you exported?
A: Vietnam, Saudi Arabia, America, Thailand, New Zealand, Canada, Australia, Peru, Chile, Brazil, Mexico, Iran, South Africa, etc.
A: Yes,our factory was established in 2002 and we have our own trading company.
Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.
Q: Can you provide customers’ design?
A: Sure, we can provide OEM and ODM service.
Q: What’s the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: About 10 work days after the payment, depend on your quantity.
Q: How about the package?
A: Our vibro ripper packed by polywood case.
Q: Which country have you exported?
A: Vietnam, Saudi Arabia, America, Thailand, New Zealand, Canada, Australia, Peru, Chile, Brazil, Mexico, Iran, South Africa, etc.
