Прямая продажа с завода, склеивающая машина для картонных коробок
- Category: Printing Machine >>>
- Supplier: Huizhou Degang Machinery Co. Ltd.
Share on (62506829255):
Product Overview
Description
Product Description
Product Description
High speed automatic folder gluer
TECHNOFOLD 1450 – AC
Without pre-folding section.
Suitable for straight-line, crash-lock bottom & double wall boxes.
TECHNOFOLD 1450 – PC
Suitable for straight-line, crash-lock bottom & double wall boxes.
TECHNOFOLD 1450 – SL
Suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes.
TECHNOFOLD-1450 Ideal for working with medium and large boxes in the heavy packaging industry. Its design includes driven upper carriers, making easy the precise folding and closing micro-flute and corrugated boxes in its advance.
The new Technofold series inherits the best features of the previous Technofold ES series, making a qualitative leap by developing
new solutions. Versatility, fast exchange of accessories, easy setup together with faster production speed, guarantee a high
productivity and quality of work. Technofold, the perfect folder-gluer machine for the most demanding packaging market.
Without pre-folding section.
Suitable for straight-line, crash-lock bottom & double wall boxes.
TECHNOFOLD 1450 – PC
Suitable for straight-line, crash-lock bottom & double wall boxes.
TECHNOFOLD 1450 – SL
Suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes.
TECHNOFOLD-1450 Ideal for working with medium and large boxes in the heavy packaging industry. Its design includes driven upper carriers, making easy the precise folding and closing micro-flute and corrugated boxes in its advance.
The new Technofold series inherits the best features of the previous Technofold ES series, making a qualitative leap by developing
new solutions. Versatility, fast exchange of accessories, easy setup together with faster production speed, guarantee a high
productivity and quality of work. Technofold, the perfect folder-gluer machine for the most demanding packaging market.
1. Feeder section
* Independent and motorized friction feeder with variable speed.
* Adjustable electronic pile vibrator.
* Lateral feed gates fully adjustable to the width of the blank.
* 6 feeder belts.
* Two adjustable front feed knives.
* Adjustable electronic pile vibrator.
* Lateral feed gates fully adjustable to the width of the blank.
* 6 feeder belts.
* Two adjustable front feed knives.
2. Side register section
Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank
alignment.
alignment.
3. Pre-folding section
* Left hand glue flap pre-folder up to 180º.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.
4. Crash lock bottom section
* 3 sets of upper and lower carriers.
* Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
* Set of accesories for "B" lock bottom.
* Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
* Set of accesories for "B" lock bottom.
5. Lower gluing unit
* Left lower gluing tank.
* Easy to remove and clean.
* Easy to remove and clean.
6. Folding and Closing section
* Smooth and accurate folding of 2nd and 4th creases.
* Outer folding belts adjustable up to 180º with variable speed.
* Three upper and lower carriers.
* 25 mm lower and 30 mm outer belts on left and rigth carriers.
* Width-wise adjustable heavy duty compression rollers.
* Outer folding belts adjustable up to 180º with variable speed.
* Three upper and lower carriers.
* 25 mm lower and 30 mm outer belts on left and rigth carriers.
* Width-wise adjustable heavy duty compression rollers.
7. Trombone section
* Upper and lower drive mechanism for length adjustment.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well
aligned flow.
* Electronic counter and ¨Kicker¨ for marking packets.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well
aligned flow.
* Electronic counter and ¨Kicker¨ for marking packets.
8. Press section (Delivery section)
* Independent & motorized press section.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward, allowing for different box length.
* 5.5 meters total length with 3.1 meters effective pressure length.
* Pneumatic pressure adjustment
* Independent & motorized press section.
* Manual and Automatic mode (follow up).
* Upper section moves back and forward, allowing for different box length.
* 5.5 meters total length with 3.1 meters effective pressure length.
* Pneumatic pressure adjustment
9. Back folding device
* Suitable to fold rear 4 & 6-corner flaps or panels and many other designs.
* Motorized and untimed electronic back folding system with intelligent servo motor tech-nology.
* Easy to setup through the main touch screen.
* Suitable to fold rear 4 & 6-corner flaps or panels and many other designs.
* Motorized and untimed electronic back folding system with intelligent servo motor tech-nology.
* Easy to setup through the main touch screen.
Detailed Images
Detailed Images

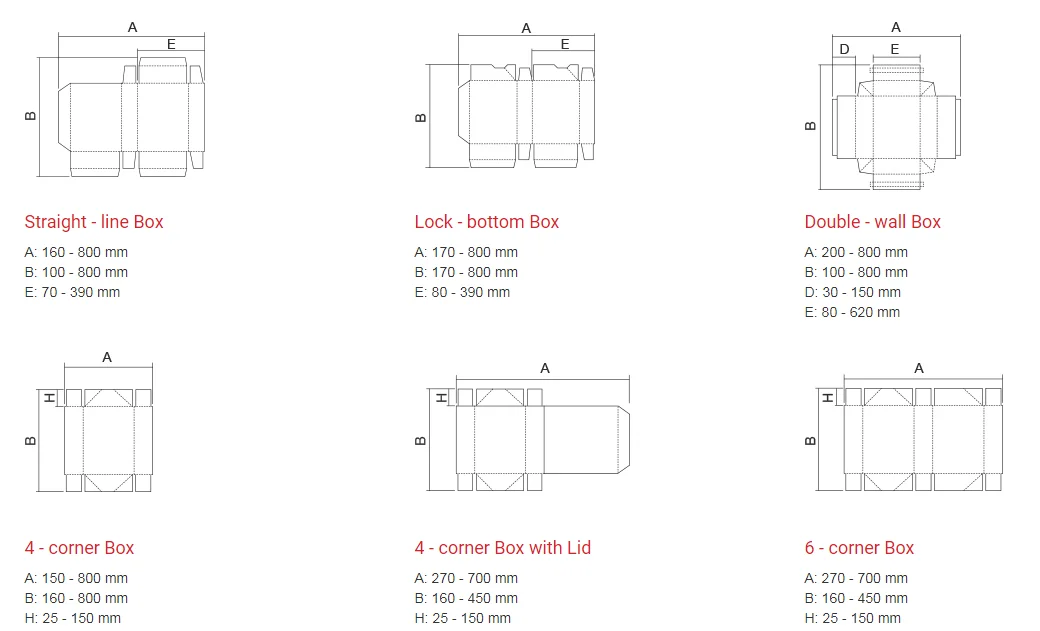

Size Information
Size Information
BOX
BOX
SCEME
SCEME
