Beer brewing system 500l brew house 500l

Product Overview

Description

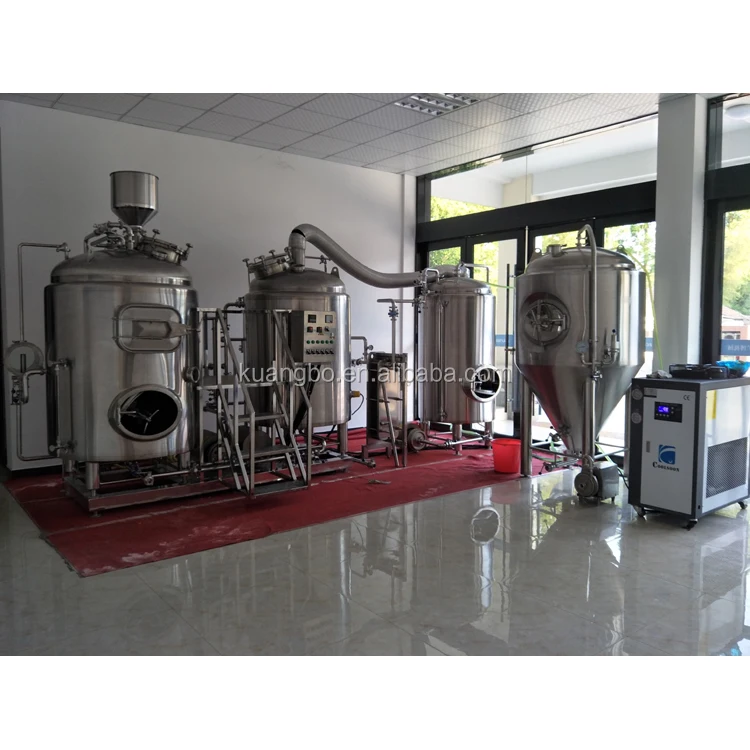

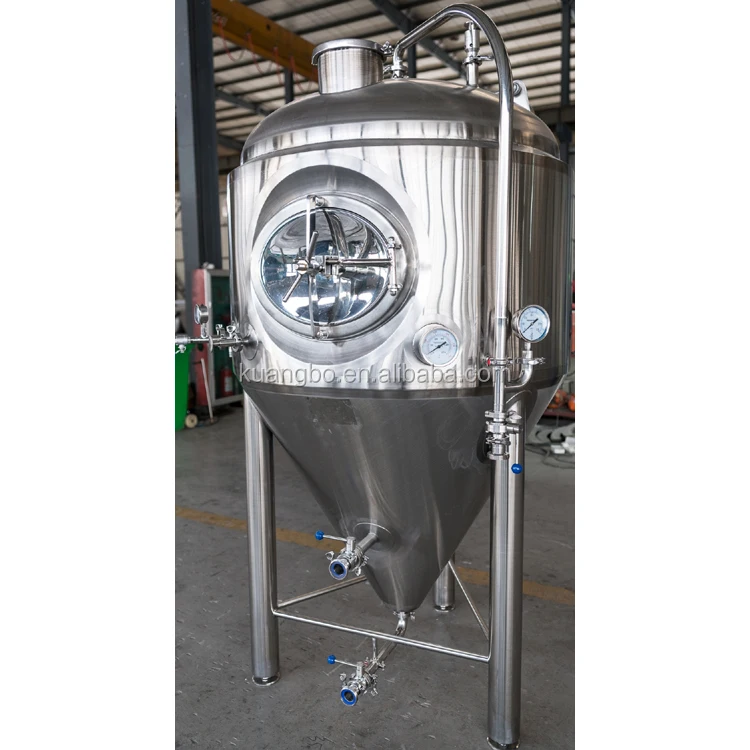

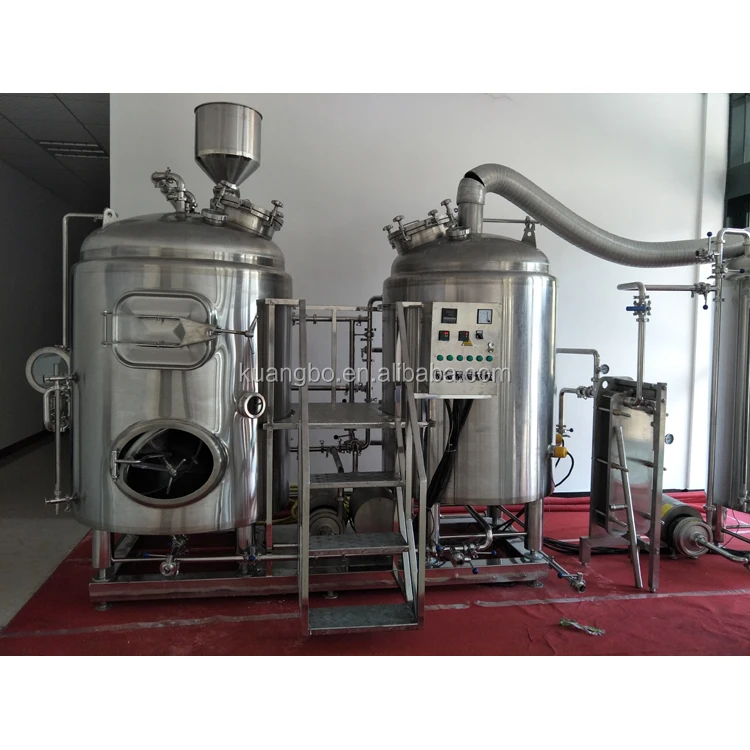

1. Product photos:







2. Introduction of product:



Beer brewing system 500l brew house 500l

Serial  No.	Main system	Components
1	Malt Milling System	Malt Mill
		Grain screw conveyor
		Grain silo
2	Brewhouse	Mash tun
		Lauter Tun
		Kettle
		Whirlpool
		Hot liquid tank
		Buffer tank (optional)
		Plate heat exchanger
		Pumps
		Stiring device (optional)
		Other accessories: 1. operating platform; 2. pipelines  between above vessels and devices; 3. areation device;  4. butterfly valves; 5. sight glass used on pipes.
3	Fermenting System	Fermentation Tank
		Yeast adding tank (optional)
		Bright beer tank (optional)
4	Cooling System	Ice Water Tank (optional)
		Glycol tank
		Chiller
		Pump
		Relative pipes and fittings between above vessels and  devices
5	CIP System	Acid tank
		Alkali tank
		Water tank
		Pumps
		Relative pipes and fittings between above vessels and  devices
6	Control  System	Brewhouse control panel
		Fermenting system control panel
		Cooling system control panel

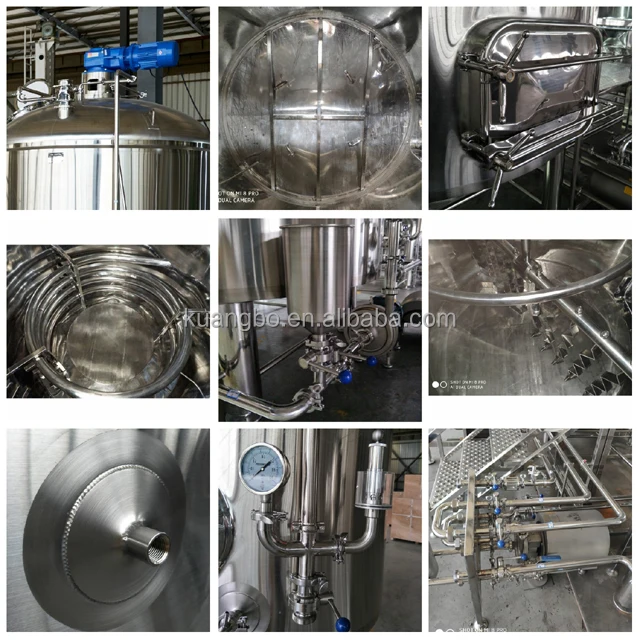

3. Photos of accessories:



4. Main products:

















1. Soft protection material wrapped outside the product.
2. Mounted on iron stand if product is too tall and have to lay down for loading.
3. Packed by export standard crate (usually for LCL, but can also for FCL if customer required).

4. After loaded into containers, products will be well fixed to the containers.
